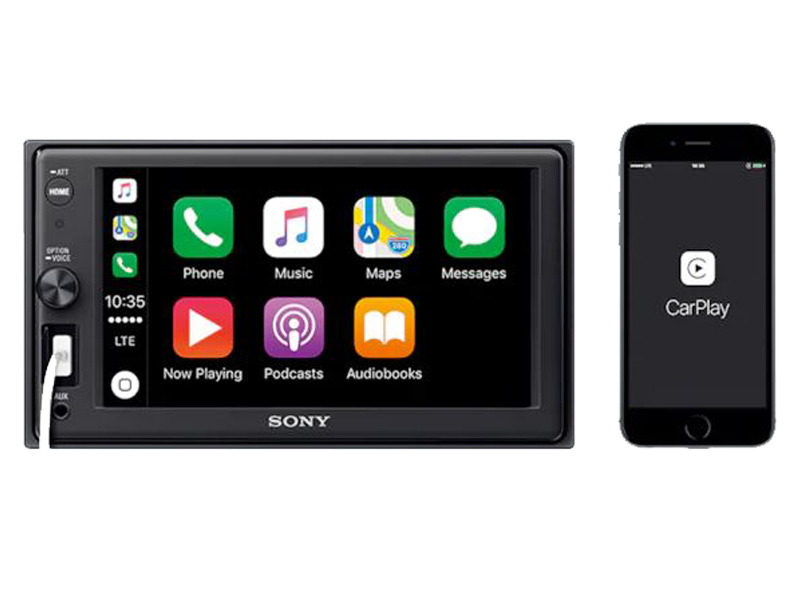

Apple CarPlay makes driving smarter
Use all your essential iPhone functions on the road with Apple CarPlay. Just plug in your phone to get started. Tap the icons to take calls, check voicemails and text messages, bring up maps, or even talk to Siri. And of course, listen to your favourite songs using iTunes, Apple Music or apps. You can dictate text messages, control music playback or get directions, without ever taking your eyes off the road.

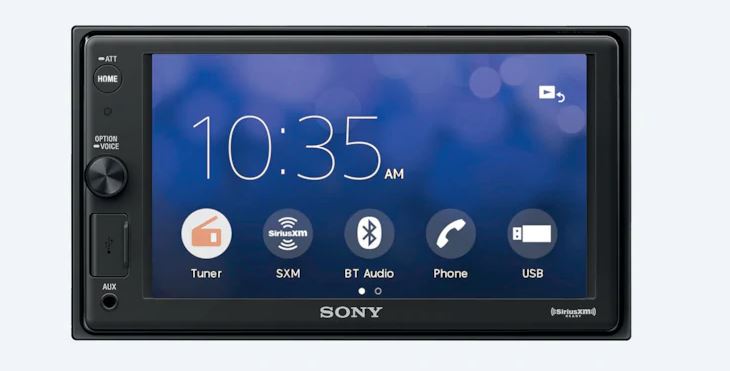

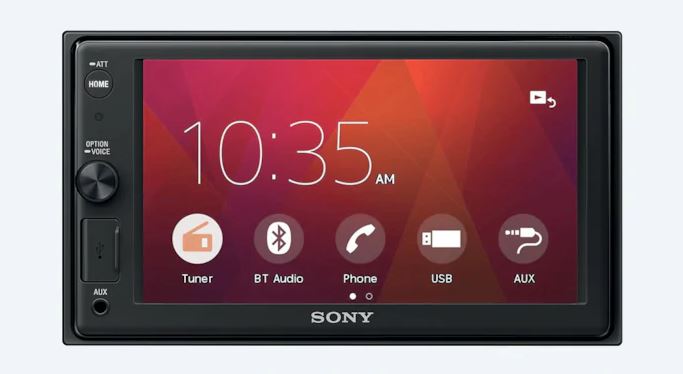

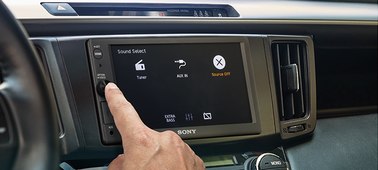

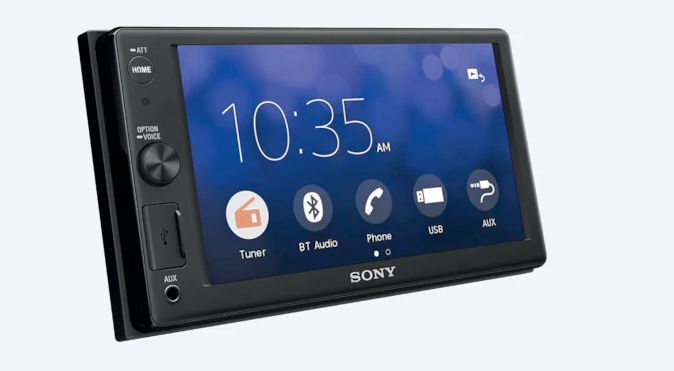

Control at your fingertips
The large, clear touchscreen gives you intuitive control over music playback and smartphone functions.

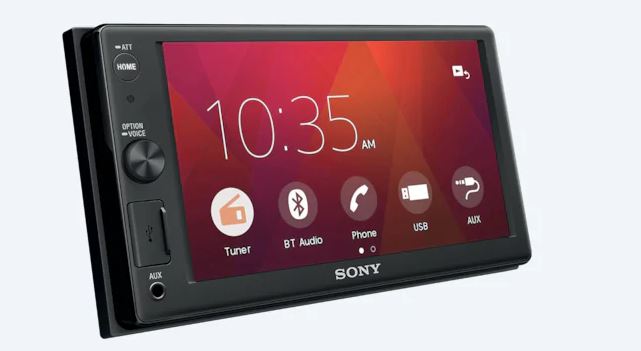

Turn or push to control
The ergonomic rotary dial makes operation distraction-free. Turn it to control volume, or push the integrated button to launch sound control menus. Alternatively, hold the button to use voice commands.

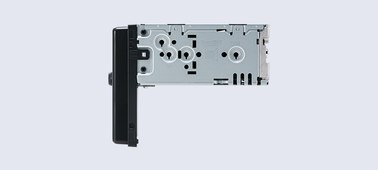

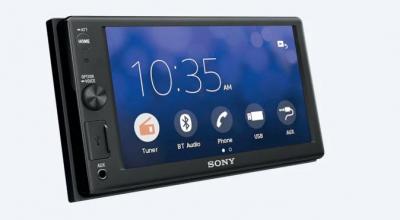

Easy installation with a compact rear chassis
Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation and leaves plenty of room for cabling and other accessories in the space behind the display.

Quick wake-up
With activation two-and-a-half times faster than previous models, you're ready to go right after turning on the ignition.

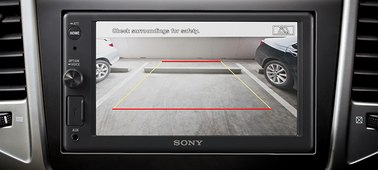

Rear view camera ready
Have a rear camera installed? View its feed through the screen, along with customizable guidelines that help you back in safely.

BLUETOOTH® wireless technology
Make hands-free calls and stream wireless audio from your smartphone with Bluetooth®.

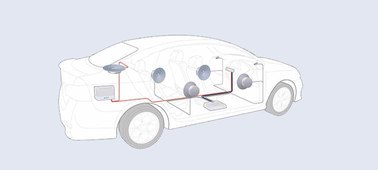

Three pre-outs let you expand your sound system
Looking to build your own in-car sound system? Three pre-outs give you countless possibilities for expanding your setup. Plug in your desired amplifiers and sub-woofers to customize your sound.

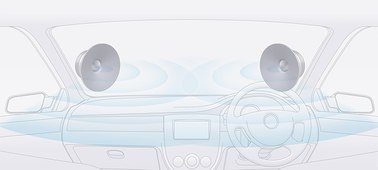

Dynamic Stage Organizer creates virtual speakers on your dashboard
Sound waves are directional, especially in the higher frequencies — so if your speakers are positioned low in your doors, high frequency sounds are often lost, reducing clarity and instrument separation. Dynamic Stage Organizer uses digital signal processing to lift the sound, improving stereo positioning so music sounds like it's coming from right in front of you.

FLAC-compatible
FLAC compatibility lets you play lossless audio files, so you enjoy every detail of the music.

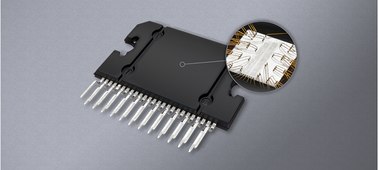

4 x 55 W amplification for clear, powerful sound
The Dynamic Reality Amp 2 gives you 4 x 55 W of power, so you can play music as loudly or softly as you like. The amp has 47% less internal resistance than conventional units, for increased output and clear, natural sound at any volume.

Sirius XM Radio ready
Connect your Sirius XM Radio satellite tuner (not supplied) to enjoy commercial-free music, sport, news and entertainment.
Size & Weight | |
---|---|
Dimensions (W x H x D) | 178x100x141 mm |
Weight | 0.9kg |
General Features | |
Output Power | 55W |
Pre Out | 3 Pre Out (2 V) |
Sub Out | Yes (Mono) |
Zone x Zone | No |
Aux-In | Yes |
Rear View Camera in | Yes |
USB | Yes (Front x 1) |
Navigation | Apple CarPlay |
Firmware upgradability | Yes |
Video out | No |
Time Alignment | No |
DSO (Dynamic Stage Organizer) | Yes |
Equalizer | 10-Band Graphic Equalizer |
EXTRA BASS | Yes (Off/1/2) |
Album artwork Indication | No |
Connectivity | |
Bluetooth | Yes |
NFC | No |
Tuner Features | |
Preset | FM18 / AM12 |
Auto Memory | BTM |
RDS / EON | Yes (RBDS) |
Bluetooth Profile | |
HFP 1.5 | Yes (1.6) |
A2DP | Yes (1.3) |
OPP | No |
SPP | No |
AVRCP | Yes (1.3) |
PBAP | Yes (1.1) |
Bluetooth Feature | |
Speed Dial | Yes (6 memories) |
Recent Calls (# of) | Yes |
Last Dialed Call | Yes (select from the dialled call history) |
Phonebook (Built in) | No |
Phonebook Access via PBAP | Yes |
Alphabetical Phonebook Sorting | Yes |
Auto Answer | No |
Ring Volume Level Control | Yes |
Call Volume Level Control | Yes |
External Microphone | Supplied |
Phone Battery Level Reminder | Yes |
Signal Strength Indication | Yes |
Bluetooth Audio Feature | |
Audio Codec (Bluetooth Audio) | SBC / AAC |
Pause (Bluetooth Audio) | Yes |
CUE / REV | Yes |
TRACK +/- | Yes |
Group (Folder) +/- | Yes |
Audio Level Adjustment | -6 dB to +6 dB |
Repeat Control (Audio Device side) | Yes |
Shuffle Control (Audio Device side) | Yes |
Meta Data Indication | Yes |
Panel Design | |
Panel Surface Finish Color | Black |
Key Illumination | Yes (White) |
Panel Detachability | No |
Monitor(AVC) | |
LCD Type | TFT Active Matrix |
Screen Aspect | 16:9 |
Screen Diagonal (inch / mm) | 6.2 inch |
Screen Size (W x H mm) | 137.52 * 77.232 (mm) |
Resolution (DOT) | 800 x 480 |
Dimmer | Yes |
Contrast Ratio | 600 |
Brightness | 450 cd/m2 |
Display Panel | |
KEY ILLUMINATION | Yes (White) |
Visualizer | No |
Dimmer Adjust | Yes (On, Off, Auto) |
User Interface | |
Touch Panel | Yes/Resistive (Not Multi Touch Compatible) |
Gesture Command | Yes |
Remote Commander | RM-X170 |
Parking Control | Yes |
Parking Line Adjust | Yes |
Aspect Ratio Select | Yes |
Rear View Camera-In Marker Setting | Yes |
USB Mass Storage Device Control Feature | |
USB Device Control (Repeat) | TRACK/FOLDER/DRIVE |
USB Device Control (Shuffle) | OFF/FOLDER/DEVICE |
USB Device Control (Pause) | Yes |
USB Device Control (Resume Play) | Yes |
USB Device Control (Audio Codec) | PCM/MP3/WMA/AAC/FLAC |
USB device control (audio playable file extension) | .wav/ .mp3/ .wma/ .m4a/ .flac |
USB Device Control (Video Codec) | MPEG4-SP/AVC (H.264 Baseline)/WMV/FLV/MKV/XviD |
USB device control (video playable file extension) | .mp4/.wmv/.mkv |
Multi-Language | |
Menu | English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic |
Caution | English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic |
ID3 Tag | English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic |
Write a review
Featured Products

KDC-X705

UTE-73BT

ILX-F509

DSXA415BT

KDC-BT282U

CDE-175BT

KMM-BT332U

DMX1057XR

DNX997XR

DNX697S

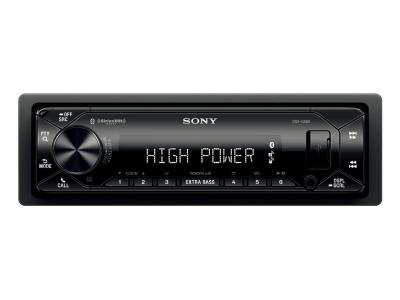

DSXGS80
