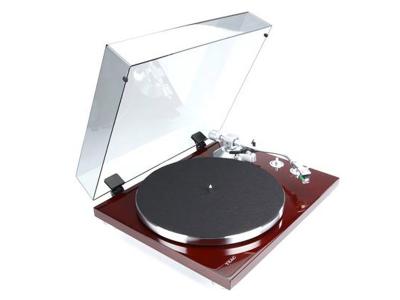

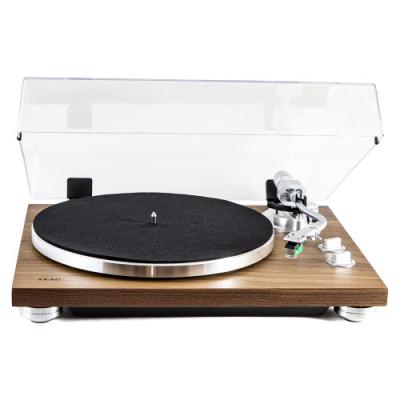

Teac Belt-driven turntable with S-shaped tonearm-TN-400S-CH
Inspiring Analog Performance for the Digital World
Combining high style with high fidelity, TEAC’s new TN-400S is the vinyl word in modern turntables. Featuring three-speed operation and an S-shaped tone arm the TN-400S weds cutting edge performance with a sleek, stylish design. Forged from TEAC’s decades of innovation in audiophile analog and digital technology, the TN-400S combines an all new motor assembly, phono and line level outputs and integrated digital conversion to deliver a modern rendition of old-school cool. Give one a spin.
Precision belt-drive turntable
The TN-400S features a high-inertia aluminum die-cast platter driven by a high torque DC motor via a durable Neoprene® rubber belt, and a newly designed low-friction spindle machined from a stainless steel block, delivering precise speed consistency and tonal accuracy. The durable bronze spindle holder maintains high precision speed for long period of time.
A powerful combination of form and function
The heavy MDF cabinet is designed to minimize unwanted resonance, while the sleek, matte finishes deliver a sophisticated and stylish accent to any design scheme.
MM type cartridge phono equalizer amplifier
Enjoy your favorite vinyl with any amplifier. The TN-400s supports both phono and line level output, allowing you to play vinyl with or without a phono equalizer.

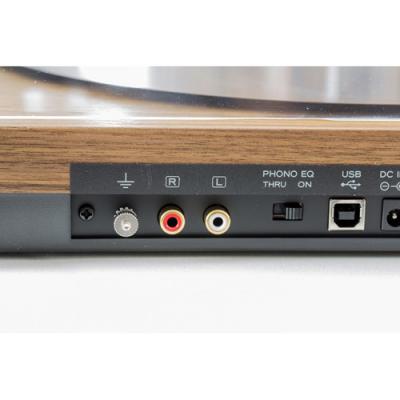

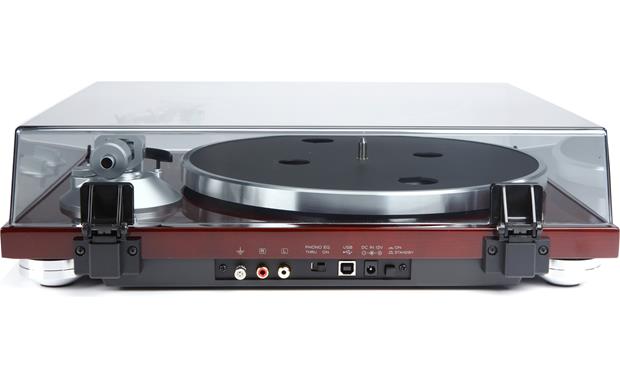

Built-in USB Digital Output and Analog Phono/Line Output
The Texas Instruments-made Analog to Digital converter allows you to transfer music via USB to your PC for easy archiving of your vinyl collection. In addition, a pair of gold-plated RCA connectors are employed for reliable, durable connections to your receiver's Line Level or Phono inputs.
Corrosion resistant gold plated terminals

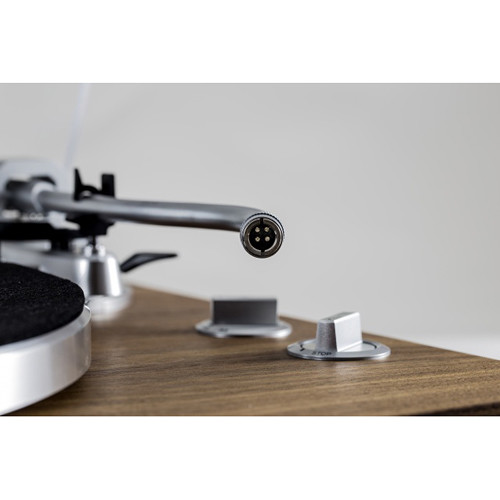

Gold-plated terminals on the head-shell connectors prevent oxidation of the head shell connectors and help to ensure years of reliable performance and to deliver stunning audio fidelity.

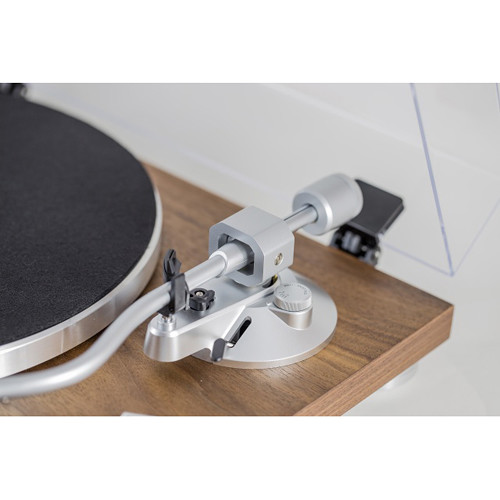

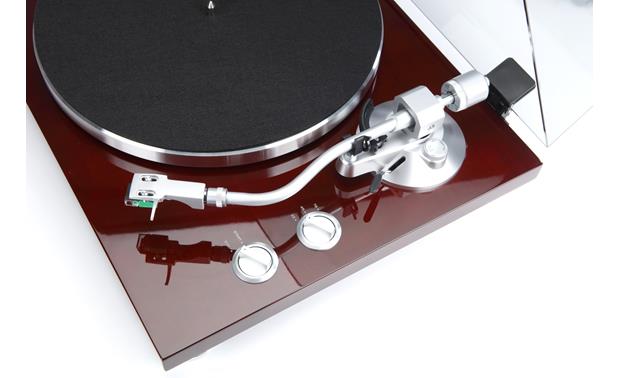

Static balanced S-shape tone arm
Static-balanced S-shape Tone-arm with Universal Head-shell ensures fast and easy setup and delivers excellent tracking

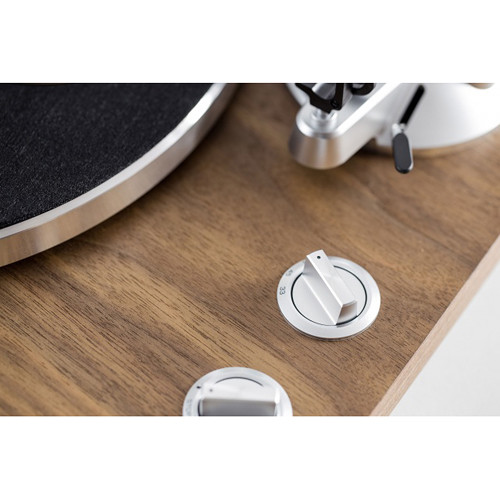

3-speed Turntable including 33-1/3, 45, and 78 RPM for LP/EP record playback
The TN-400S will play LPs, EPs, and singles at 33-1/3, 45 and 78 RPM. When combined with the high quality analog-to-digital conversion capabilities of the TN-400S, this powerful turntable is the ideal choice for enjoying - and archiving- your favorite music.

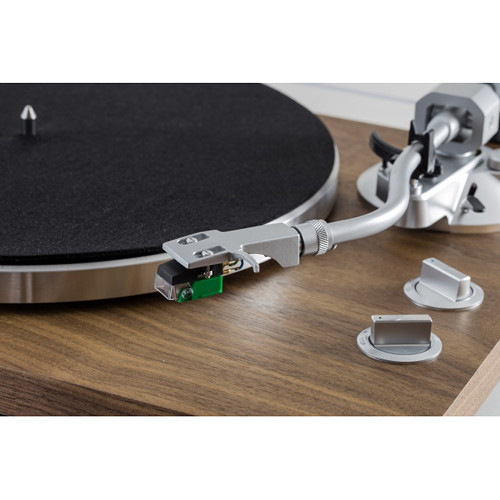

audio-technica AT100E MM（VM）type phonograph cartridge
The TN-400S comes with a replaceable audio-technica AT100E equivalent MM cartridge designed for highly accurate reading. As soon as you set up the TN-400S, you can enjoy the high quality sound with outstanding clarity and detail.
- Three-Speed Turntable plays all the hits – both old and new
- Aluminum Die-cast Platter and upgraded motor assembly provide years of service and stability
- Newly designed, low-friction spindle reduces platter drag, resulting in enhanced speed consistency and tonal accuracy
- Integrated USB Port for Digital Output allows PC Recording for easy archiving
- Anti-skating Mechanism stays in the groove so you can stay in the groove
- Static-balanced S-shape Tone-arm with Universal Head-shell for improved tracking
- Built-in Phono EQ Amplifier and Switchable Phono/Line Outputs ensures easy setup with any Amp or Receiver
- High-density MDF Chassis dampens vibrations and delivers rock solid performance
- Detachable Dust Cover enables you to customize the experience to fit your own personal style
- Upgraded Audio-Technica AT100E equivalent MM equivalent cartridge for accurate and detailed sound reproduction
- Available in Gloss BLack, Gloss Cherry, Natural Walnut and Matte Bordeaux finishes
|Drive System||Belt Drive|
|Speed||33 1/3 RPM, 45 RPM, 78 RPM|
|Rotation Speed Variation||+/–2%|
|Wow and Flutter||0.2%|
|Signal-to-Noise Ratio||67dB or higher (A-weighted, 20kHz LPF)60dB or higher (unweighted, 20kHz LPF)|
|Diameter of Platter||12", 30cm|
|Type||Static Balanced, S-shaped|
|Effective Arm Length||8.8", 223mm|
|Stylus Pressure Range||0 to 5g|
|Supported Cartridge Weight||3.5 to 6.7g13.5 to 16.5g (including head shell)|
|Type||MM type (audio-technica AT100E factory installed)|
|Stylus Shape||Joint-oval 0.3 x 0.7 mil|
|Stylus Construction||Bonded Round Shank|
|Frequency Response||20Hz to 20kHz|
|Channel Separation||27dB at 1kHz|
|Needle Pressure||1.0 to 1.8g (approximate value 1.4g)|
|Vertical Tracking Angle||23 degrees|
|Supported Load Impedance||47k ohms|
|Output Voltage||4.5mV (1kHz, 5cm/sec.)|
|Replacement Stylus||audio-technica AT100E|
|Phono Equalizer Amplifier|
|Type of Amplifier||MM type (On/Thru switchable)|
|Connector||RCA Pin jack (Gold-plated)|
|Output Voltage||Phono/Line switchable|
|Phono Output||4.5mV (± 3dB)|
|Line Output||230mV (–13dBV)|
|USB Output section|
|Connector||USB B type|
|Output Signal||PCM 48kHz/16-bit|
|Supported OS||Windows 7Windows 8Windows 8.1Windows 10OS X Lion (10.7)OS X Mountain Lion (10.8)OS X Mavericks (10.9)OS X Yosemite (10.10)OS X El Capitan (10.11)macOS Sierra (10.12)|
|Power||AC 100 to 240V, 50/60Hz|
|Power Consumption||1.5W (less than 0.5W at Standby)|
|Overall Dimensions(W x H x D)|
|Overall Dimensions(W x H x D)||16.5" x 4.6" x 14.0"420 x 117 x 356 mm|
|Weight||Approx. 10.8 lbs. 4.9 kg|

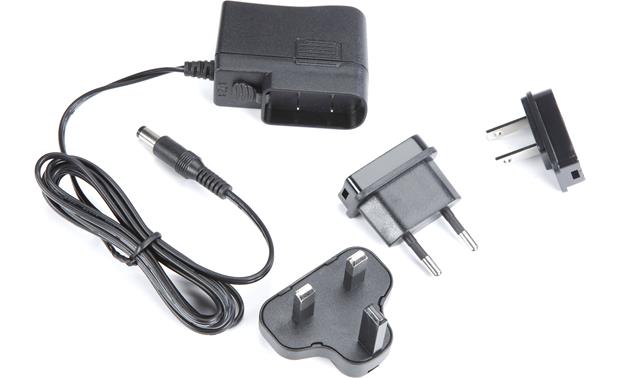

|Accessories||Felt Mat, EP Adapter, Counter Weight, Head-shell (audio-technica AT100E equivalent installed), Turntable(Platter), Dust Cover, Dust Cover Hinges, RCA Audio Cable with GND wiring, AC Adapter (GPE053A-V120050-Z), Owner’s Manual (including Warranty Card)|
