- Peak Power 320W

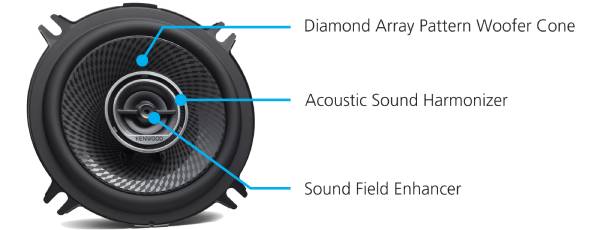

- Diamond Array Pattern Woofer Cone
- Acoustic Sound Harmonizer
- Sound Field Enhancer

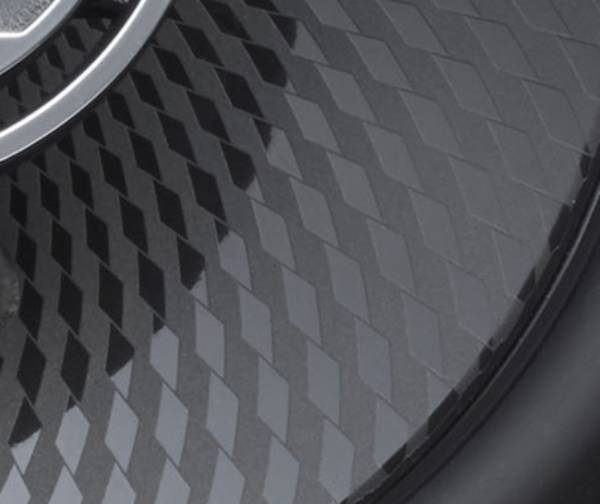

Diamond Array Pattern Woofer Cone
This technology enhances sound and reduces distortion.

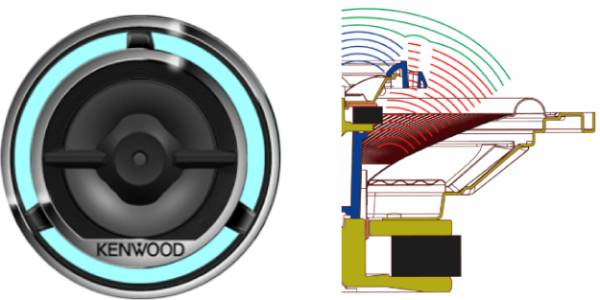

Sound Field Enhancer
This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.
Acoustic Sound Harmonizer
Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.
Factory Location Fit

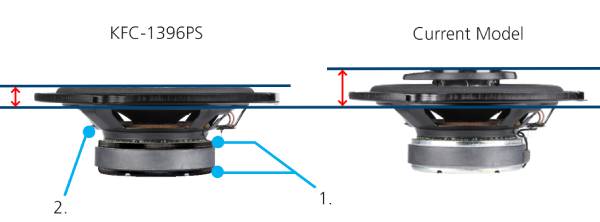

The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.
1. Black Painted Yoke and Plate
By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.

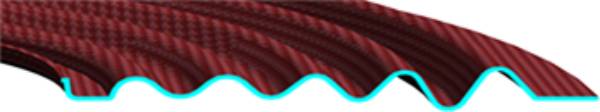

2. New Woofer Damper Shape
Stress leveling points increase durability and provide a smoother sound response.
|Peak Input Power（W)||320W|
|RMS Input Power（W) CTA standards||75W|
|Sensitivity (dB at 1m) CTA standards||85dB|
|Frequency Response(Hz) CTA standards||80-25000Hz|
|Diaphragm / Color||PP Cone Black|
|Size||130mm 5-1/4 inch|
|Diaphragm / Color||Balanced Dome Matte Black|
|Size||25mm 1 inch|
|Width (w_Gr)||158 mm 6-1/4 in.|
|Width (w/o_Gr)||131 mm 5-3/16 in.|
|Height (w_Gr)||158 mm 6-1/4 in.|
|Height (w/o_Gr)||131 mm 5-3/16 in.|
|Top Height||7 mm 1/4 in.|
|Cutout Diameter||112.6 mm 4-7/16 in.|
|Mounting Depth||46 mm 1-13/16 in.|
|with Grille (pc.)||563g 1.2 lb|
|without Grille (pc.)||500 g 1.1 lb|
|Weight of Woofer Magnet||160 g 5.6 oz|
|Net Weight||1.10 ㎏ 2.5 lb|
