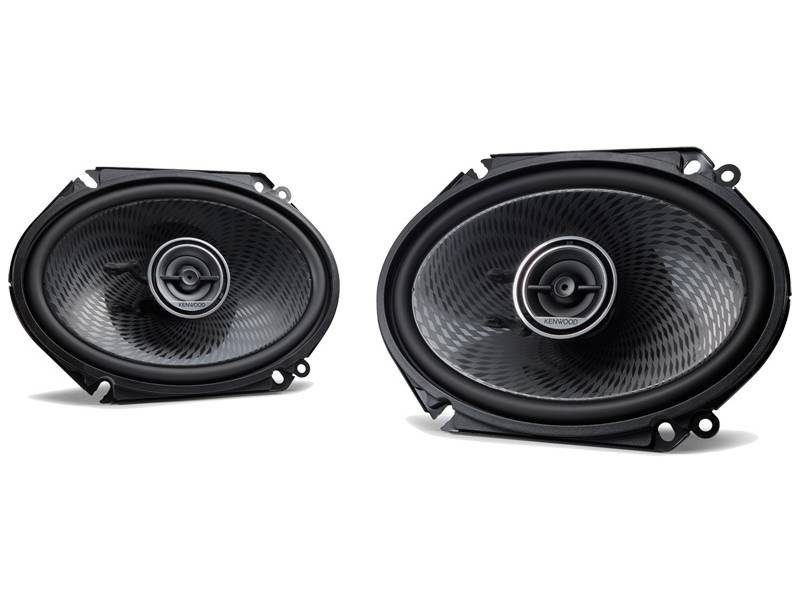

Kenwood 6x8 Inch Oval Custom Fit 2-way Speakers - KFC-C6896PS
- Peak Power 360W
- Diamond Array Pattern Woofer Cone
- Acoustic Sound Harmonizer
- Sound Field Enhancer

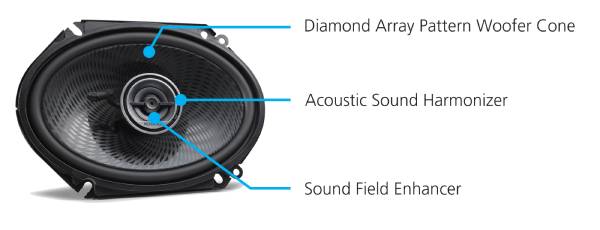

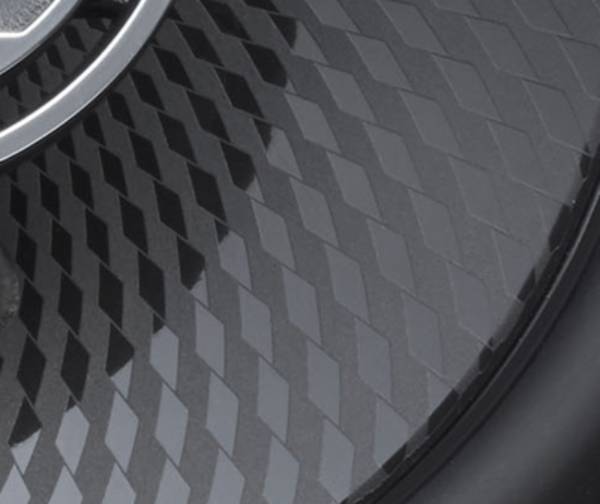

Diamond Array Pattern Woofer Cone
This technology enhances sound and reduces distortion.
Sound Field Enhancer
This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.

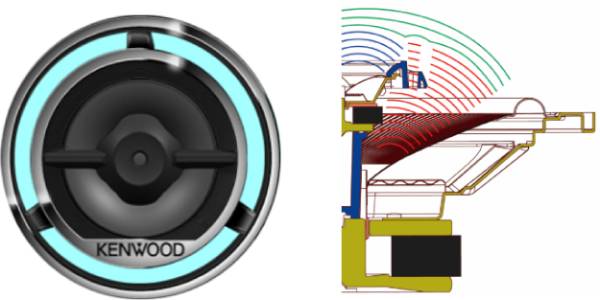

Acoustic Sound Harmonizer
Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

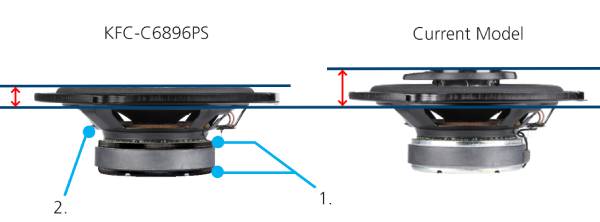

Factory Location Fit
The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.
1. Black Painted Yoke and Plate
By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.
2. New Woofer Damper Shape
Stress leveling points increase durability and provide a smoother sound response.
Electrical | |
---|---|
Impedance(Ω) | 4Ω |
Peak Input Power(W) | 360W |
RMS Input Power(W) CTA standards | 81W |
Sensitivity (dB at 1m) CTA standards | 88dB |
Frequency Response(Hz) CTA standards | 58-24000Hz |
Woofer | |
Diaphragm / Color | PP Cone Black |
Size | 145x204mm 6x8 inch |
Surround | Rubber |
Basket | Steel |
Magnet | Ferrite φ80xt12 |
Tweeter | |
Diaphragm / Color | Balanced Dome Matte Black |
Size | 30mm 1-3/16 inch |
Magnet | Neodynium |
Dimension | |
Width (w/o_Gr) | 203.7 mm 8 in. |
Height (w/o_Gr) | 145 mm 5-11/16 in. |
Top Height | 8 mm 5/16 in. |
Cutout Diameter | 129.8x187.8 mm 5-1/8x7-3/8 in. |
Mounting Depth | 60 mm 2-3/8 in. |
Weight | |
without Grille (pc.) | 829g 1.8lb |
Weight of Woofer Magnet | 230 g 8.1 oz |
Net Weight | 1.70 kg 3.7 lb |
Accessory | |
Tapping Screw | φ4x25*8pcs |
Speaker Cord | 0.3m*2pcs |
Dimension | |
Width (w_Gr) | - |
Height (w_Gr) | - |
Weight | |
with Grille (pc.) | - |
