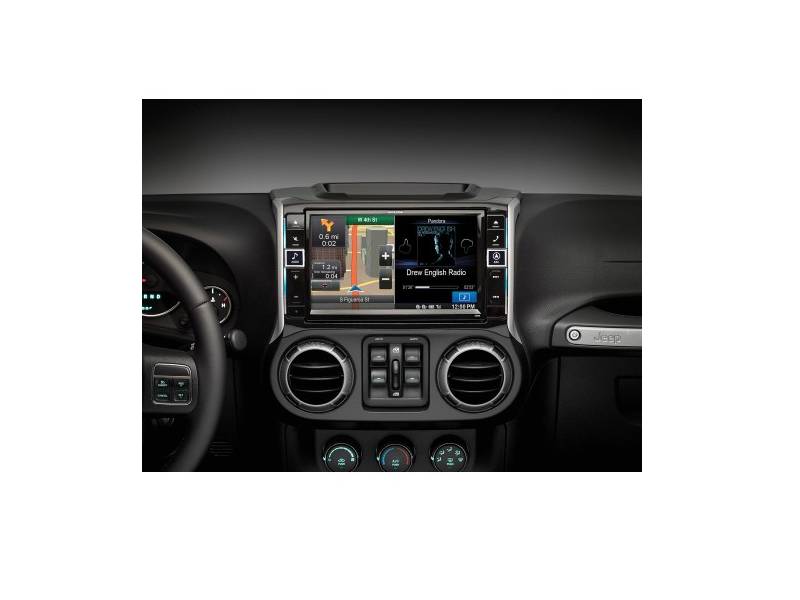

9" Alpine Avn System and Up Jeep Wrangler - X009-WRA
General Features:
- DVD/CD player with 9" touchscreen and AM/FM tuner.
- custom-fit receiver designed for select 2011-up Jeep Wrangler and Wrangler Unlimited models.
- includes Alpine Restyle package with all installation parts.
- includes iDatalink Maestro ADS-MRR module to retain factory features, including steering wheel controls and Uconnect.
- built-in amplifier (18 watts RMS CEA-2006/50 peak x 4 channels).
- built-in Bluetooth for hands-free calling and audio streaming.
- built-in HD Radio tuner.
- Smartphone Features:
- built-in iPod and iPhone control (see Details for info on compatibility with specific smartphones and apps)◦Siri Eyes Free control with select iPhones.
- Pandora control with iPhone.
- built-in Android control.
- MHL-compatible HDMI cable required for viewing video content from compatible Android devices.
- Navigation Features:
- built-in navigation system with 3D representations of buildings, landmarks, and terrain.
- maps of the United States and Canada, plus 7 million points of interest.
- free lifetime TMC traffic service in metropolitan areas.
- text-to-speech voice prompts announce actual road names at turns.
- lane assistance and junction view.
- Audio/video Features:
- plays CDs, DVDs, and USB memory devices (see Details for full capabilities).
- compatible with Alpine TuneIt App Ver 2.0 for sonic profile settings and adjustments through your smartphone.
- 9-band parametric EQ.
- time correction.
- high- and low-pass crossovers.
- compatible with Alpine's PXA-H800 IMPRINT audio processor.
- dual-zone A/V output.
- Expandability:
- compatible with SiriusXM satellite radio tuner.
- inputs: MHL-compatible HDMI input, rear USB input, rear A/V input (can be used as a second camera input), rear-view camera input.
- outputs: digital optical output; rear A/V output; 6-channel preamp outputs (4-volt front, rear, subwoofer) .
Screen | |
---|---|
Screen Size | 9 inch WVGA |
LCD Type | Transparent Type TN LCD |
Operation System | TFT Active Matrix |
Number of Picture Elements | 1,152,000 pixels (800 x 3 x 480) |
Effective Number of Picture Elements | 99.99% |
Illumination System | White LED Backlighting |
Colour System | NTSC, PAL |
GPS | |
GPS Antenna Type | Micro-strip Planar Aerial |
Reception Frequency | 1575.42 �1 MHz |
Reception Sensitivity | -130 dB Maximum |
Reception Method | Parallel 12 Channels |
FM Tuner | |
Tuning Range | 87.7 - 107.9 MHz |
Mono Usable Sensitivity | 9.3 dBf (0.8 �V / 75 ohms) |
50dB Quieting Sensitivity | 13.5 dBf (1.1 �V / 75 ohms) |
Alternate Channel Selectivity | 80 dB |
Signal-to-Noise (S/N) Ratio | 65 dB |
Stereo Separation | 35 dB |
Capture Ratio | 2 dB |
AM Tuner | |
Tuning Range: | 530 - 1,710 kHz |
Usable Sensitivity (IEC Standard) | 22.5 V / 27 dBf |
Bluetooth | |
Bluetooth Version | Bluetooth V2.1+EDR |
Output Power | +4 dBm Max. (Power class 2) |
HFP | HFP (Hands Free Profile) |
HSP | HSP (Head Set Profile) |
A2DP | A2DP (Advanced Audio Distribution Profile) |
AVRCP | AVRCP (Audio/Video Remote Control Profile) |
Disc Player | |
Frequency Response | 5 -20k Hz 1 dB |
Channel Separation (at 1kHz) | 85 dB |
Dynamic Range (at 1kHz) | 95 dB |
Total Harmonic Distortion (at 1kHz) | 0.008% |
Wow & Flutter (%WRMS) | B.M.L. |
Horizontal Resolution | 500 lines or greater |
Video Ouput Level | 1 Vp-p (75 ohms) |
Signal-to-Noise Ratio (video) | 100 dB |
Signal-to-Noise Ratio | DVD: 60 dB |
CONNECTION FOR USB | |
USB Requirements | USB 1.1/2.0 |
Max. Power Consumption | 1,000 mA |
USB Class | Mass Storage Class, Play From Device |
File System | FAT 12/16/32 |
MP3 Decoding | MPEG-1/2 AUDIO Layer-3 |
WMA Decoding | Windows Media™ Audio |
AAC Decoding | ACC-LC Format ''.m4a'' File |
DivX Decoding | ''.divx'', ''.avi'' File |
Number of Channels | 2-Channel (Stereo) |
Frequency Response | 5 - 20k Hz 1 dB *Frequency Response may differ depending on the encoder software/bit rate. |
Total Harmonic Distortion (at 1kHz) | 0.008% |
Dynamic Range (at 1kHz) | 95 dB |
Signal-to-Noise Ratio | 100 dB |
Channel Separation (at 1kHz) | 85 dB |
Sound Tuning | |
Subwoofer Level Adjustment | 0 to +15 |
Subwoofer Phase Setting | 0 or 180 |
BASS ENGINE SQ | 5Mode, Level 0 to +6 |
High Pass Filter | 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz |
Low Pass Filter | 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz |
Parametric Equalizer (Band 1) | 20 - 100 Hz |
Parametric Equalizer (Band 2) | 63 - 315 Hz |
Parametric Equalizer (Band 3) | 125 - 500 Hz |
Parametric Equalizer (Band 4) | 250 - 1k Hz |
Parametric Equalizer (Band 5) | 500 - 2k Hz |
Parametric Equalizer (Band 6) | 1k - 4k Hz |
Parametric Equalizer (Band 7) | 2k - 7.2 k Hz |
Parametric Equalizer (Band 8) | 5.8k - 12k Hz |
Parametric Equalizer (Band 9) | 9k - 20k Hz |
Parametric Equalizer (Gain): | -7 to +7 |
Time Correction | 0.0 - 9.9ms (0.1ms step) |
Application Volume Level | -14 to +14 |
High Pass Filter (Slope) | Off / -6 / -12 / -18 / -24 dB/oct. |
High Pass Filter (Gain) | -12 to 0 dB |
Low Pass Filter (Slope) | Off / -6 / -12 / -18 / -24 dB/oct. |
Low Pass Filter (Gain) | -12 to 0 dB |
Dimensions | |
Din Size | 2DIN |
Chassis Size (W x H x D) mm | 178 x 100 x 164 mm |
Nose Piece Size (W x H x D) mm | 189.5x 120x 10.25 mm |
General | |
Power Requirement | 14.4 V.DC (11-16V allowable) |
Pre Output Voltage (Before Clipping) | 4 V / 10k ohms |
AUX Audio Output Level | 1.2 V / 10k ohms |
Maximum Mounting Angle | 30 |
Weight | 2.9 kg |
