Bring the power
An impressive 300W of total system power puts you in control. Your movies and music have never sounded so good.
Surround yourself with sound
JBL Surround Sound instantly brings movies, games, sports and music to life. Upgrade to an immersive sound experience for your TV without any extra wires or speakers.
All about the bass

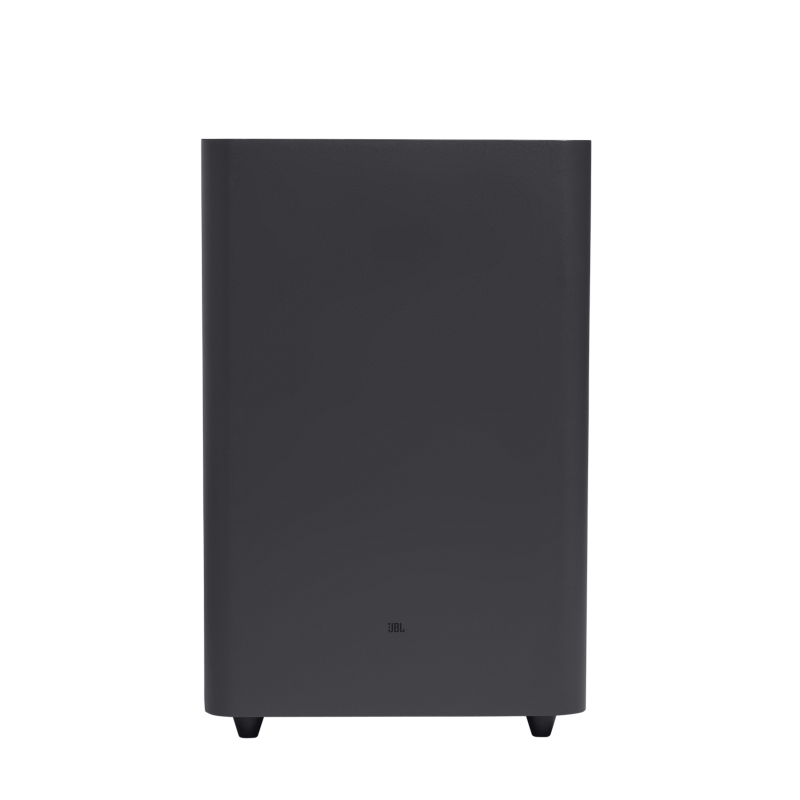

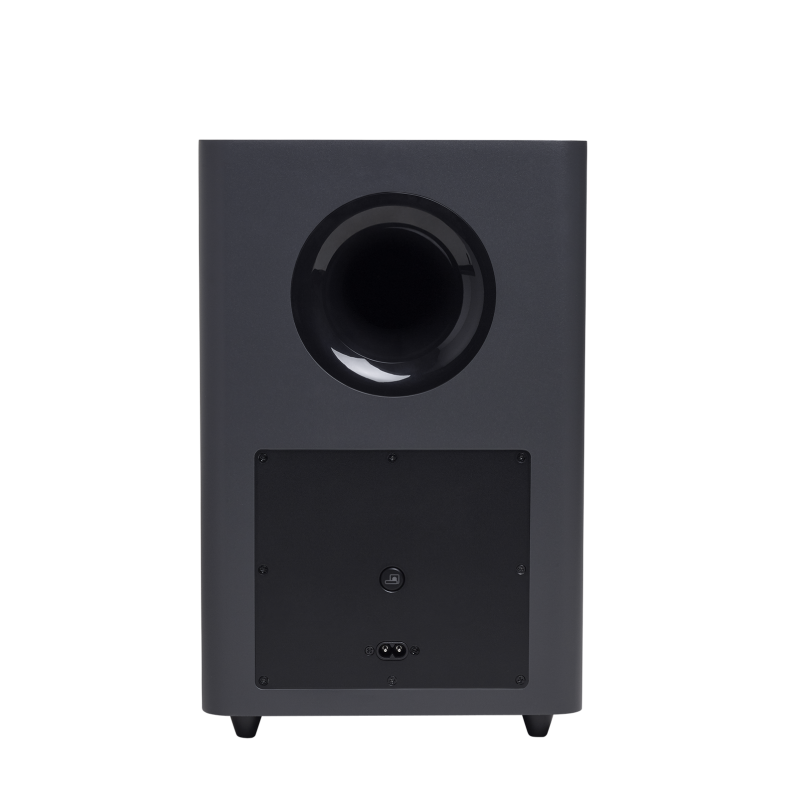

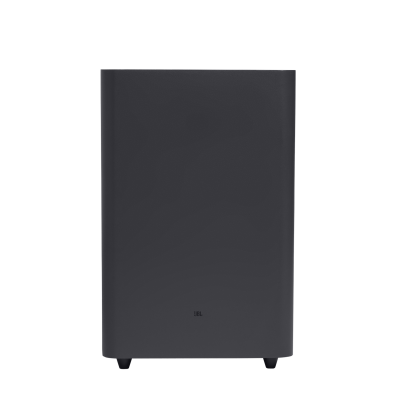

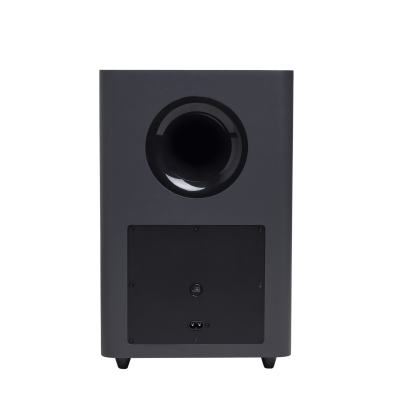

Why just listen to the bass when you can experience it? The 6.5'' wireless subwoofer delivers deep, thrilling sound.
Visit the movies, from your sofa
Get the popcorn ready. Built-in Dolby Digital gives you an authentic cinematic experience in your home.
Stream it all
Not in the mood for a film? No problem. With the JBL Bar 2.1 Deep Bass, you can also enjoy wireless music streaming via Bluetooth from your mobile or tablet.
Make a connection
Connecting JBL Surround Sound could not be easier. The HDMI or Optical cable connection is super simple to set up and use.
Big Thrilling Bass

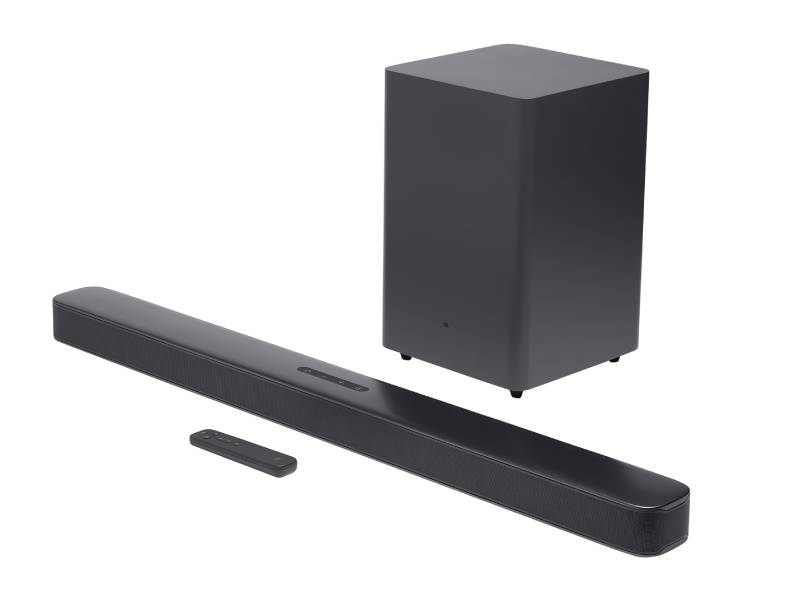

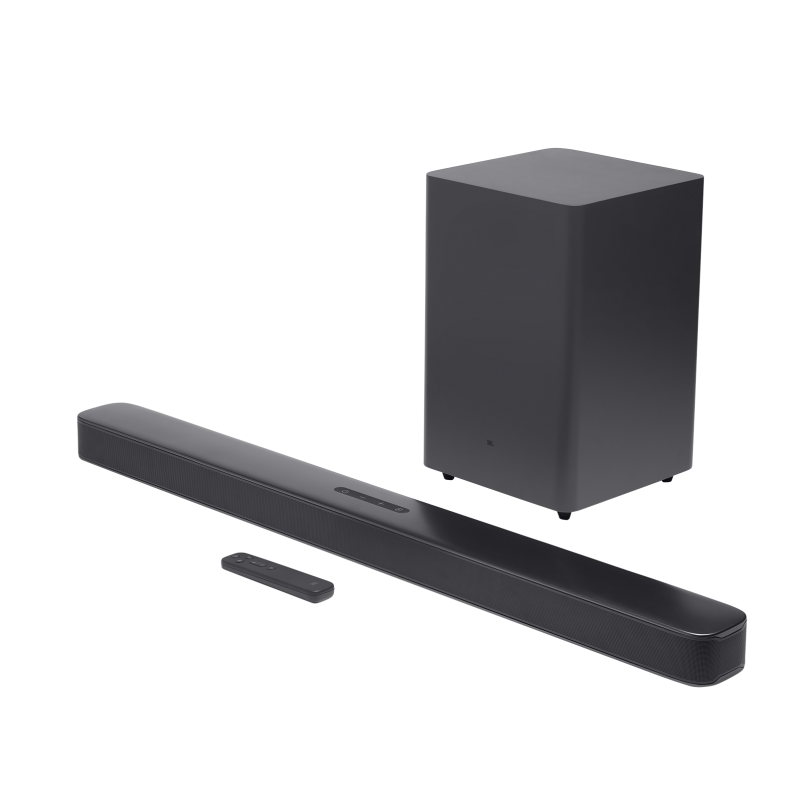

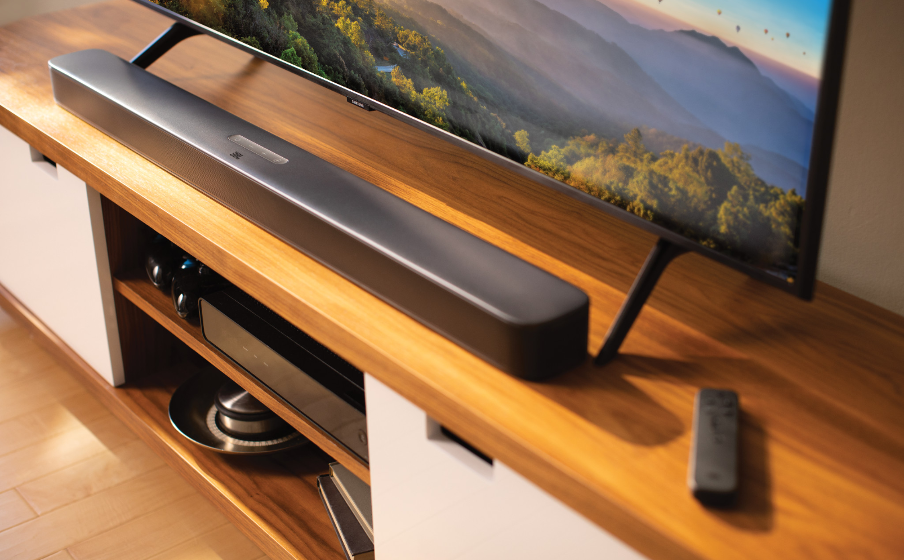

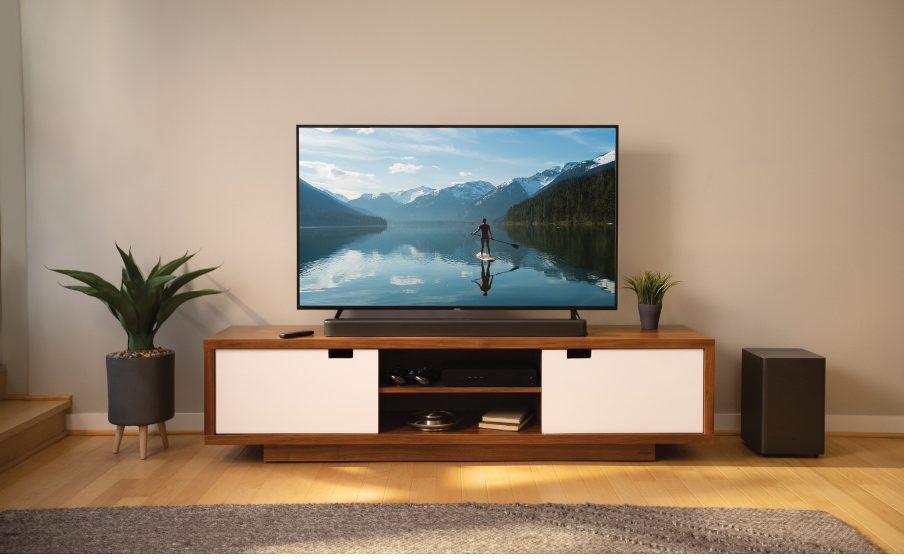

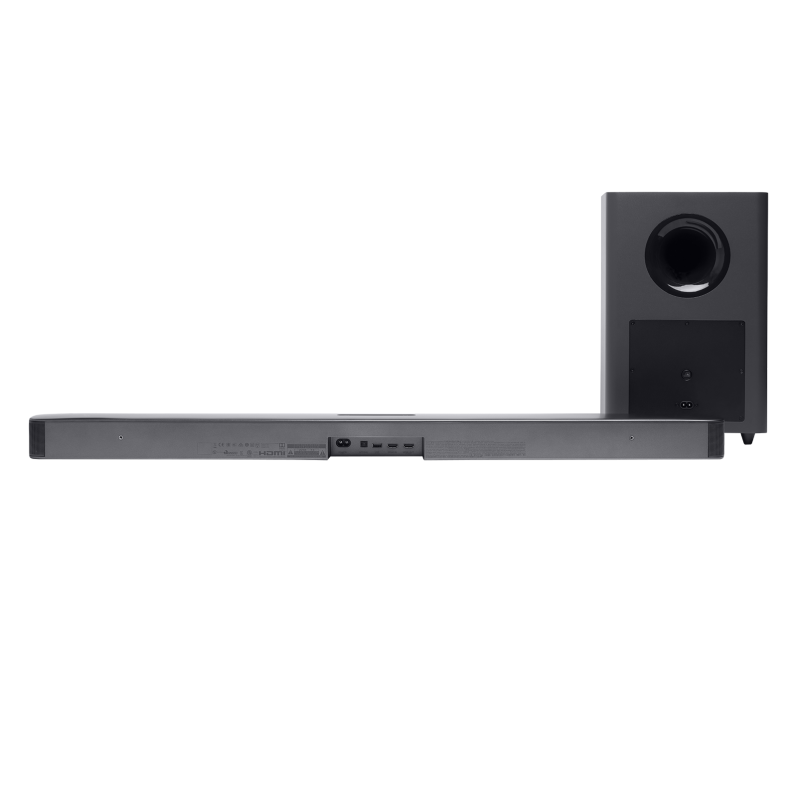

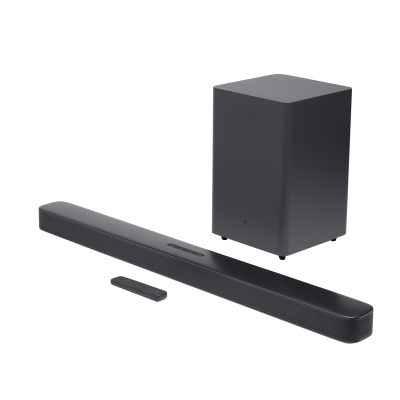

The elegant JBL BAR 2.1 Deep Bass Soundbar features Bluetooth, Optical, HDMI in and ARC connectivity with both Dolby Digital and JBL Surround Sound modes. Its room filling 300 Watts of total system power delivers an immersive experience by way of its four powerful full range drivers, two 1" tweeters, and JBL engineered 6.5" subwoofer. On-board Bluetooth allows you to use the Bar 2.1 for streaming music from your favorite device in addition to its ability to deliver a real JBL theater experience when coupled with your flat panel TV. Its elegant and low profile design will look amazing below your TV.
|Model||Bar 2.1 Deep Bass CNTR (Soundbar Unit), Bar 2.1 Deep Bass SUB (Subwoofer Unit)|
|Power supply||100 - 240V AC, ~ 50/60Hz|
|Total speaker power output (Max. @THD 1%)||300W|
|Output power (Max. @THD 1%):||Yes|
|2 x 50W (Soundbar); 200W (Subwoofer)||Yes|
|Transducer||4 x race track drivers + 2 x 1” tweeter (Soundbar); 6.5” (Subwoofer)|
|Soundbar and Subwoofer standby power||<0.5W|
|Operating temperature||0°C - 45°C|
|HDMI Video output (With Audio return channel)||1|
|HDMI Video input||1|
|Frequency response||40Hz - 20KHz|
|Audio inputs||1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)|
|Dimensions (W x H x D):||Yes|
|965 x 58 x 85 (mm) / 38” x 2.28” x 3.35” (Soundbar);||Yes|
|240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer)||Yes|
|Weight||2.16 kg (Soundbar);|
|5.67 kg (Subwoofer)||Yes|
|Packaging dimensions (W x H x D)||1045 x 310 x 405mm|
|Packaging weight (Gross weight)||10.4kg|
|Control and Connection Specifications|
|USB port||Type A|
|USB rating||5V DC/ 0.5A|
|Supporting file format||mp3, wav|
|MP3 Codec||MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3|
|MP3 sampling rate||16KHz - 48 KHz|
|MP3 bitrate||80kbps - 320kbps|
|WAV sample rate||16KHz - 48 KHz|
|WAV bitrate||Up to 3000kbps|
|Bluetooth profile||A2DP V1.3, AVRCP V1.5|
|Bluetooth frequency range||2402MHz-2480MHz|
|Bluetooth Max. transmitting power||<10dBm (EIRP)|
|Modulation Type||GFSK, π/4 DQPSK, 8DPSK|
|5G Wireless frequency range||5736.35 - 5820.35MHz|
|5G Max. transmitting power||<9dBm (EIRP)|
|Modulation Type||π/4 DQPSK|
