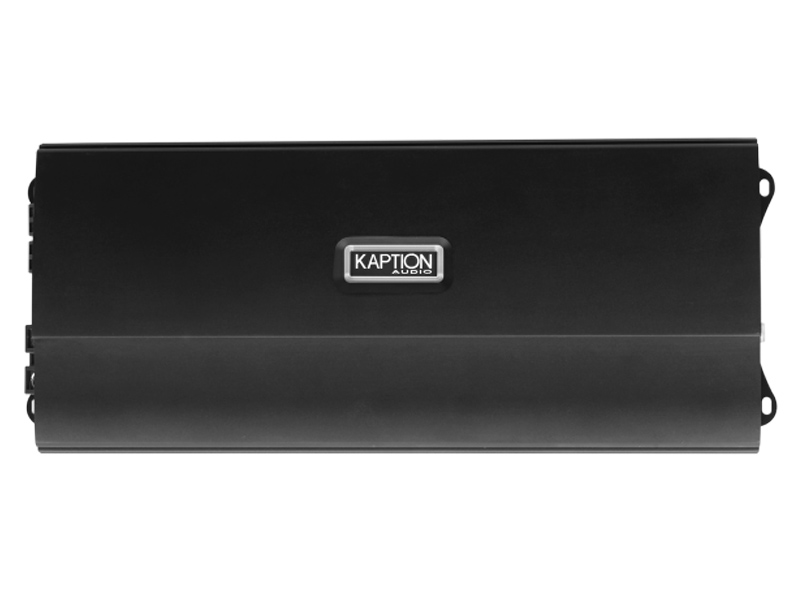

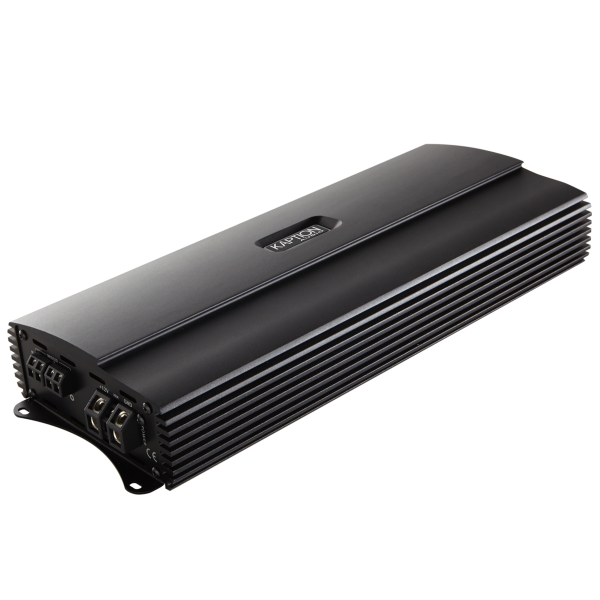

Kaption Audio 1200W RMS Mono Block Amplifier-570-DZR1200X1
- 1200W RMS Mono Block Amplifier 1 Ohm Stable
- Class D Design
- 1 Ohm Stable

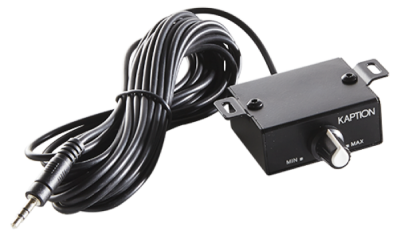

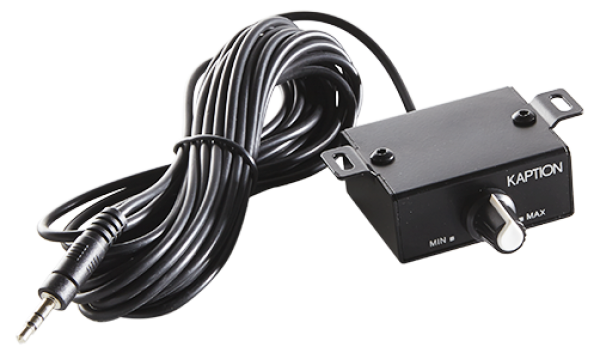

- Wired Bass Remote
Smart. Inside and Out.
At Kaption Audio we believe that great sound doesn't mean you have to skimp on style. Our amps were designed by the Kaption team to be smart, inside and out, using the latest in design software and 3D printing technology.
Inside: Under the hood of each AZR or DZR is the technology to detect fluctuation in voltage levels, audio signal and temperature with the ability to shut itself off to prevent overheating. The compact hardware design and double sided PCB board means the AZRs and DZRs pack big power with a small footprint.
Outside: The sleek matt finished exterior of each AZR and DZR features the iconic Kaption badge logo that lights up whenever the amp is in use. The all-black chassis, made from heavy-guage aluminum with its chiseled heat sink shape effectively merges the line between design and function.
Kaption's next-generation amplifiers combine function and design with voltage, signal and temperature sensing technology built into the hardware you see and the hardware you don’t.
Specification | |
---|---|
Width (in) | 13.86 |
Depth (in) | 6.06 |
Height (in) | 2.40 |
Weight (lbs) | 9.5000 |
Color | Black |
Ampifiler Channels | 1 (Mono Block) |
Amplifier Class | Class D |
RMS Power @ 1 Ohms | 1800 Watts |
RMS Power @ 2 Ohms | 1000 Watts |
RMS Power @ 4 Ohms | 650 Watts |
Frequency Response | 10 Hz ~ 220 KHz |
Amplifier Power Supply | MOSFET switching power supply |
Preamp Output/Passthough | No |
Linkable Amplifier | No |
Amplifier Low Level Input | 0.2 ~ 5 Volts |
Amplifier High Level Input | N/A |
S/N Ratio | > 80 dB |
Amplifier Efficiency (THD+N) | <0.8% |
High Pass Filter | Range N/A |
Low Pass Filter Range | 40 Hz ~ 220 Hz |
Subsonic Filter Range | 10 Hz ~ 50 Hz |
Bass Boost | Selectable -6 dB / 0 dB / +6 dB |
Ampifier Opperating Voltage Range | 9 ~ 16 Volts |
Low Voltage Protection | Yes, protect < 8 Volts |
Speaker Terminals | Screw Post |
Wire Guage | 4ga Power & Ground Wire |
Wired Bass Remote | Yes |
High Level Adaptor Included | N/A |
External Fuse | 150 A |
