Klipsch 15" Commercial Monitor multi angle hor and vertical KI362BSMAII KI362BII

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Price$3,399.00
Savings$700.00
Our Price $2,699.00 CAD / Each

Or as low as $232.05/month over 12 months. Apply Now


Availability
Out of stock online. Call for availability

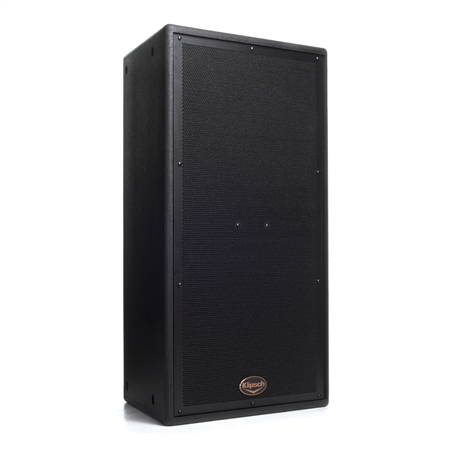

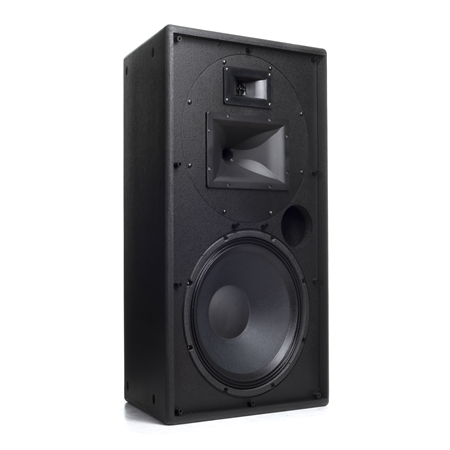

The KI-362-SMA-II three-way trapezoidal array-capable (sixteen built-in 3/8” 16-thread fly points) loudspeaker is a value-engineered compact Tractrix® Horn-loaded system capable of superior performance in both permanent installation and production environments including theaters, auditoriums, music clubs, houses of worship, and A/V production environments.

To permit use at any mounting angle the KI-362-SMA-II’s midrange and high-frequency drivers are adjustable in 45° increments allowing 60° or 90° projection patterns to be chosen independent of the vertical horizontal or lateral orientation of the enclosure.



Specification
FREQUENCY RESPONSE:54Hz-20kHz +/- 3dB -10dB @ 38Hz
SENSITIVITY: 101dB
POWER HANDLING: 400 watts (42V) (1600 watts peak)
CALCULATED MAX CONTINUOUS OUTPUT: 124dB (130dB peak)
NOMINAL IMPEDANCE: 8 ohms, minimum 4.4 oms @106Hz

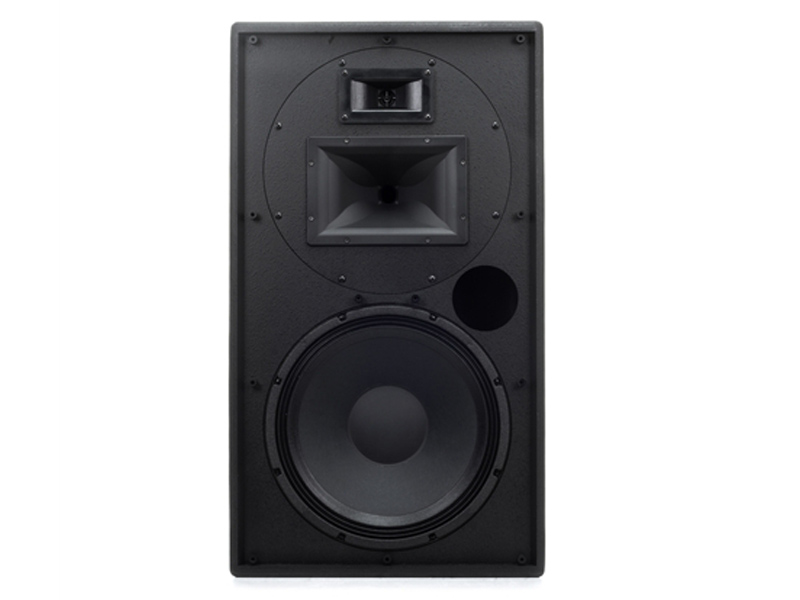

COMPONENTS: One K-48-ST 15" woofer One K-53-TI 1.5" titanium compression driver on a K-703M horn One K-100-TI 1" titanium compression driver on a K-79-T horn
CROSSOVER FREQUENCY: 1.26kHz and 6.8kHz
ENCLOSURE MATERIAL: 3/4" 7-ply birch plywood cabinet 1" MDF motorboard

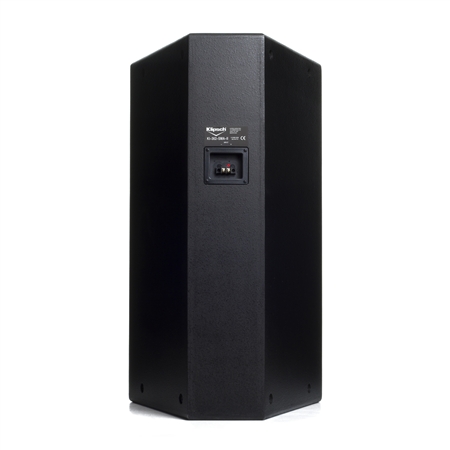

INPUT CONNECTIONS: Two point barrier strip
COVERAGE:Horizontal 90° +/-30 400Hz-12kHz Vertical 50° +/-20 3kHz-20kHz
DIRECTIVITY INDEX (DI): 10dB+/-3dB 60Hz-15kHz
DIRECTIVITY FACTOR (Q): 10
HEIGHT: 34.3" (87.12cm)
WIDTH: 19.8" (50.29cm) Front 6.8” (17.27cm) Rear
DEPTH: 16" (40.64cm)
WEIGHT: 70 lbs. (31.81kg)
MOUNTING OPTIONS: Sixteen 3/8"-16 flypoints
FINISHES: Black, White and Raw
OVERLOAD PROTECTION: KLIP Overload Protection Circuit-HF and MF
