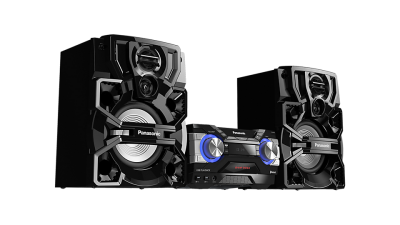

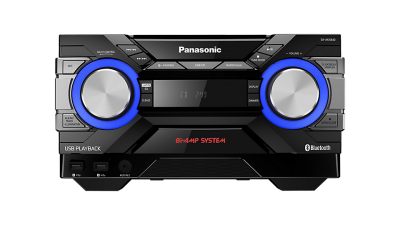

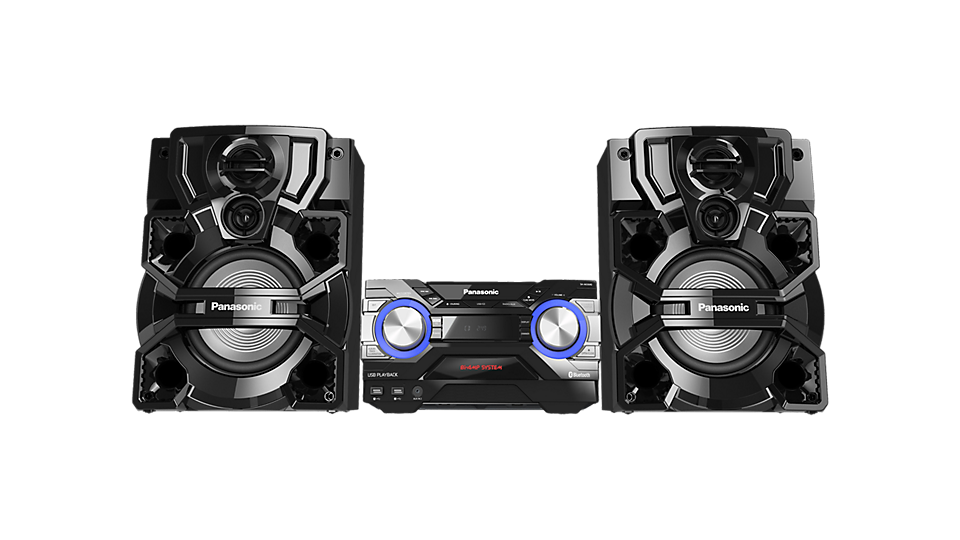

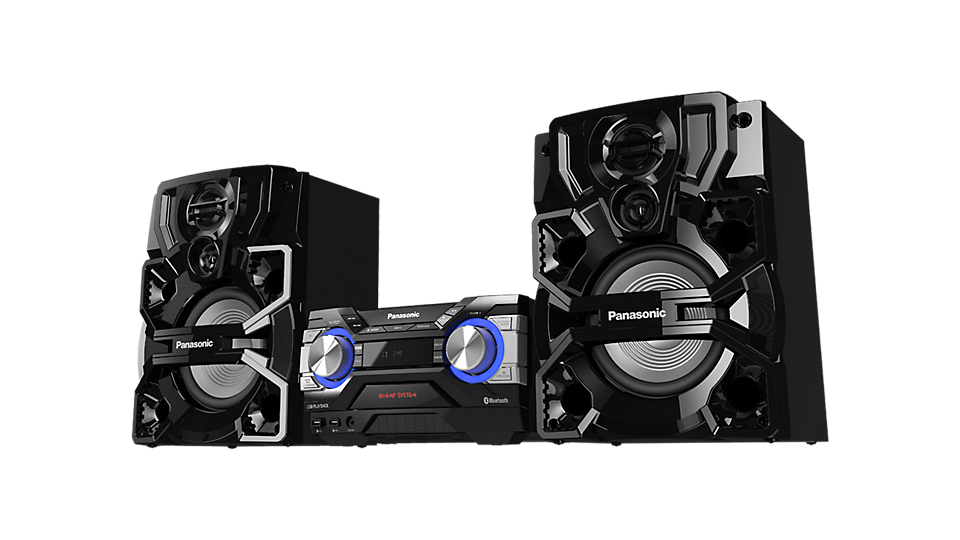

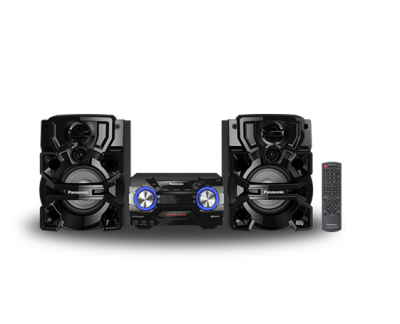

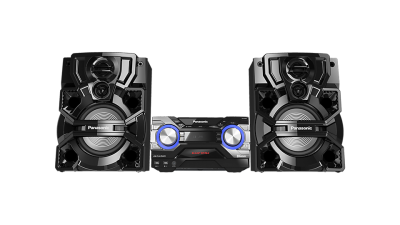

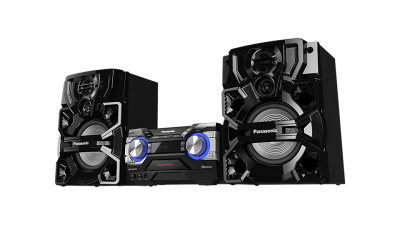

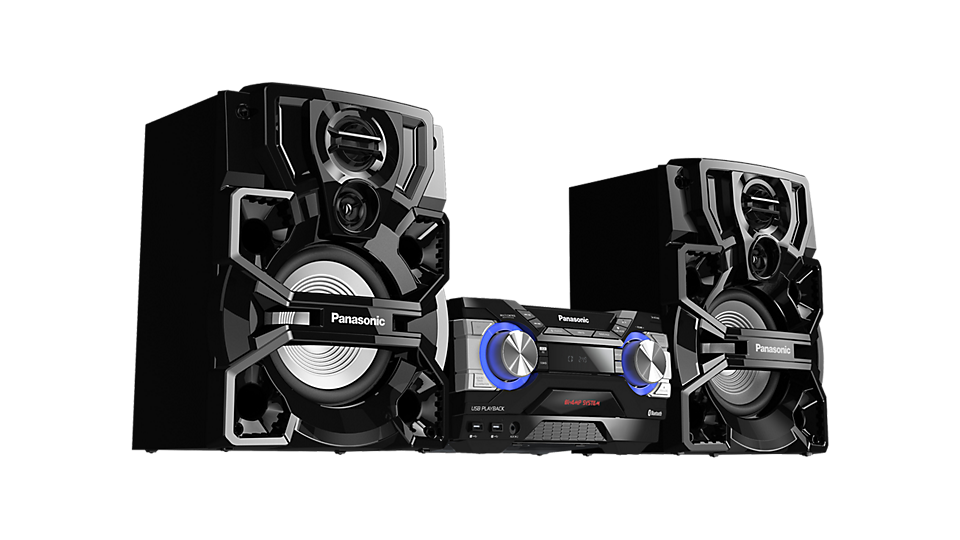

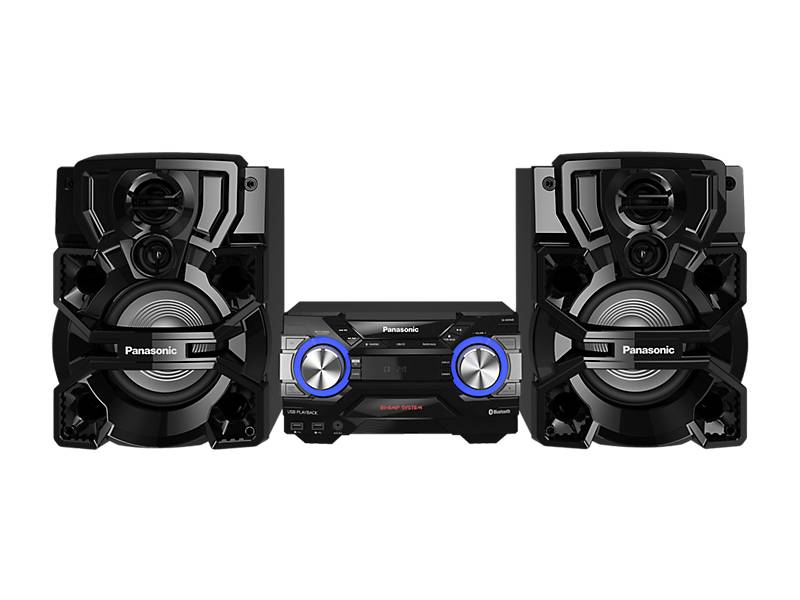

Powerful and Clear Sound
The new AIRQUAKE BASS system combines with Bi-Amp and large woofer for dynamic bass. Add more party excitement with the colourful LEDs that synch with the music to give a club-like atmosphere.
Overwhelming Bass and Resonance
The robust bass and resonance that parties demand have been further strengthened by the unique Bass Reflex System. Unique port technology pushes sounds forward without losing the resonance of sounds generated from behind the woofer unit. This further amplifies the bass to produce extremely powerful sound.
Produces Powerful Sound

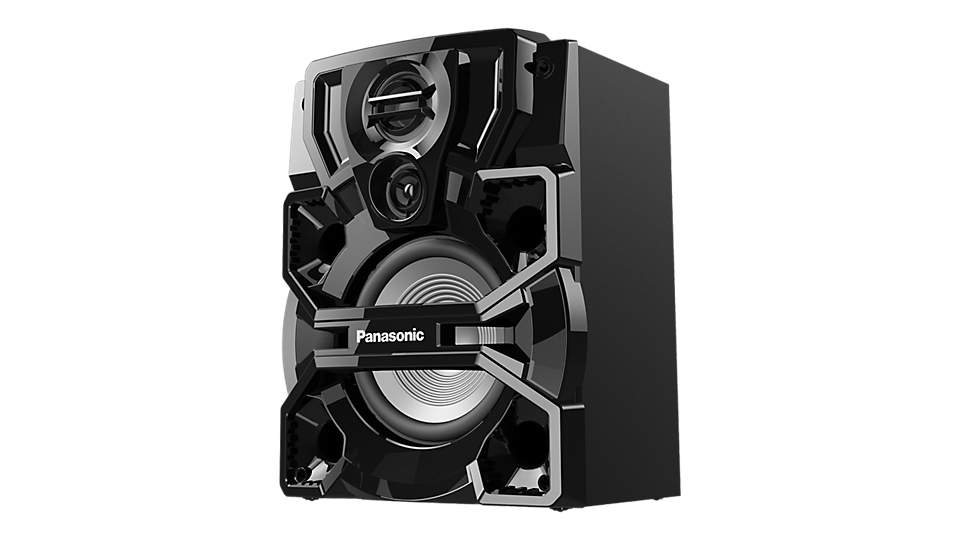

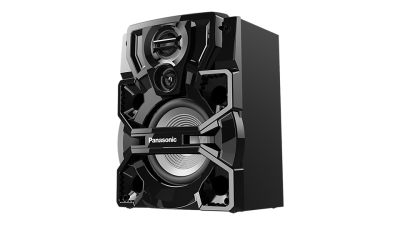

The 7-7/8 inch Super Woofer with Hard Press Corrugation produces powerful bass for dance and other kinds of music. Corrugation has also been added to suppress distortion for even greater clarity.
Enjoy Your Music with the Best Sound
With the versatility of the Local Preset Equalizer, you can maximize your enjoyment of different music genres, such as Rock, Pop, and more. Football mode also makes it more fun to watch TV as you can select the sound to match whatever it is you are enjoying.
Enjoy Your Music Collection
The DJ Jukebox plays songs from a USB device with Mix Play mode; and, you can operate playlists and play requests through the Panasonic MAX Juke App.
Colorful LEDs Boost the Party Mood
The dynamic Super Woofer glows in multi colors in sync with the music, helping the powerful sound to give the room a club-like atmosphere.
|Output Channel||2 ch|
|Power Output (TOTAL POWER) - PMPO||18,700 W|
|Power Output (TOTAL POWER) - RMS||1,700 W*1|
|Power Output (TOTAL POWER) - FTC||360 W|
|CD, CD-R/-RW - CD-DA||yes|
|CD, CD-R/-RW - MP3||yes|
|USB Standard||USB 2.0 Full Speed|
|Double USB - SlotA||Play|
|Double USB - SlotB||Play|
|Playback - MP3||yes|
|Band/ Station Presets||FM/30, AM/15|
|Bluetooth® Wireless Technology||yes|
|MAX Juke App Compatible||yes*2|
|HIGH QUALITY SOUND|
|Digital Amplifier||yes (Bi-Amp)|
|Hard Press Corrugation||yes (Super Woofer)|
|Local Preset Equalizer||yes|
|Manual Equalizer||yes (3 Band + Surround)|
|Rotary Music Selection while Playback||yes|
|Auto Power Off||yes|
|Speaker System||Front x2|
|Front - Configuration||3-way, 3 speakers|
|Front - Speaker Unit||Super Woofer: 7-7/8 inch (20 cm) Cone Type Woofer: 3-1/8 inch (8 cm) Cone Type Tweeter: 2-3/8 inch (6 cm) Cone Type|
|Analog Audio Input(AUX) - Pin Jack||yes|
|Analog Audio Input(AUX) - 3.5 mm Jack||yes|
|Power Supply||AC 120 V, 60 Hz|
|Power Consumption - Normal Use [Approx.]||190 W|
|Power Consumption - Normal Standby [Approx.]||0.4 W*3|
|Programmable Timer||PLAY/ SLEEP|
|Illumination - Main Unit||Multi-Colour|

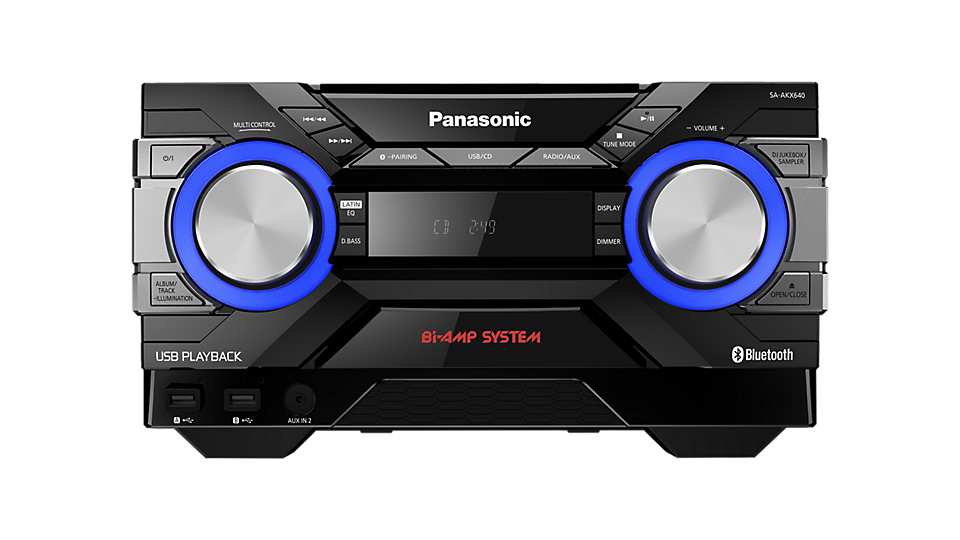

|Main Unit - Dimensions (W x H x D)||13-7/8 x 7-5/8 x 9-7/8 inch (348 x 193 x 251 mm)|
|Main Unit - Weight||7.1 lb (3.2 kg)|
|Front Speaker - Dimensions (W x H x D)||12-3/8 x 16-3/4 x 10-3/8 inch (313 x 425 x 264 mm)|
|Front Speaker - Weight||15.2 lb (6.9 kg)|
