PowerBass 10 Inch DVC Shallow Mount Subwoofer - XL1040TD
Authorized Dealer
Price Match Guarantee
Or as low as $45.62/month over 6 months.

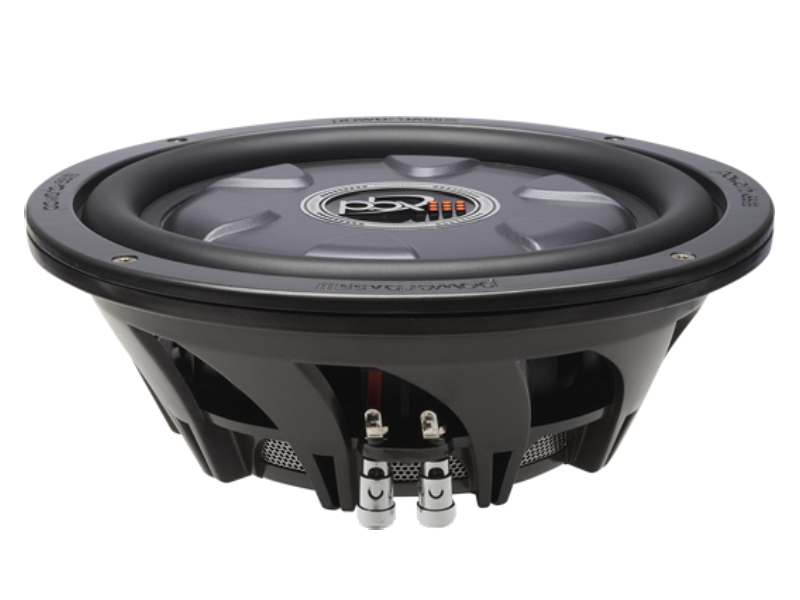

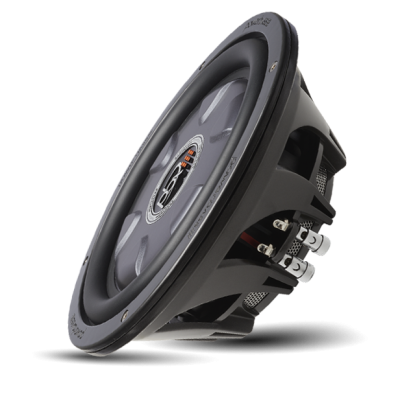

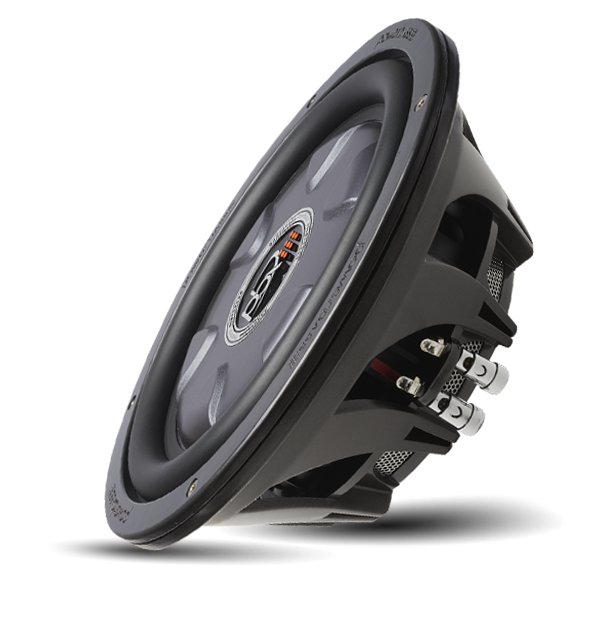

PowerBass XL-1040TD 10" DVC Shallow Mount Subwoofer
- New PBX logo dust cap
- 10" Shallow Mount Dual 4-Ohm Subwoofer
- 350 Watts RMS/700 Watts Max
- Proprietary Single Piece Injection Molded Flat Cone Design
- High Roll Santoprene® Surround
- 2.0" Vented KSV Voice Coil Former
- Perimeter Aero-Vent Voice Coil Cooling Vents
- Proprietary Non Resonance Polycarbonate/Glass Fiber Basket
- Chrome Push Terminals
- Optimally Designed for Small Sealed Enclosures
XL-1040T SHALLOW MOUNT 10" SUB THAT CAN HANDLE THE POWER
Those seeking a shallow woofer that can handle more power in a tight space will find that our new XL-Shallow subwoofers are just the ticket.
The proprietary one piece cone gives accurate and efficient bass to a system without taking a whole lot of space. Designed to work best in a small sealed enclosure that will fit in most spaces that a standard woofer won't opens up new possibilities for the most discerning music fan.
Using the same turbine style Poly/Glass Fiber basket as our standard XL subwoofers this shallower version offers all the features and reliability from the Xtreme family. Boasting a flat injection molded cone and inverted ferrite magnet these drivers come in nearly 2-inches shorter than their standard XL counterparts.
| Specifications | |
|---|---|
| Nominal Impedance: | single 4-ohm |
| BL: | 14.693 |
| Inputs: | Dual Coil |
| Subwoofer Frequency Range: | 35Hz - 500Hz |
| Voice Coil Size: | 2 in |
| Material: | Injection molded Polypropylene |
| Magnet Size: | 116 oz |
| Sensitivity (1W / 1M): | 82.9 dB |
| Cutout Diameter: | 9 5/16 in |
| Mounting Depth: | 3.4" |
| Xmax: | 7.5 mm |
| Spl: | 82.9db |
| No: | 0.123% |
| Qts: | 0.487 |
| Qes: | 0.577 |
| Qms: | 3.655 |
| Mms: | 164.056 g |
| Cms: | 127.039 uM/N |
| Vas: | 21.02 Ltr |
| SD: | 346.360 sqCM |
| Fs: | 35hz |
| Test Impedance: | 3.2-ohm |
| VC Impedance: | 4-ohm |
| Size: | 10" shallow |
| Sensitivity: | 82.9 dB |
| Frequency Response: | 35Hz - 500Hz |
| Voice Coil Size: | 2" |
| Power Handling (RMS/Peak): | 350 / 700 watts |
