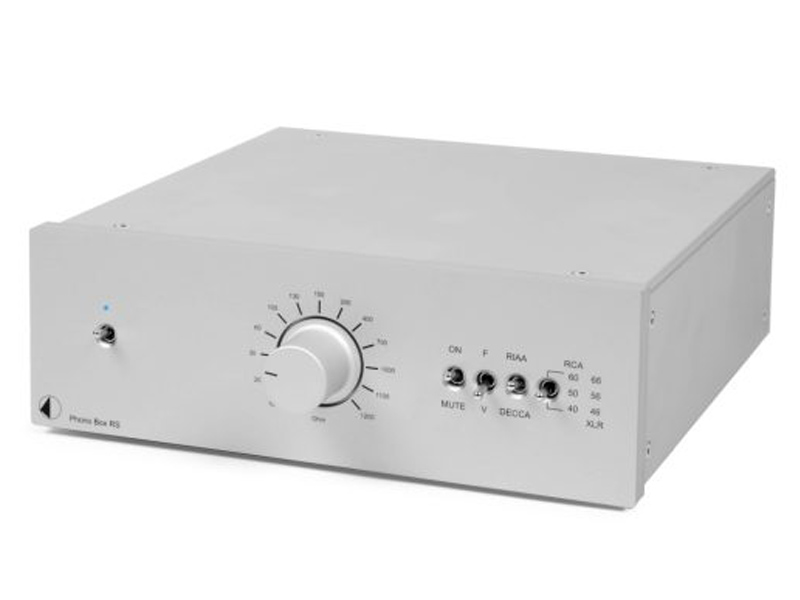

Project Audio Highend phono preamplifier - Phono Box RS Silver - PJ35829894

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $1,379.99 CAD

Or as low as $242.17/month over 6 months. Apply Now


Availability
Out of stock online. Call for availability

More options
Literature

Reference class phono preamplifier with unique impedance control

This ultra low noise and distortion preamplifier is made for the audio conniosseur and offers not only breathtaking performance but is capable to adapt to virtually any phono cartridge through variable impedance control. Impedance adjustment can be done while playback! Due to use of best parts, like SSM2019 from Analog Devices as input stages and Linear Technology LT1010 as high current buffer stage, Phono Box RS delivers ultra low levels of distortion and noise. Its very low output impedance makes it insensitive to selection of interconnect cables and lenghts.

Fully passive RIAA and DECCA equalisation is selectable. Phono Box RS offers fully balanced circuitry and both XLR and RCA inputs and outputs. All in all vinyl playback will never have sounded as clear, detailed and smooth, than with this superlative phono stage!

Features

  • MM & MC capable
  • True dual mono design
  • Balanced XLR & unbalanced RCA In & Outputs
  • Fully passive RIAA & DECCA equalisation
  • Unique continously variable input impedance loading, matches every cartridge (adjustment even while playing)
  • RCA & XLR In & Out
  • Superior low noise / low distortion
  • Classy & elegant dip switches
  • DC power supply (< 1 watt standby power)
  • Metal casing protects against vibration and interference
  • Available in silver or black
Specifications
Weight2000 g without power supply
Dimensions W x H x D (with sockets)206 x 72 x 210 mm
Power consumption150mA DC < 1 watt standby
Power supply2 x 18V/300mA DC; 220 - 240V, 50Hz
OutputsRCA & XLR
InputsRCA & XLR
SubsonIc20Hz / - 12 dB
RIAA accuracywithin 0.3dB/20Hz - 20kHz
THD0.019%
Signal to noise ratio91 dBA
Gain, MM / MCRCA: 40, 50, 60 dB, XLR: 46, 56, 66 dB
Output impedance50 Ohms
Load capacity switchable100pF, 200pF, 300pF, 420pF, 520pF
Input impedanceFixed 10 Ohms or 47kOhms, Variable 10 - 1200 Ohms
