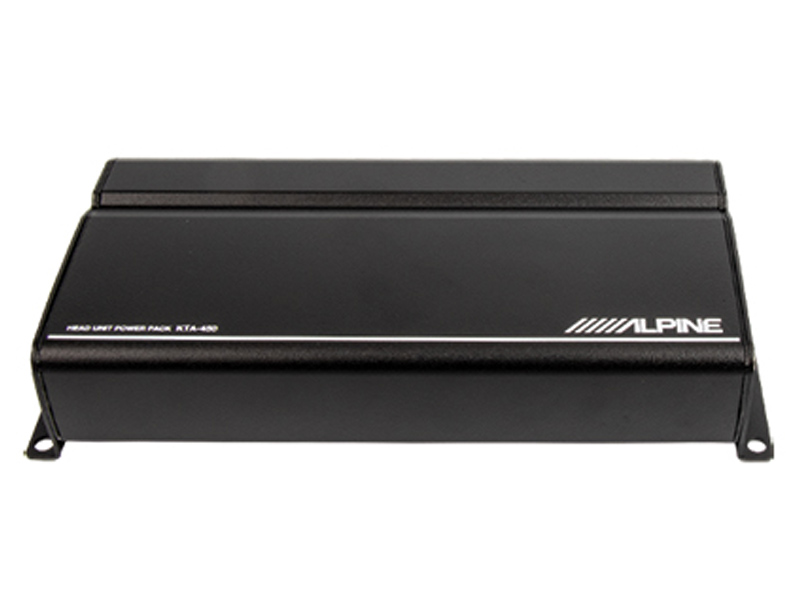

The next generation of Power Pack is here! The compact KTA-450 Power Pack Amplifier utilizes Alpine’s exclusive DPP technology for a big power boost in a small space.
- Compact size, measuring just 7” W x 3.5” H x 1.25” D
- Class D amplifier circuit
- Dynamic Peak Power (DPP) technology doubles the power during dynamic musical passages
- PowerStacking bracket included for mounting to the iLX-W650 7” Mech-less AV Receiver (sold separately)

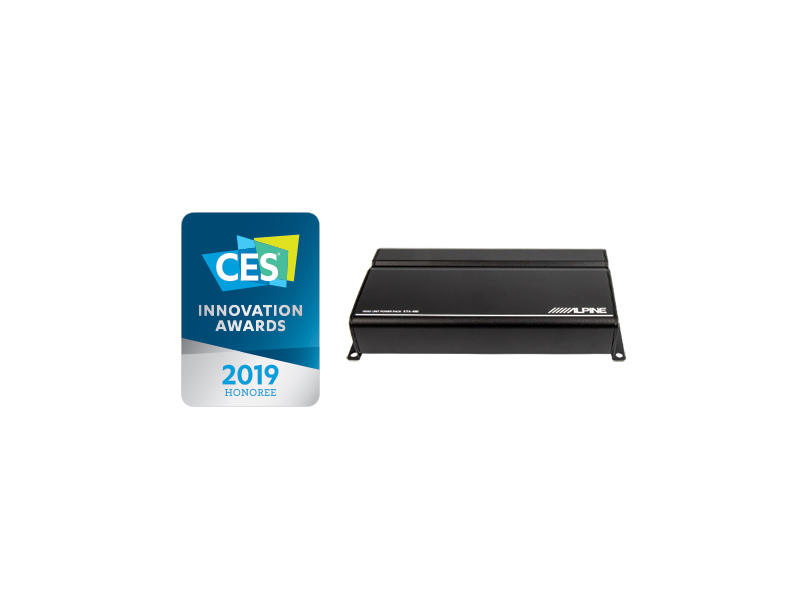

- The KTA-450 used with the iLX-W650 is a 2019 CES Innovation Awards Winner
AWARD-WINNING POWERSTACK COMPATIBILITY
The KTA-450 can mount behind select Alpine 2-DIN mech-less head units, like the iLX-W650, using the included bracket. The KTA-450’s recessed harness receptacle allows the wiring to fold between it and the head unit so both products fit in a standard 2-DIN space. This PowerStack design is a 2019 CES Innovation Awards winner and makes the duo one of the most powerful 2-DIN radios available.
EXCLUSIVE AMPLIFIER TECHNOLOGY, DYNAMIC PEAK POWER (DPP)
The KTA-450 features Alpine’s exclusive Dynamic Peak Power (DPP). DPP intelligently adjusts the gain to adapt to musical needs. DPP prevents the KTA-450 from clipping by supplying up to double the power for sudden, dynamic sounds. DPP ensures music sounds the way it should at high volumes and boosts the KTA-450 to 400 watts DPP, doubling its power without increasing its size.
COMPACT SIZE FOR HIDDEN INSTALLATION APPLICATIONS
The KTA-450 measures just 7” W x 3.5” H x 1.25” D. For vehicles that do not have the space for a traditional amplifier, the KTA-450’s small size allows it to be tucked away in hidden areas such as in the glove box or behind the radio. It could even be used in a motorcycle’s saddlebag or on a boat.
SIMPLE INSTALLATION FOR USE WITH ANY RADIO

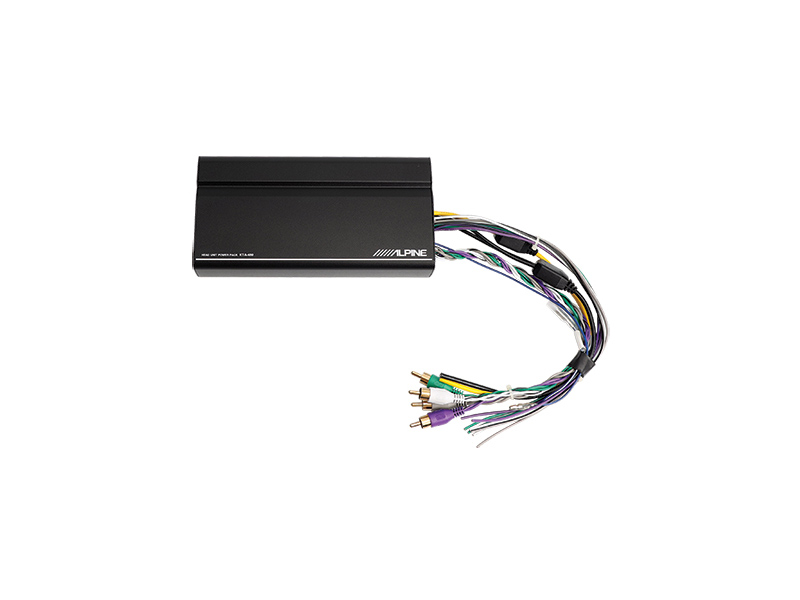

Thanks to the efficient power needs of the DPP technology, the KTA-450 does not require a new power supply wire at the battery, so installation is fast using the supplied radio power wires. In addition, the KTA-450 uses a 22-pin power harness with a recessed design on one side, so the cables can be tucked-in for a cleaner, less-bulky installation.
|Features and Specifications|
|DPP Power Rating:||100W DPP x 4 (2/4 Ohm, 14.4V, ≤1% THD+N)|
|CTA-2006 Power Rating:||45W RMS x 4 (2/4 Ohm, 14.4V, ≤1% THD+N) >82dB S/N (ref. 1W into 4 Ohm)|
