Alpine 4 Channel S-Series Amplifier with Hi-Res - S2-A36F

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $399.00 CAD

Or as low as $70.02/month over 6 months. Apply Now


Availability
Out of stock online. Call for availability

Literature

PRODUCT OVERVIEW

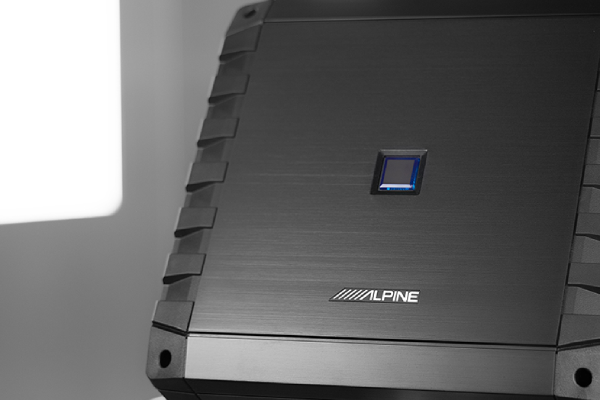

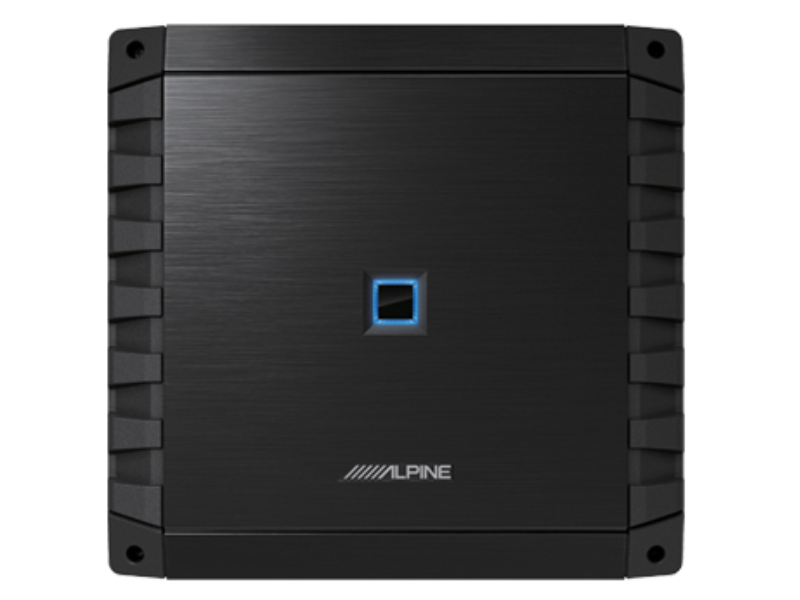

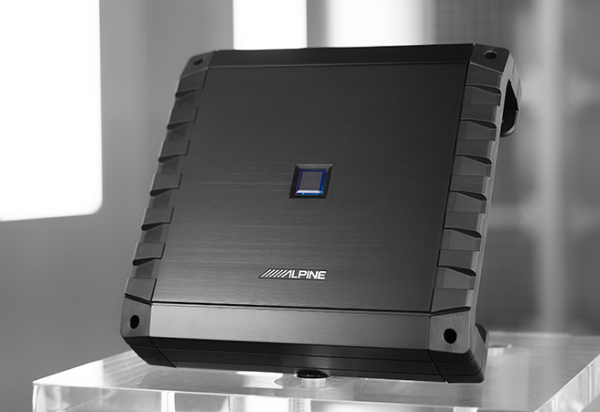

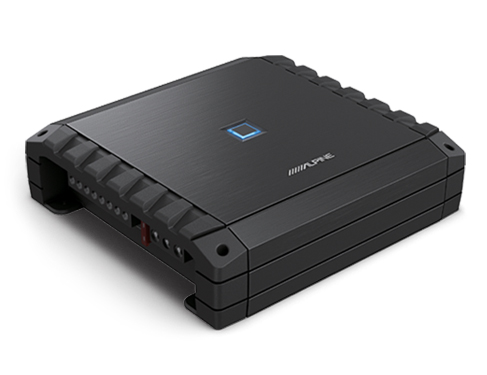

Entry-level sound just got elevated with the S2-A36F 4-Channel Amplifier. Its sleek redesign houses an Alpine Class D Amplifier Circuit and is now certified for Hi-Res Audio.

FEATURES

  • Hi-Res Audio Certified (Up to 40kHz)
  • 4-Channel Amplifier

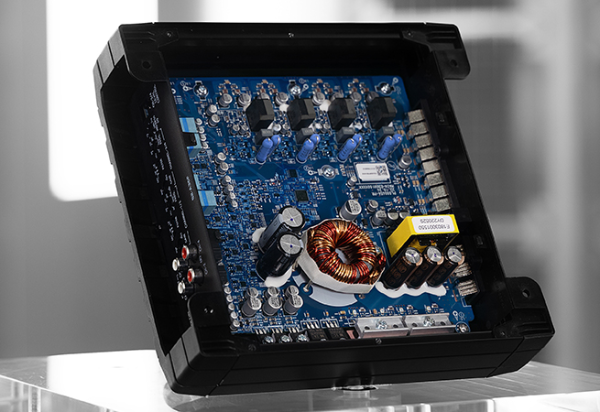

  • Alpine’s Class D Amplifier Circuit

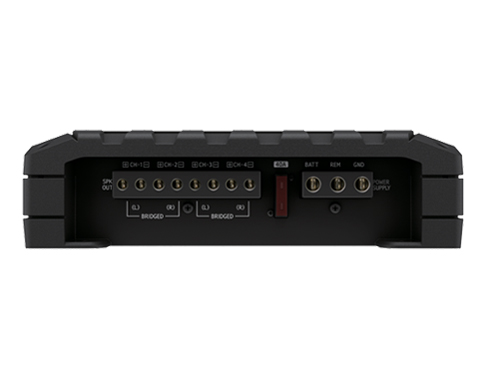

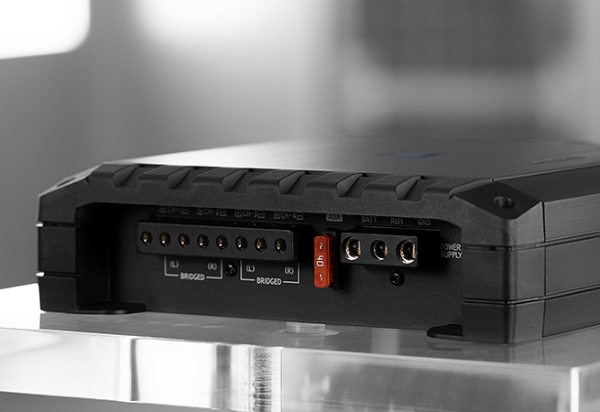

  • Two-sided terminal layout
  • Built-in Selectable/ Adjustable Crossovers
  • Variable Mid-Bass EQ Circuit for more upper bass impact
  • Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)

What's in the Box:

(x1) S2-A36F 4-Channel Amplifier

(x2) Connection end covers w/4 attachment screws

Owner’s Manual

“Birth Sheet” that certifies by measurement the actual power of the amplifier in the box

(x4) Self-tapping screws

(x1) Hexagon wrench

Alpine Registration Card

Alpine Limited Warranty Sheet

Tips sheet for power supply wire connections

HI-RES AUDIO

The Next-Gen Alpine S-Series S2-A36F 4-Channel Amplifier is Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth coupled with the elevated S-Series design brings out a new benchmark for entry-level performance and price.



FLEXIBLE APPLICATION

The Next-Gen S-Series Amplifiers now feature a new selectable remote turn-on circuit, a three-position switch that ensures the amplifier turns on and off at the proper times. This design is crucial with newer, in-vehicle technology and allows for proper integration with any factory or aftermarket system.



Easy Control Access

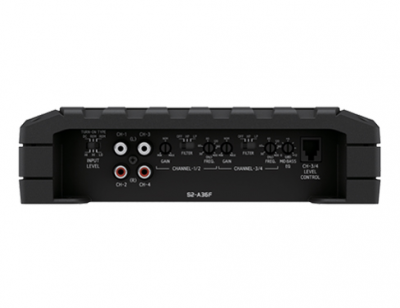

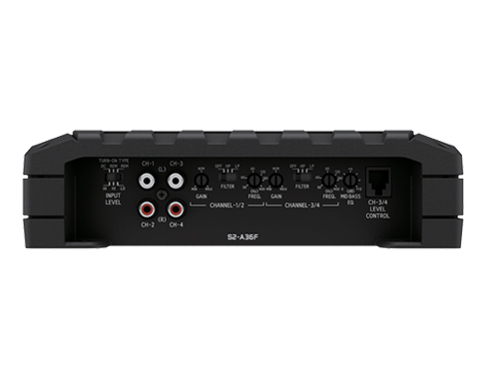

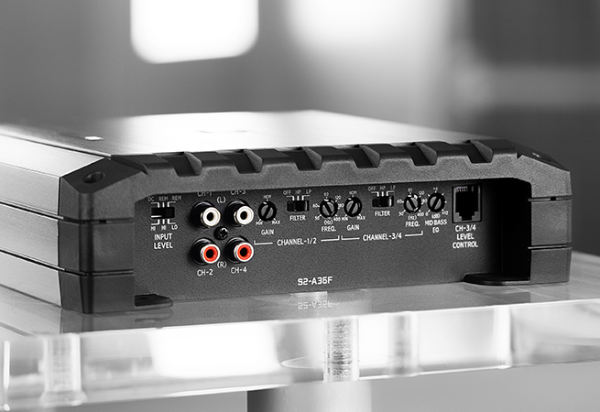

The amplifier was intentionally designed with sound controls located on the side panels, instead of the top panel, making it easier to access gain and crossover controls when installed under vehicle seats or in shallow-depth locations. Removable end caps were added to cover the side controls and connections, providing a clean, sleek finish to the amplifier.



Mid-Bass EQ

With its new and unique variable Mid-Bass EQ Circuit, the S2-A36F allows you to dial in the mid-bass impact as desired, making it an ideal choice for those seeking a more dynamic and powerful audio experience.


TECH SPECS
Damping Factor: >100
CTA-2006-D CertificationCTA-2006-D Certification
Frequency Response:20Hz – 40kHz
S/N Ratio:>83dB
Bridged Power:180W RMS x 2 @ 4Ω
Power Output:60W RMS x 4 @ 4Ω, 90W RMS x 4 @ 2Ω
Power Rating14.4V, ≤ 0.1% THD +N
Weight:4 lbs, 13 oz
Dimensions:8.7” W x 2.25” H x 8.25” D
