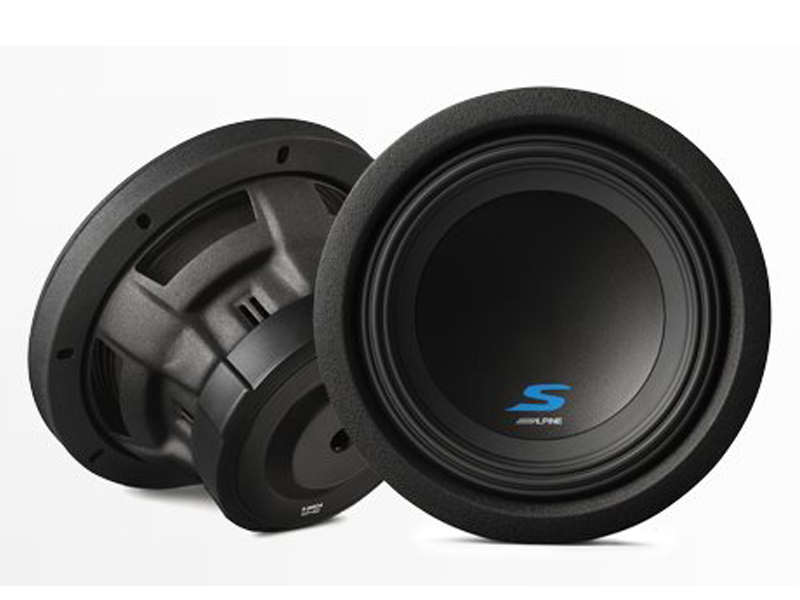

Alpine 8 Dual Voice Coil (4 Ohm) High Performance Subwoofers - S-W8D4
S-SERIES: BENCHMARKING A WHOLE NEW LEVEL OF PERFORMANCE
The S-Series subwoofers are designed with increased bass output and installation versatility. These hard-working subwoofers add bass and impact to your music without stretching your wallet. The all new 8 size lets you add a subwoofer to spaces in your vehicle you never thought you could. All S-Series subwoofers are sold as single pieces.
Speaker Rating:
Max RMS Power Capacity: 300W RMS
Peak Power Capacity: 900W Peak Power
OVERVIEW:
- 8 4 4 Subwoofer
- Power Handling: 300W 900W
- High Strength Custom Steel Frame
- Great complement to V-Power Amplifiers
- Frequency Response: 34Hz-200Hz
- Mounting Depth 3-3/4
- Recommended Sealed Box: 0.30 cubic foot (gross volume)
- Recommended Vented Box: 0.71 cubic foot (gross volume), 7 x 0.75 vent area, 15.5 vent length
ADD BASS TO PRACTICALLY ANY VEHICLE
Don t think you have room for a subwoofer Think again. The new S-W8D2 and S-W8D4 8 S-Series subwoofers have a shallow mounting depth of just 3-3/4 and can be used in a sealed box enclosure as small as .15 cubic foot. It is perfect for under seats, behind rear bench seats in trucks, or even in some door applications.
600W POWER HANDLING
The 8 S-Series subwoofers are engineered with an improved voice coil allowing the woofer to benefit from it's power rating of 300 watts. Match them with the powerful VPower MRV-M500 mono amplifier for a great subwoofer system.
CUSTOM-STAMPED STEEL FRAME
Each S-Series subwoofer uses a custom-stamped steel frame. These high-strength frames were designed to withstand the rigors of the improved S-Series motor. They have frame leg vents as well as a vented back plate to help cool the subwoofer voice coil and motor parts, plus a shallow design to help fit in smaller spaces.
PUSH-TYPE INSERT TERMINALS WITH DUAL VOICE COIL JUMPER SYSTEM
The push-type insert terminals help reduce the installation time of the S-Series subwoofers. Just strip the speaker insulation at the wire end, then insert the bare wire into the hole of the spring-loaded push terminal.
STRONTIUM FERRITE DOUBLE-STACKED MAGNETS
The S-Series subwoofers use two strontium ferrite magnets stacked together, for increased motor strength and excursion which ultimately leads to more bass output.
CLEAN, CONCEALED MOUNT GASKET SYSTEM
The S-Series subwoofers have concealed mount gaskets, creating a clean, finished appearance for any vehicle.
OPTIONAL GRILLES
All S-Series subwoofers are compatible with optional grilles (sold separately) to provide added protection to the cone. The grilles feature a mesh design with a S-Series logo badge. Choose from the following to match the size of your subwoofer; all grilles are sold as single pieces.
- KTE-8G: For 8 S-Series Subwoofers
- KTE-10G.2: For 10 S-Series Subwoofers
- KTE-12G.2: For 12 S-Series Subwoofers
