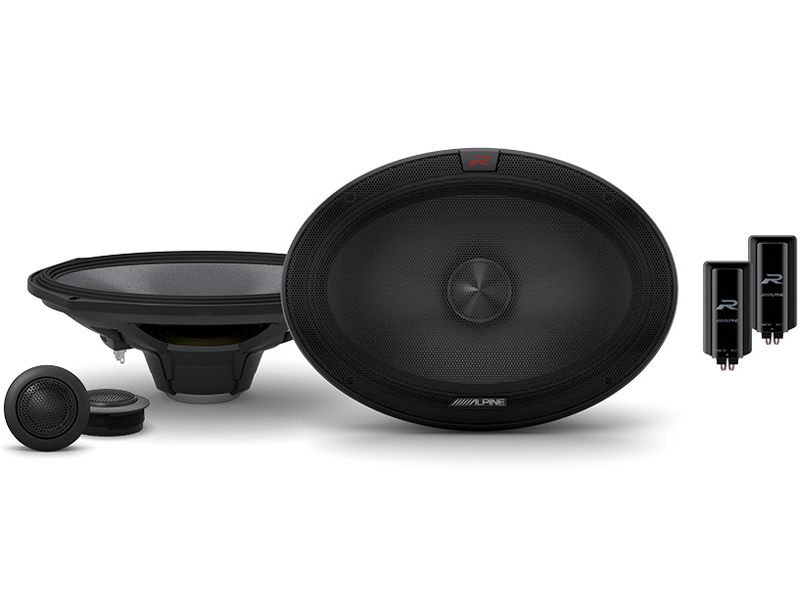

With the R-Series speakers' innovative material that delivers more output, the speakers produce dependable performance for a loud and fun experience.
- 6x9” Component 2-Way Speakers
- CTA-2031: 100W RMS/300W Peak Power
- Nominal Impedance: 4ohm
- Frequency Response: 60Hz-40kHz
- 1” CFRP Dome Tweeter
- CFRP Cone
- H.A.M.R. Surround
- 35mm Voice Coil
- Hi-Res Audio Compatible
- Sensitivity: 90 dB SPL ([email protected])
FOR LIVING LOUD AND HAVING FUN
If you play your music loud and want others to know, the R-Series speakers are the match for you. You’ll enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers.
MORE OUTPUT FOR MORE FUN
The woofers have a large, 35-millimeter (mm) voice coil which allows for more coil windings to fit in the gap. This results in greater heat dissipation and increased power handling, for superior control and output.
The R-Series speakers incorporate Alpine’s patented High-Amplitude Multi-Roll Surround (H.A.M.R.) for control and accuracy. The component models use a crossover with an in-line, passive design and reduced footprint, which contributes to easier installation.
EXCLUSIVE CONE TECHNOLOGY
The R-Series speakers use Alpine’s exclusive cone technology, Carbon Fiber Reinforced Polymer (CFRP), which is a high-strength, lightweight material. CFRP can be custom-formed so that its fibers align in the same direction as the curve and shape of the cone, thereby reducing resonant peaks and increasing the speakers’ mid-bass performance and dynamic range. CFRP is also used as a tweeter diaphragm, enabling the speakers to perform into the 45kHz range and making them compliant with High-Resolution Audio playback.
BETTER FITMENT WITHOUT SACRIFICING MOTOR FORCE
The R-Series speakers use a neodymium magnet which gives them a shorter overall height, compared to other speaker brands. The R-Series speakers also use a new, shallower grill design. The result: An improved fitment design that lets the R-Series speakers fit into tighter install locations without sacrificing motor force.
