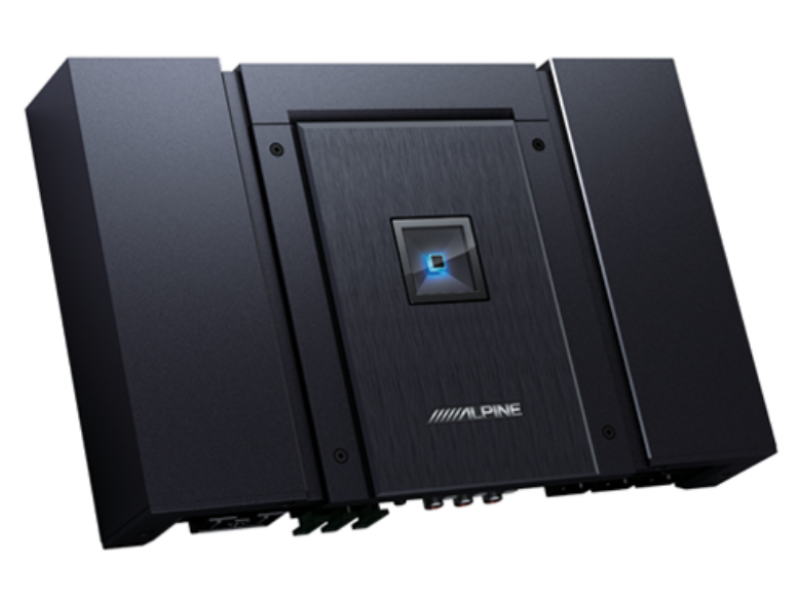

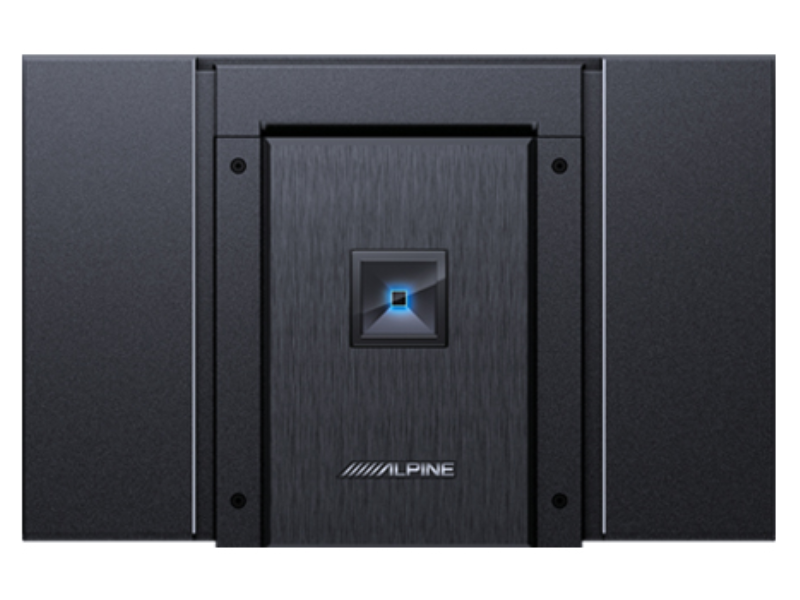

Alpine Status 5-Channel High-Resolution Amplifier - HDA-V90

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Price$1,698.00
Savings$200.00
Our Price $1,498.00 CAD

Or as low as $262.87/month over 6 months. Apply Now


Availability
Out of stock online. Call for availability

Literature

PRODUCT OVERVIEW

With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.



FEATURES

  • Hi-Res Audio Playback (192kHz/24Bit)
  • 5-Channel Amplifier
  • High-Efficiency Digital Circuit Design
  • Alpine’s Dual Negative Feedback Control Circuit
  • High Bandwidth Amplifier
  • Alpine’s Premium Class D Circuit Design
  • Copper-plated chassis
  • Black circuit board
  • One-sided terminal layout
  • Top panel sound controls
  • Quick connect power and speaker terminals
  • Optional Remote bass knob compatible (requires RUX-KNOB.2 or RUX-H01, sold separately)


What's in the Box:

  • HDA-V90 5-Channel Amplifier
  • Owner’s manual
  • “Birth sheet” that certifies by measurement the actual power of the amplifier in the box
  • 4 Screws for amplifier mounting to the vehicle
  • 2pcs. Mount bracket w/ 4 Screws for attachment to the amplifier
  • 3pcs. Allen wrench for amplifier connection & installation – Sizes: 2mm/2.5mm/4mm
  • 1pc. Quick connector block for Power/Ground/Remote wires
  • 3pcs. Quick connector block for Speaker wires

TECH SPECS

  • 75W x 4 + 300W x 1 @ 4Ω
  • 100W x 4 + 500W x 1 @ 2Ω
  • Selectable input level – HI/LO
  • Selectable 2/4/6ch input
  • Variable High pass / Low pass crossover
  • Variable Subsonic filter (subwoofer)
  • Bass EQ (0 to +12dB, Variable)
  • Auto-turn on with remote sensing


SUPERIOR SOUND

Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24Bit playback.



IMPRESSIVE OUTPUT

Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-V90 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.



Precise Sound Reproduction

The HDA-V90 features a high-efficiency digital circuit design that ensures ultra-low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like a copper-plated chassis and black circuit board, bring the signal-to-noise ratio up to 87dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source.



Incredible Reliability

Featuring technology unique to Alpine, the amplifier features Alpine’s dual negative feedback control circuit to improve linearity for the most accurate sound amplification. This technology also stabilizes the amplifier output while driving the speakers and subwoofers for ultimate reliability.



Easy Installation

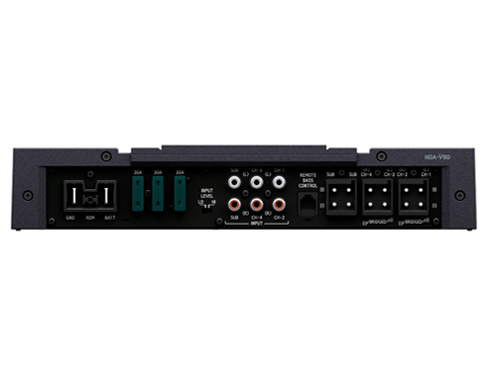

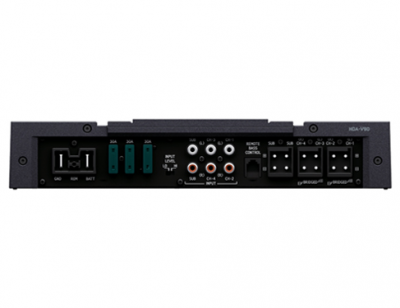

The HDA-V90 features Alpine’s quick-connect power and speaker connectors for quick and safe installation. The one-sided terminal layout and top-panel sound controls give the user quick access to controls on the amplifier.



Optimized for a Full System

The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.


TECH SPECS
Damping factor:500 (ch1/2/3/4), 1000 (subwoofer)
S/N Ratio:87dB (1W into 4ohm)
Frequency response:8-60kHz (-3dB)
Power Rating:(14.4V, ≤1.0% THD+N)
Dimensions:11.4375” x 7.5” x 2.125”
Bridged:200W x 2 @ 4Ω (ch1/2, ch3/4 only)
THD+N:0.02% (10W into 4ohm)
