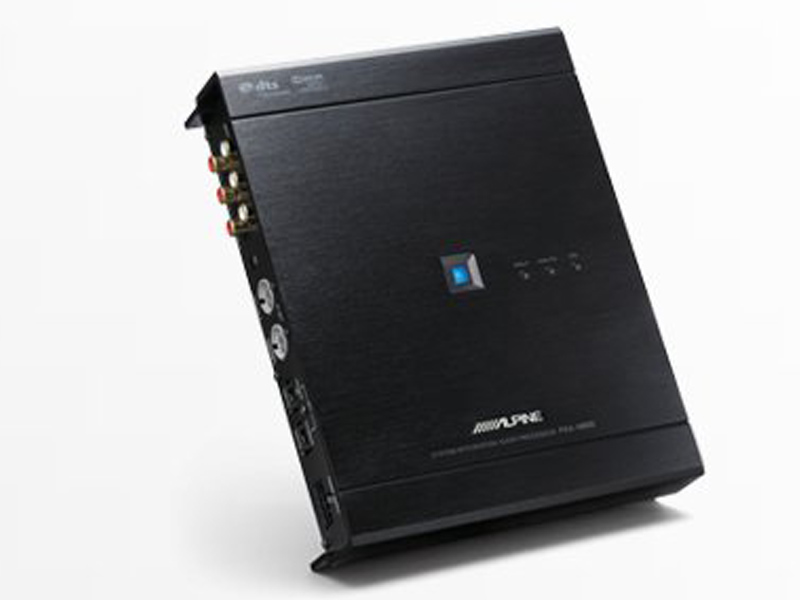

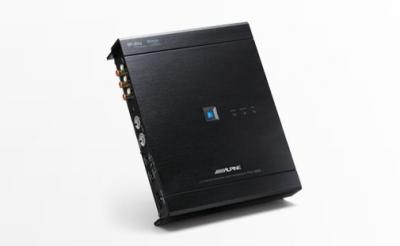

Alpine System Integration Audio Processor - PXA-H800

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping
Our Price $599.00 CAD

Or as low as $105.11/month over 6 months. Apply Now

Out of stock online. Call for availability

Unmatched Tuning for the Audiophile at heart

The PXA-H800 s extensive array of audio processing capabilities will maximize the sound quality of any OEM or Aftermarket system.


  • 24-Bit Ultra High Performance DAC

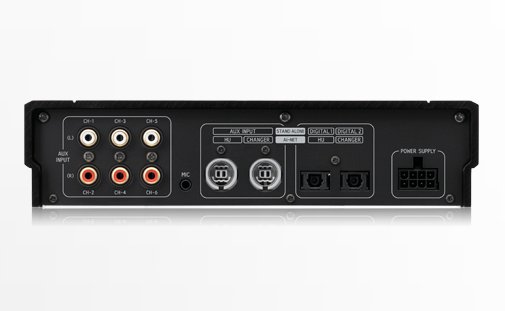

  • 6 Ch. Analog RCA or Speaker Inputs, 2 Optical Inputs, and 2 Ai-NET Inputs
  • 4Volt Pre-Outs
  • ImprintEQ
  • Graphic Equalizer: 31 Bands (speakers), 10 Bands (Subwoofers)
  • Parametric Equalizer : 10 Bands (Front, Rear, Center), 5 Bands (Subwoofer)
  • 8-Channel Digital Time Correction
  • MediaXpander Plus
  • Dolby Digital
  • Dolby Pro Logic II
  • DTS Digital Surround Sound
  • PC Software Included
  • Preset Access with INA-W910

Professional Sound Quality

The PXA-H800 provides all the audio processing functions necessary to enable the system to reach the highest levels of sound quality.

Audiophile-grade Components

A series of ultra-high performance audio components have been built-in to the PXA-H800 to achieve the heritage quality sound of Alpine. A complete 6-channel analog-to-digital converter, the CIRRUS CS5366 is ideal for unrivaled sound quality. The ADC uses a differential input architecture, which provides excellent noise rejection.

To reproduce the sound source without degradation, two ultra-fast accurate 32-Bit floating-point SHARC DSP s are used for high-performance and rich audio feature applications.

The use of four Wolfson 24-Bit D/A converters - normally a component found only in professional recording systems - help to ensure superb detail and soundscape.

Time Correction and Digital Crossover

Digital high pass and low pass filters allow you to set slopes from 0 to 36 dB/oct. with gain from 24 to 0dB. You can customize your system with the exact frequency crossovers you want.

Digital Time Correction lets you achieve optimum sound staging by ensuring that the sounds from all speakers reach your ears at the same time. Up to 8 channels can be automatically or manually corrected , from 0 to 20ms in 0.5ms steps.

ImprintEQ with Post-Tuning Adjustment

ImprintEQ is a hardware/software combination that can overcome the acoustic problems present in every vehicle interior. The software optimizes the sound stage, tonal balance and definition automatically. After the tuning is complete, you can manually adjust the settings if you desire.

Extensive EQ Capabilities

The PXA-H800 provides either graphic or parametric equalization.

The graphic EQ provides 31 bands for each of the five channels, plus 10 bands for the subwoofer, with gain from 12 to 12dB. While the parametric EQ lets you select a band and then adjust the output level and width for precise tuning. You get 10 bands for each of the five channels, plus five for the subwoofer, with detailed Q settings and gain from 12 to 12dB.


This exclusive Alpine technology restores sound quality that is lost in the recording or transmission processes. MediaXpander is especially good for making compressed digital audio files from iPod or other media players sound better. It is also effective for older recordings on CD, and improves the bass from factory-installed speakers. Access the MediaXpander by simply selecting MX from the menu options.


Even superior sound can be degraded by road, wind and air conditioner noise. RoadEQ takes the internal and external inputs and cancels out the noise to deliver optimal sound to your ears. It compares the original and recorded signals to create frequency-specific level adjustments to cancel the noise components. This powerful processor performs these operations at 48,000 times per second.

True 5.1-channel Surround Sound

Enjoy true 5.1-channel surround sound just like your home cinema system. You can hear multi-channel sound from movie and music sources in the Dolby Digital and DTS Digital Surround formats. The PXA-H800 also provides Dolby Pro Logic II decoding, so you can even enjoy stereo recordings in surround sound.


Euphony makes it possible to enjoy 5.1-channel sound from 2-channel sources. It creates natural surround sound from CD or iPod with wider soundscapes and harmonics. It especially enhances vocal and instrumental quality, for a superior sound field and no listener fatigue.

Bi-Phantom Center Speaker

Even if you don t have a center speaker, you can still enjoy 5.1-channel sound. Alpine has included a Bi-Phantom function, which uses the front left and right channels to create a phantom center channel, enhancing vocal quality.

RUX-C800 Remote Commander for PXA-H800

The required RUX-C800 provides full control of all PXA-H800 functions and its own display to reveal all the detailed information.

Keep your Factory Control

Upgrade your sound, without the sacrifice of any of your factory control. Keep the look and functionality of your dashboard, including your steering wheel controls and features your car may already come with, such as Bluetooth wireless technology, DVD video capability, navigation, iPod support, SIRIUS/XM Satellite Radio, Auxiliary inputs, etc. The PXA-H800 also gives you control over your sound using the factory radio volume control. Leave all of your factory control intact and upgrade to signature Alpine sound.

Six Speaker-Level Inputs

With six speaker-level inputs, you can connect six channels of sound from a head unit and other components that do not have preamp outputs. There s no need for separate line output converters.

Add More Media Sources

With two Ai-NET connections, two optical digital inputs and six-channel RCA inputs, adding components for front and rear seat entertainment is a breeze. And of course, with the PXA-H800 in your system, you ll maximize the sound from your factory system.

Fine Tuning via PC

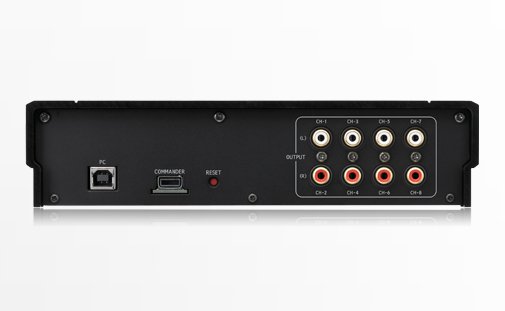

Connect your PC to the PXA-H800 with the supplied USB cable and access the easy-to-use GUI that lets you make detailed audio settings. Store six different tuning presents (such as bass, acoustic, etc.) on the computer for later selection or for use to tune different vehicles.
