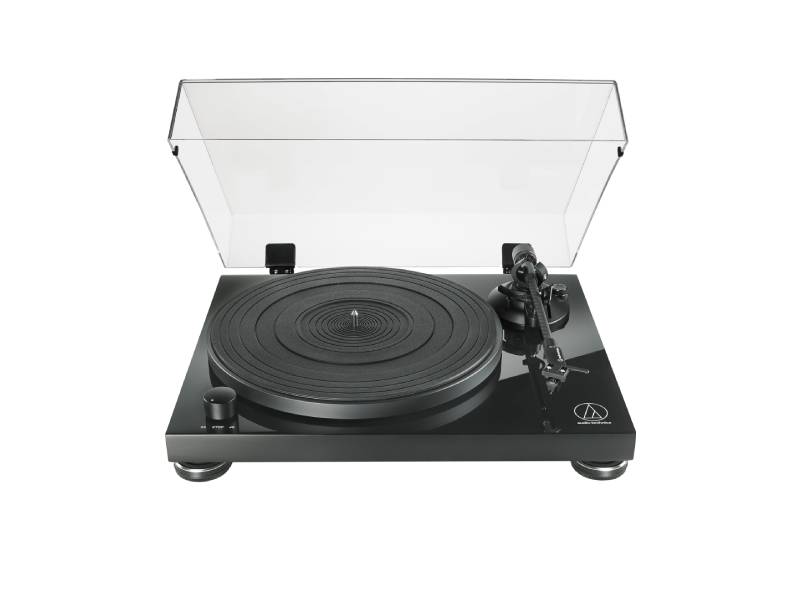

Audio Technica Fully Manual Belt-Drive Turntable - AT-LPW50PB

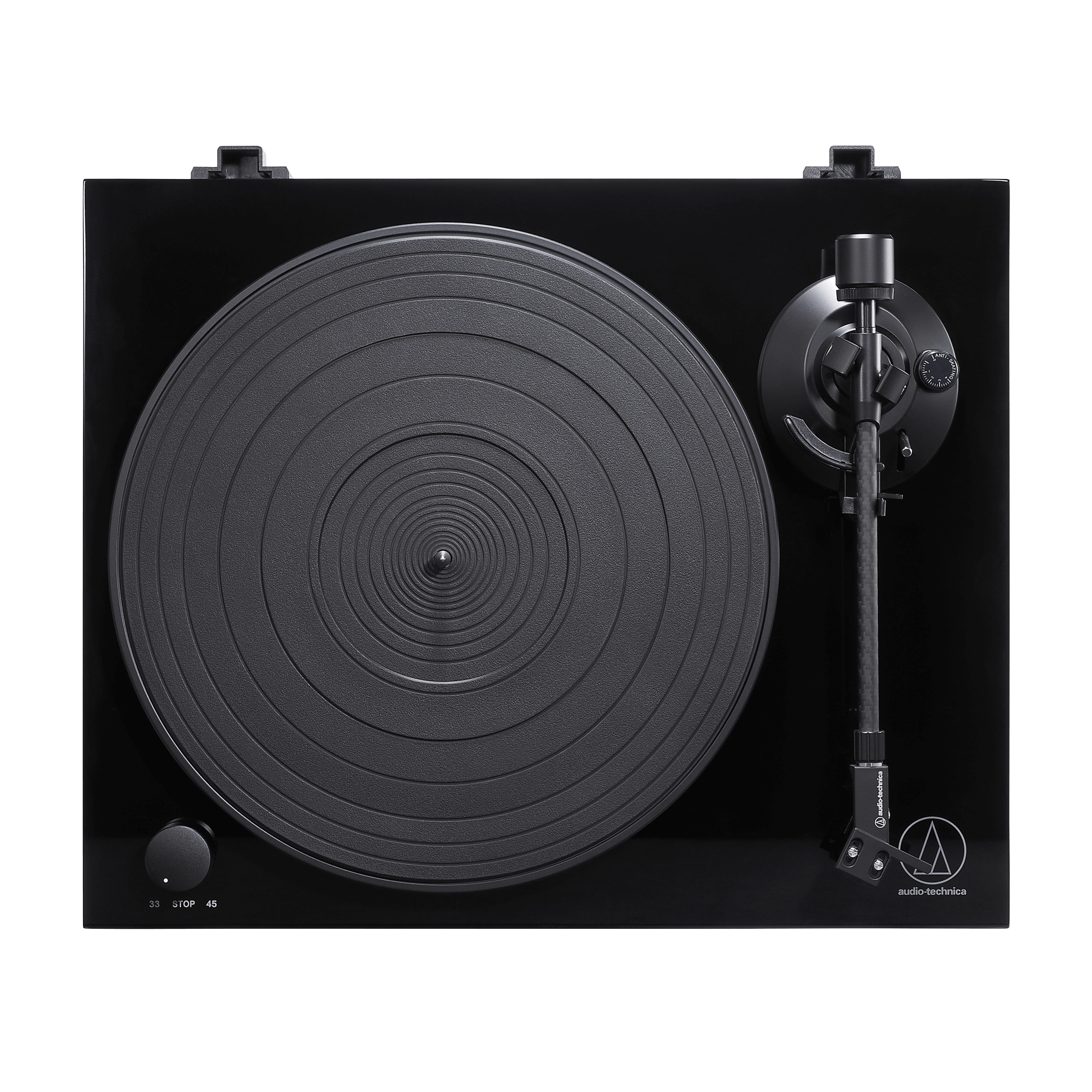

The AT-LPW50PB is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an anti-resonance 30 mm thick MDF (medium density fiberboard) plinth, with a high-gloss, piano-black finish, to dampen low-frequency acoustical feedback, and a sensor-monitored motor to ensure accurate platter rotation speeds of 33-1/3 and 45 RPM.
The turntable includes a straight, matte-finish, carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with a black AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
The AT-LPW50PB is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.
Refined High-Fidelity Audio
Stunning Look, Stunning Sound

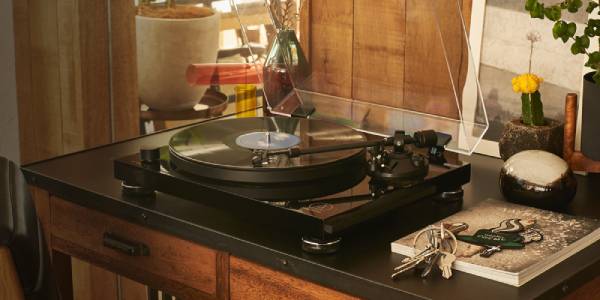

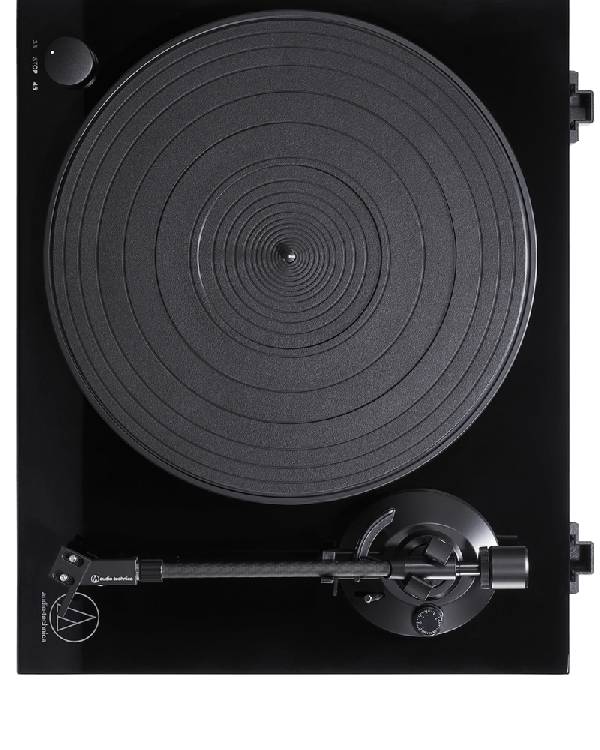

Marked by the high-gloss, piano-black finish of its anti-resonance plinth, the AT-LPW50PB offers sleek, modern styling to match the supreme accuracy of its sensor-monitored motor.
Plays 33-1/3 RPM and 45 RPM

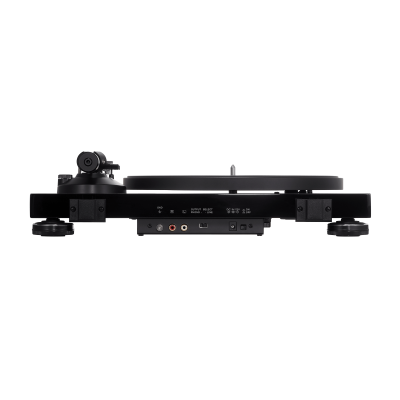

Built-in Switchable Phono Pre-Amplifier
Carbon-Fiber Straight Tonearm
AT-VM95E Dual Magnet™(black) Phono Cartridge
Carbon-Fiber Tonearm
Designed for a Higher Level of Listening

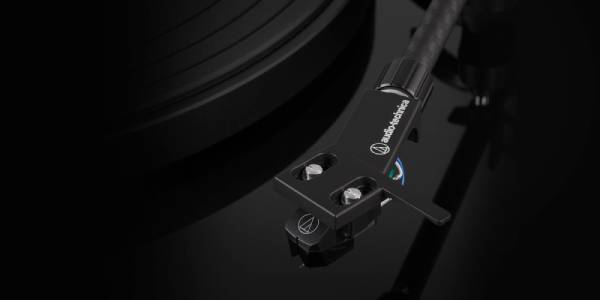

The AT-LPW50PB is equipped with a straight, matte-finish, carbon-fiber tonearm and comes with an AT-HS4 universal ½”-mount headshell and a special black version of the versatile AT-VM95E Dual Moving Magnet phono cartridge.
Features
- Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
- Motor features a speed-sensor system to maintain accurate platter rotation speed
- Adjustable dynamic anti-skate control
- Professional anti-resonance, die-cast aluminum platter with rubber mat

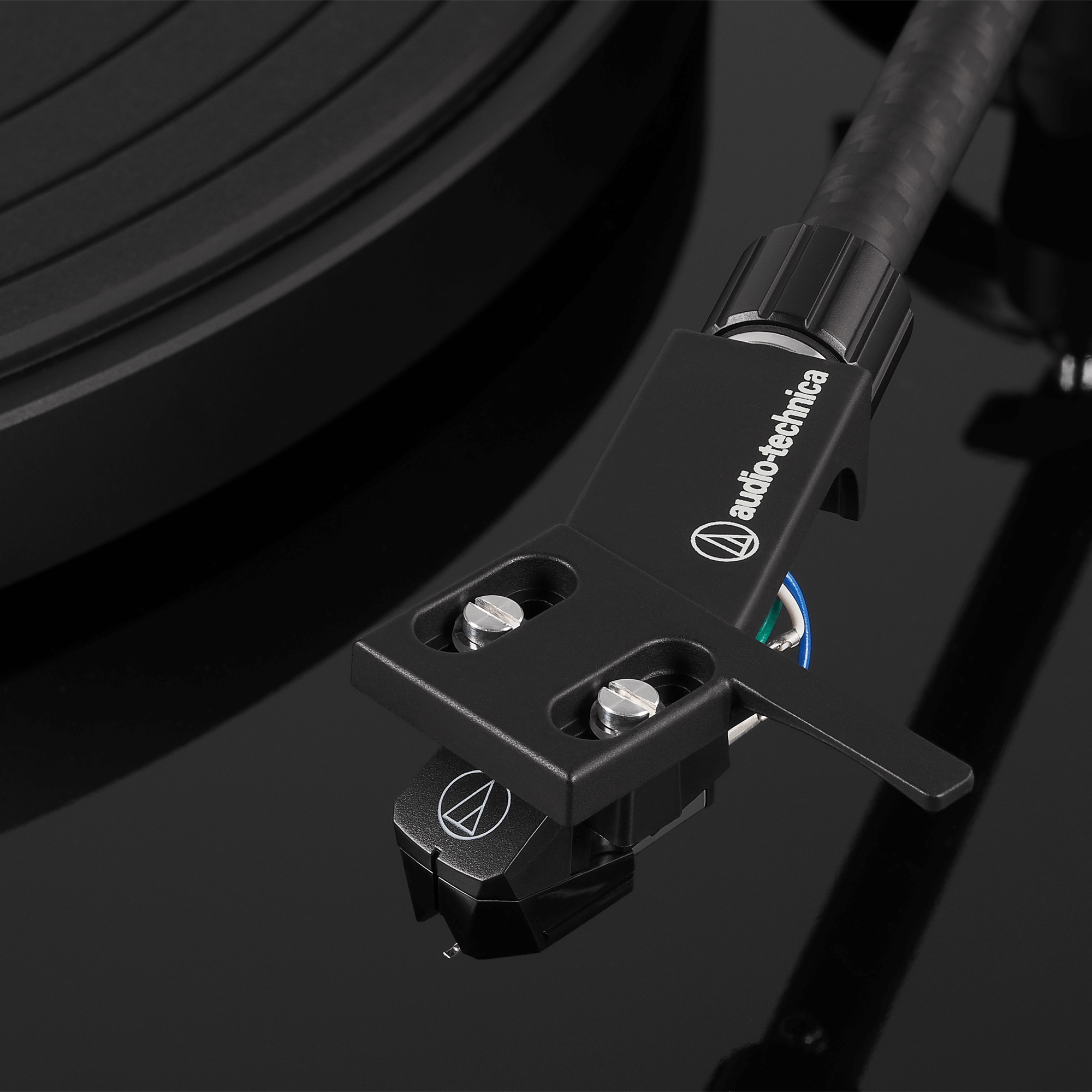

- AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge (black) with 0.3 x 0.7 mil elliptical stylus
- AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application

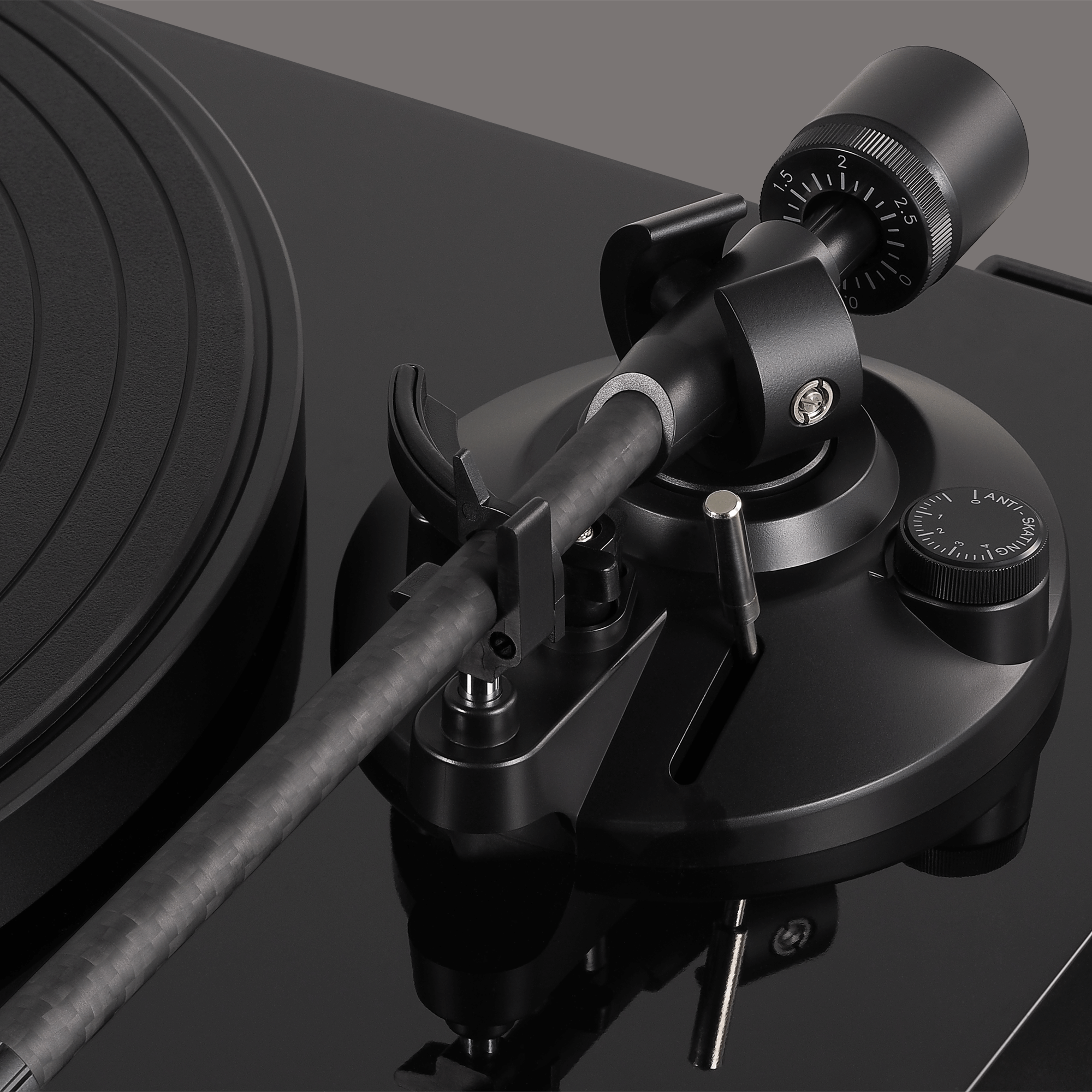

- Straight, matte-finish, carbon-fiber tonearm with hydraulically damped lift control and lockable rest
- Anti-resonance 30 mm thick MDF (medium density fiberboard) plinth with high-gloss, piano-black finish
- High-isolation, height-adjustable feet

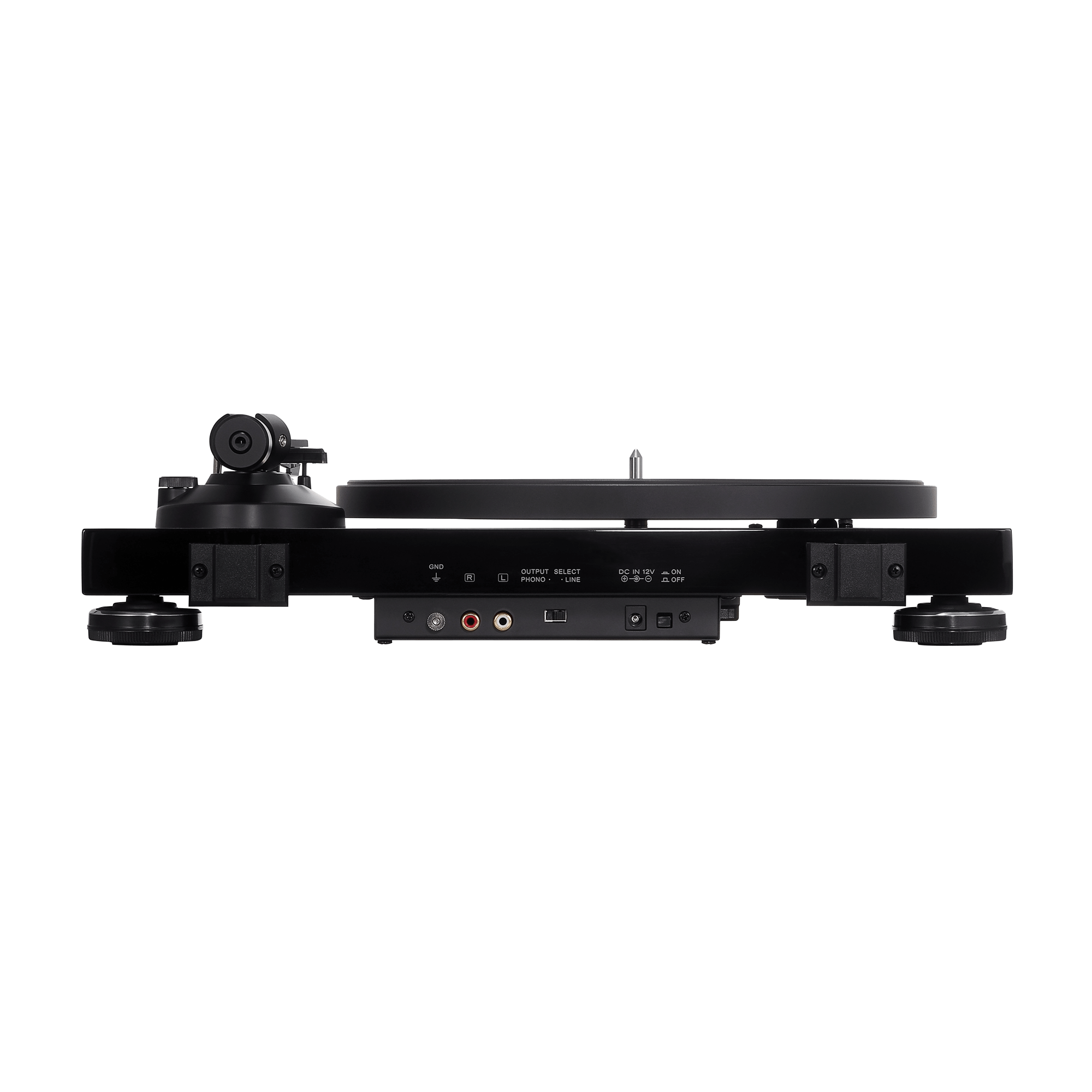

- Built-in switchable phono preamplifier for phono or line-level output
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain

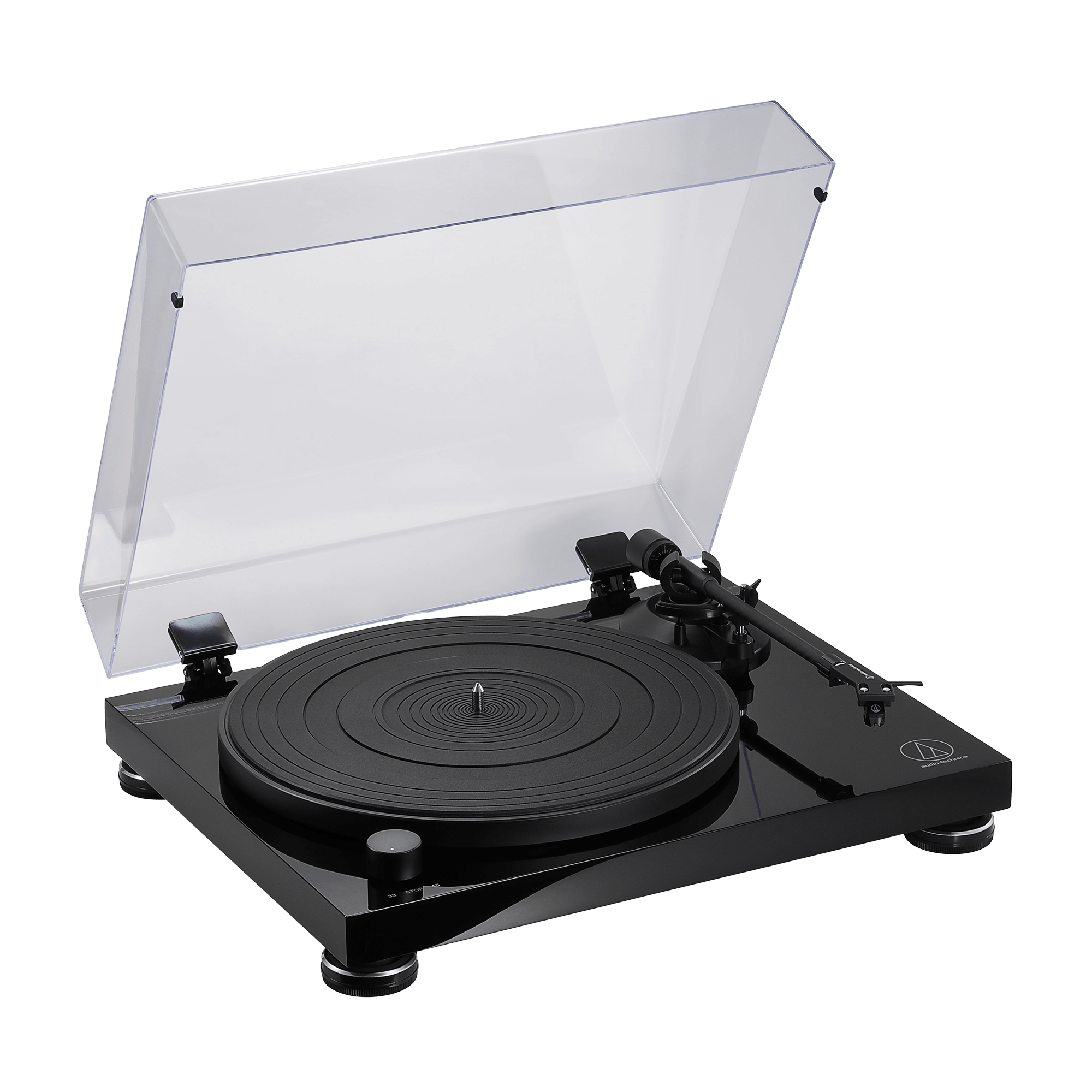

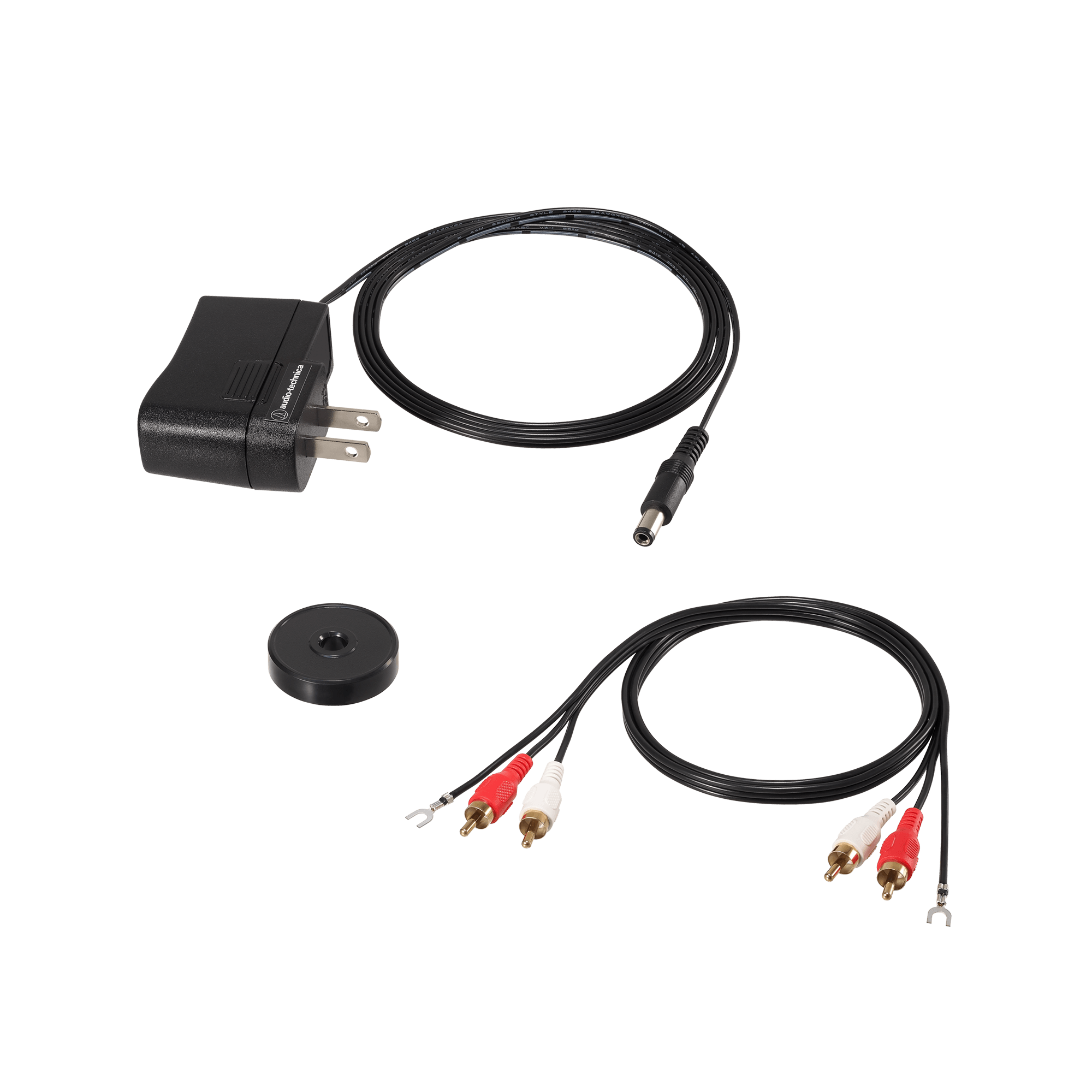

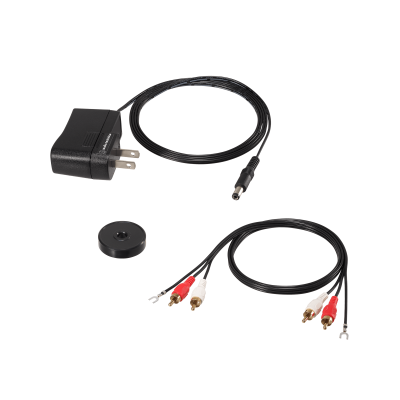

- Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover
Specifications | |
---|---|
Type | Belt-drive manual turntable |
Motor | DC servo with Active Speed Stabilization |
Drive Method | Belt drive |
Speeds | 33-1/3 RPM, 45 RPM |
Turntable Platter | Die-cast aluminum |
Wow and Flutter | < 0.15% WRMS (33 RPM) at 3 kHz |
Signal-to-Noise Ratio | >60dB |
Output Level | Pre-amp “PHONO”: 4.0 mV nominal at 1 kHz, 5 cm/sec , Pre-amp “LINE”: 200 mV nominal at 1 kHz, 5 cm/sec |
Phono Pre-Amp Gain | 35 dB nominal, RIAA equalized |
Power Supply Requirements | 100-240 V, 50/60 Hz, 0.5 A Max. |
Dimensions | With dustcover: 420.0 mm (16.54") W x 356.0 mm (14.02") D x 126.0 mm (4.96") H , Without dustcover and hinges: 420.0 mm (16.54") W x 356.0 mm (14.02") D x 114.0 mm (4.49") H |
Weight | 5.56 kg (12.26 lbs.) without dust cover |
Accessories Included | Dust cover, Platter, Turntable mat, Drive belt, Counterweight, AT-HS4 headshell, AT-VM95E stereo cartridge (black), 45-RPM adapter, RCA audio cable (approx. 1.0 m (3.3')), AC adapter (approx. 1.5 m (4.9')), Dust cover hinges |
Notes | Tonearm type: Static balanced straight carbon tonearm , Effective arm length: 223.6 mm , Overhang: 18.6 mm , Tracking error angle: <2 degrees , Applicable cartridge weight: 12-17 g , Stylus pressure adjustment range: 0-3 g , Replacement Stylus: AT-VMN95E BK |
