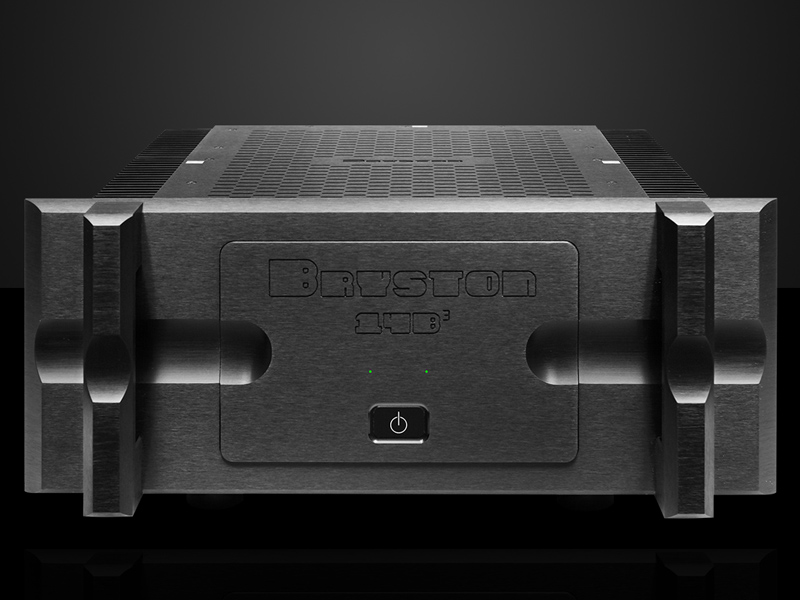

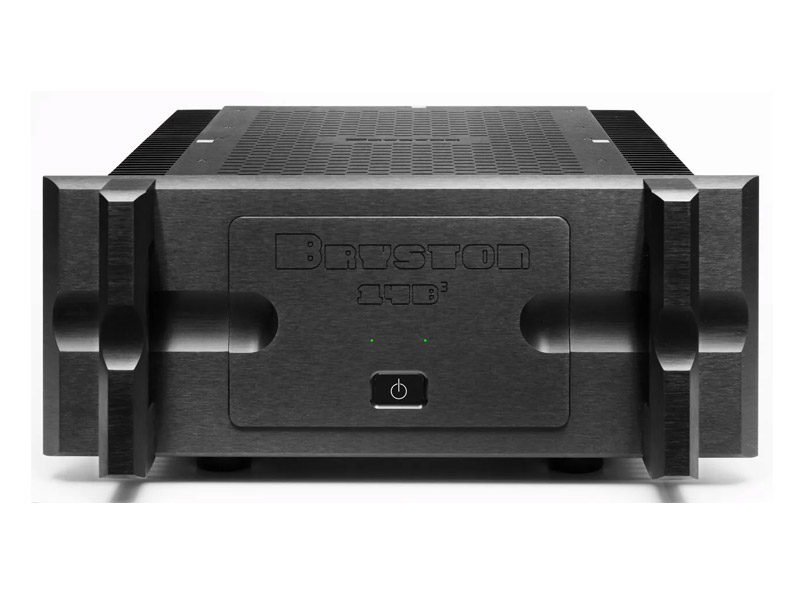

Bryston Cubed 600 watts Stereo Amplifier- 14B³
The Bryston 14B³ dual channel (stereo) amplifier is basically two 7B³’s which have been combined in a dual mono modular design and has the power to drive with breathtaking ease and clarity, speakers which have been considered "impossible" loads in the past.

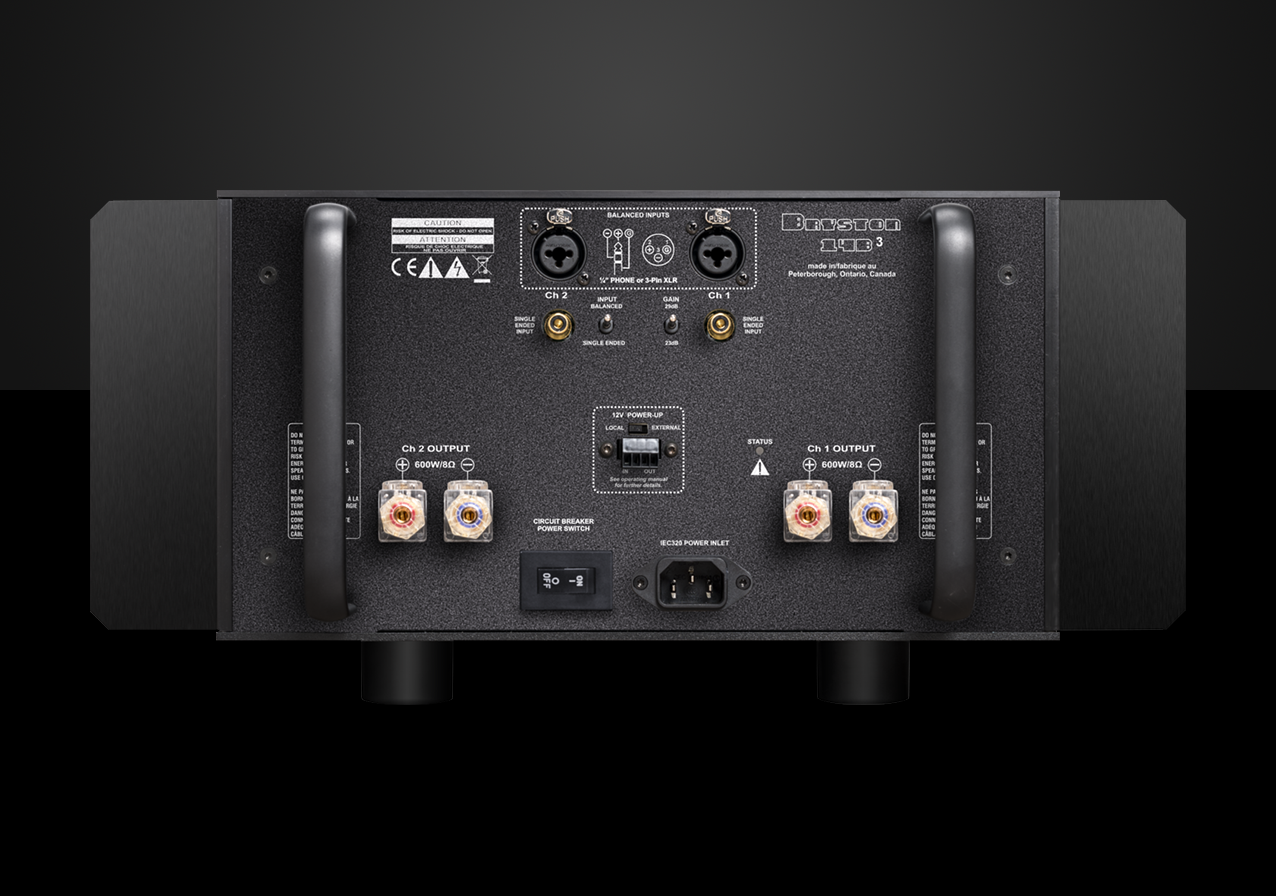

Inputs: 2x Balanced Inputs (XLR or TRS), 2x Single Ended Inputs (RCA)
Power Capabilities:
- 600W into 8Ω
- 900W into 4Ω
Features:
- Balanced and Single Ended audio inputs
- Selectable gain at 23 or 29dB
- No fans or other moving parts
- Regulated power supplies to all voltage gain stages

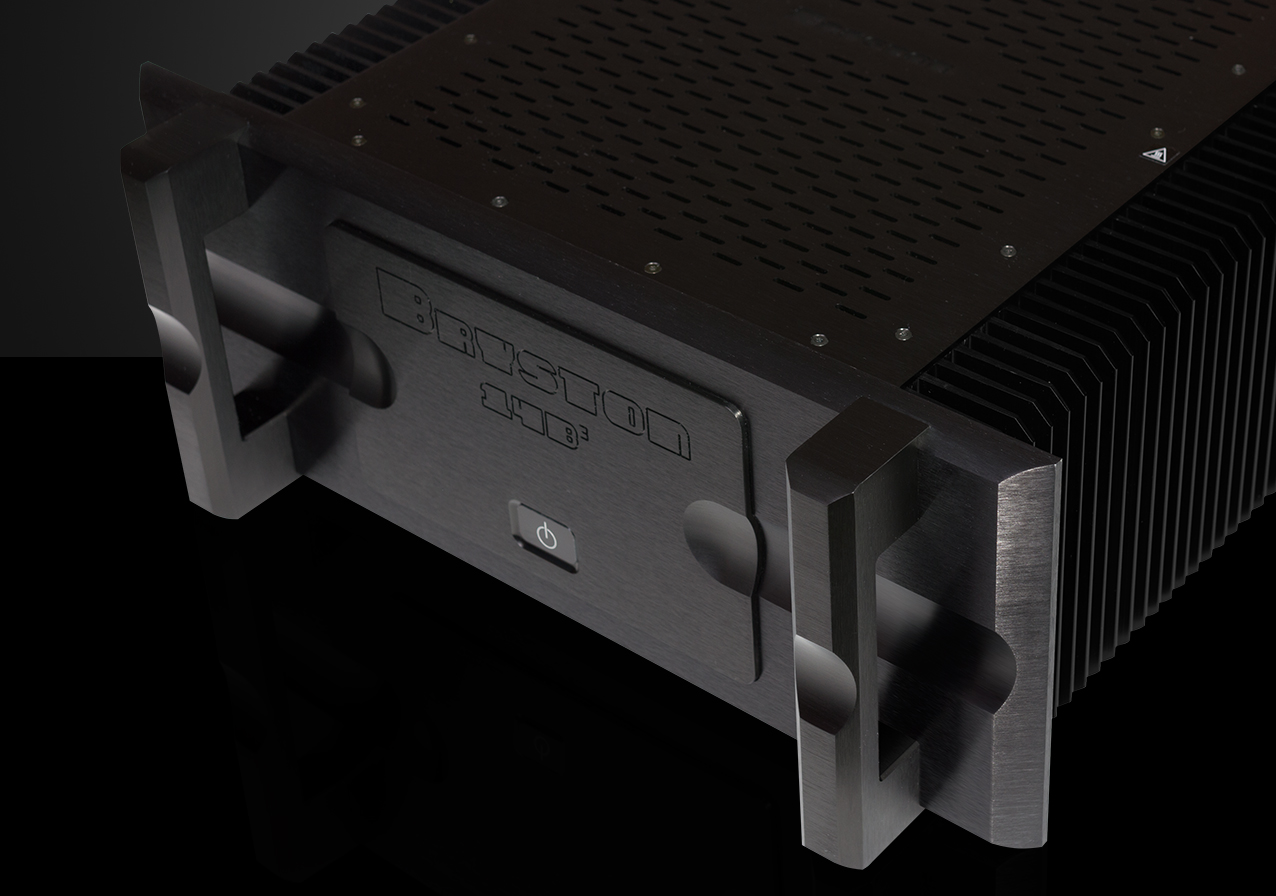

- Convection cooled and housed in a fully aluminum chassis
- Independent power supplies for each channel
- Energy storage power transformers maximize dynamic range
Options:
- Available with silver or black faceplate (4U + .55”)
- 17” (without handles) or 19” (with handles) faceplate available (non-rack mountable)
- Rack mountable Pro Edition available in black (see Cubed Pro for more details)
Specifications:
- Harmonic Distortion: ≤.005% from 20Hz to 20kHz at 600W
- Noise below full output: ≤ -122 @ full bandwidth
- Slew Rate: >60V/µS
- Power Bandwidth: <1Hz to >100kHz
- Damping Factor: >300 at 20Hz (8Ω)
- Switchable Gain: 23dB or 29dB
