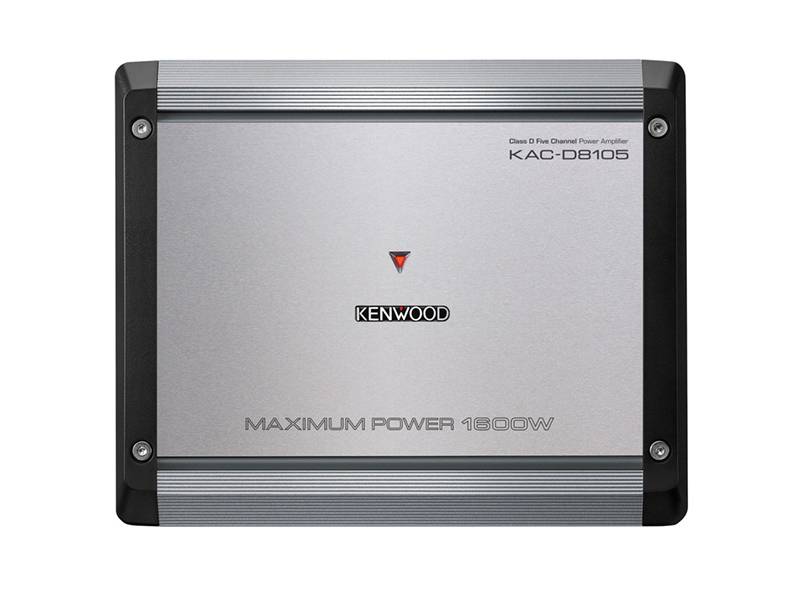

Kenwood Class D 5-Channel Power Amplifier - KACD8105
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $449.00 CAD
Sale Ends : June 05, 2021

Or as low as $78.79/month over 9 months. Apply Now


Availability
Call for availability

  • Max Power 1600W
  • Size (inch) (W) 9" x (H) 2-3/16" x (D) 7-3/8"
  • Variable High & Low Pass Filter
  • Bass Boost

Key Features

  • CTA-2006 Compliant
  • 2 Ohms Load Capability
  • Speaker Level Input with Signal Sensing Turn-on
  • Power MOS-FET Switching Power Supply
  • Extruded Aluminum Heat Sink Design
  • A B Sub Independent Gain Adjustment

D Series Amplifiers provide a powerful solution in a compact design, ideal for upgrading your car audio system.

Expanded Frequency Response
Supporting Hi-Res Audio, KAC-D8015 is ideal for high resolution audio playback as it features a frequency response that extends to 50kHz.

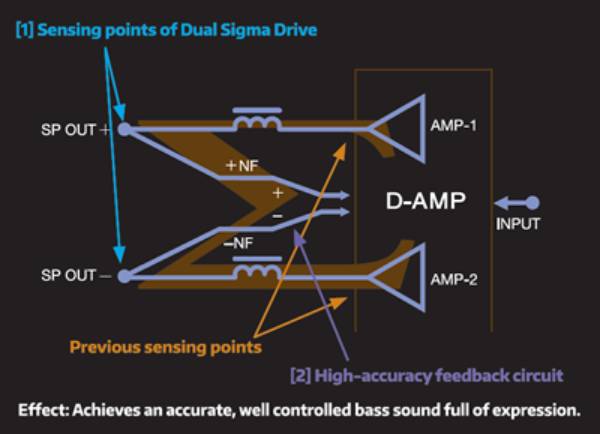

Dual Sigma Drive

This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.

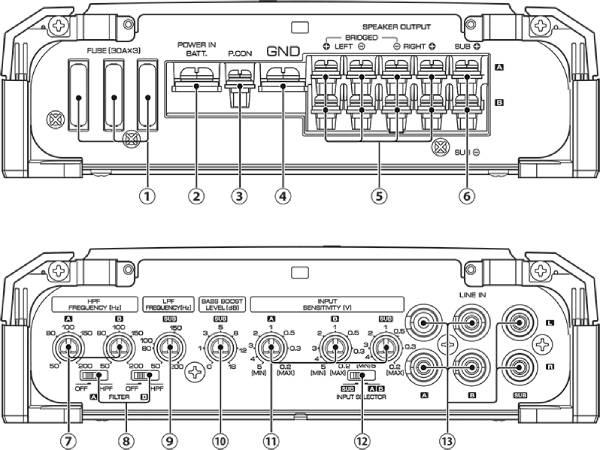

  1. Fuse (30A x 3)
  2. Battery Terminal (Power IN BATT.)
  3.  Power Control Terminal (P.CON)
  4. Ground Terminal (GND)
  5. Speaker Output Terminals (A.ch / B.ch)
  6. Speaker Output Terminals (SUB)
  7. HPF Frequency Control (A.ch / B.ch)
  8. Filter Switch (A.ch / B.ch)
  9. LPF Frequency Control (A.ch / B.ch)
  10. Bass Boost Level Control (SUB)
  11. Input Sensitivity Control (A.ch / B.ch / SUB)
  12. Input Selector Switch
  13. Line In Terminal
CTA-2006 Primary Ratings
Power Output50 Watts RMS x 4 + 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
Signal-to-Noise Ratio80dBA (Reference: 1Watt into 4Ohms)
Rated Power Output at 14.4V
A/B (4 Ohms)50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
A/B (2 Ohms)75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
SUB (4 Ohms)300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
SUB (2 Ohms)500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
A/B (Bridged 4Ohms)150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Specifications
Signal to Noise Ratio100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response20Hz-50kHz (+0dB, -3dB) A/B 20Hz-200Hz (+0dB, -3dB) SUB
Input Impedance10k ohm
Speaker Impedance4Ω (2Ω to 8Ω allowable)
Bridged Connection4Ω to 8Ω allowable
AUDIO SECTION
Low-Pass Filter50Hz-200Hz, -24dB/oct (SUB)
High-Pass Filter 50Hz-200Hz, -12dB/oct (A/B)
Bass Boost 40Hz, 0dB - +18dB (SUB)
RCA Input Sensitivity 0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity 4.0[V] - 12.0 [V]
Terminals
Battery & Ground M6 Screw Type Terminal Block
Speaker Output M4 Screw Type Terminal Block
General
Dimensions(WxHxD) 9 x 2-3/16 x 7-3/8 [inch]
Operating Voltage 14.4V(11-16V allowable)
Current Consumption 58[A]
Maximum Power Output
MAX POWER 1600W
