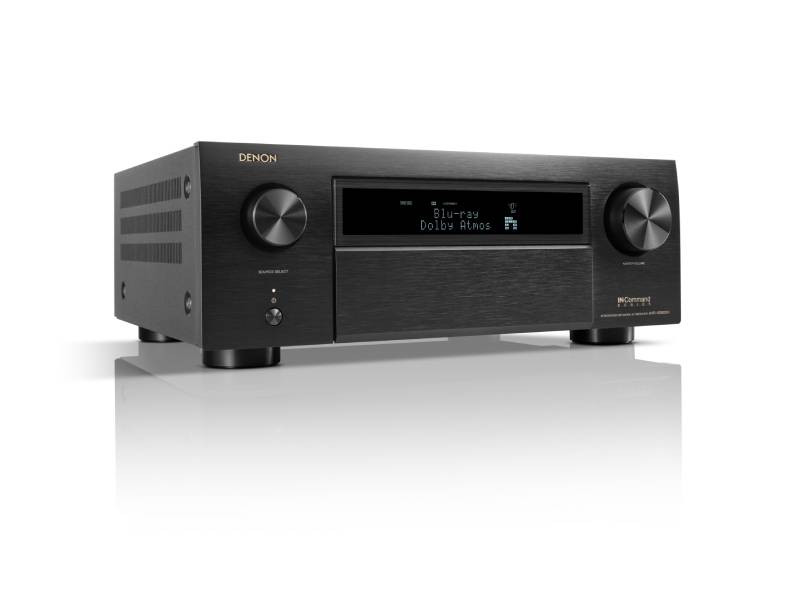

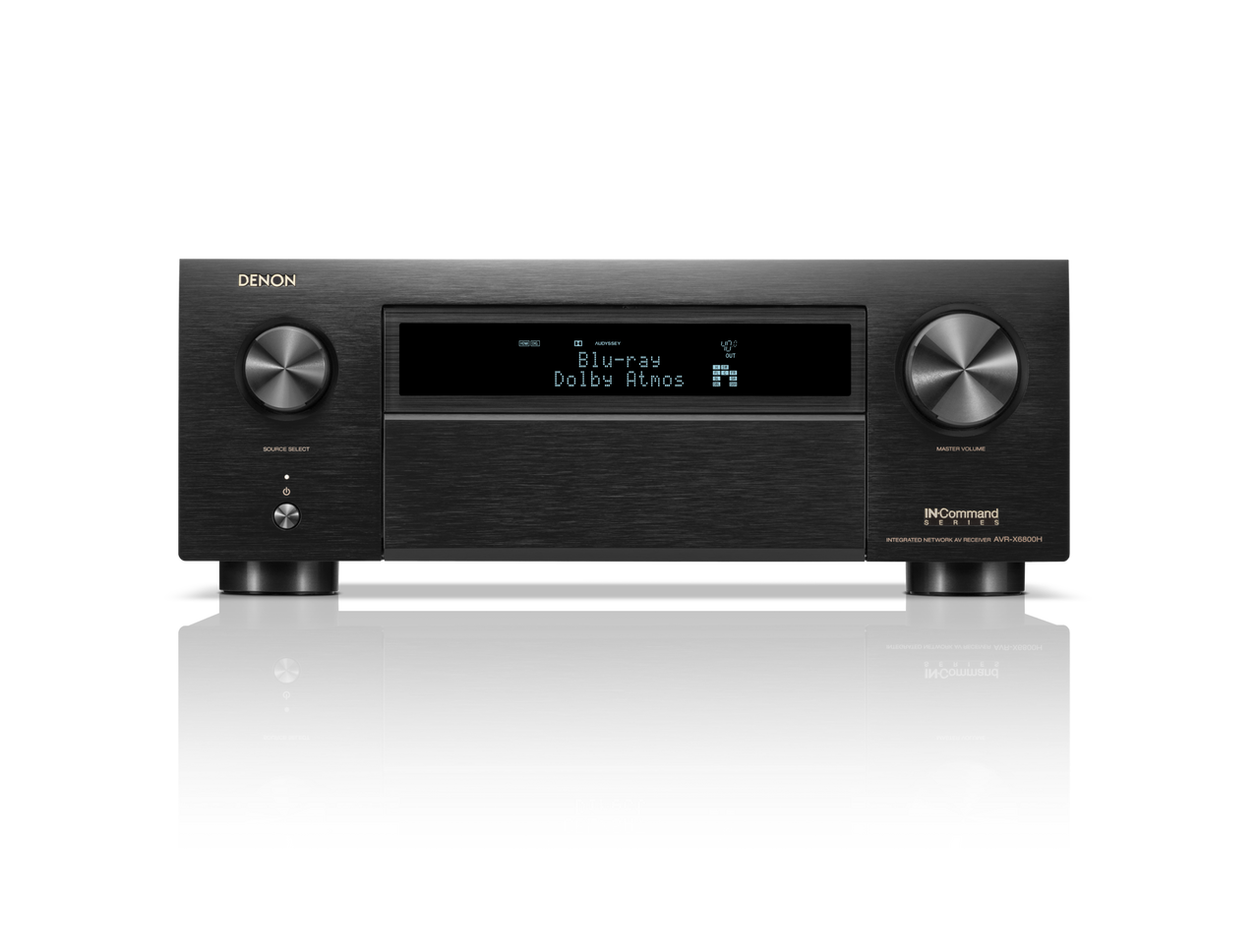

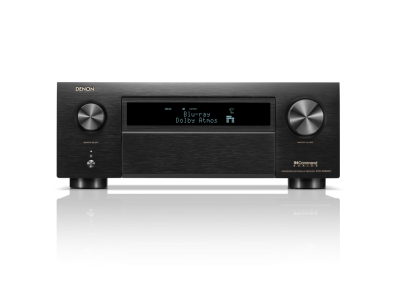

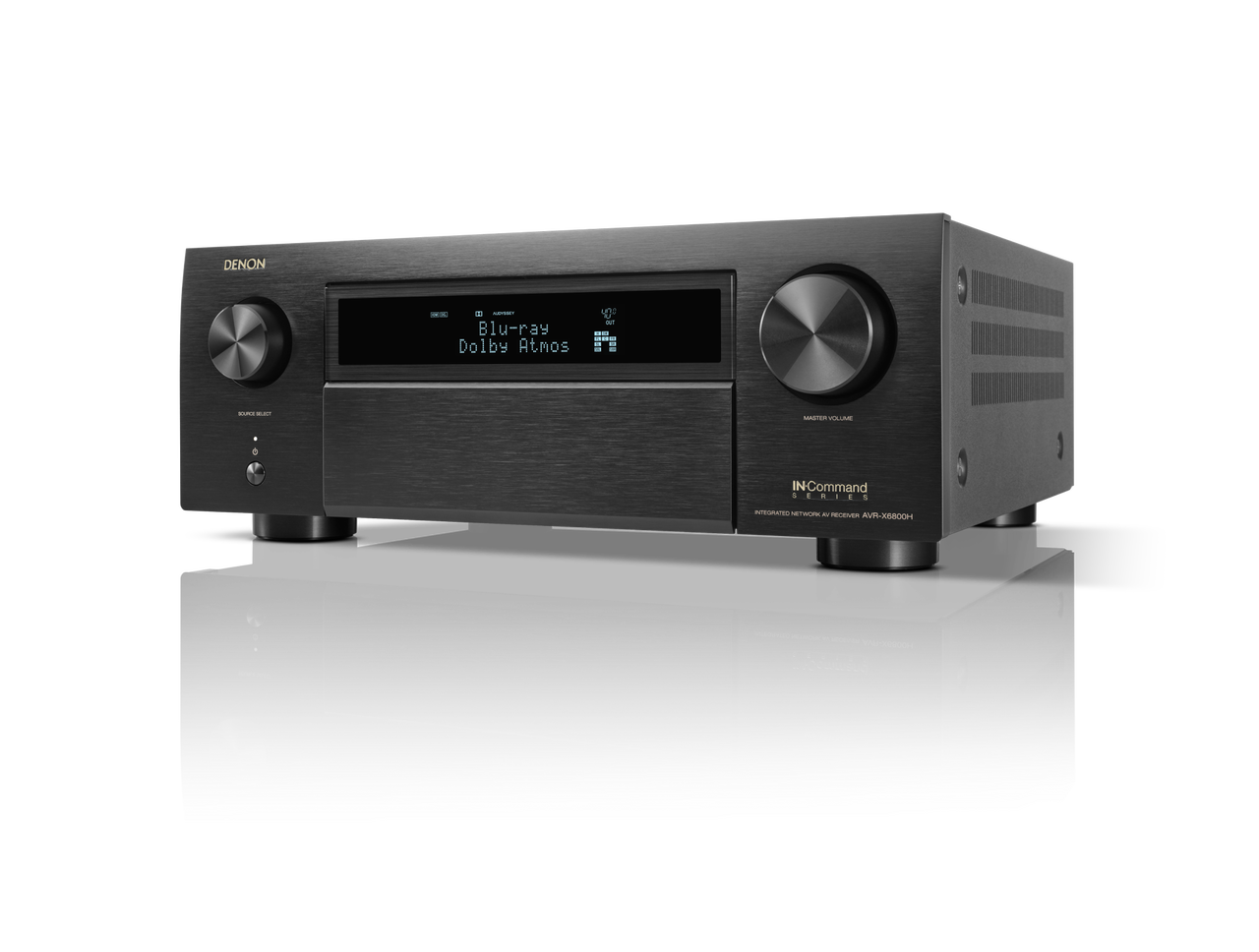

Denon 11.4 Channel 8K Video and 3D Audio Receiver - AVRX6800H

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $4,299.00 CAD

Or as low as $369.61/month over 12 months. Apply Now


Availability
Out of stock online. Call for availability

Literature

Designed and manufactured in Japan, the AVR-X6800H drives 11.4 channels of amplification for an upscaled experience. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X6800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.

  • 11.4 channels
  • 140W per channel
  • 8K Ultra HD
  • 3D Audio
  • HEOS® Built-in
  • Seven HDMI Inputs

The next level in home theater
Maximize your entertainment with a full suite of audio and video technologies plus smart features

Key Technologies

  • Select "Standard" if you want evenly distributed bass performance. Select "Directional" if you want more directional bass seamlessly integrated into the speaker channel closest to each subwoofer.
  • Stream audio or video from your favorite streaming services using your smart device. Hear audio perfectly synced to your speakers from AirPlay 2 sources. AirPlay 2 also supports multi-room audio.
  • Auro-3D elevates the home theater experience to amazing new levels by delivering the excitement of 3D sound for music, games, broadcast, and films, thanks to the Auro-Matic upmixing engine.
  • Upgrade your home theater with height speakers to unleash a fully immersive 3D audio experience, or engage all speakers to create 3D audio sensation from legacy content even without height speakers.
  • Enjoy Dolby Vision content from a compatible source device and TV. Dolby Vision is a stunning HDR imaging technology that brings extraordinary color, contrast, and brightness to the screen.
  • DTS:X immersive audio content places sound where it would naturally occur in space, creating lifelike, multi- dimensional audio. DTS Neural:X upmixer offers heightened realism for legacy content.
  • Supports HDR (High Dynamic Range), HLG (Hybrid Log Gamma), as well as Dynamic HDR and HDR10+ pass-through to optimize shadows and highlights. HLG offers HDR technology over broadcast content.
  • Play the same song in every room or select a different song for each connected room via a variety of streaming sources. Add Denon Home speakers to more rooms and control it all with the HEOS app.
  • The ability to decode Hi-Res Audio ALAC, FLAC and WAV lossless files up to 24-bit/192-kHz, as well as DSD 2.8MHz and 5.6MHz tracks (SACD) lets you enjoy each note exactly as the artist intended.
  • IMAX Enhanced is the latest technology from DTS that sets a new standard. See clearer and brighter picture, feel immersive lifelike audio, and experience premium content digitally remastered by IMAX.
  • Josh.ai offers flexible voice control for nearly any aspect of your entertainment environment. Use voice commands to control the thermostat, lights, home appliances, speakers, AV receiver, and more.
  • Enjoy pristine 8K picture quality on your 8K TV or projector. Supports both 8K pass-through and 8K upscaling of 4K content. Supports HDCP 2.3 for peace of mind when streaming copy protected content.
  • Connect and play music directly from your smartphone, tablet or other compatible device
  • 360 Reality Audio is a new immersive music experience that uses Sony‘s 360 Spatial Sound technology to place individual sounds such as voices and instruments in a 360 degree spherical sound field.
  • AL32 Processing, a Denon proprietary analog waveform reproduction technology, thoroughly suppresses noise associated with D/A conversion to bring out all the delicate nuances of your music.
  • With Siri compatibility, users can play music, adjust volume, and switch inputs using voice control. AirPlay 2 features in compatible devices can also be controlled with your voice via Siri.
  • With the supplied Audyssey measuring microphone, Audyssey measures all the speakers in your home theater, and tunes the AV receiver to provide most optimal overall listening experience for your room.
  • Customize the sound more precisely to the specifics of your room, harnessing the power of Audyssey MultEQ XT32 to take total control. The app is available for purchase in iOS and Google Play stores.
  • Purchase a Dirac Live® Room Correction license key to apply state-of-the-art, patented algorithms to analyze and digitally reduce room impact and enhance speaker performance. Update coming in 2023.
  • Supports the latest technology on HDMI inputs and output. ARC (Audio Return Channel) or eARC (Enhanced ARC) makes playing TV audio through your AV receiver simple with just a single HDMI connection.
  • Domotz Pro and OvrC remote system monitoring and management technology programs allow custom integrators to monitor the status of connected products and troubleshoot remotely.
  • Pre-Amplifier Mode lets your Denon act as an AV preamp with the latest HDMI connectivity, providing a cleaner signal path and more tolerance in clipping level by disconnecting internal amplifiers.
  • Award-winning guided Denon Setup Assistant provides simple, clear instructions to get started. Just connect your AV receiver to your TV and follow the instructions on the TV screen.
  • Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT) and Auto Low Latency Mode (ALLM) for smooth, lag- free gaming experience when connected with the compatible gaming devices.
  • This AV receiver supports two source, two-zone audio. Enjoy surround sound in the main room and a separate source in the second room, or play the main audio source so everyone in your home can enjoy.
Sound Enhancements
D.D.S.C. HD DigitalYes (32 bit)
Discrete Power AmplifierYes
Mono Block Power Amp ConstructionYes
Multichannel Surround
Max. number of processing (preamp) channels13.4
Multichannel StereoYes
360 Reality Audio / MPEG HYes / Yes
Auro 3DYes
Dolby ProLogic Il / Dolby SurroundNo / Yes
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos MusicYes / Yes / Yes / Yes
IMAX EnhancedYes
DTS Virtual:XYes
DTS Neo:6 / DTS Neural:XNo / Yes
DTS HD Master / DTS:X / DTS:X ProYes / Yes / Yes
HDMI
Auto LipSyncYes
Audio Return ChannelARC, eARC
DSD Audio capabilityYes
CECYes
HDMI Pass-Though in Standby ModeYes
4K Signal Pass-Through / Scaling / GUI OverlayYes / Yes / Yes
8K Signal Pass-Through, Scaling, GUI OverlayYes / Yes / Yes
3D Signal Pass-ThroughYes
Variable Refresh Rate / Quick Flame Transport / Quick Media SwitchingYes / Yes / No
ALLM (Auto Low Latency Mode) Pass-Through for GamingYes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDRYes / Yes / Yes / Yes / Yes
HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevueYes / Yes / Yes / Yes / No
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out7 / 2 (up to 40Gbps)
HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz ABYes / Yes
HDMI to HDMI Scaling1080P/4K to 8K
Video conversion Analog -> HDMIYes
HDMI Outputs: Main, Zone2 / 1
HDCP2.3 supportYes
HDMI Inputs: Back, Front7 / No
Network
Wi-FiYes
BluetoothYes
Ethernet PortsYes
Compatible with Remote APP for TabletsAndroid / iOS / Amazon Kindle
Compatible with Remote APP for Smart PhonesDenon AVR Remote
HEOS App ControlYes
Roon TestedYes
Other Streaming ServicesAmazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
SiriusXMYes
PandoraYes
Spotify ConnectYes (connect)
Internet RadioYes (TuneIn)
AirPlay Audio StreamingYes (AirPlay2)
Gapless playbackYes (FLAC, WAV, ALAC ,DSD)
ALAC 192/24Yes
WAV 192/24Yes
FLAC HD 192/24Yes
DSD Audio StreamingYes (2.8/5.6MHz)
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAVYes / Yes / Yes
Lossy Formats: MP3 / WMA / AACYes / Yes / Yes
Sound Enhancements
Pure DirectYes
Gold Plated RCA TerminalsYes
Clock Jitter ReducerYes
Alpha ProcessingAL32 Processing Multichannel
AudysseyMultEQ XT32
Audyssey Dynamic EQ / Dynamic VolumeYes / Yes
Audyssey LFCYes
Dirac Live upgradabilityYes
Compressed Audio RestorerYes
Network
Media ServerYes
HEOS Wireless Multi-Room TechnologyYes
Bluetooth Re-transmit for Bluetooth headphonesYes (With volume control)
Alexa / Google Voice Assistant / Apple HomePodYes / Yes / Yes
Others
Auto speaker setup by microphoneAudyssey MultEQ XT32 Dirac Live (upgrade)
Multi-Room / CI
HDMI DiagnosticsYes
DC Trigger output3
Remote In / OutYes / Yes
IP Control / RS232 Control / Web Control / App ControlYes / Yes / Yes / Yes
Zone HDMI output from HDMI sourceYes
Zone Audio Output: Speaker / Pre-OutYes / Yes
Multi-Room Zones3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / AnalogYes (2ch) / Yes (2ch) / Yes / Yes
General
UPC Code747192140359
What's in the BoxMain unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
Tuning Frequency Range520 kHz–1710 kHz
Tuning Frequency Range87.5–107.9 MHz
S/N Ratio102dB (IHF-A weighted, Direct mode)
Frequency Response10 Hz–100 kHz — +1, –3dB (Direct mode)
Input Sensitivity200 mV
Speaker Impedance4–16Ω/ohms
Power SupplyAC 120 V, 60 Hz
Weight in LBS (Packaging)40.1
Weight in LBS34.4
Carton Dimensions (Packaging) (W x D x H) in Inches)20.9 x 18.3 x 11.9 (in)
Maximum Dimensions Antenna:Horizontal:(W x D x H) in mm ( Antenna:Vertical :(W x D x H) in mm) 【 w/o Antenna :(W x D x H) in mm】17.1× 15.3 × 6.6 ( 17.1 x 15.3 x 9.3) ( 17.1 x 14.9 x 6.6)
Network Standby Consumption in WLess than 2.0
CEC Standby Consumption in W0.5
Standby Consumption in W0.1
Power Consumption No-Sound (ECO On / Off) in W65W / 110W
Power Consumption in W750
Metal Front PanelYes
System Remote ControlRC-1256
Pre-programmed / Learnable / LCD DisplayYes / No / No
Specifications
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)250 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)175 W
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)140 W
Number of Power Amps11

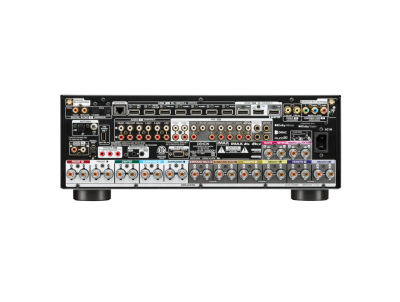

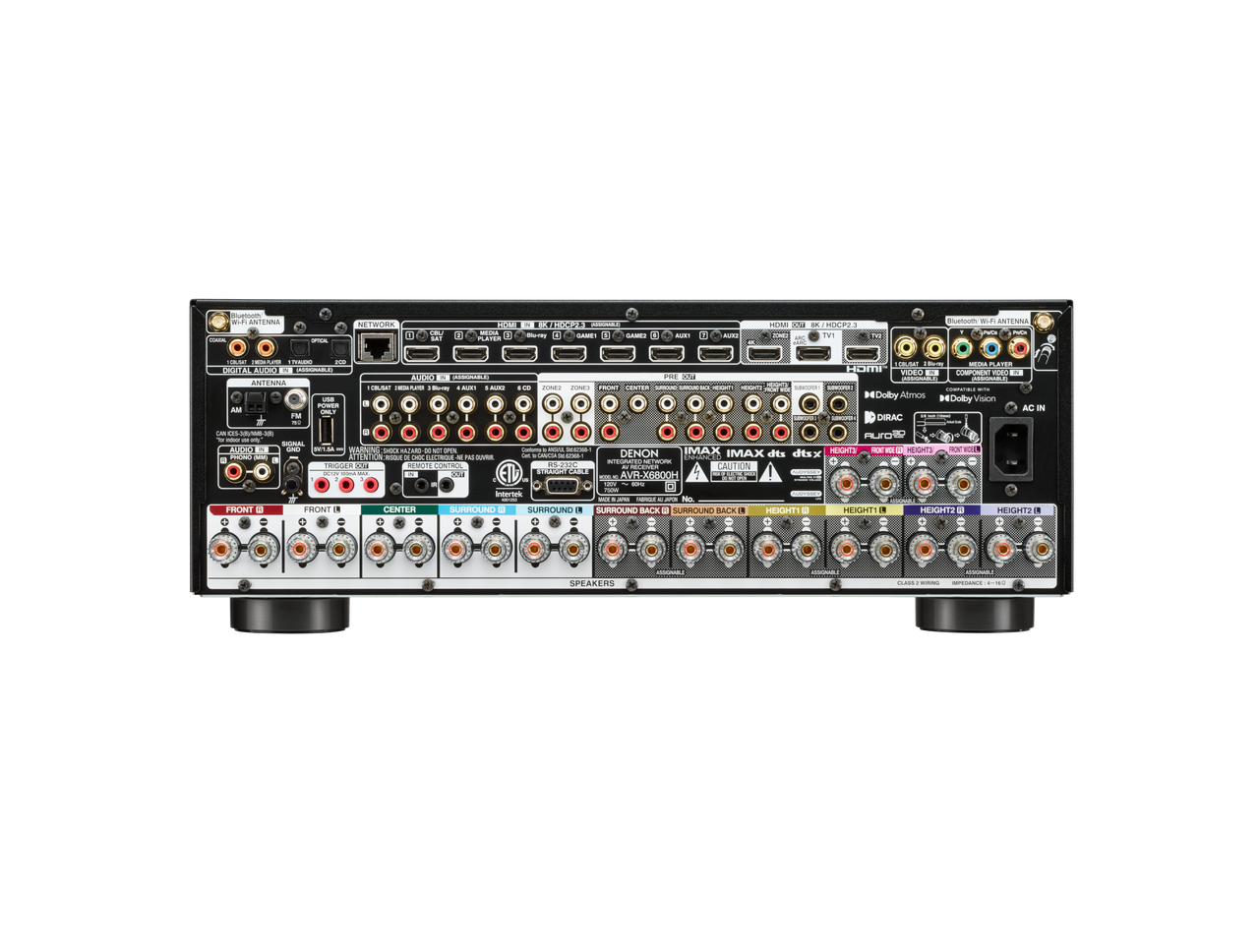

Inputs Outputs
USB Power Supply on Rear PanelYes
AM/FM TunerYes
USB Audio / Made for iPod / Made for iPhoneYes / No / No
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USBNo / No / No / No / Yes
Multi-Room Speaker Terminalassignable
Bi-amp driveassignable
Speaker A / Bassignable
Number of Speaker Terminals13
Speaker Terminal: Gold-Plated Screw / Regular ScrewYes / No
Subwoofer Out4 (independent)
Multichannel Pre-outYes (13.4)
Multi-Room Out: Analog/Digital2 / No
Digital in: Optical/Coaxial2 / 2
Phono (MM) InYes
Analog In, Out6 / No
Multi-Room Video Out: Video / HDMINo / Yes
HDMI In / Out7 / 3
Component In / Out1 / No
Composite In / Out2 / No
Others
Sleep TimerYes
Auto Power OffYes
ECO ModeYes
Bass SyncYes
Optimized Bass RedirectionYes
Front Display2 Line FLD
Graphic User Interface - GUIModern HD GUI
GUI Languages3
Setup AssistentYes
Quick Select Plus, Quick SelectYes / No
Firmware Update by Network / USBYes / Yes
Variable cross overYes
