EPSON PowerLite Pro G6870NL XGA 3LCD Projector without Lens V11H698920
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Availability
Call for availability

Literature

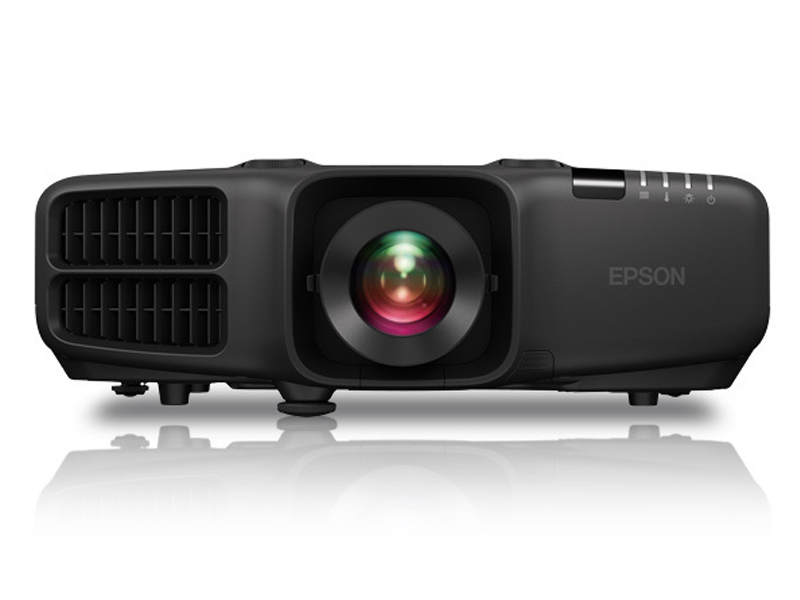

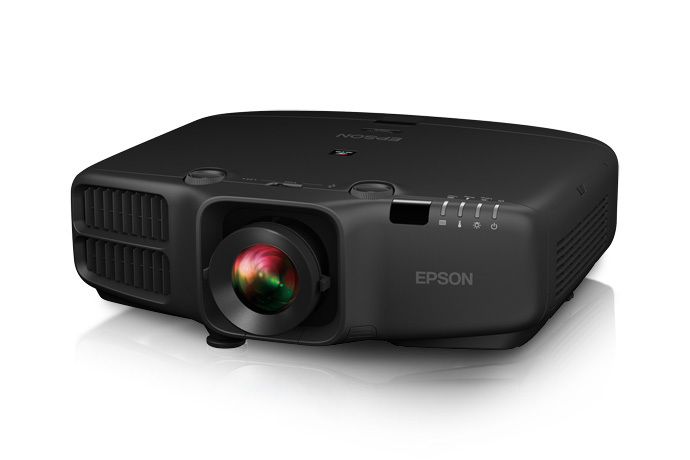

EPSON PowerLite Pro G6870NL XGA 3LCD Projector without Lens

The ultra bright large-venue projector with HDBaseT™

The PowerLite Pro G6870NL large-venue projector delivers XGA resolution with bright, uncompromising image quality. Offering 3x Brighter Colours* than competitive models, Epson3LCD projectors ensure brilliant images. Ideal for conference rooms, auditoriums or houses of worship, the G6870NL shines with 7000 lumens of colour brightness and 7000 lumens of white brightness1. The projector offers simple integration with HDBaseT connectivity, and supports Crestron®, AMX®, ExtronXTPand Control4protocols. Installation is easy, with five optional lenses, built-in Edge Blending, 360-degree projection and projector setting tools. Users can simultaneously project from multiple sources, plus remotely monitor and control projectors.



3x Brighter Colours with Epson*

Brilliant image quality requires high colour brightness. Epson 3LCD projectors have 3x Brighter Colours than leading competitive projectors*. Delivering 7000 lumens of colour brightness1 and 7000 lumens of white brightness1, the PowerLite Pro G6870NL uses 3LCD, 3-chip technology for brilliant images with true-to-life colour.

Bright and Colourful

Bright and Colourful

Features 7000 lumens of colour brightness (colour light output)1 and 7000 lumens of white brightness (white light output)1

XGA

XGA

1024 x 768 resolution

HDBase-T

HDBase-T

HDBase-T is an input source that combines HDMI, ethernet and RS-232 into one convenient Cat5e/6 cable, for expanded connectivity.

Advanced Edge Blending

Advanced Edge Blending

Take seamless panoramic, multi-screen edge blending even further, with curved surface and corner wall support.

Optional Lens

Optional Lens

Interchangeable lens options with varying ranges for optimal placement and flexibility

Lens Shift

Lens Shift

Equipped with horizontal and vertical lens shift, to help configure projector setup

3x Brighter Colours and reliable performance

- 3LCD, 3-chip technology*

One measurement of brightness is not enough

- look for both high colour brightness and high white brightness. The PowerLite Pro G6870NL has: Colour Brightness: 7000 lumens1 White Brightness: 7000 lumens1

Brilliant images

- XGA (1024 x 768) resolution for presentations, videos, digital signage and more

Versatile connectivity

- easily integrate with any system; supports the latest connectivity options, including HDBaseT, HDMI and DisplayPort

Seamless control protocol support

- compatible with Crestron, AMX, Extron XTP and Control4 Simple Device Discovery Protocol (SDDP)

Five optional lenses with lens shift

- including rear-, middle- and long-throw lenses for complete flexibility and easy exchange (lenses are not included)

Easy installation features

- built-in Edge Blending, 360-degree installation flexibility and simple cloning functions

Advanced collaboration features

- simultaneously project from multiple devices over the network with Multi-PC projection, or side-by-side from different sources with Split Screen2

Convenient remote management

- remotely monitor and control the projector; includes scheduling function

Industry-leading service and support

- long-life air filter and easy maintenance tools, plus peace-of-mind ownership with next-business-day replacement3

What's in the Box

  • Epson PowerLite Pro G6870NL XGA Projector
  • Lens NOT Included
  • Power cable
  • Computer cable (VGA)
  • Projector remote control with batteries
  • User manual CD
  • EasyMPsoftware CD
  • Quick Setup Sheet
  • Lens lock screw

Input Signal:

  • NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  • 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
  • Pixel works: video chip
  • 3D Y/C separation, noise reduction motion compensated
  • Interlace-Progressive conversion (2 – 2, 3 – 2 film detection)

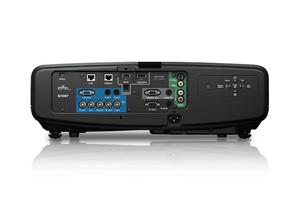

Interfaces:

  • HDMI x 1
  • DisplayPort x 1
  • Computer: D-sub 15 pin x 1
  • Video-1: 5-BNC x 1
  • Video-2: RCA x 1
  • Composite video: BNC x 1
  • S-Video x 1
  • Audio-in: Mini stereo x 3
  • Audio-in: RCA (L & R) x 1
  • Network: RJ-45 x 1, 100 Mbps
  • USB Type-A x 1, Type-B x 1
  • Serial: RS-232c
  • Hardwire Remote jack x 1
  • Monitor-Out: D-sub 15 pin x 1
  • HD BaseT x 1
Specifications Projector:
Projection System:High-aperture Epson 3-chip, 3LCD technology
Projection Method:Front / rear / ceiling mount
Driving Method:Epson Poly-silicon TFT Active Matrix
Pixel Number:786,432 dots (1024x768) x 3
Colour Brightness - Colour Light Output:7000 lumens1
White Brightness - White Light Output:7000 lumens1
Aspect Ratio:Supports 4:3, 16:9, 16:10
Native Resolution:1024 x 768 (XGA)
Resize:640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
Lamp Type:380 W UHE
Lamp Life:Normal mode: Up to 2000 hours2, ECO mode: Up to 4000 hours2
Brightness Uniformity:90%
Pixel Arrangement:Cross stripe
Throw Ratio Range:(For Standard Lens) 1.29 – 2.35
Size - projected distance:50" – 300"
Keystone Correction:Horizontal: ±30 degrees, Vertical: ±30 degrees
Colour Reproduction:Up to 1 billion colours
Effective Scanning Frequency Range:
Pixel Clock, Horizontal,Vertical:Pixel Clock 13.5 MHz – 162 MHz (up to UXGA 60 Hz)
Horizontal15 KHz – 92 KHz
Vertical50 Hz – 85 Hz
General:
Temperature:32° to 113° F (0° to 45° C)
Weight:21.5 lb (with standard lens)
Security:Security cable hole, Lens lock, Kensington® lock provision
Projection Lens:
Type:(For Standard Lens) Manual focus / Zoom
F-number:(For Standard Lens) 1.65 – 2.55
Focal Length:(For Standard Lens) 21.28 mm – 37.94 mm
Zoom Ratio:(For Standard Lens) Optical zoom 1.0 – 1.8
Lens Shift:(For Standard Lens), Vertical: ±57 degrees, Horizontal: ±30 degrees
Projector Dimensions:
Including feet:With standard lens: 19.88" x 15.94" x 6.73" (W x D x H)
Excluding feet and lens:19.88" x 15.04" x 5.67" (W x D x H)
Remote Control:
Features:Power, source search selection, computer, video, A/V mute, freeze, user ID, auto, aspect, colour mode, number, page up and down, E-zoom, volume, help, menu, enter, esc andpointer functions
Operating Distance:49 ft
Operating Angle-Right / Left:Front: ±60 degrees, Rear: ±30 degrees
Operating Angle-Upper / Lower:Front: ±20 degrees, Rear: +10 to -45 degrees
Power:
Power Supply Voltage:100 – 240 V ±10%, 50/60 Hz AC
Power Consumption-Normal mode:526 W
Power Consumption-ECO mode: 421 W
Power Consumption-Communication on: 3.3 W standby
Power Consumption-Communication off: 0.41 W standby
Projector Details:
Display Performance:NTSC: 480 line, PAL: 576 line, (depends on observation of the multi-burst pattern)
Fan Noise:Normal mode: 39 dB, ECO mode: 31 dB
