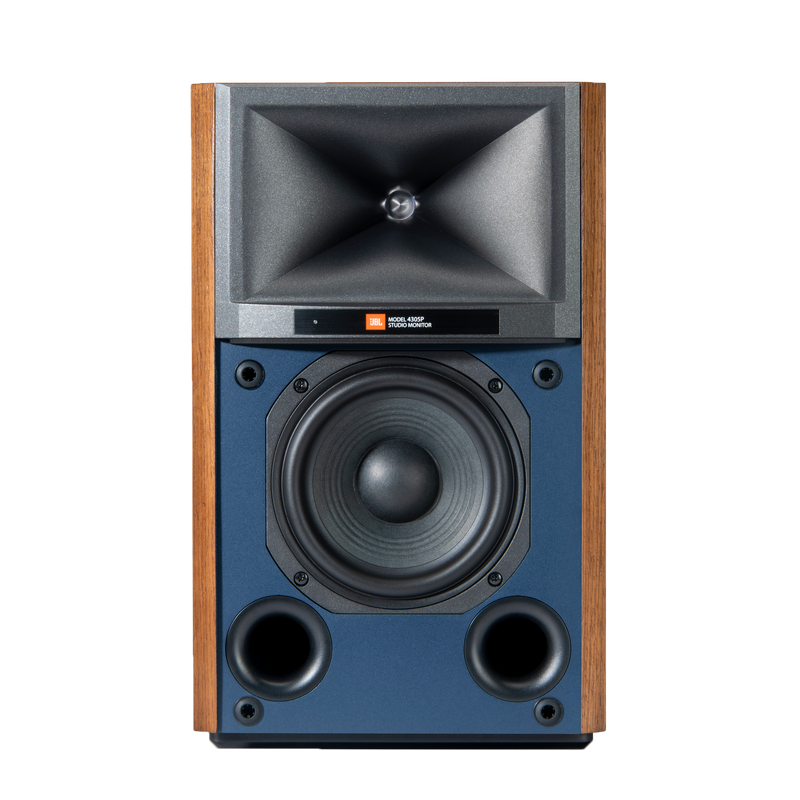

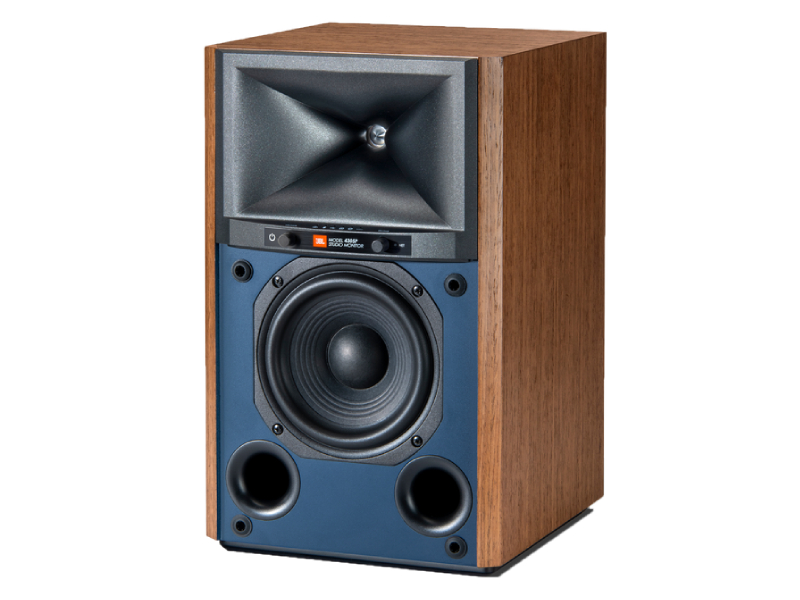

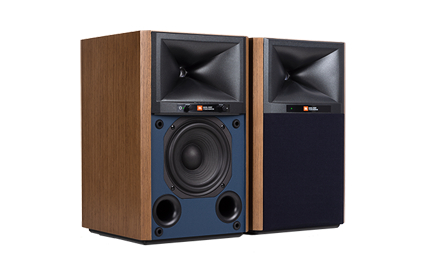

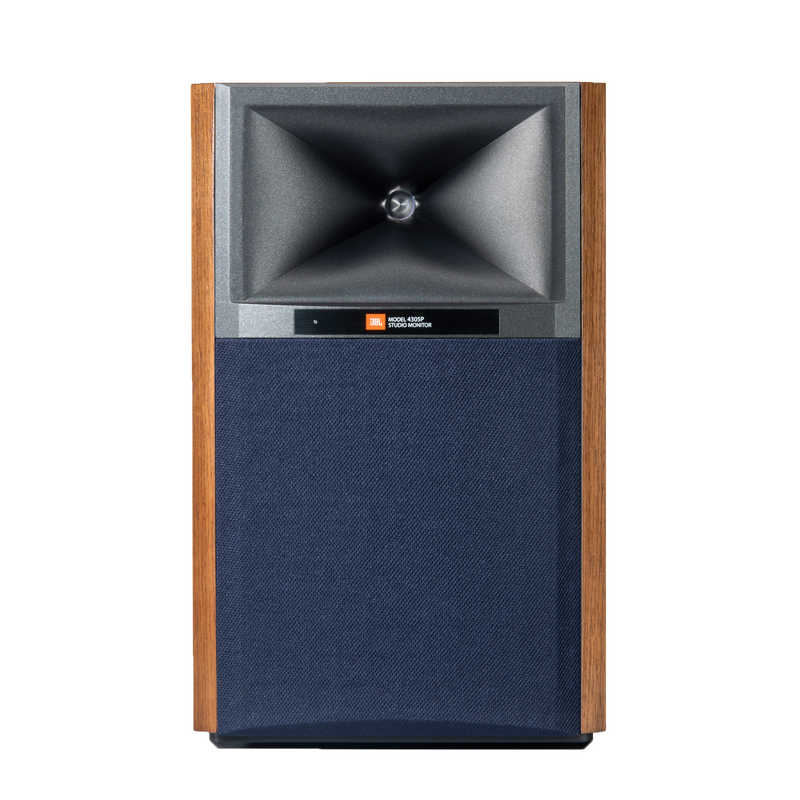

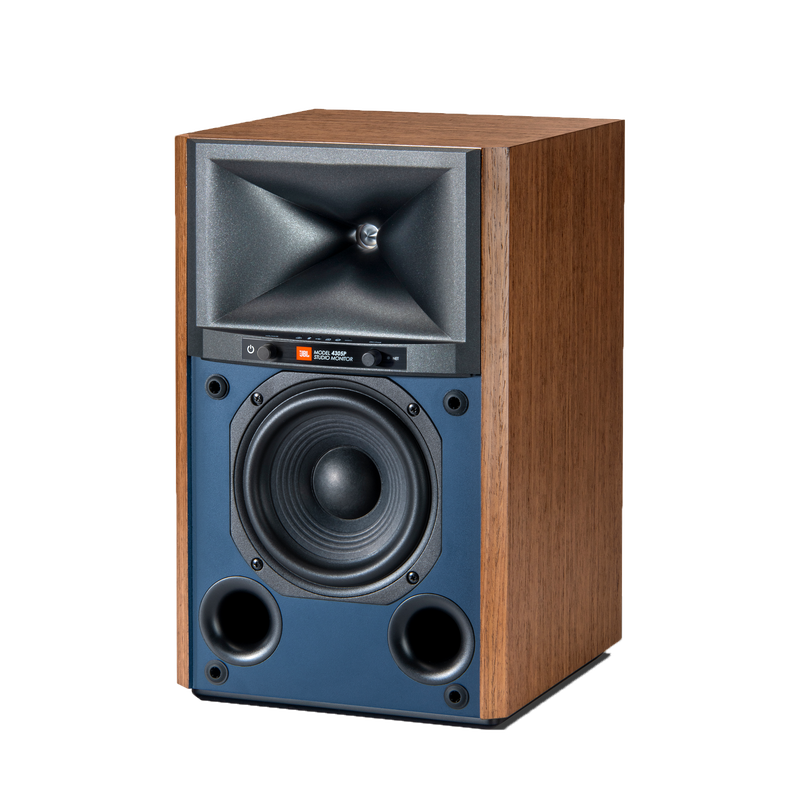

JBL Studio Monitor Powered Bookshelf LoudSpeaker System in Walnut - JBL4305PWALAM
JBL4305PWALAM
Powered Bookshelf Loudspeaker System
4305P Studio Monitor
The JBL 4305P Studio Monitor is a completely self-contained powered loudspeaker system featuring high-resolution streaming audio and prosumer connectivity. Patented JBL acoustic technologies render sound with incredible accuracy and powerful dynamics, while extensive wired and wireless connectivity open a world of possibilities for the music lover and content creator. The integrated streaming engine provides both wired and wireless network audio capabilities via Google Chromecast built-in, Apple AirPlay 2, and Bluetooth audio. A 24-bit/192kHz high-resolution DAC ensures your favorite music comes across with the highest fidelity. In addition to premium wireless audio, the 4305P provides extensive connections for analog and digital physical sources including a professional-grade combination XLR / ¼-inch TRS phono input for use with balanced or unbalanced signals.
Wireless Streaming Audio via Chromecast, AirPlay 2, Roon Ready and Bluetooth
Extensive Digital and Analog Connectivity

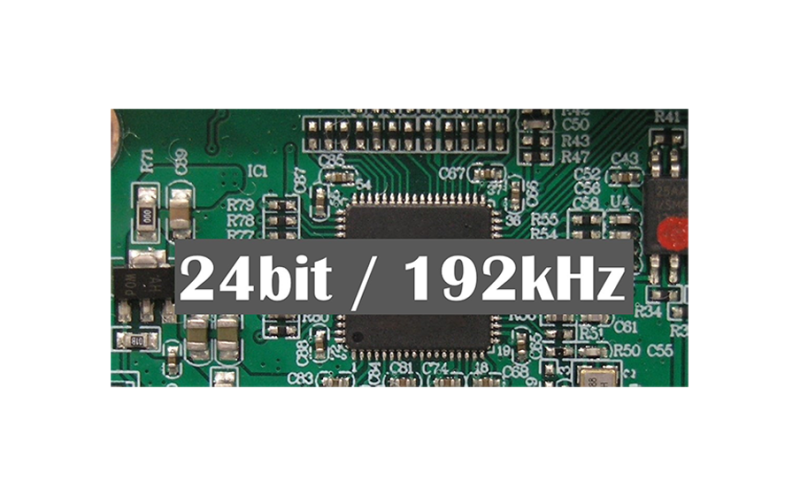

24-Bit/192kHz High-resolution DAC

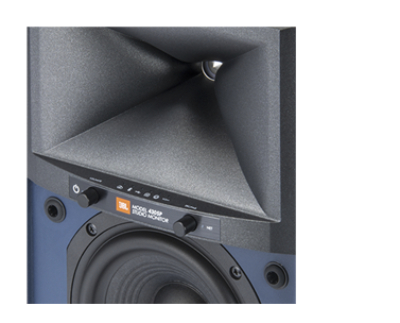

Patented JBL Driver Technologies: 2410H-2 / 1-inch (25mm) Compression Driver with High-Definition Imaging™ Horn

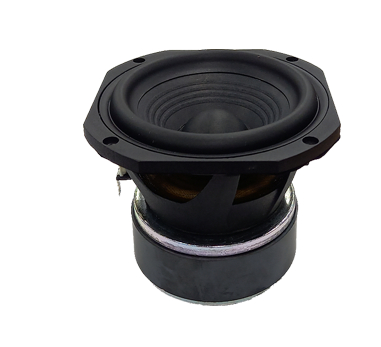

JW130P-4 / 5.25-inch (130mm) Pure-pulp Black Paper Cone Woofers with Cast-frames
300W Total RMS System Power

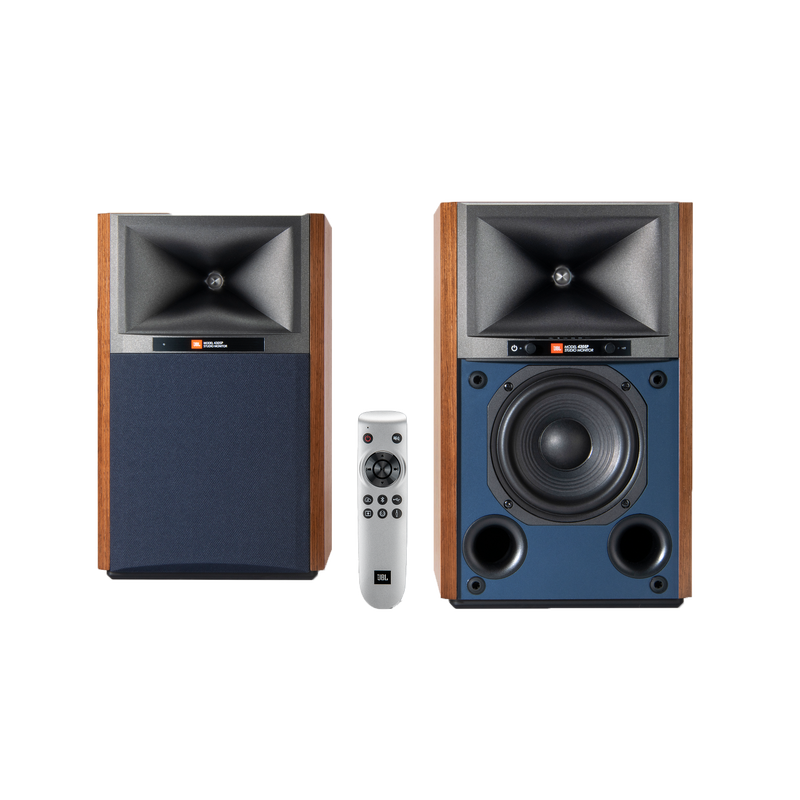

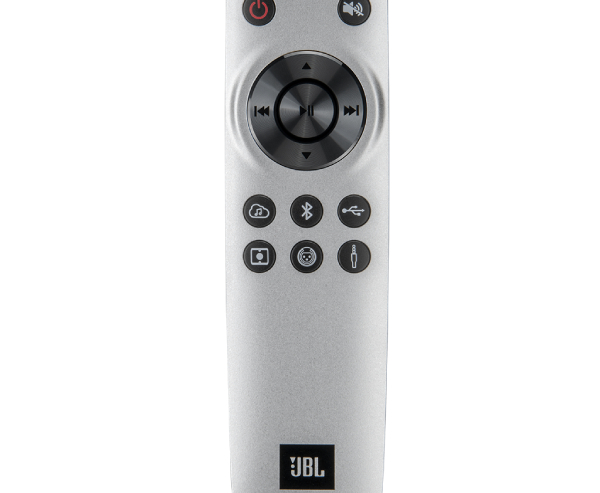

Bluetooth Wireless Remote Control
Premium Wood Veneer Cabinet Finish
| General Specifications | |
|---|---|
| Type | Compact, Bass-reflex Loudspeaker System with Built-in Amplification, DSP, and Wireless Connectivity |
| Low Frequency Drivers | JW130P-4, 5.25-inch (130mm) Pure-pulp Black Paper Cone Woofers with Cast-frames |
| High Frequency Drivers | 2410H-2, 1-inch (25mm) Annular Ring, Teonex Diaphragm Compression Drivers with Advanced HDIâ„¢ Geometry Horns |
| Amplifier Power | 300W Class D System Power, 150W RMS per Speaker (25W per HF Compression Driver + 125W per LF Woofer) |
| Audio Resolution | Up to 24-bit, 192 kHz (Digital Link connection between spks), Up to 24-bit, 96 kHz (Wireless connection between spks) |
| Frequency Response | 45 Hz - 25 kHz (-6 dB) |
| Crossover Frequency | 1,750 Hz |
| Dispersion | 90° Horizontal x 60° Vertical (2kHz to 20kHz) |
| Sound Controls | Front Panel- Volume +/- and Source Selection, Bluetooth Remote, Boundary Compensation (Flat / -3dB) |
| Wireless Inputs | WiFi streaming, Bluetooth 5.1 |

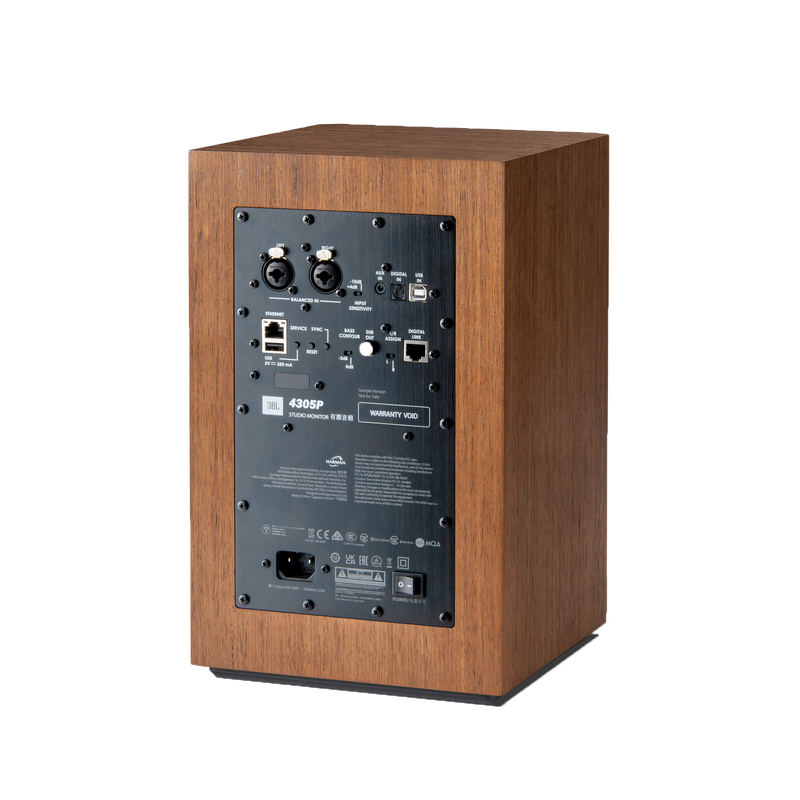

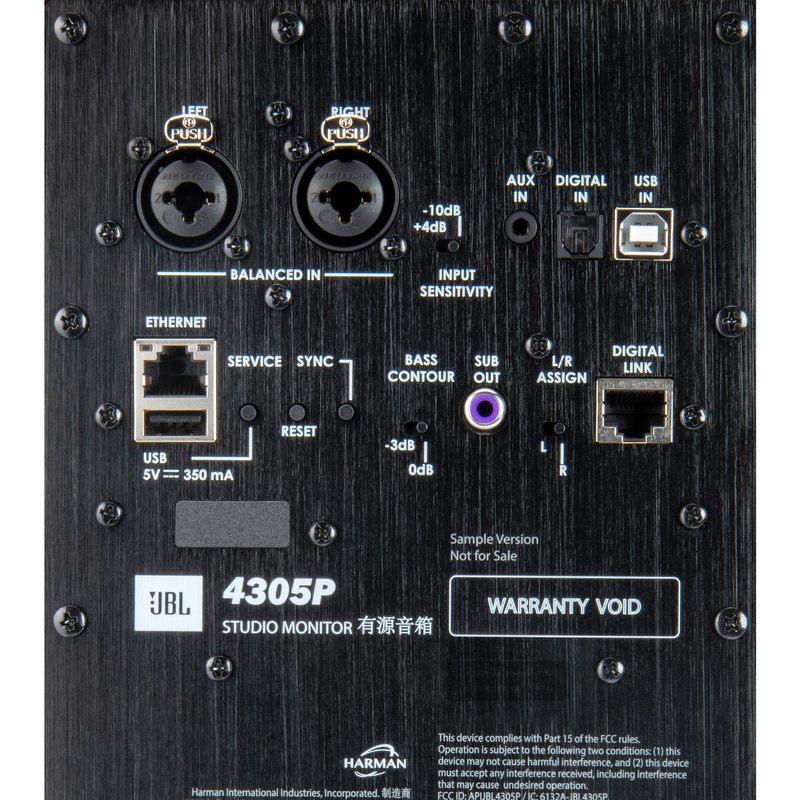

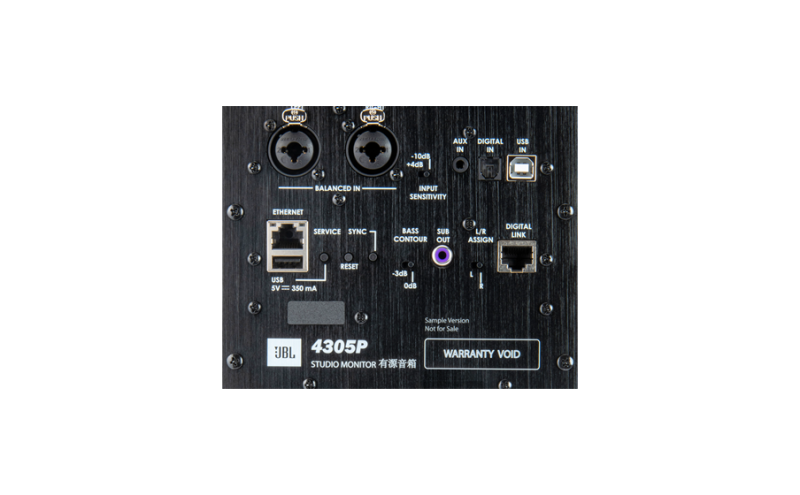

| Wired Inputs | Analog - XLR/¼" Combo and 3.5mm stereo, Digital - Asynchronous USB-B and Toslink/Optical |
| Wired Inputs, Digital | Asynchronous USB-B and Toslink/Optical |
| Supported Digital Audio Sample Rates (PCM 2CH) | Streaming & Local Media - 32kHz/44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz SPDIF - Up to 192kHz Bluetooth - Up to 48kHz |
| Music Formats Supported (Local Media) | AAC / AIFF / ALAC / DSD (to PCM) / FLAC / MP3 / MP4 / OGG / WAV / WMA |
| Subwoofer Output | Autosensing w/ Auto-engage of 80Hz High Pass Filter |
| Remote Control Type | BTLE Wireless |
| Bluetooth Audio | Version 5.1, Profiles - SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile) |
| Bluetooth Profiles | SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile) |

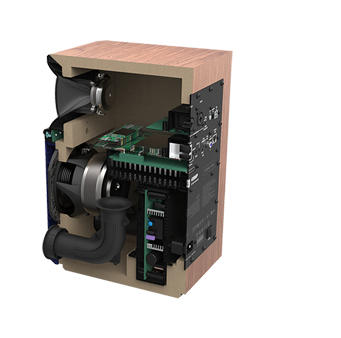

| Enclosure | Bass-reflex Design with Dual Front-facing Ports, ¾" MDF Finished in Satin Walnut, Black Walnut, White Aspen, Furniture-Grade Wood Veneer |
| Grille | Dark Blue (with Walnut Cabinet), Black (with Black Cabinet), White (with Matte White Cabinet) Acoustically Transparent Cloth Grille |
| Net Speaker Dimensions with grille | 13.2" H x 8.3" W x 8.8" D (336mm x 210mm x 223.3mm) |
| Net Speaker Weight | Primary - 15.0 lbs (6.8kg), Secondary - 14.1 lbs (6.4kg) |
| Shipping Units of Measure | System Pairs |
| Gross Shipping Dimensions | 23.5" L x 11.4" W x 18.0" H (597mm x 290mm x 458mm) |
| Gross Shipping Weight | 36.5 lbs (16.6 kg) |
| AC Input Voltage | 100 - 240 VAC (+/-10%), 50/60Hz |
