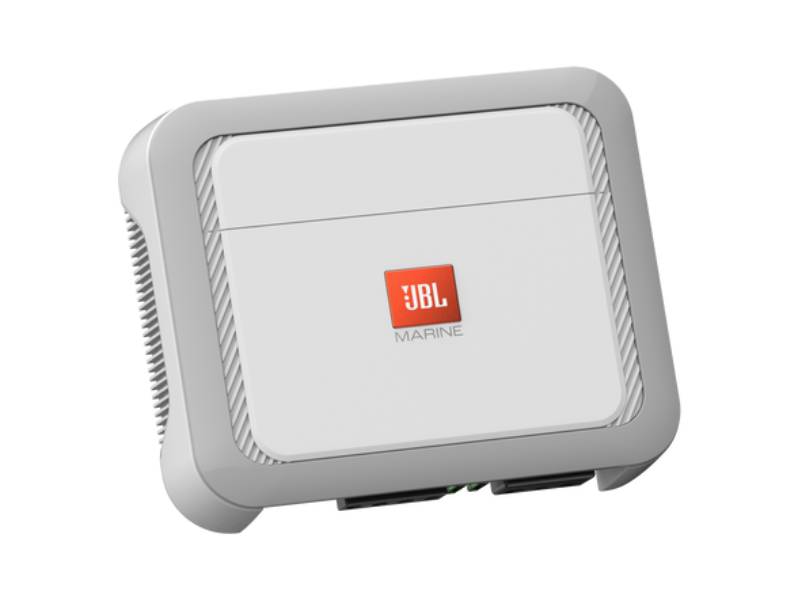

JBL A600 Mono Subwoofer Marine Amplifier - JBLMA600AM

Features

Compact size

The JBL marine A600 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

High and low level input

Speaker-level and low-level inputs allow the marine A600 to integrate with both aftermarket and factory marine stereo systems.

Variable crossover and bass boost

Unlike many amplifiers available at similar prices, the JBL marine A600 features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.

Low noise and distortion

The marine A600 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.

Input Level Control

When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 4Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 1Vrms and 22Vrms.

Full on-board protection

On-board circuitry protects the marine A600 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.

Phase Switch

This switch changes the input phase to inverted or non-inverted. This is especially helpful as part of system tuning based on the enclosure type and location in the boat.

RBC wired remote

The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.

Class D amp technology

The JBL marine A600 mono subwoofer amplifier delivers 600-Watts RMS using a Class D amplifier design to ensure high output and minimum current draw.

Turn-on mode

This switch changes DC to REM to adapt with low-level signals or high-level signals, this is especially helpful as part of remote turn-on lead of your installation more choice .A selectable "Turn-on mode" can protect battery to avoid current drain, when you don't expect turn on your amplifier.

General Specifications

• 350 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms) Max Power 1200 watts
• Class D amp technology
• variable low-pass filter (32-320 Hz, 12 dB/octave)
• variable bass boost (0-12 dB at 45Hz)
• phase switch (0, 180 degrees)
• preamp and speaker-level inputs
• 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
