- 4-Channel 400W RMS Ampifier
- 4 CH Class AB Amplifier
- 4 x 100 Watt Channels
- 2 Ohm Stereo Stable

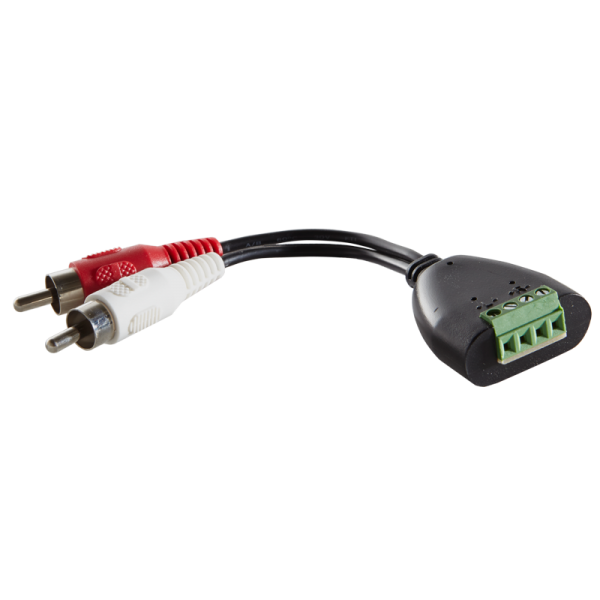

- High Level-in Adapter
Smart. Inside and Out.
At Kaption Audio we believe that great sound doesn't mean you have to skimp on style. Our amps were designed by the Kaption team to be smart, inside and out, using the latest in design software and 3D printing technology.
Inside: Under the hood of each AZR or DZR is the technology to detect fluctuation in voltage levels, audio signal and temperature with the ability to shut itself off to prevent overheating. The compact hardware design and double sided PCB board means the AZRs and DZRs pack big power with a small footprint.

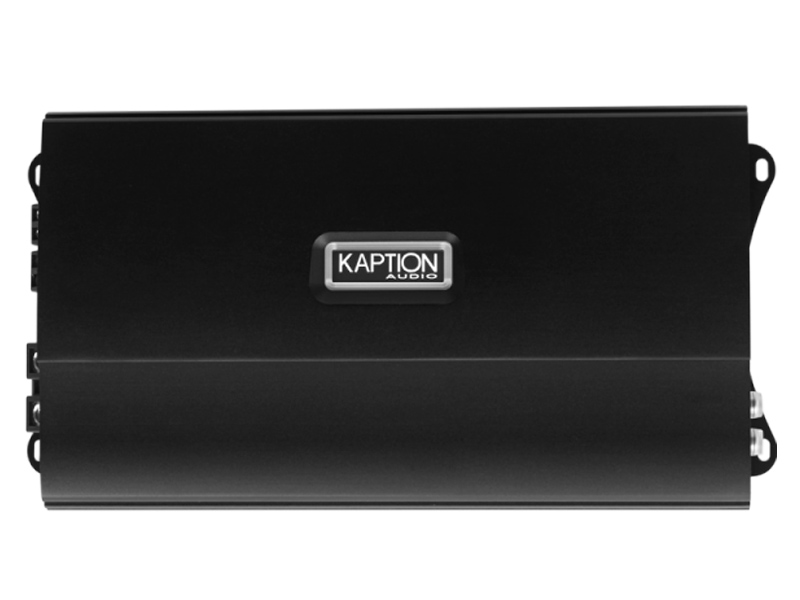

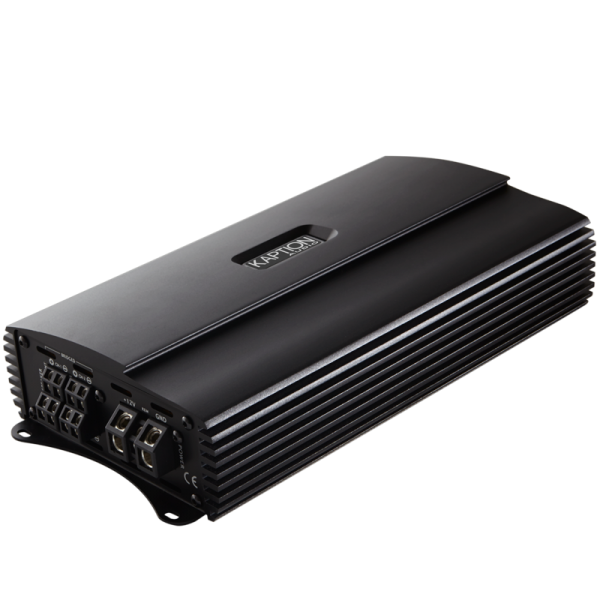

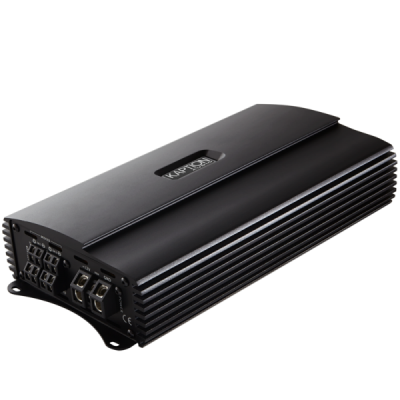

Outside: The sleek matt finished exterior of each AZR and DZR features the iconic Kaption badge logo that lights up whenever the amp is in use. The all-black chassis, made from heavy-guage aluminum with its chiseled heat sink shape effectively merges the line between design and function.
Kaption's next-generation amplifiers combine function and design with voltage, signal and temperature sensing technology built into the hardware you see and the hardware you don’t.
|Amplifier Class||Class AB|
|RMS Power @ 1 Ohms||N/A|
|RMS Power @ 2 Ohms||95 Watts X4|
|RMS Power @ 4 Ohms||70 Watts X$|
|Frequency Response||20 Hz ~ 20 KHz|
|Amplifier Power Supply||MOSFET switching power supply|
|Amplifier Low Level Input||0.2 ~ 5 Volts|
|Amplifier High Level Input||0.4 ~ 10 Volts|
|S/N Ratio||> 95 dB|
|Amplifier Efficiency (THD+N)||< 0.5%|
|High Pass Filter Range||50Hz ~ 750 Hz|
|Low Pass Filter Range||N/A|
|Subsonic Filter Range||N/A|
|Ampifier Opperating Voltage Range||9 ~ 16 Volts|
|Low Voltage Protection||Yes, protect < 8 Volts|
|Speaker Terminals||Screw Post|
|Wire Guage||4ga Power & Ground Wire|
|Wired Bass Remote||No|
|High Level Adaptor Included||Yes|
|External Fuse||60 A|
