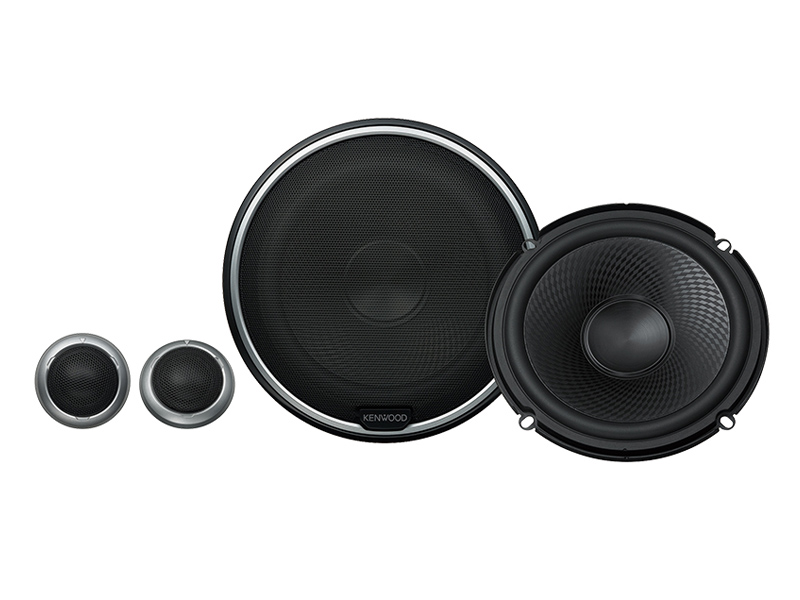

Kenwood 6.5 Inch Component Speaker - KFC-P710PS
Peak Power 280W
Rated Input Power
80W Impedance 4 ohms
Woofer Features
6-1/2inch Injection PP Cone
Tweeter Features
1inch Soft Dome Tweeter
Specifications
Sensitivity: 86 dB / W / m
Frequency Response: 63 Hz - 24k Hz
Cutout Diameter: 4-15/16inch
Mounting Depth: 2-3/16inch
Gross Weight: 2.30lbs
Weight of Magnet (Woofer): 0.72lbs
Specification | |
---|---|
SPECIAL FEATURE | Diamond Array Pattern Diaphrgm |
ACCESSORY | Grille , *2 |
CROSSOVER FREQUENCY | 4,900Hz , |
FREQUENCY RESPONSE | 63Hz- , 24,000Hz |
SENSITIVITY | 86 , db / W at 1m |
POWER HANDLING | |
RMS Power (CEA SPEC) | 80 , W |
Peak Power | 280 , W |
Specification | |
NOMINAL IMPEDANCE | 4 , Ohms |
Weight | |
Weight of Magnet (Woofer) | 330g , 11.7oz |
Gross Weight | 2,800g , 6.2lbs |
Woofer without Grille (pc.) | 900g , 2.0lbs |
Woofer with Grille (pc.) | 990g , 2.2lbs |
Tweeter | |
Depth | 19.1mm , 3/4in |
Height | 37.5mm , 1-1/2in |
Width | 37.5mm , 1-1/2in |
Woofer (Unit) | |
Mounting Depth | 56.0mm , 2-3/16in |
Depth (w/o_Gr) | 68.8mm , 2-11/16in |
Depth (w_Gr) | 84.2mm , 3-5/16in |
Tweeter Height | - , - |
Cutout Diameter | 126.0mm , 4-15/16in |
Height (w/o_Gr) | 158.0mm , 6-1/4in |
Height (w_Gr) | 180.0mm , 7-1/16in |
Width (w/o_Gr) | 158.0mm , 6-1/4in |
Width (w_Gr) | 180.0mm , 7-1/16in |
Tweeter | |
Magnet | Neodymium , φ23.5*t3.4 |
Size | 25mm , 1in. |
Diaphragm | Soft Dome , |
Woofer | |
Basket | Steel : Black , |
Magnet | Ferrite , φ90*t15 |
Surround | Rubber , |
Diaphragm | Injection P.P. cone |
Size | oversized160mm , 6-1/2in |
