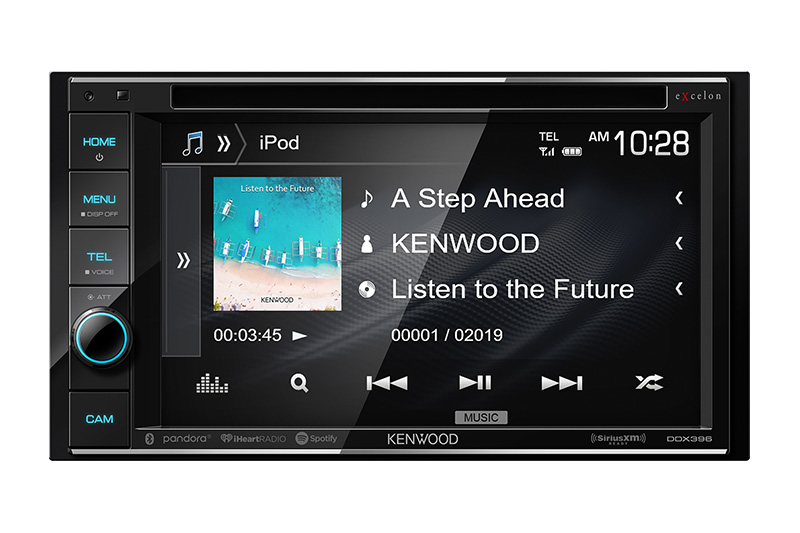

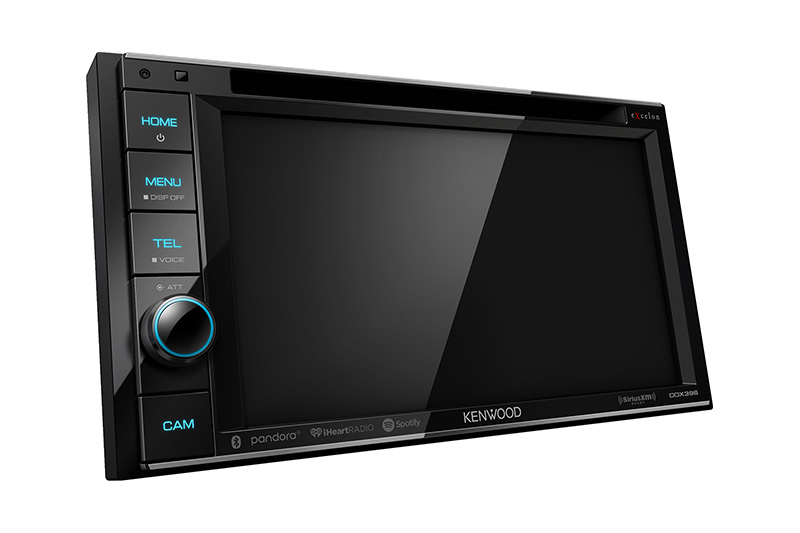

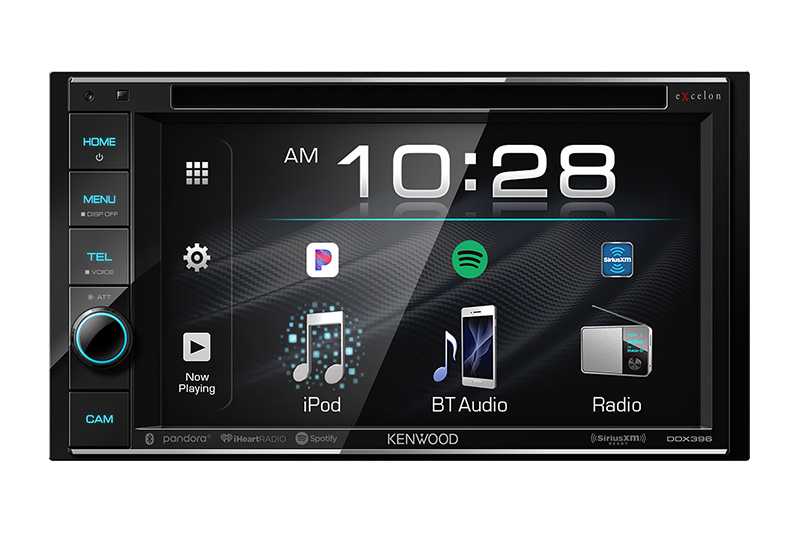

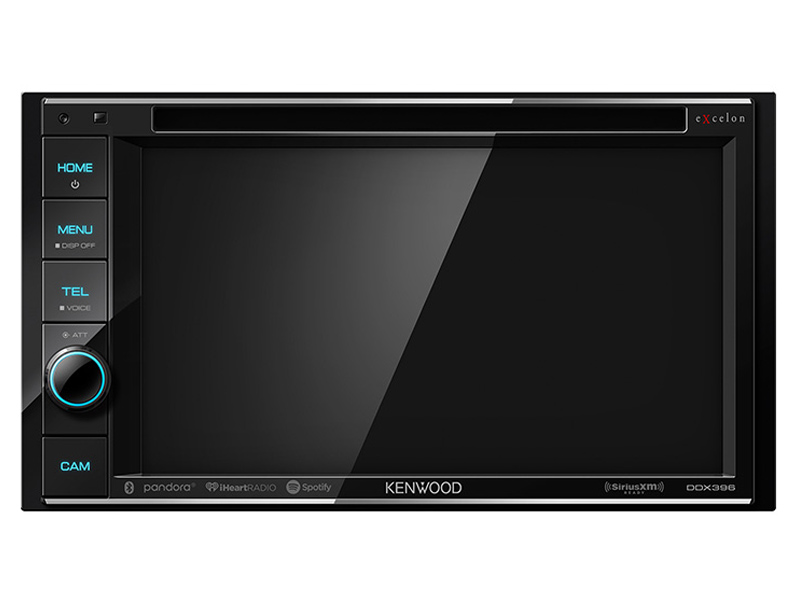

Kenwood 6.2” DVD Receiver with Bluetooth DDX396
Authorized Dealer
Price Match Guarantee
Or as low as $105.11/month over 6 months.
- 6.2” WVGA Clear Resistive Touch Panel
- Enhanced Cosmetic Design
- 1 A/V Input (Optional CA-C3AV)
- Illuminated Rotary Volume Knob
- 3 Preouts 5.0V
- Rear View Camera Input with Parking Guidelines
- 1 Video Output
Clear Resistive Touch Panel
A clear screen designed to reduce glare that includes a resistive touch sensor for accurate control during operation
Music Mix
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Android Music Playback (AOA2)
Supporting AOA2, install the KENWOOD Music Play app and connect your smartphone to the receiver via USB, and control your music directly from the receiver.
Android Rapid Charge
Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.
Wireless Music Browsing (AVRCP 1.5 / 1.6)
Search and select songs from your music collection through a Bluetooth connection.

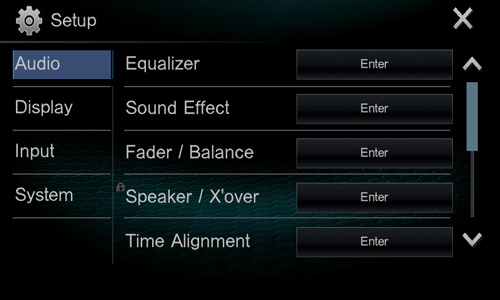

Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Drive EQ
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
FLAC Supported
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.
Parking Guide Lines
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
Variable Color Illumination
Bright variable color LEDs can be adjusted to match any color dash lighting.

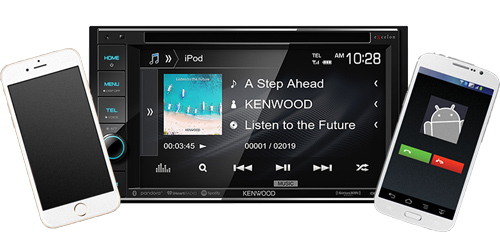

Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora,
built-in Bluetooth for hands-free calls and streaming music,
as well as the ability to use your smartphone like a wireless remote control.
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Music Application Controls
Connect your iPhone or Android device to access and control the most popular music application sources. Simply install the Spotify, Pandora, and/or iHeartAuto apps on your device, then connect iPhone (USB or Bluetooth) or Android (Bluetooth only) to enjoy music playback.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

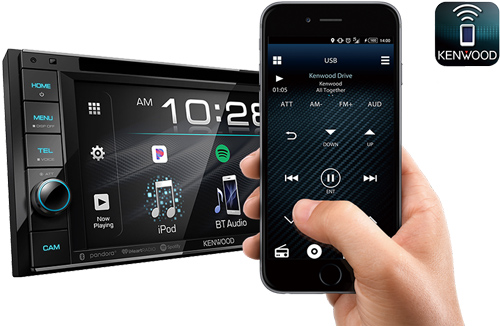

Control the Receiver from Your Smartphone with the KENWOOD Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
FLAC Support
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Safe Driving
Keeping you safe on the road ahead is our top priority.

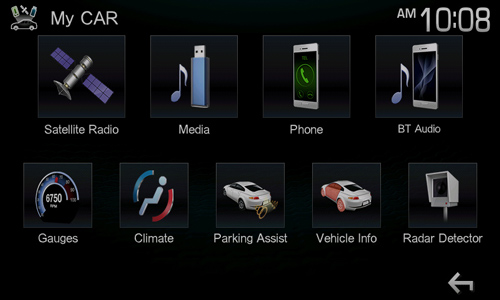

Enjoy the Many Infotainment Features Available on the iDatalink Maestro RR
When an Automotive Data Solutions iDatalink Maestro RR is connected to a compatible KENWOOD receiver, it provides a seamless interface with factory infotainment features such as Satellite Radio, USB Media Player, Bluetooth hands-free and music streaming. Vehicle information such as HVAC, performance information, and TPMS can also be displayed.

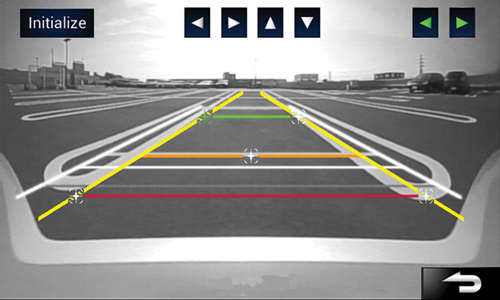

Rear View Camera Input with Parking Guide Lines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
| Monitor Section | |
|---|---|
| Picture size | 6.2 inches(diagonal) wide |
| W x H | 5-7/16 x 3-1/16 |
| Display system | Transparent TN LCD panel |
| Drive system | TFT active matrix system |
| Number of pixels | 800H x 480V x RGB |
| Pixel arrangement | RGB striped arrangement |
| Back lighting | LED |
| DVD Section | |
| D/A Converter | 24Bit |
| Audio Decoder | Linear PCM, Dolby Audio, MP3/WMA/AAC(.m4a)/WAV |
| Video Decoder | MPEG1/MPEG2/JPEG |
| Wow & Flutter | Below Measurable Limit |
| Frequency response 96k Sampling | 20 - 22,000 Hz |
| 48k Sampling | 20 - 22,000 Hz |
| 44.1k Sampling | 20 - 20,000 Hz |
| Total harmonic distortion 1kHz | 0.0001 |
| Signal to Noise ratio | 90dB |
| Dynamic range | 90dB |
| DISC Format | DVD-Video/VIDEO-CD/CD-DA |
| Sampling frequency | 44.1kHz/48kHz, 96kHz |
| Quantifying bit number | 16/20/24bit |
| USB I/F Section | |
| USB Standard | USB2.0 Full Speed / High Speed |
| Compatible Devices | Mass storage class |
| File System | FAT 16/32 |
| Maximum Power Supply Current | DC5V (DC logo) = 1.5A |
| D/A Converter | 24bit |
| Audio Decoder | MP3/WMA/AAC(.m4a/.aac)/WAV/FLAC |
| Video Decoder | MPEG1/MPEG2/JPEG |
| Bluetooth Section | |
| Technology | Bluetooth V3.0 |
| Frequency | 2.402 - 2.480 GHz |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 |
| Maximum Communication range | Line of sight approx.10m (32.8ft) |
| Audio Codec | SBC/AAC |
| Profile | HFP(Hands Free Profile) 1.6, A2DP(Advanced Audio Distribution Profile) 1.3, AVRCP(Audio/Video Remote Control Profile) 1.5, GAP(Generic Access Profile), PBAP(Phonebook Access Profile) 1.2 , SDP(Service Discovery Profile), SPP(Serial Port Profile) 1.2 |
| FM | |
| Frequency range | 87.9 MHz - 107.9 MHz |
| (Frequency step) | (200 kHz) |
| Usable sensitivity | 7.2 dBf |
| S/N:30 dB | 0.63 μV / 75 Ohms |
| Quieting sensitivity | 15.2 dBf |
| S/N:50 dB | 1.58 μV / 75 Ohms |
| Frequency response | 30 Hz - 15 kHz |
| S/N (dB) | 68 dB(MONO) |
| Selectivity | Over 80 dB(±400 kHz) |
| Stereo separation | 40 dB(1 kHz) |
| AM | |
| Frequency range | 530 kHz - 1700 kHz |
| (Frequency step) | (10 kHz) |
| Usable sensitivity | 29 dBμ |
| Video | |
| Color system of external video input | NTSC/PAL |
| External video input level (mini jack) | 1Vp-p / 75Ohms |
| External audio max input level (mini jack) | 2V / 25kOhms |
| Video Input level for Rear Camera (RCA jack) | 1Vp-p / 75Ohms |
| Video Output level (RCA jacks) | 1Vp-p / 75Ohms |
| Audio | |
| Maximum Power (Front&Rear) | 50Wx4 |
| Full Bandwidth Power (Front&Rear) | 22Wx4 |
| Preout level(V) | 5V / 10kOhms |
| Preout Impedance(Ω) | =< 600 Ohms |
| Speaker Impedance(Ω) | 4-8 Ohms |
| BAND | 13Band |
| Frequency(Hz) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k |
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 [dB] |
| Q factor | 1.35/1.5/2.0 |
| Tweeter Frequency(Hz) | 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] |
| Front (HPF) Frequency(Hz) | Through/30/40/50/60/70/80/90/100/120/150/180/220/250 |
| Slope | -6/-12/-18/-24 [dB/Oct.] |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] |
| Rear (HPF) Frequency(Hz) | Through/30/40/50/60/70/80/90/100/120/150/180/220/250 |
| Slope | -6/-12/-18/-24 [dB/Oct.] |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] |
| SW (LPF) Frequency(Hz) | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through |
| Slope | -6/-12/-18/-24 [dB/Oct.] |
| Phase | Normal/Reverse |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] |
| Tweeter (HPF) Frequency(Hz) | 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k |
| Slope | -6/-12 [dB/Oct.] |
| Phase | Normal/Reverse |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] |
| Mid Range (HPF) Frequency(Hz) | Through/30/40/50/60/70/80/90/100/120/150/180/220/250 |
| Slope | -6/-12 [dB/Oct.] |
| Mid Range (LPF) Frequency(Hz) | 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5kl/Through |
| Slope | -6/-12 [dB/Oct.] |
| Phase | Normal/Reverse |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] |
| SW (LPF) Frequency(Hz) | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through |
| Slope | -6/-12 [dB/Oct.] |
| Phase | Normal/Reverse |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] |
| 2Way: Front / Rear /Subwoofer Delay | 0 - 20.0ft (0.07ft Step) |
| 3Way: Tweeter / Mid Range / SW Delay | 0 - 20.0ft (0.07ft Step) |
| Gain | -8 to 0dB |
| Subwoofer Level | -50 to +10dB |
| General | |
| Operating voltage | 12 V DC car battery |
| Installation Dimensions WxHxD | 7 x 3-15/16 x 6-3/8 inch |
| (with Sleeve) | 7-3/16 x 4-3/8 x 6-5/16 inch |
| Weight Main unit | 4.4 lbs |
