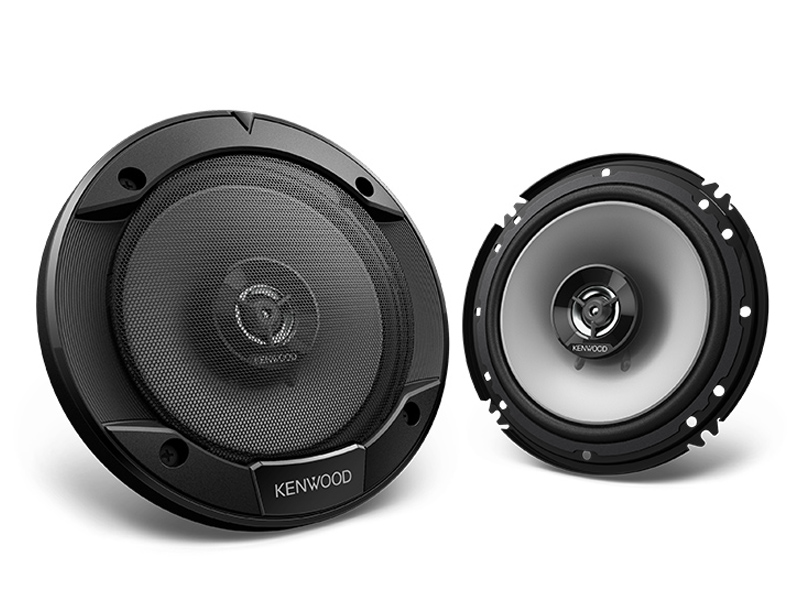

Kenwood 6.5" Coaxial Speaker - KFC-1666S
Frequency Response 35Hz - 22kHz
Mounting Depth 1-11/16”
Sound Field Enhancer
To improve sound quality
Enlarged magnet circuit
To realize clear sound
Only 5/16"of mounting height
To fit for wider car selection
Peak Input Power
300W
Rated Input Power
30W Impedance 4 ohms
Woofer Features
6-1/2inch PP Cone

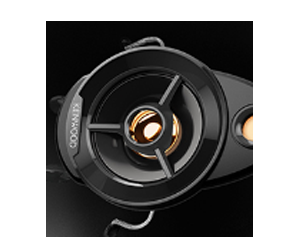

Tweeter Features
1inch Balanced Dome Tweeter
Specifications
Sensitivity: 92 dB / W / m
Frequency Response: 35 Hz - 22k Hz
Cutout Diameter: 4-7/8inch
Mounting Depth: 1-11/16inch
Gross Weight: 2.3lbs
Weight of Magnet (Woofer): 0.2lbs
Diaphragm | |
---|---|
Diaphragm | Balanced Dome , Silver |
Magnet | |
Magnet | Ferrite , φ80xt10 |
Surround | |
Surround | Cloth |
Size | |
Size | 160mm , 6.5in |
Diaphragm | |
Diaphragm | PP , Silver |
Frequency Response (Hz) | |
Frequency Response (Hz) | 40-22000Hz |
Sensitivity (dB at 1m) | |
Sensitivity (dB at 1m) | 90dB |
RMS Input Power (W) | |
RMS Input Power (W) | 30W |
Peak Input Power (W) | |
Peak Input Power (W) | 300W |
Impedance (Ω) | |
Impedance (Ω) | 4Ω |
Screw sets | |
Screw sets | Tapping Screw , φ4x25*8pcs |
Grille Assy | |
Grille Assy | 2pcs |
Gross Weight | |
Gross Weight | 1308 g , 2.9 lbs. |
Weight of Woofer Magnet | |
Weight of Woofer Magnet | 220 g , 7.8 oz. |
without Grille (pc.) | |
without Grille (pc.) | 559 g , 1.2 lbs. |
witho Grille (pc.) | |
witho Grille (pc.) | 623 g , 1.4 lbs. |
Mounting Depth | |
Mounting Depth | 43.2 mm , 1-11/16 in. |
Tweeter Height | |
Tweeter Height | 8 mm , 5/16 in. |
Cutout Diameter | |
Cutout Diameter | Φ123.5 mm , Φ4-7/8 in. |
Height (w/o_Gr) | |
Height (w/o_Gr) | 159.8 mm , 6-5/16 in. |
Height (w_Gr) | |
Height (w_Gr) | 170.0 mm , 6-11/16 in. |
Width (w/o_Gr) | |
Width (w/o_Gr) | 159.8 mm , 6-5/16 in. |
Width (w_Gr) | |
Width (w_Gr) | 170.0 mm , 6-11/16 in. |
Specification | |
Width (w_Gr) | 170.0 mm , 6-11/16 in. |
Size | |
Size | 25mm , 1 in. |
Magnet Material | |
Dimension | Neodymium , 170.0 mm |
Magnet Material | Neodymium |
