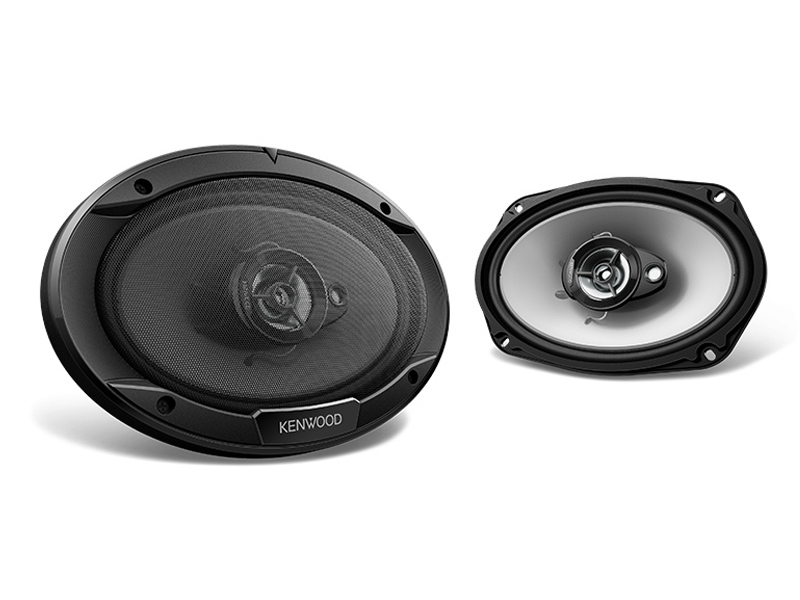

Kenwood 6 x 9" Coaxial Speaker - KFC-6966S

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $99.00 CAD

Or as low as $17.37/month over 6 months. Apply Now

Out of stock online. Call for availability

Frequency Response 30Hz - 22kHz
Mounting Depth 3”

Sound Field Enhancer
To improve sound quality

Enlarged magnet circuit
To realize clear sound

Only 7/16"of mounting height
To fit for wider car selection

Peak Input Power

Rated Input Power
45W Impedance 4 ohms

Woofer Features
6 x 9inch PP Cone

Tweeter Features
2inch PEI Balanced Dome Tweeter

Super Tweeter Features
1/2inch Ceramic Tweeter

Sensitivity: 92 dB / W / m
Frequency Response: 30 Hz - 22k Hz
Cutout Diameter: 6-1/16 , 8-3/4inch
Mounting Depth: 3inch
Gross Weight: 5.1lbs
Weight of Magnet (Woofer): 0.4lbs

Screw sets
Screw setsTapping Screw , φ4x25*8pcs
Grille Assy
Grille Assy2pcs
Gross Weight
Gross Weight1870 g , 4.1 lbs.
Weight of Woofer Magnet
Weight of Woofer Magnet220 g , 7.8 oz.
without Grille (pc.)
without Grille (pc.)796 g , 1.8 lbs.
witho Grille (pc.)
witho Grille (pc.)908 g , 2.0 lbs.
Mounting Depth
Mounting Depth76.8 mm , 3 in.
Tweeter Height
Tweeter Height11.5 mm , 7/16 in.
Cutout Diameter
Cutout Diameter154x222 mm , 6-1/16x8-3/4 in.
Height (w/o_Gr)
Height (w/o_Gr)164 mm , 6-7/16 in.
Height (w_Gr)
Height (w_Gr)193 mm , 7-5/8 in.
Width (w/o_Gr)
Width (w/o_Gr)235 mm , 9-1/4 in.
Width (w_Gr)
Width (w_Gr)268 mm , 10-9/16 in.
Size12mm , 1/2 inch
DiaphragmCermic , Silver
DiaphragmCermic , Silver
Magnet Material
Magnet MaterialFerrite
Super TweeterFerrite , Cermic
Size50mm , 2 in.
DiaphragmCone , Silver
MagnetFerrite , φ80xt10
Size153x299mm , 6x9in
DiaphragmPP , Silver
Frequency Response (Hz)
Frequency Response (Hz)35-20000Hz
Sensitivity (dB at 1m)
Sensitivity (dB at 1m)91dB
RMS Input Power (W)
RMS Input Power (W)45W
Peak Input Power (W)
Peak Input Power (W)400W
Impedance (Ω)
Impedance (Ω)
