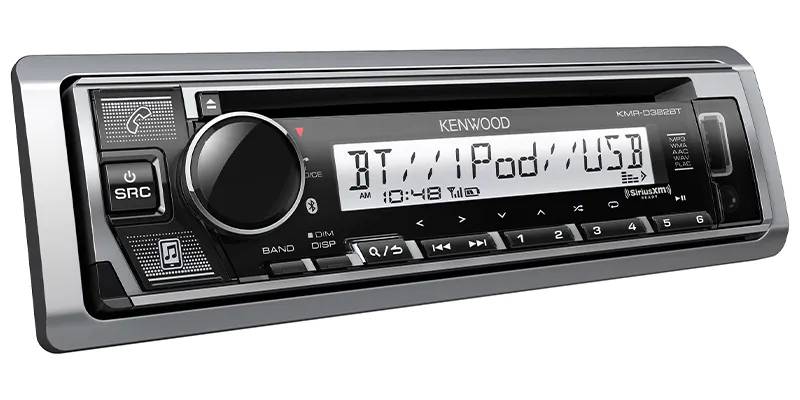

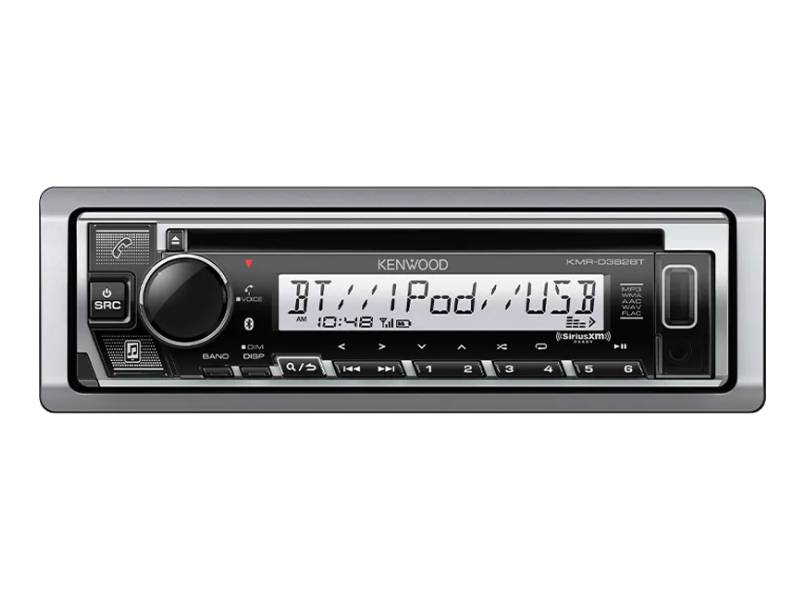

Kenwood CD-Receiver with Bluetooth & Conformal Coating - KMR-D382BT

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping
Price$239.00
Savings$21.00
Our Price $218.00 CAD

Or as low as $38.26/month over 6 months. Apply Now


Availability
In Stock

Literature
  • Motorsports / Marine CD-Receiver
  • 255 Segment 1.5 Line Text Display
  • Bluetooth Direct Access Button
  • Variable Color Illumination
  • 13Band EQ & DTA
  • Conformal Coating
  • Optional Wired Remote Control Ready
  • Front USB & AUX IN
  • 3 Preouts 4.0V

Music Mix

Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

Remote App

A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

Wireless Music Browsing (AVRCP 1.5 / 1.6)

Search and select songs from your music collection through a Bluetooth connection.

Graphic EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for listeners.

Drive EQ

Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.

FLAC Supported

Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.

Android Rapid Charge

Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.

Variable Color Illumination

Bright variable color LEDs can be adjusted to match any color dash lighting.

Conformal Coating

Improved moisture resistance of the circuit boards to prevent corrosion.

Smartphone Connectivity

By connecting your smartphone and receiver wirelessly,your driving time will be more fun and convenient.

Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

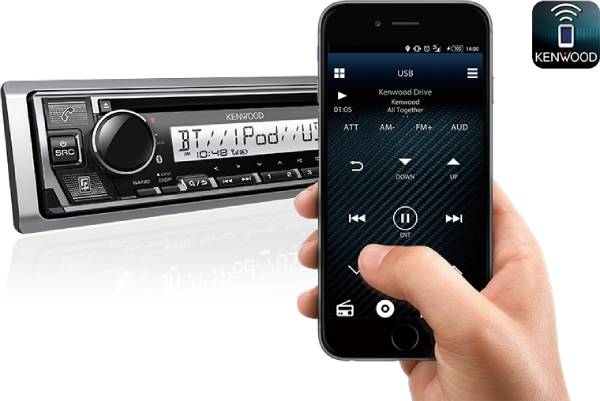

Control the Receiver from Your Smartphone with the KENWOOD Remote App

A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

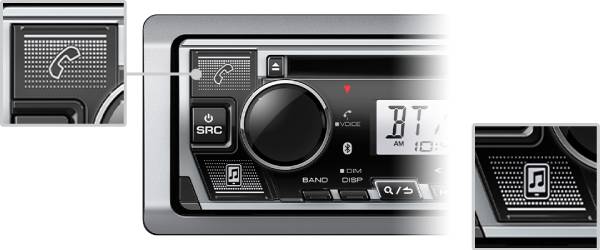

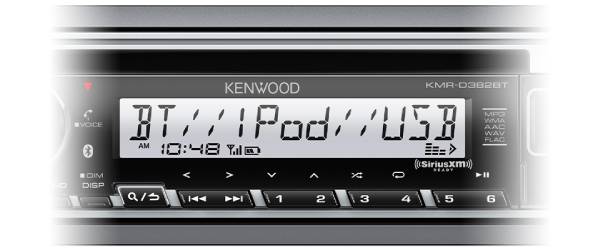

Designed for Ease of Use

Direct Bluetooth keys allow you to access quickly to answering to and making a call, and entering Bluetooth Audio source.

And Vertical Alignment LCD display secures higher visibility during day-time drive.

Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices

Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files.

Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

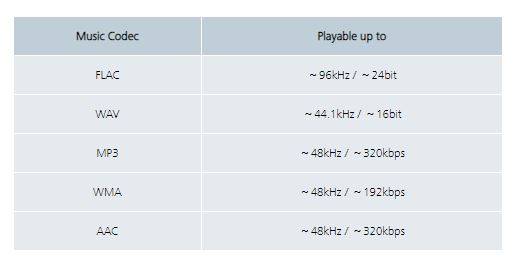

Playable USB Files

Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.

13-Band EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

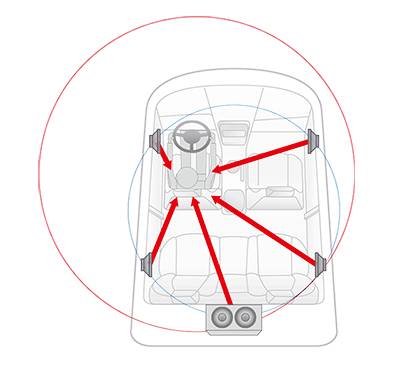

Digital Time Alignment

Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.

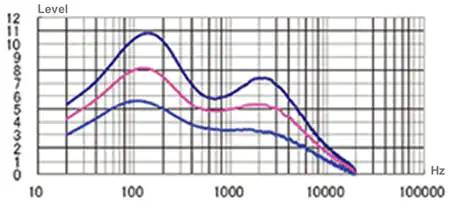

Drive Equalizer

Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

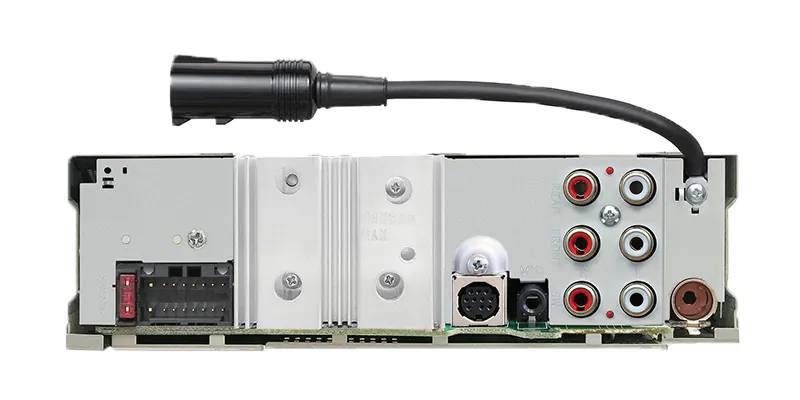

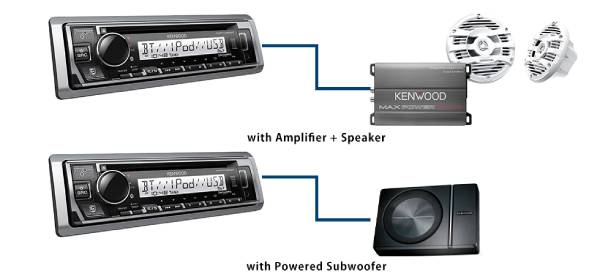

System EXPANSION Ready

The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.

Additional Features

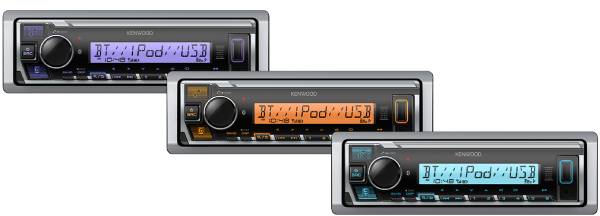

Variable Color Display

Bright variable color LED's can be adjusted to match your environment.

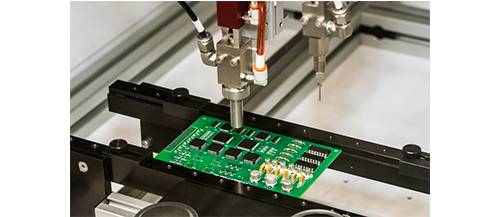

Conformal Coating

Improved moisture resistance of the circuit boards to prevent corrosion.

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.

(Optional SiriusXM tuner required, sold separately)

Spanish and French Text Display

On-screen display menu now available in Spanish and French.

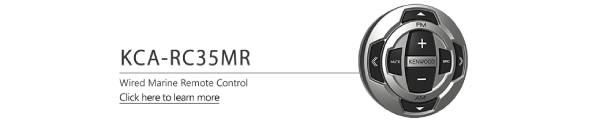

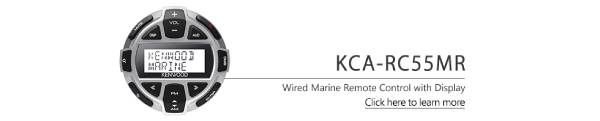

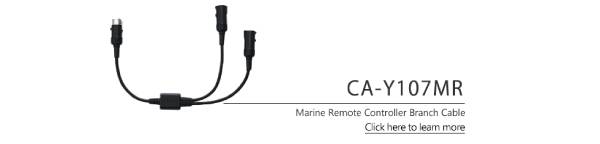

Wired Remote Control (Optional)

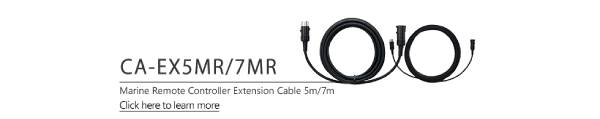

Remote control and remote extension cables are optionally available.

AMP
PWR(MAX) 50Wx4
AUX Input
Input Impedance 30kΩ
Input Maximum Voltage 1000mV
Frequency Response 20Hz to 20kHz ±3dB
USB I/F
FLAC Decode FLAC file (Up to 24bit/96kHz)
WAV Decode Linear-PCM
AAC Decode AAC-LC ".aac",".m4a" files
WMA Decode Compliant with Windows Media Audio
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
Channel Separation 91dB
Dynamic Range 94dB
S/N Ratio (dB) 98dB(1kHz)
Frequency Response 20Hz to 20kHz(±1dB)
Maximum Supply current DC5V(DC logo) 1.5A
File System FAT12 / 16 / 32
USB USB 1.1 / 2.0 High Speed
Specifications
Speaker Impedance(Ω) 4 to 8Ω
Preout Impedance(Ω) =<600Ω
Preout Level(mV)/Load -Unbalanced 4000mV/10kΩ
CD
WAV Decode -
AAC Decode AAC-LC ".aac" files
WMA Decode Compliant with WINDOWS MEDIA AUDIO
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
Channel Separation 86dB
Dynamic Range 91dB
S/N Ratio (dB) 94dB(1kHz)
Total Harmonic Distortion 0.02%(1kHz)
Frequency Response 20Hz to 20kHz(±1dB)
Wow & Flutter Below Measurable Limit
Spindle Speed 500 to 200rpm (CLV)
Digital Filter(D/A) 8 Times OverSampling
Laser Diode GaAlAs
MW (AM)
(S/N 20dB)-
Usable Sensitivity 29dBμ (28.2μV)
(Frequency step) (10kHz)
Frequency Range(kHz) 530kHz to 1700kHz
FM
Stereo Separation 40dB(1kHz)
S/N(dB) 64.0dB(MONO)
Frequency Response(±3.0dB) 30Hz to 15kHz
DIN S/N:46dB (2.0μV/75Ω)
Quieting Sensitivity 17.2dBf
(Frequency step) (200kHz)
Usable Sensitivity 8.2dBf
S/N:30dB (0.71μV/75Ω)
Frequency Range(MHz) 87.9MHz to 107.9MHz
AMP
Full Bandwidth Power(at less than 1%THD) 22Wx4
TONE
Band1 62.5Hz ±9dB
Band2 100Hz ±9dB
Band3 160Hz ±9dB
Band4 250Hz ±9dB
Band5 400Hz ±9dB
Band6 630Hz ±9dB
Band7 1kHz ±9dB
Band8 1.6kHz ±9dB
Band9 2.5kHz ±9dB
Band10 4kHz ±9dB
Band11 6.3kHz ±9dB
Band12 10kHz ±9dB
Band13 16kHz ±9dB
Bluetooth
Version Bluetooth 4.2
Frequency Range 2.402 to 2.480GHz
RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
ProfileHFP 1.7.1 (Hands Free Profile) , SPP(Serial Port Profile) , PBAP(Phonebook Access Profile) , A2DP(Advanced Audio Distribution Profile) , AVRCP 1.6.1 (Audio/Video Remote Control Profile)
GENE
Operating voltage 12V DC car battery
Installation Size (W) (H) (D)182(mm) 7-3/16(in), 53(mm) 2-1/16(in), 155.5(mm) 6-1/8(in)
Net Weight1.2(kg) 2.7(lbs) (Trim plate and Mounting sleeve: Included)
