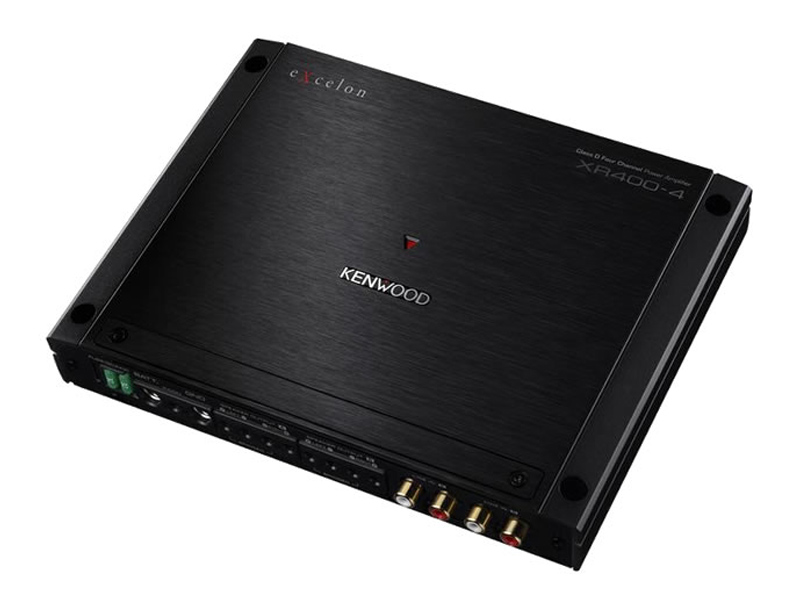

Kenwood Class D 4 Channel Power Amplifier XR4014
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping
Our Price $499.00 CAD

Or as low as $87.57/month over 9 months. Apply Now


Availability
In Stock

Literature

Rich and Immersive
High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

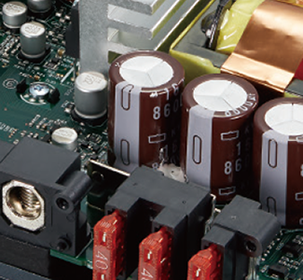

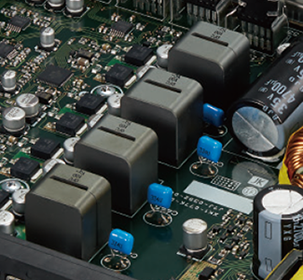

HIGH PERFORMANCE PARTS
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.

DEEP BASS SOUND
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.

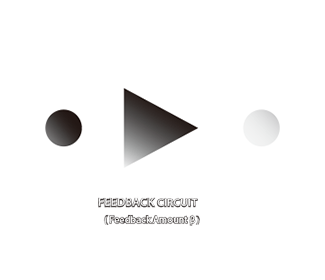

ENHANCED SIGNAL TO NOISE RATIO
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

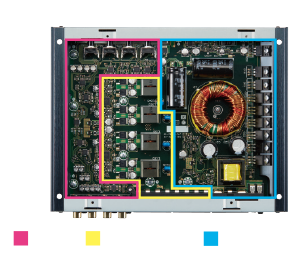

SPECIALIZED CIRCUIT DESIGN
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.

WIRED REMOTE CONTROL
The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.

Features

  • Operating Voltage: 14.4V (11 - 16 V allowable)
  • Current Consumption: 37 A
  • Dimensions (W x H x D): 220 x 35 x 169 mm (8-11/16 x 1-3/8 x 6-5/8)
  • Weight: 1.5 kg (3.3 lbs)
  • Warranty: 2-Year
CEA-2006 Standard
75 W x 4 RMS Watts per channel @ 4 ohms, 1% THD+N
Specification
Dimensions (W x H x D)220 x 35 x 169 mm (8-11/16 x 1-3/8 x 6-5/8)
High Pass Filter Frequency
2.5 kHz - 10 kHz (variable) High-Range
50 Hz - 200 Hz (variable) Low-Range
Low Pass Filter Frequency
50 Hz - 200 Hz (variable) Low-Range
(-12 dB/oct.) -
Specifications
Signal to Noise Ratio 100 dB
Input Impedance 10 kΩ
Input Sensitivity 0.2 V - 5.0 V (MIN-MAX)
Frequency Response 20-20kHz(±1dB)
Rated Power Output
200 W x 2 Bridged (4Ω) (1 kHz, 1.0% THD)
100 W x 4 (2Ω) (1 kHz, 1.0% THD)
75 W x 4 (4Ω) (20 Hz - 20 kHz, 1.0% THD)
14.4 V -
Specification
Max Power Output -
CEA-2006 Standard
76 dBA Signal to Noise Ratio (Reference: 1 Watt into 4 ohms)
