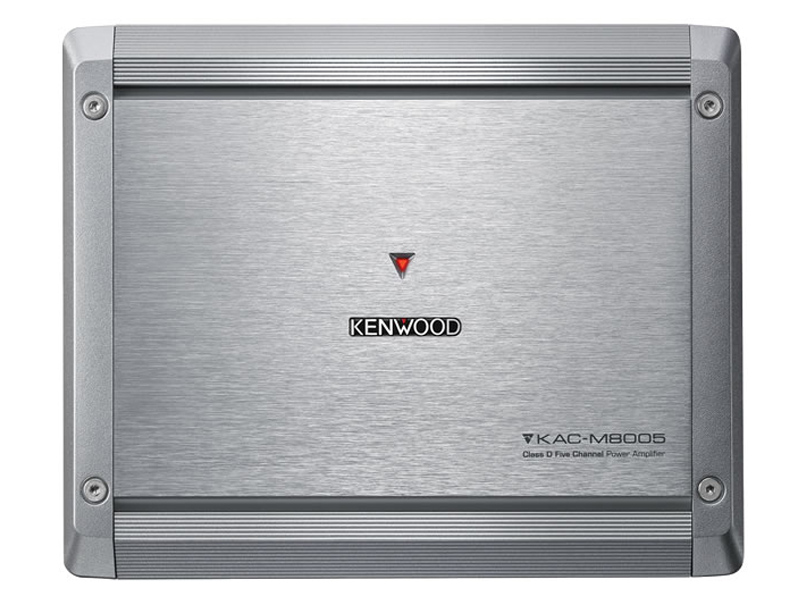

Kenwood Class D 5-Channel Marine Power Amplifier KACM8005
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping
Price$509.00
Savings$10.00
Our Price $499.00 CAD
Sale Ends : June 05, 2021

Or as low as $87.57/month over 9 months. Apply Now


Availability
In Stock

Literature

General Features

MAX Power 1600W
RMS Power50W x 4 + 300W (4Ω) 75W x 4 + 500W (2Ω) 150W x 2 (Bridged) + 300W (4Ω) Conformal Coating*
Speaker Level Input
Signal Sensing Turn-on
Variable Low & High-pass Filter
Bass Boost
(W)9” x (H)2-3/16” x (D)7-3/8”

Specification
Key FeaturesCEA-2006 Compliant 2 Ohms Load Capability Speaker Level Input with Signal Sensing Turn-on Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design A B Sub Independent Gain Adjustment
General
Current Consumption58[A]
Operating Voltage14.4V(11-16V allowable)
Dimensions(WxHxD)9 x 2-3/16 x 7-3/8 [inch]
Terminals
Speaker OutputM4 Screw Type Terminal Block
Battery & GroundM6 Screw Type Terminal Block
AUDIO SECTION
Speaker Level Input Sensitivity4.0[V] - 12.0 [V]
RCA Input Sensitivity0.2[V] - 5.0 [V]
Bass Boost40Hz, 0dB - +18dB (SUB)
High-Pass Filter50Hz-200Hz, -12dB/oct (A/B)
Low-Pass Filter50Hz-200Hz, -24dB/oct (SUB)
Specifications
Bridged Connection4Ω to 8Ω allowable
Speaker Impedance4Ω (2Ω to 8Ω allowable)
Input Impedance10k ohm
Frequency Response20Hz-50kHz (+0dB, -3dB) A/B 20Hz-200Hz (+0dB, -3dB) SUB
Signal to Noise Ratio100dB (Reference: Rated Power into 4Ohms at 14.4V)
Rated Power Output at 14.4V
A/B (Bridged 4Ohms)150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
SUB (2 Ohms)500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
SUB (4 Ohms)300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
A/B (2 Ohms)75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
A/B (4 Ohms)50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
Maximum Power Output
MAX POWER1600W
CEA-2006 Primary Ratings
Signal-to-Noise Ratio80dBA (Reference: 1Watt into 4Ohms)
Power Output50 Watts RMS x 4 + 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
