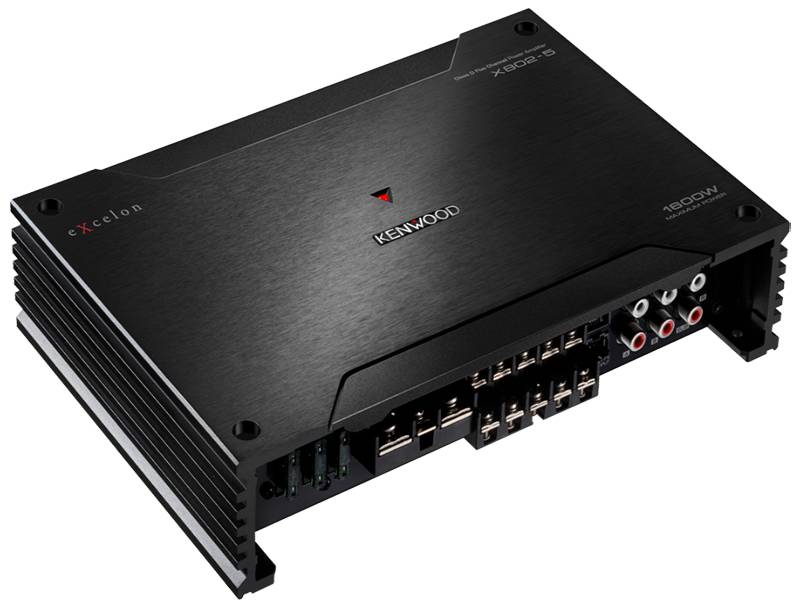

Kenwood Class D 5-Channel Power Amplifier - X8025
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping
Price$479.00
Savings$31.00
Our Price $448.00 CAD

Or as low as $78.62/month over 6 months. Apply Now


Availability
In Stock

Key Features

  • High-Res Audio Compliant
  • CTA-2006 Compliant
  • 2 Ohms Load Capability
  • One Sided Connection
  • Speaker Level Input with Signal Sensing Turn-on
  • Max Power 1600W
  • Size (inch) (W) 9-3/4" x (H) 2-1/16" x (D) 6-5/8"

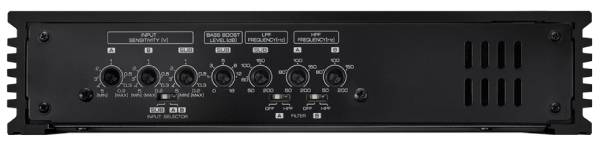

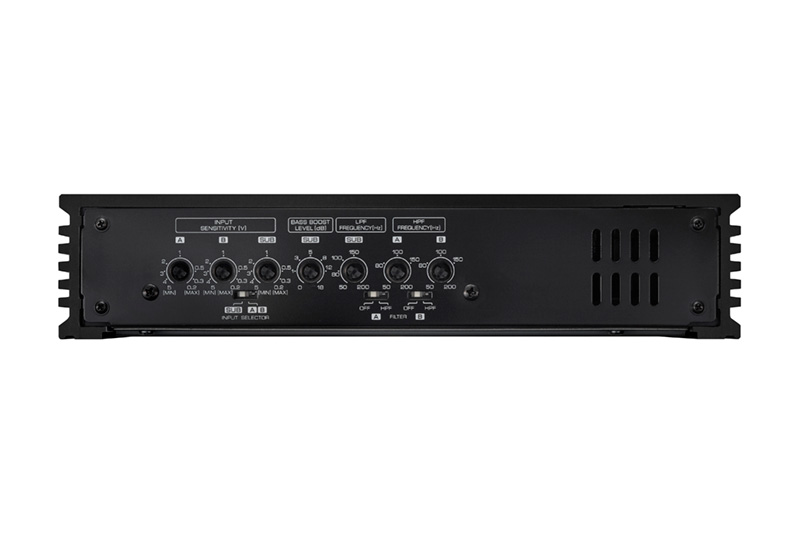

  • Variable High & Low Pass Filter
  • Bass Boost
  • Optional Wired Remote Ready

Rich and Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

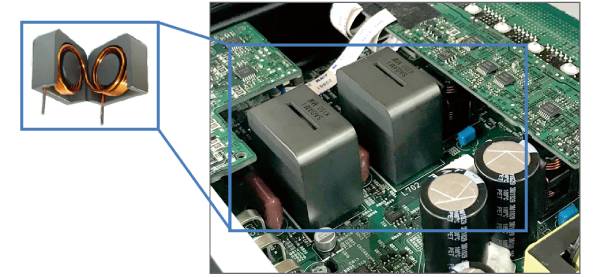

Output Coil with Magnetic Shield

Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

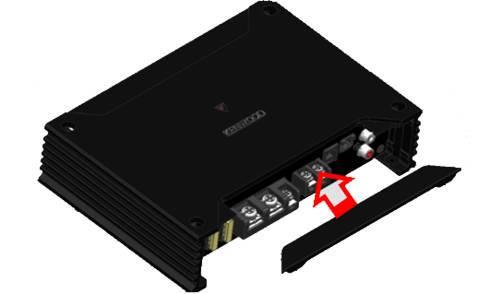

Sliding Terminal Cover

Detachable sliding terminal cover offers a sleek design and easier installation.

Variable Gain Circuit

Improved Signal to Noise Ratio

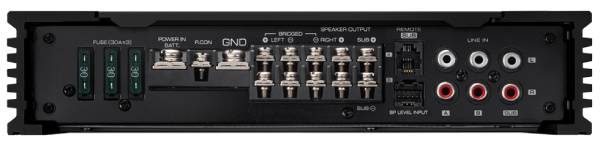

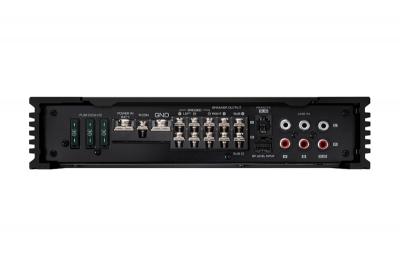

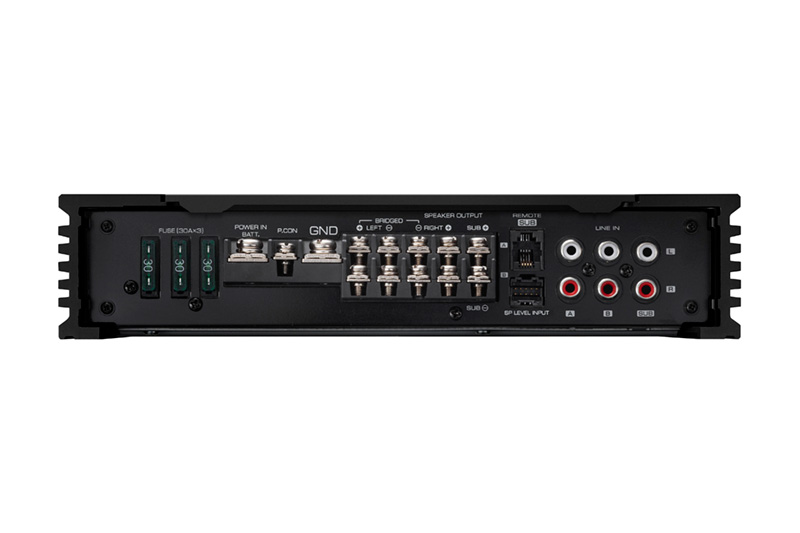

One-side Connection

All terminals and connections are on one side for easier installation and a cleaner look.

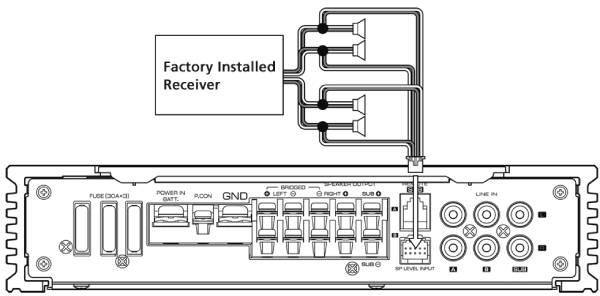

Speaker Level Input Harness

Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

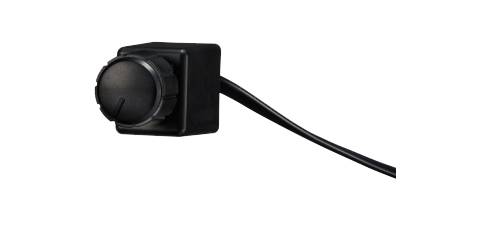

Optional Wired Level Control Ready

The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.

CTA-2006 Primary Ratings
Power Output 50 Watts RMS x 4 + 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
Signal-to-Noise Ratio 80dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output
MAX POWER 1600W
Rated Power Output at 14.4V
A/B (4 Ohms) 50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
A/B (2 Ohms) 75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
SUB (4 Ohms) 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
SUB (2 Ohms) 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
A/B (Bridged 4Ohms) 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Features
Signal to Noise Ratio 100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20Hz-50kHz (+0dB, -3dB) A/B
Frequency Response20Hz-200Hz (+0dB, -3dB) SUB
Input Impedance 10k ohm
Speaker Impedance 4Ω (2Ω to 8Ω allowable)
Bridged Connection 4Ω to 8Ω allowable
AUDIO SECTION
Low-Pass Filter50Hz-200Hz, -24dB/oct (SUB)
High-Pass Filter 50Hz-200Hz, -12dB/oct (A/B)
Bass Boost 40Hz, 0dB - +18dB (SUB)
Infrasonic Filter-
RCA Input Sensitivity 0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity 4.0[V] - 12.0 [V]
Terminals
Battery & Ground M6 Screw Type Terminal Block
Speaker Output M4 Screw Type Terminal Block
General
Dimensions(WxHxD) (W)9-3/4" x (H) 2-1/16” x (D)5-7/8”
Dimensions(WxHxD) (W) 248cm x (H) 53cm x (D) 169cm
Weight 4.6 lbs ( 2.1 kg)
Operating Voltage 14.4V(11-16V allowable)
Current Consumption 42[A]
