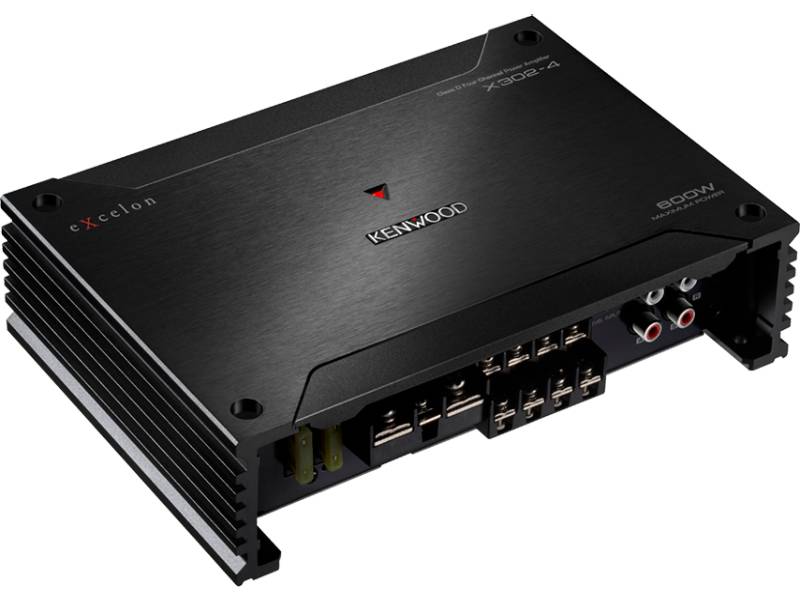

Kenwood Class D Mono 4-Channel Power Amplifier - X302-4
Price | $349.00 |
Savings | $51.00 |
Our Price |
$298.00 CAD |
Or as low as $52.29/month over 6 months. Apply Now
Key Features
- High-Res Audio Compliant
- CTA-2006 Compliant
- 2 Ohms Load Capability
- One Sided Connection
- Speaker Level Input with Signal Sensing Turn-on
- Max Power 600W
- Size (inch) (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"

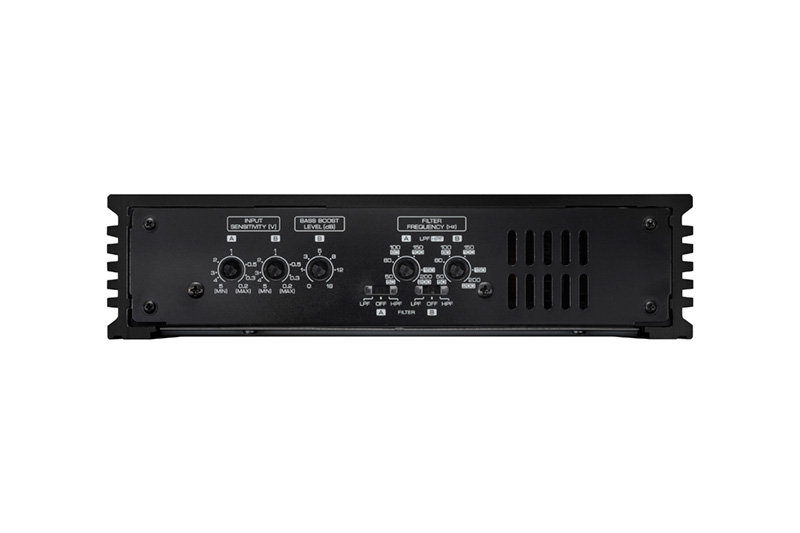

- Variable High & Low Pass Filter
- Bass Boost
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Sliding Terminal Cover
Detachable sliding terminal cover offers a sleek design and easier installation
Variable Gain Circuit
Improved Signal to Noise Ratio

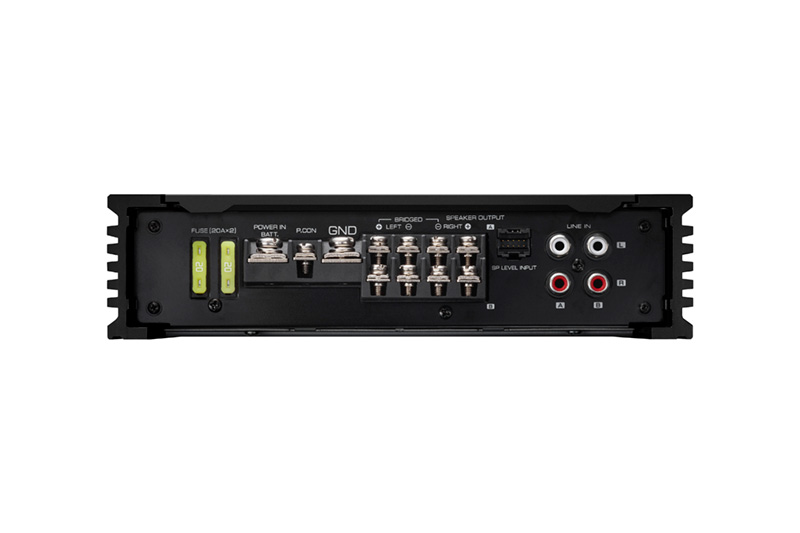

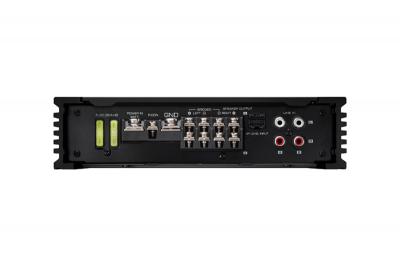

One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look.
Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
CTA-2006 Primary Ratings | |
---|---|
Power Output | 50 Watts RMS x 4 at 4 Ohms and ≤1%THD+N |
Signal-to-Noise Ratio | 85dBA (Reference: 1Watt into 4Ohms) |
Maximum Power Output | |
MAX POWER | 600W |
Rated Power Output at 14.4V | |
A/B (4 Ohms) | 50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD) |
A/B (2 Ohms) | 75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD) |
SUB (4 Ohms) | - |
SUB (2 Ohms) | - |
A/B (Bridged 4Ohms) | 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD) |
Features | |
Signal to Noise Ratio | 100dB (Reference: Rated Power into 4Ohms at 14.4V) |
Frequency Response | 20Hz-50kHz (+0dB, -3dB) |
Frequency Response | - |
Input Impedance | 10k ohm |
Speaker Impedance | 4Ω (2Ω to 8Ω allowable) |
Bridged Connection | 4Ω to 8Ω allowable |
AUDIO SECTION | |
Low-Pass Filter | 50Hz-200Hz, -12dB/oct (A/B) |
High-Pass Filter | 50Hz-200Hz, -12dB/oct (A/B) |
Bass Boost | 40Hz, 0dB - +18dB (Bch) |
Infrasonic Filter | - |
RCA Input Sensitivity | 0.2[V] - 5.0 [V] |
Speaker Level Input Sensitivity | 4.0[V] - 12.0 [V] |
Terminals | |
Battery & Ground | M6 Screw Type Terminal Block |
Speaker Output | M4 Screw Type Terminal Block |
General | |
Dimensions(WxHxD) | (W)8-3/8” x (H)2-1/16” x (D)5-7/8” |
Dimensions(WxHxD) | (W) 213cm x (H) 53cm x (D) 149cm |
Weight | 3.1 lbs ( 1.4 kg) |
Operating Voltage | 14.4V(11-16V allowable) |
Current Consumption | 20[A] |
