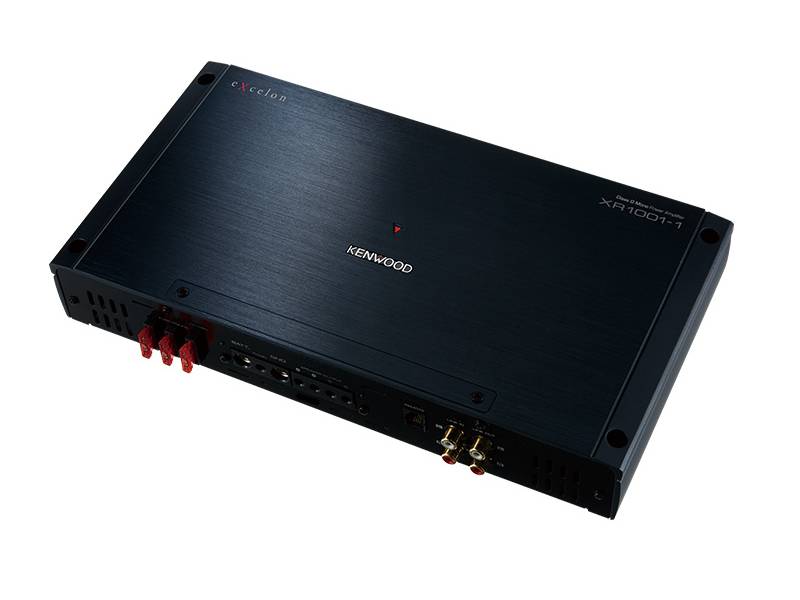

Kenwood Class D Mono Power Amplifier - XR10011
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $649.00 CAD

Or as low as $113.89/month over 6 months. Apply Now


Availability
Call for availability

Literature

Key Features

  • CTA-2006 Compliant
  • Class D
  • 2 Ohms Load Capability
  • Dual Σdrive
  • Speaker Level Input
  • Signal Sensing Turn-on
  • Terminal Cover
  • Cooling Fan
  • Power MOS-FET Switching Power Supply
  • Extruded Aluminum Heat Sink Design
  • Line Output Terminals for Extension
  • Speaker Level Input
  • Signal Sensing Turn-on
  • Infrasonic Filter

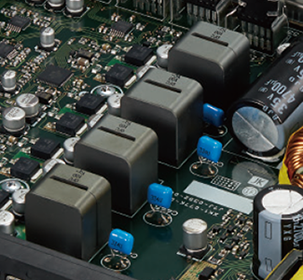

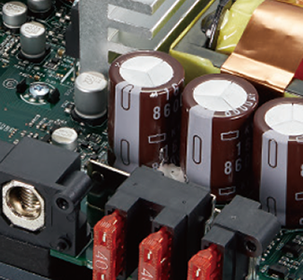

HIGH PERFORMANCE PARTS

Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.

DEEP BASS SOUND

By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.

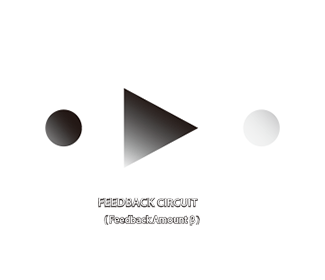

ENHANCED SIGNAL TO NOISE RATIO

The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

>

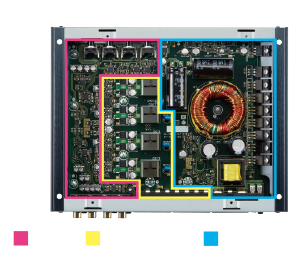

SPECIALIZED CIRCUIT DESIGN

The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.

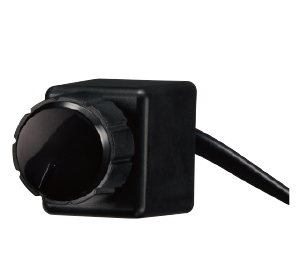

WIRED REMOTE CONTROL

The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.

Features
TitleClass D Mono Power Amplifier
Amplifier TypeClass D
SerieseXcelon
CTA-2006 Primary Ratings
Power Output500Watts RMS x 1 at 4 Ohms and ≤1%THD+N
Signal-to-Noise Ratio85dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output
MAX POWER2000W
Power Output
Rated Power at 14.4V 500Watts RMS x [ch] (4 Ohms, 20-200Hz, ≤1.00% THD) 1000Watts RMS x [ch] (2 Ohms, 100Hz, ≤1.00% THD)
Specifications
Signal to Noise Ratio 100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20Hz-200Hz (+0dB, -3dB)
Input Impedance 10k ohm
Speaker Impedance Bridged connection 4Ω (2Ω to 8Ω allowable)
AUDIO SECTION
Low-Pass Filter Built in Variable Low-Pass Filter (50Hz-200Hz, -12/-24dB/oct)
Infrasonic Filter Built in Variable Infrasonic Filter (15Hz-40Hz, -24dB/oct)
Bass Boost Built in Bass Boost Control (40Hz, 0dB-+18dB)
RCA Input Sensitivity 0.2[V] - 5.0[V]
Speaker Level Input Sensitivity 4.0[V] - 12.0[V]
Terminals
Battery & Ground XR Series Type Terminal (capable for 4 guage)(Ni)
P.CON XR Series Type Terminal (capable for 8 guage)
Speaker Output XR Series Type Terminal (capable for 8 guage)
Line In RCA (Gold Colored)
Line Out RCA (Gold Colored)
Speaker Input RCA IN A Channel
General
Dimensions(WxHxD) 320 [mm] x 51 [mm] x 169 [mm] 12-5/8 inch x 2 inch x 6-5/8 inch
Operating Voltage 14.4V(11-16V allowable)
Current Consumption 60 [A]
Features
Others Triangle Indicator
Max Power 2000W
RMS Power 500W x 1 (4Ω) 1000W x 1 (2Ω)
(W) x (H) x (D)12-5/8" x 2" x 6-5/8"
Low Pass Filter 50 - 200 Hz (-12/-24 dB / oct.)
Bass Boost 40 Hz (0 - +18 dB)
