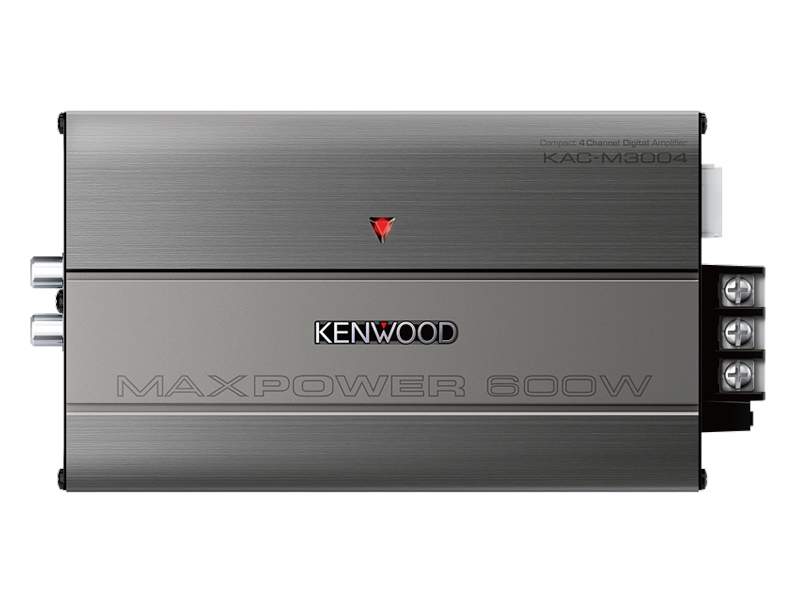

Kenwood Compact 4 Channel Digital Amplifier KACM3004
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping
Price$289.00
Savings$10.00
Our Price $279.00 CAD
Sale Ends : June 05, 2021

Availability
In Stock

General Features

  • RMS POWER Output 4Ω: 50W x 4
  • RMS POWER Output 2Ω: 75W x 4
  • RMS POWER Output Bridged: 150W x 2
  • Dimensions(WxHxD): 6-1/2" x 1-3/4" x 3-7/8"
  • Singal Sensing Turn-on
  • Conformal Coating *1

*1: Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.

MULTI-APPLICATION
Many of today’s powersports have very limited space to work in and tend to be a harsh environment for electronics because of the exposure to outdoor environments. KENWOOD’s compact performance amplifiers are small in size so they fit even the most limited installation areas. The amplifiers also use a conformal coated main PCB (printed circuit boards) which offer extra layers of protection to help prevent moisture or damp air from damaging the product.

CEA-2006 Primary Ratings
Power Output50 Watts RMS x 4 at 4 Ohms and ≤1%THD+N
Signal-to-Noise Ratio76dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output
Maximum Power Output600W
Specifications
Signal to Noise Ratio89dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response20Hz-20kHz (+0dB, -1dB)
Input Impedance10k ohm
Speaker Impedance4Ω (2Ω to 8Ω allowable)
Bridged connection4Ω to 8Ω allowable
AUDIO SECTION
Low-Pass FilterBuilt in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct)
High-Pass FilterBuilt in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct)
Filter Selector 1LPF-OFF-HPF
RCA Input Sensitivity0.2 V - 5.0 V
Speaker Level Input Sensitivity4.0 V - 12.0 V
Terminals
Battery & GroundScrew Type Terminal Block (Ni) (M4)
Speaker OutputMOLEX Connector with AWG16 200mm Wire
Line InRCA (Ni)
General
Dimensions(WxHxD)'6-1/2 X '1-3/4 X '3-7/8 inch
Weight(kg)-
Operating Voltage14.4V(11-16V allowable)
Current Consumption22 A
