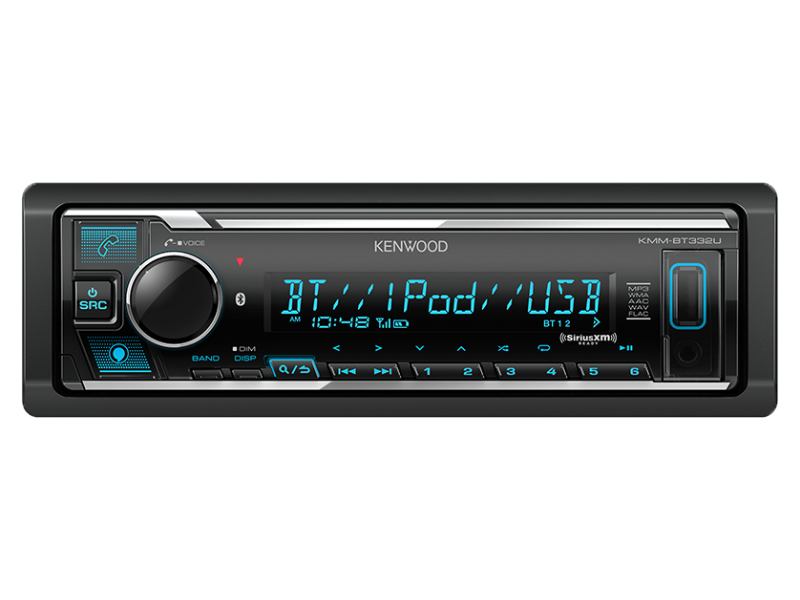

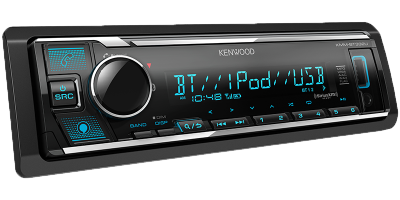

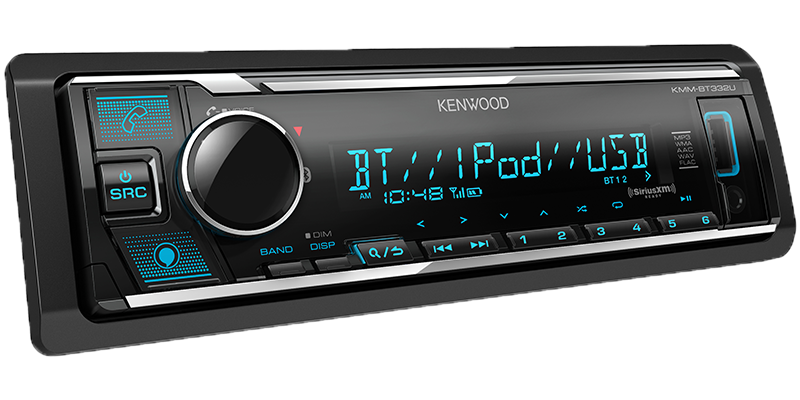

Kenwood Digital Media Receiver with Bluetooth - KMM-BT332U

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping
Price$179.00
Savings$21.00
Our Price $158.00 CAD

Or as low as $27.73/month over 6 months. Apply Now


Availability
Out of stock online. Call for availability

Literature

Features

Music Mix

Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.



Remote App

A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

Graphic EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for listeners.



Drive EQ

Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.

Variable Color Illumination

Bright variable color LEDs can be adjusted to match any color dash lighting.



Short Chassis

With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars.



Smartphone Connectivity

Amazon Alexa Compatible

With Alexa on your KENWOOD Receivers, you can use your voice to control your music and much more. Using Alexa is as easy as asking a question. Just ask and Alexa can play your favorite song, skip to the next track, change the volume, read you the news and more.



Using Alexa on the KENWOOD Receiver is simple and hands-free, just ask and Alexa will respond instantly, or press the Amazon Alexa key on the KENWOOD receiver, you can easily activate Alexa and get voice control.



Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.



Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.



Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.



Control the Receiver from Your Smartphone with the KENWOOD Remote App

A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).



Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices

Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.



The Best Audio Experience



13-Band EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

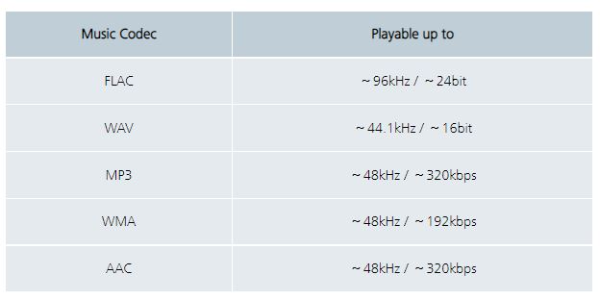

Playable USB Files

Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.

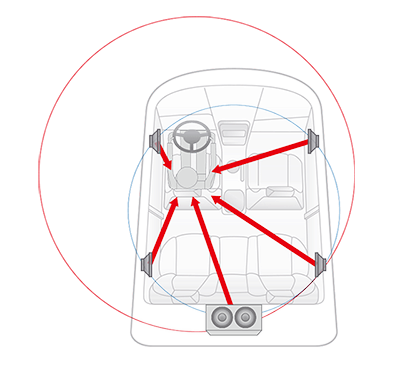

Digital Time Alignment

Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.

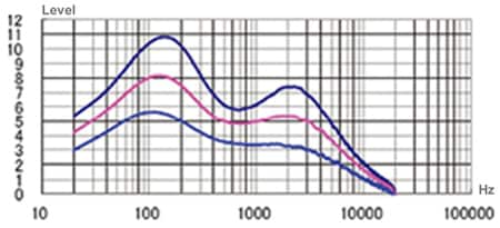

Drive Equalizer

Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

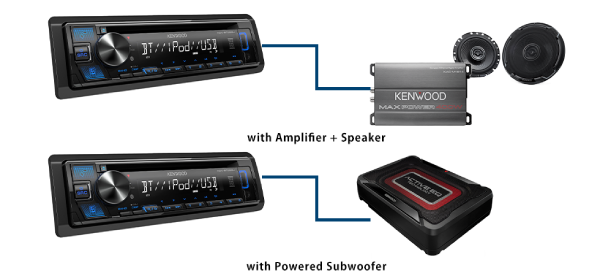

System EXPANSION Ready

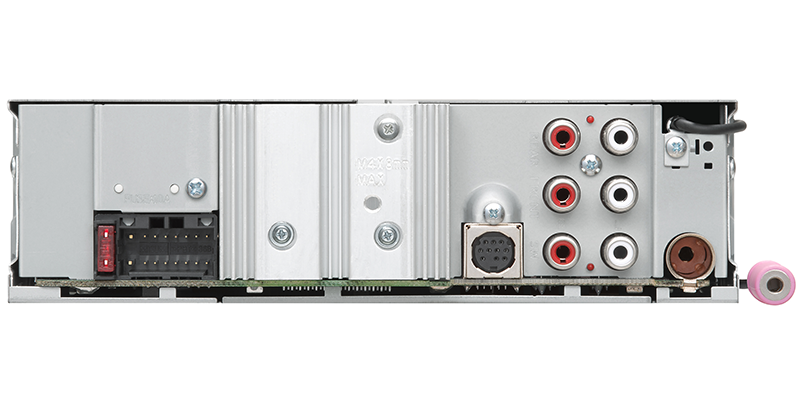

The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.



Additional Features

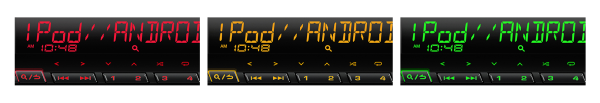

Match Your Mood with Variable Color Illumination

Bright variable color LED's can be adjusted to match any color dash lighting.

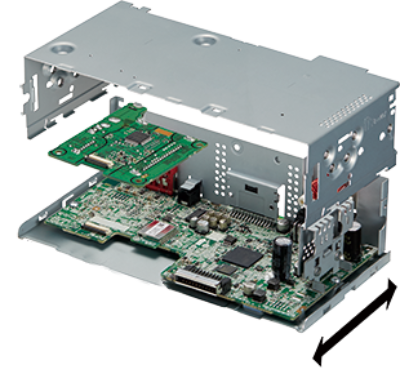

Short Chassis Design

With audio receivers shorter in depth, installation is made easier in a wider range of cars.



SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately)



Spanish and French Text Display

On-screen display menu now available in Spanish and French.

TONE
Band116.3kHz ±9dB
Band1210kHz ±9dB
Band1316kHz ±9dB
Bluetooth
VersionBluetooth 4.2
TONE
Band104kHz ±9dB
FM
Frequency Range(MHz)(Frequency step)87.9MHz to 107.9MHz(200kHz)
Usable SensitivityS/N:30dB8.2dBf(0.71μV/75Ω)
Quieting SensitivityDIN S/N:46dB17.2dBf(2.0μV/75Ω)
Frequency Response(±3.0dB)30Hz to 15kHz
S/N(dB)64.0dB(MONO)
Stereo Separation40dB(1kHz)
MW(AM)
Frequency Range(kHz)(Frequency step)530kHz to 1700kHz(10kHz)
Usable Sensitivity(S/N 20dB)29dBμ (28.2μV)
Preout Level(mV)/Load
-Unbalanced2,500mV/10kΩ
USB I/F
USBUSB 1.1 / 2.0 High Speed
Speaker Impedance(Ω)
Speaker Impedance(Ω)4 to 8Ω
USB I/F
File SystemFAT12 / 16 / 32
Maximum Supply currentDC5V(DC logo) 1.5A
Frequency Response20Hz to 20kHz(±1dB)
Dynamic Range90dB
S/N Ratio (dB)98dB(1kHz)
MP3 DecodeCompliant with MPEG-1/2 Audio Layer-3
Channel Separation92dB
WMA DecodeCompliant with Windows Media Audio
AAC DecodeAAC-LC ".aac",".m4a" files
AUXInput
Frequency Response20Hz to 20kHz ±3dB
Input Maximum Voltage1,000mV
Input Impedance30kΩ
AMP
Maximum Power50Wx4
Full Bandwidth Power(at less than 1%THD)22Wx4
TONE
Band162.5Hz ±9dB
Band2100Hz ±9dB
Band4250Hz ±9dB
Band3160Hz ±9dB
Band5400Hz ±9dB
Band92.5kHz ±9dB
Band81.6kHz ±9dB
Band6630Hz ±9dB
Band71kHz ±9dB
Bluetooth
Frequency Range2.402 to 2.480GHz
RF Output Power (E.I.R.P.)+4dBm (MAX), Power Class 2
Maximum Communication rangeLine of sight approx.10m(32.8ft)
ProfileHFP 1.7.1 (Hands Free Profile)
ProfileSPP (Serial Port Profile)
ProfilePBAP (Phonebook Access Profile)
ProfileA2DP (Advanced Audio Distribution Profile)
ProfileAVRCP 1.6.1 (Audio/Video Remote Control Profile)
GENE
Operating voltage12V DC car battery
Installation Size(W)(H)(D)182(mm) 7-3/16(in), 53(mm) 2-1/16(in), 100(mm) 3-15/16(in)
Net Weight0.6(kg) 1.3(lbs) (Trim plate and Mounting sleeve: Included)
USB I/F
WAV DecodeLinear-PCM
FLAC DecodeFLAC file (Up to 96kHz/24bit)
