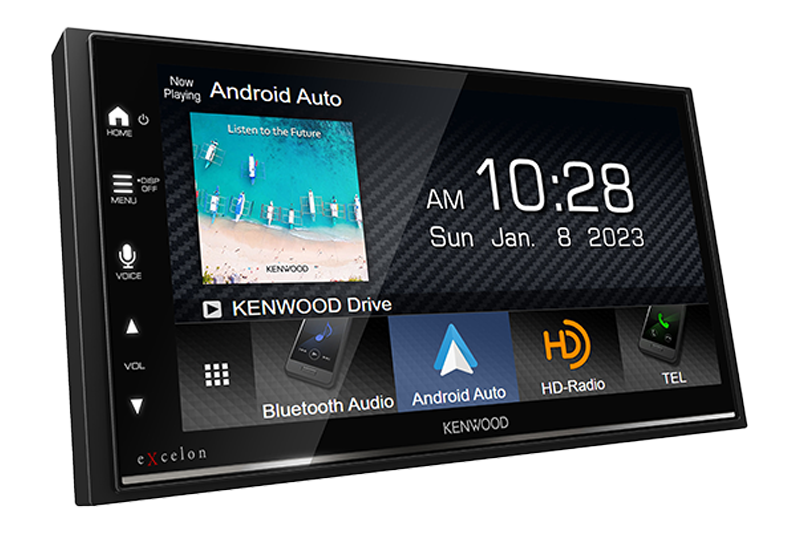

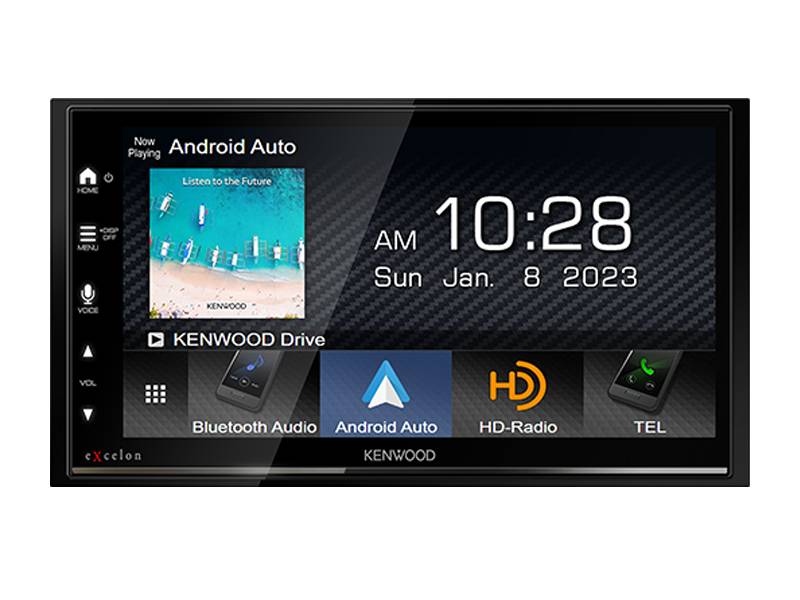

Kenwood Digital Multimedia Receiver with Bluetooth - DMX709S

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping
Price$699.00
Savings$101.00
Our Price $598.00 CAD

Or as low as $104.94/month over 6 months. Apply Now


Availability
In Stock

Literature
  • 6.8" WVGA Monitor with Capacitive Touch Panel
  • Apple CarPlay & Android Auto™ Ready
  • USB Mirroring for Android
  • 13 Band EQ & Digital Time Alignment
  • 3 Camera Inputs
  • Built-in HD Radio Tuner
  • Short Chassis
  • 3 Preouts 5.0V


Capacitive Touch Panel

Clear glass display with swipe functionality that provides superior picture and touch panel control.

Android USB Mirroring

Solution for seamlessly displaying and controlling your smartphone apps on a screen via a USB connection on select Android devices.



3 Camera Inputs

Optional camera connection method for up to 3 cameras in various configurations.

Parking Guide Lines

Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.



Music Mix

Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.



Graphic EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for listeners.

Drive EQ

Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.



Variable Color Illumination

Bright variable color LEDs can be adjusted to match any color dash lighting.

Short Chassis

With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.



Smartphone Connectivity

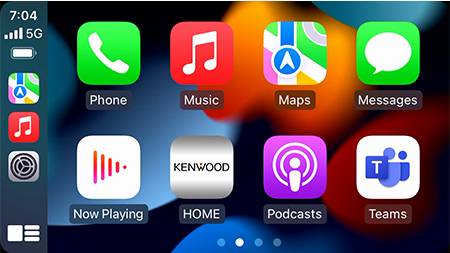

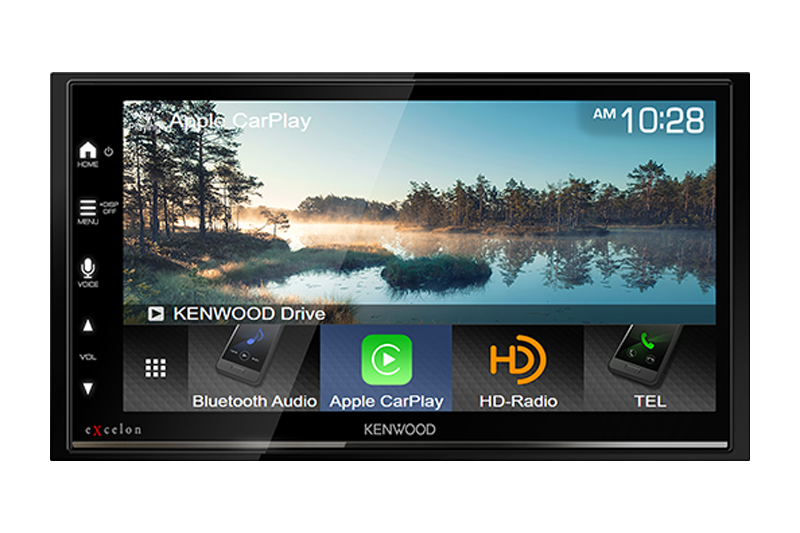

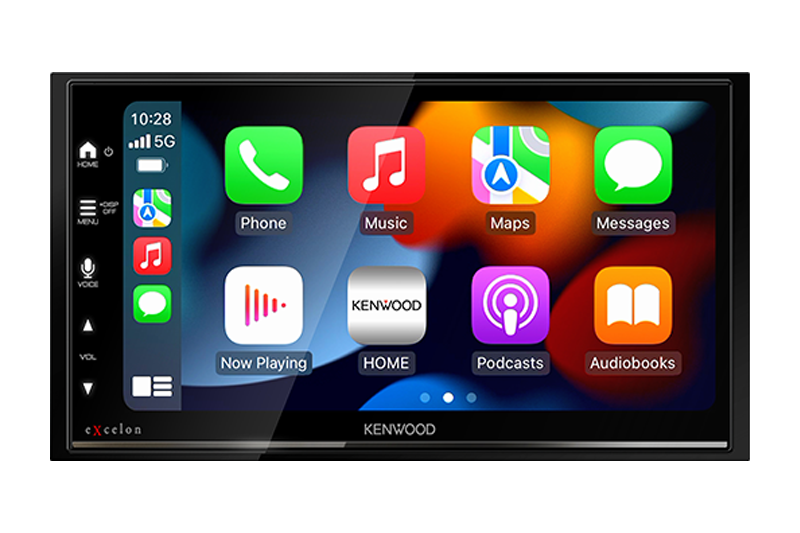

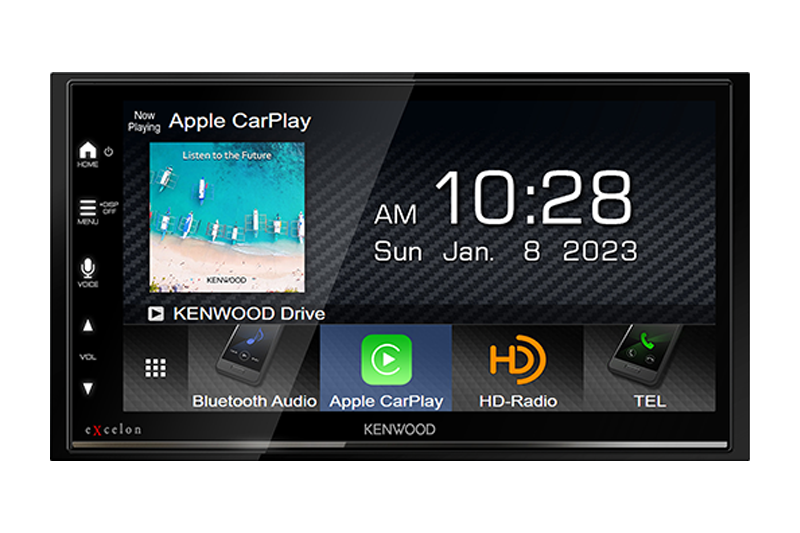

Safe, Smart and Comprehensive Control with Apple CarPlay

Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.

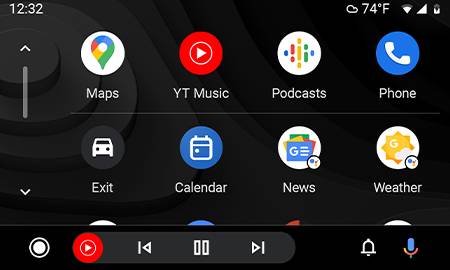

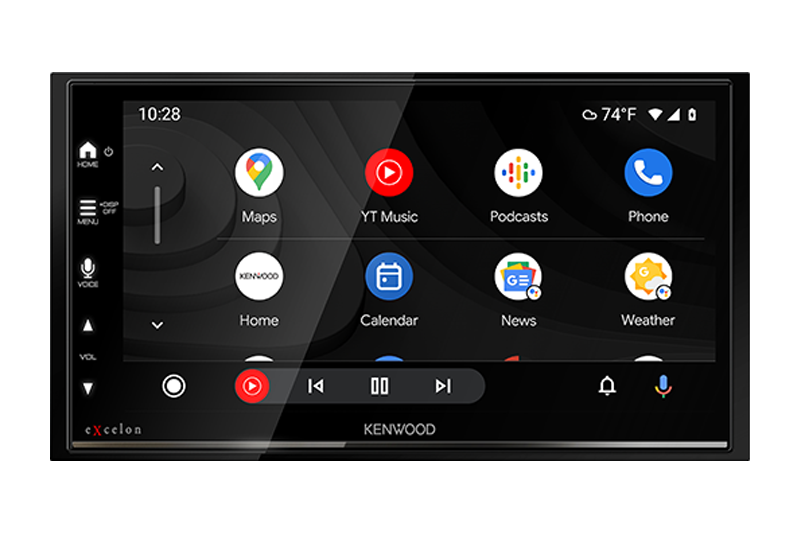

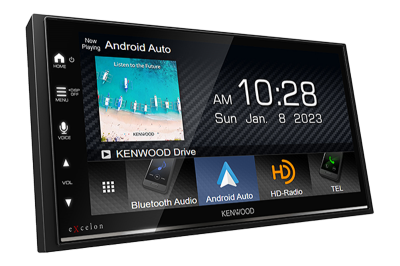

Android Auto for Easy Connectivity

Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze.

- To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 6.0 or higher, and the Android Auto app.

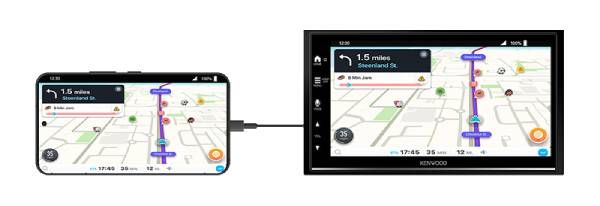

True Mirroring via USB,2-Way Touch Control for Android

Allows you to display and control your Android smartphone on the screen of the receiver.

You can enjoy your favorite apps on a large display and with impressive sound quality. Before starting, just install the free app “Mirroring OA for KENWOOD” on your smartphone and connect it to KENWOOD receiver via a USB cable and Bluetooth.

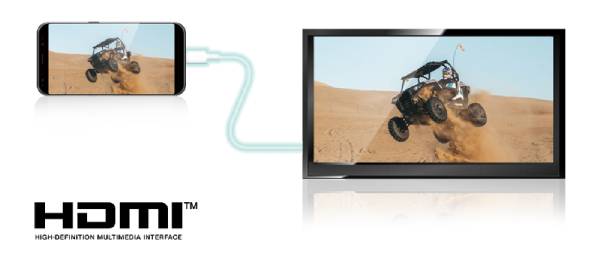

HDMI Input

Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the monitor. KCA-HD200 optional HDMI cable sold separately.



Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.



Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.



Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.



The Best Audio Experience

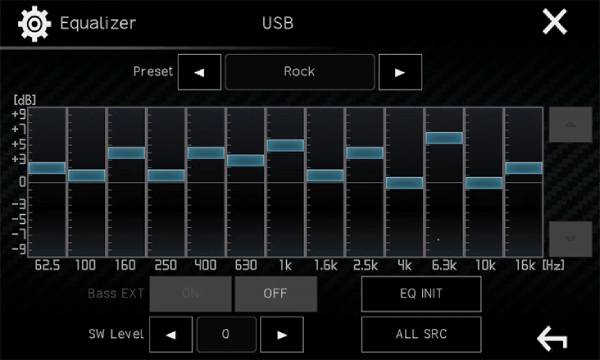

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

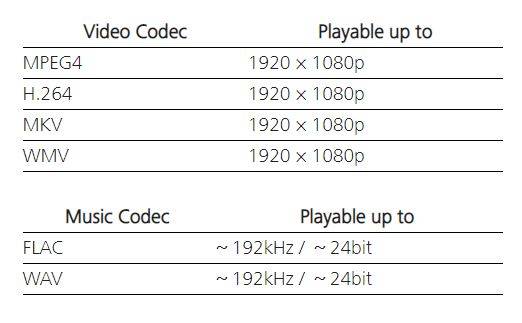

Playable Video & Audio Files

You can play back from USB devices audio and video files compressed in various formats.



Safe Driving



ENHANCED VEHICLE INTEGRATION

Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, these models feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget, Customizable Accessory Controls, and compatibility with specific ESCORT radar detector systems (sold separately).

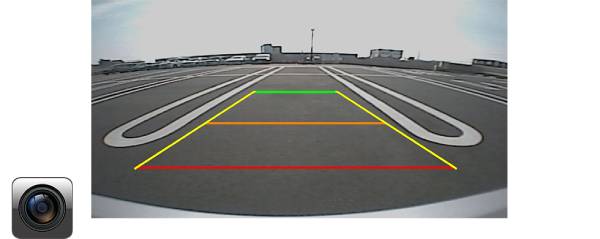

Rear View Camera Input with Parking Guide Lines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.



3 Camera Inputs

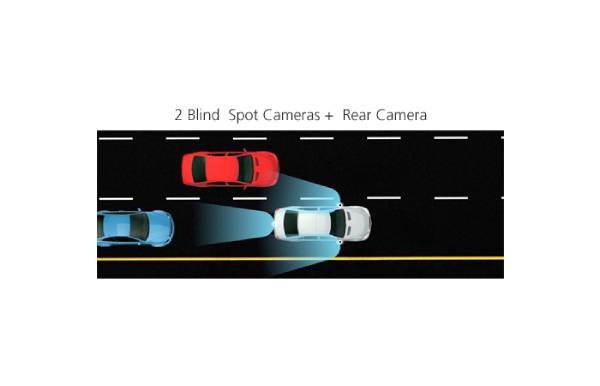

To enable a smarter driving experience, receivers featuring 3 camera inputs allow for the utmost in convenience, flexibility, and safety. With 3 camera inputs, you can connect a front camera, a rear camera and a third camera which can be used for trailers or caravans. Alternatively, 3 camera inputs support several other configurations, including the connection of 2 blind spot cameras and a reverse camera. Camera switching is available using on screen controls and manual switchers. A KENWOOD CA-C3AV Video AV Input cable (sold separately) is required to use the 3rd camera input.



Additional Features



Convenient and Easy-to-Use Capacitive Touch Panel

Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swip



SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.

(Optional SiriusXM tuner required, sold separately)



Built-in HD Radio Tuner

HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.



Short Chassis Design

Only 2-15/16" (75mm) of depth for more flexible installation.

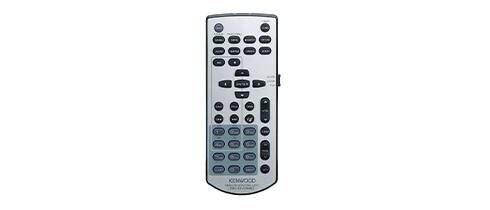

Remote Control (Optional)

This receiver unit can be operated using the optional remote control KCA-RCDV340.


Main Unit
Frequency range530kHz to 1700kHz
Stereo separation40dB(1kHz)
SelectivityOver 80dB (
S/N(dB)68dB(MONO)
Frequency response30Hz to 15kHz
DIN S/N:46dB1.58V/75Ohms
Quieting sensitivity15.2 dBf
S/N:30dB0.63 V / 75 Ohms
Usable sensitivity7.2 dBf
(Frequency step)(200kHz)
Frequency Range87.9MHz to 107.9MHz
S/N70 dB(STEREO)
Frequency Response40Hz to 15kHz
(Frequency step)(10kHz)
Frequency Range530kHz to 1700kHz
S/N75dB(STEREO)
Frequency Response20 Hz to 20 kHz
(Frequency step)(200kHz)
Frequency Range87.9MHz to 107.9MHz
PhaseNormal/Reverse
Gain-8/-7/-6/-5/-4/-3/-2/-1/0[dB]
Slope-6/-12[dB/Oct.]
Subwoofer LPF Frequency30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
PhaseNormal/Reverse
Gain-8/-7/-6/-5/-4/-3/-2/-1/0[dB]
Slope-6/-12[dB/Oct.]
Mid Range LPF Frequency1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k/Through[Hz]
Slope-6/-12[dB/Oct.]
PhaseNormal/Reverse
Mid Range HPF FrequencyThrough/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
Gain-8/-7/-6/-5/-4/-3/-2/-1/0[dB]
Slope-6/-12[dB/Oct.]
Tweeter HPF Frequency1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k[Hz]
PhaseNormal/Reverse
Gain-8/-7/-6/-5/-4/-3/-2/-1/0dB
Slope-6/-12/-18/-24dB/Oct.
LPF Frequency30/40/50/60/70/80/90/100/120/150/180/220/250Hz/Through
Gain-8/-7/-6/-5/-4/-3/-2/-1/0dB
Slope-6/-12/-18/-24[dB/Oct.]
HPF FrequencyThrough/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
Tweeter Gain-8/-7/-6/-5/-4/-3/-2/-1/0[dB]
Gain-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
Band Frequency62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k[Hz]
Equalizer13Band
Input Audio Type32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM
Input Resolution480p (720x480p 59.94Hz/60Hz)
Input ResolutionVGA (640x480p 59.94Hz/60Hz)
Connector TypeType-D
ProfilePBAP (Phonebook Access Profile)
ProfileAVRCP (V1.6.2) (Audio/Video Remote Control Profile)
ProfileA2DP (V1.3.2) (Advanced Audio Distribution Profile)
ProfileSPP (Serial Port Profile)
ProfileHFP (V1.8) (Hands Free Profile)
Multi Profile SupportMulti Profile
Audio CodecSBC / AAC
Maximum Communication rangeLine of sight approx.10m(32.8ft)
Frequency2.402 to 2.480 GHz
TechnologyBluetooth Ver4.2
Dynamic range89dB
Signal to Noise ratio98.5dB
Total harmonic distortion 1kHz0.010%
44.1k Sampling20 to 20,000 Hz
48k Sampling20 to 20,000 Hz
96k Sampling20 to 20,000 Hz
Frequency response 192k Sampling20 to 20,000 Hz
Video DecoderMPEG1/2,MPEG4 / WMV / H.264 / MKV
Audio DecoderMP3 / WMA / AAC / WAV / FLAC
D/A Converter24Bit
Maximum Power Supply CurrentDC5V=1.5A
File SystemFAT 16/32, exFAT
USB StandardUSB2.0 Full Speed / High Speed
Connector TypeType-A
Back lightingLED
Pixel arrangementRGB striped arrangement
Effective pixels99.99%
Number of pixels800H x 480V x RGB
Number of pixels1,152,000
Drive systemTFT active matrix system
Display systemTN LCD panel
W x H151.8 mm x 79.7 mm, 6 x 3-1/7 inch
Monitor Section6.75 inches(diagonal) wide
(Frequency step)(10kHz)
Usable sensitivity29dB(28.2V)
Color system of external video inputNTSC/PAL
External video input level (RCA jacks)1Vp-p/75Ohms
External video input level (Mini jacks)1Vp-p/75Ohms
External audio max input level (RCA jacks)-
External audio max input level (Mini jacks)2V/25kOhms
Video Input level (RCA jacks)1Vp-p/75Ohms
Video Output level (RCA jacks)1Vp-p/75Ohms
Audio Output level (RCA jacks)-
Audio Output level (Mini jacks)-
Analog RGB input-
Maximum Power Output (Front&Rear)50Wx4
Typical Power Output (Front&Rear)Full Bandwidth Power
Typical Power Output (Front&Rear)(at less than 1%THD)
Typical Power Output (Front&Rear)22Wx4
Output frequency band20 to 88,000Hz
Preout level (V)5V / 10kOhms
Preout impedance ()=< 600 Ohms
Speaker Impedance ()4 to 8 Ohms
General
General12V DC Car Battery
Installation Dimensions WxHxD180mm x 100mm x 75mm
(Main Unit Installation size)7-1/16. x 3-15/16 x 2-15/16 inch
(with Sleeve)182mm x 111mm x 74mm
(with Sleeve)7-3/16 x 4-3/8 x 2-15/16 inch
Weight Main unit1.2kg
Weight Main unit2.7lb
Weight Main unit(Trim plate and Mounting sleeve: Included)
