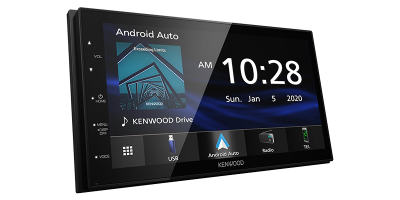

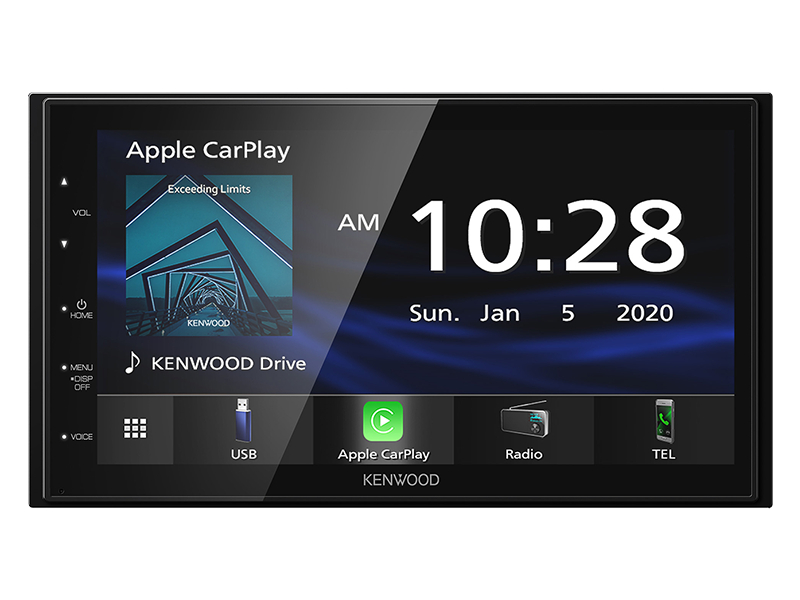

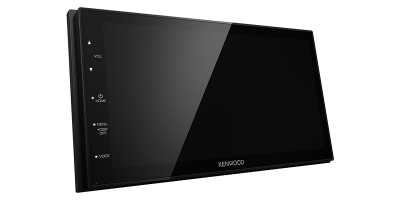

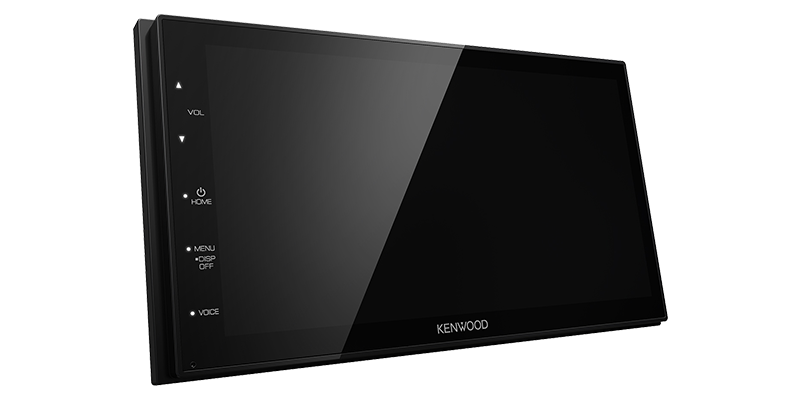

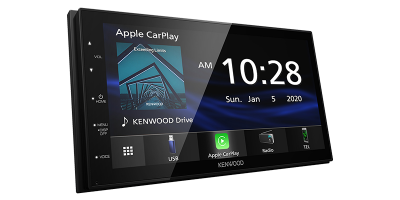

Kenwood Digital Multimedia Receiver With Built In Bluetooth - DMX4707S
Our Price | $499.00 CAD |
Or as low as $87.57/month over 6 months. Apply Now
Kenwood Digital Multimedia Receiver With Built In Bluetooth - DMX4707S
DMX4707S
- 6.8" WVGA Monitor with Capacitive Touch Panel

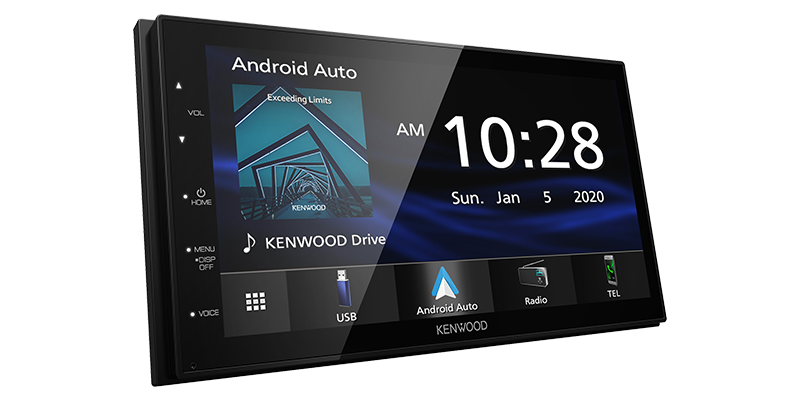

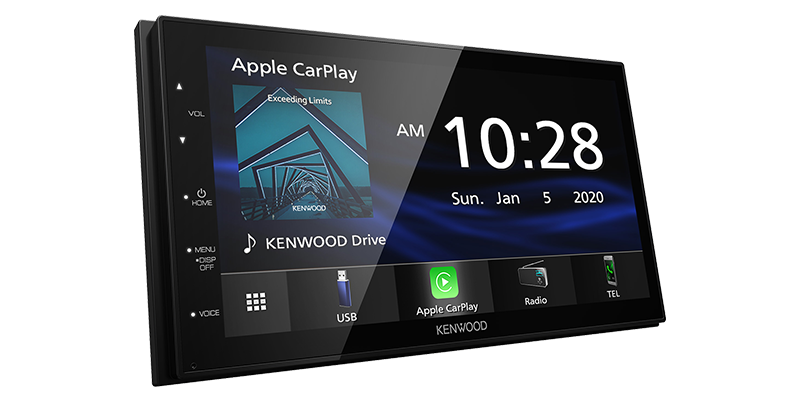

- Apple CarPlay™ & Android Auto™
- USB Mirroring for Android
- 13 Band EQ with Digital Time Alignment
- Rear View Camera Input with Parking Guidelines
- Built-in Bluetooth
- Short Chassis
- 2 Preouts 2V + Subwoofer Out
Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora,built-in Bluetooth for hands-free calls and streaming music,as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Safe Driving
Keeping you safe on the road ahead is our top priority.
Additional Features
Learn about exciting product features and highlights.

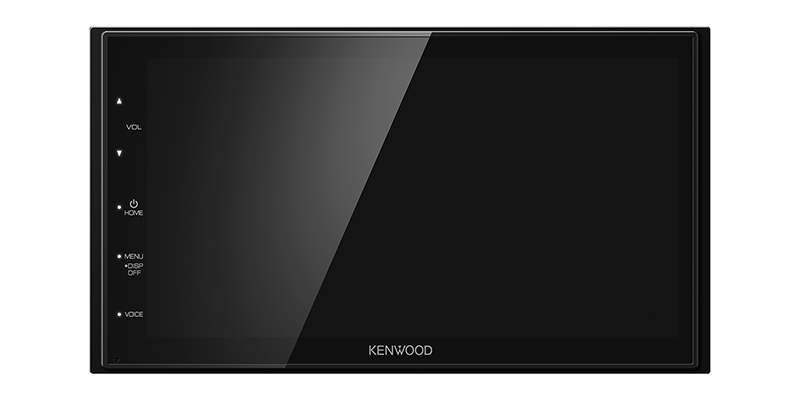

Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display, and vivid text. Easy to use widgets provide access to information screens with a swipe.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.

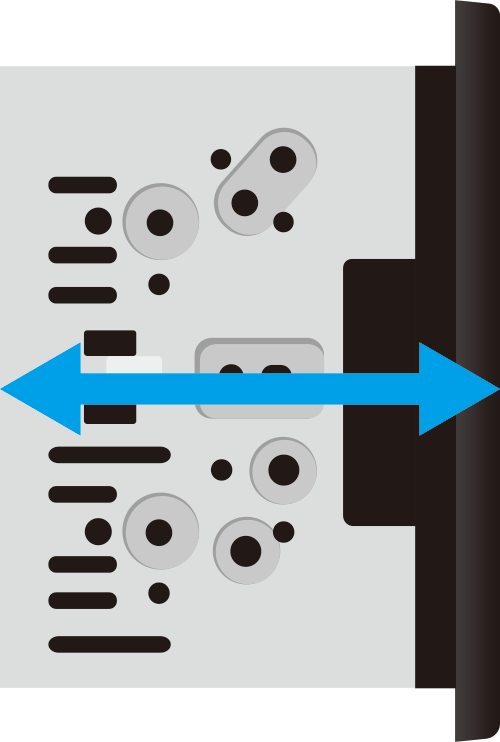

Short Chassis Design
Only 2-15/16" (75mm) of depth for more flexible installation.

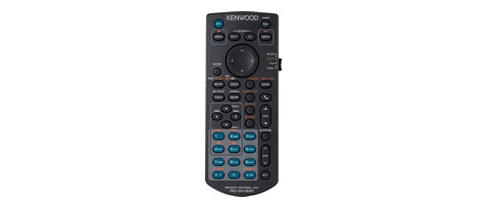

Remote Control (Optional)
This receiver unit can be operated using the optional remote control KNA-RCDV331.
Monitor Section | |
---|---|
Picture size | 6.75inches(diagonal) wide |
W x H | 151.8 x 79.7mm, 5-15/16 x 3-1/8 inch |
Display system | Transparent TN LCD panel |
Drive system | TFT active matrix system |
Number of pixels | 1,152,000 |
Number of pixels | 800H x 480V x RGB |
Effective pixels | 99.99% |
Pixel arrangement | RGB striped arrangement |
Back lighting | LED |
USB I/F Section | |
USB Standard | USB2.0 High Speed |
File System | FAT 16/32 , exFAT |
Maximum Power Supply Current | DC5V=1.5A |
D/A Converter | 24Bit |
Audio Decoder | MP3 / WMA / AAC / WAV / FLAC |
Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / .mkv |
Frequency response 192k Sampling | 20 - 20,000 Hz |
96k Sampling | 20 - 20,000 Hz |
48k Sampling | 20 - 20,000 Hz |
44.1k Sampling | 20 - 20,000 Hz |
Total harmonic distortion 1kHz | 0.2 |
Signal to Noise ratio | 75dB |
Dynamic range | 75dB |
Bluetooth Section | |
Technology | Bluetooth Ver4.1 |
Frequency | 2.402 2.480 GHz |
RF Output Power (E.I.R.P.) | 8dBm (Avg.), Power Class 1 |
Maximum Communication range | Line of sight approx.10m(32.8ft) |
Audio Codec | SBC / AAC |
Multi Profile Support | Multi Profile |
Profile | HFP (V1.6) (Hands Free Profile) |
Profile | SPP (Serial Port Profile) |
Profile | A2DP (Advanced Audio Distribution Profile) |
Profile | AVRCP (V1.5) (Audio/Video Remote Control Profile) |
Profile | PBAP (Phonebook Access Profile) |
DSP Section | Graphics equalizer |
BAND | 13 Band |
frequency (Hz) (BAND1-13) | 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k |
Gain | -09 to 09 (-9dB to 9dB) |
Gain | 2Way X'Over |
HIGH PASS FILTER frequency (Hz) | Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 |
SLOPE | -6/ -12/ -18/ -24 dB/Oct. |
Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB |
LOW PASS FILTER frequency (Hz) | 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through |
SLOPE | -6/ -12/ -18/ -24 dB/Oct. |
Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB |
Gain | Position |
Front / Rear /Subwoofer Delay | 0 to 6.1m (0.01m Step) |
Gain | -8 to 0dB |
Subwoofer Level | -40 to 6dB |
FM | |
Frequency Range | 87.9 - 107.9 MHz |
(Frequency step) | (200kHz) |
Usable sensitivity | 16.2dBf |
S/N:30dB | 1.8V/75 Ohms |
Quieting sensitivity | - |
DIN S/N 46dB | - |
Frequency response | 30Hz - 14kHz |
Frequency response | (±3.0dB) |
S/N (dB) | 50dB (MONO) |
Selectivity | - |
Stereo separation | 35dB (1kHz) |
AM | |
Frequency Range | 530 - 1700 kHz |
(Frequency step) | (10kHz) |
Usable sensitivity | 99V(40dB) |
Video | |
Color system of external video input | NTSC/ PAL |
External video input level (Mini jacks) | 1.0Vp-p / 75 Ohms |
External audio max input level (RCA jacks) | 1.5V / 25k Ohms |
Video Output level (RCA jacks) | 1.0Vp-p / 75 Ohms |
Audio | |
Maximum Power Output (Front&Rear) | 45Wx4 |
Full Bandwidth Power | 21Wx4 |
Full Bandwidth Power | (at less than 1%THD) |
Output frequency band | 20 - 20,000Hz |
Preout level (V) | 2.0V / 10k Ohms |
Preout impedance () | 1.4k Ohms |
Speaker Impedance () | 4-8 Ohms |
General | |
Operating voltage | 12V DC Car Battery |
Installation Dimensions WxHxD | 182 x 112 x 75 (mm) |
Main Unit Installation size W x H x D(w/o sleeve) | 178 x 100 x 75 (mm) |
Weight Main unit | 1.1 kg / 2.4 lbs |
(Including Sleeve and Trim plate) | 1.3 kg / 2.8 lbs |
