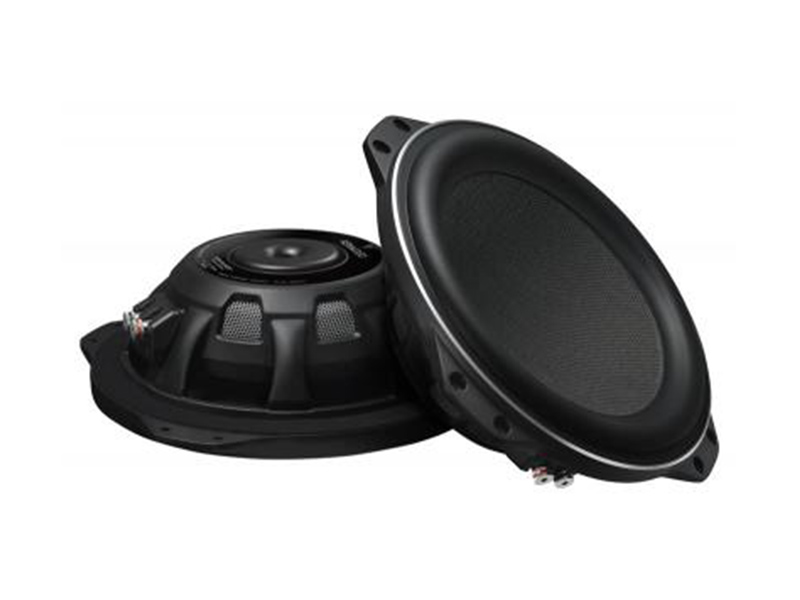

Kenwood 10 Inch eXcelon Reference Series 1200W Oversized Diaphragm Slim Subwoofer - XR-W10F

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $399.00 CAD

Or as low as $70.02/month over 6 months. Apply Now

Out of stock online. Call for availability

General Features
Subwoofer Type: 10" Carbon-Glass Fiber Cone
Nominal Impedance: 4 ?
Peak Power: 1,200 W
Rated Input Power: 350 W
Sensitivity: 83.5 dB/W at 1m
Free Air Resonance: 36 Hz
Frequency Response: 41Hz - 200Hz
Gross Weight: 12.4 lbs
Recommended Enclosure: (See Installation Manual)
-  Sealed: -
-  Ported: -

Nominal Impedance 4 Ω
DC Resistance 3.2 Ω
Voice Coil Inductance (mH) 2.03
Piston Area (Sd) 0.042
Force Factor (Bl) 10.8
Volume Acoustic Compliance (Vas) 32.9 liters (1.162 cu. ft.)
Moving Mass (Mms) 148 g
Resonance Frequency (Fs) 36 Hz
Mechanical Q Factor (Qms) 5.747
Electrical Q Factor (Qes) 0.907
Total Q Factor (Qts) 0.783
Maximum Peak Power 1,200 W
Peak Excursion (Xmax) 7.5 mm
Displacement 803 cc (0.028 cu. ft.)
Mounting Depth 3-1/8 in (80mm)
Weight of Magnet 1,080 g
Voice Coil Diameter 50 mm
