Kenwood Marine,Motorsports Digital Media Receiver with Bluetooth - KMR-M328BT

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping
Our Price $199.00 CAD

Or as low as $34.92/month over 6 months. Apply Now


Availability
Out of stock online. Call for availability

Literature
  • 255 Segment 1.5 Line Text Display
  • Amazon Alexa Ready
  • Spotify Ready
  • Bluetooth Direct Access Button
  • Variable Color Illumination
  • Conformal Coating
  • 3 Preouts 4.0V

Smartphone Connectivity

Enjoy convenient control of popular apps like Spotify and Pandora,built-in Bluetooth for hands-free calls and streaming music,as well as the ability to use your smartphone like a wireless remote control.

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files.

Simple sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

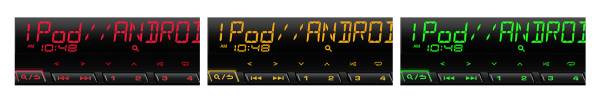

Match Your Mood with Variable Color Illumination

Bright variable color LED's can be adjusted to match any color dash lighting.

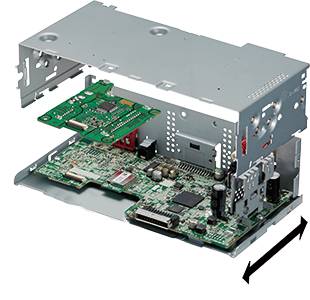

Short Chassis Design

With audio receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.

Conformal Coating

Improved moisture resistance of the circuit boards to prevent corrosion.

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.

(Optional SiriusXM tuner required, sold separately)

Spanish and French Text Display

On-screen display menu now available in Spanish and French.

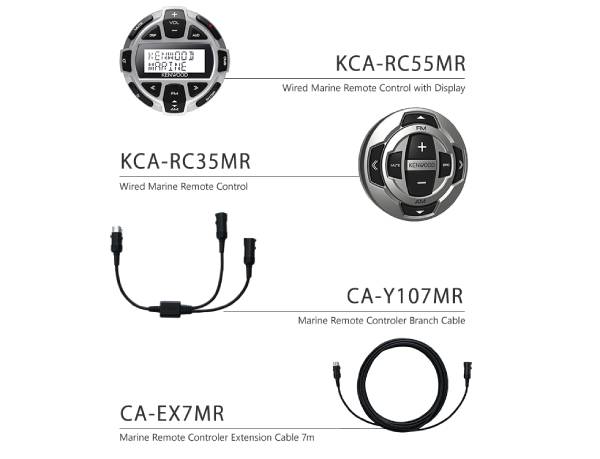

Wired Remote Control (Optional)

Remote control and extensional remote cable are optionally available.

FM
Frequency Range(Frequency step)87.9MHz to 107.9MHz(200kHz)
Usable SensitivityS/N30dB8.2dBf(0.71μV/75Ω)
Quieting SensitivityDIN S/N 46dB17.2dBf(2.0μV/75Ω)
Frequency Response (±3.0dB)30Hz to 15kHz
S/N64.0dB(MONO)
Stereo Separation40dB(1kHz)
AM
Frequency Range(Frequency step)530kHz to 1700kHz(10kHz)
Usable SensitivityS/N:20dB29dBμ (28.2μ)
Preout Level(mV)/Load-Unbalanced4000mV/10kΩ
Preout Impedance(Ω)≦600Ω
Speaker Impedance(Ω)4 to 8Ω
USB I/F
USBUSB 1.1 / 2.0 High Speed
File SystemFAT12 / 16 / 32
Maximum Supply currentDC5V(DC logo) 1.5A
Frequency Response20Hz to 20kHz(±1dB)
S/N Ratio (dB)98dB(1kHz)
Dynamic Range93dB
Channel Separation92dB
MP3 DecodeCompliant with MPEG-1/2 Audio Layer-3
WMA DecodeCompliant with Windows Media Audio
AAC DecodeAAC-LC ".aac", ".m4a" files
WAV DecodeLinear-PCM
FLAC DecodeFLAC file (Up to 96kHz/24bit)
AUX
Frequency Response20Hz to 20kHz ±3dB
Input
Input Maximum Voltage1000mV
Input Impedance30kΩ
AMP
Maximum Power50Wx4
Full Bandwidth Power (at less than 1%THD)22Wx4
TONE
Band162.5Hz ±9dB
Band2100Hz ±9dB
Band3160Hz ±9dB
Band4250Hz ±9dB
Band5400Hz ±9dB
Band6630Hz ±9dB
Band71kHz ±9dB
Band81.6kHz ±9dB
Band92.5kHz ±9dB
Band104kHz ±9dB
Band116.3kHz ±9dB
Band1210kHz ±9dB
Band1316kHz ±9dB
Bluetooth
VersionBluetooth 4.2
Frequency Range2.402 to 2.480GHz
RF Output Power (E.I.R.P.)+4dBm (MAX), Power Class 2
Maximum Communication rangeLine of sight approx.10m(32.8ft)
ProfileHFP 1.7.1 (Hands Free Profile)
ProfileSPP(Serial Port Profile)
ProfilePBAP(Phonebook Access Profile)
ProfileA2DP(Advanced Audio Distribution Profile)
ProfileAVRCP 1.6.1 (Audio/Video Remote Control Profile)
GENE
Operating voltage12V DC car battery
Installation Size (W)(H)(D)182(mm) 7-3/16(in)53(mm) 2-1/16(in)100(mm) 3-15/16(in)
Net Weight (Trim plate and Mounting sleeve: Included)0.7(kg) 1.5(lbs)
