High Definition View
Displaying the image in true 1280 x 720 (720P) High Definition on compatible with DNX997XR, DDX9907XR, and DMX957XR receivers.

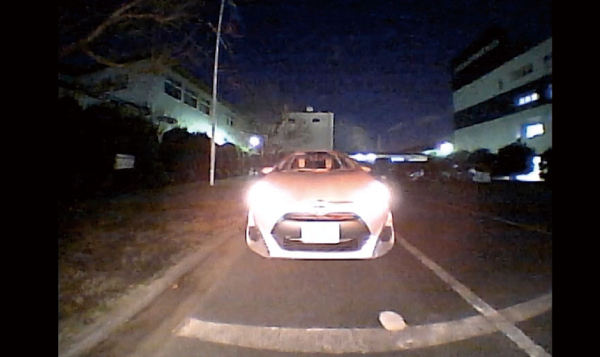

HDR (High Dynamic Range)
— Reducing “Blown out Highlights” and “Crushed Blacks” —
HDR helps to reduce “blown out highlights” and “crushed blacks” and ensure clear images in challenging environments, including backlit scenes in daylight, streetlight scenes at night and places where light-dark contrast is particularly severe.
12V & 24V Compatible
Cameras work with both 12V and 24V applications.
|Photographed Image||HD (1280 x 720)|
|Lens||Wide angle, focal length: 1.86mm F:2.0|
|Angles of View||Horizontal 180°/ Vertical 103°|
|Operating Tempreture||-22℉ to +185℉ / -30℃ to +85℃|
|Weight||0.073lbs / 33.2g (without cable)|
|Dimensions (W x H x D)||1-1/4" x 15/16" x 1" / 31.1mm x23.0mm x25.2mm|
|Camera Unit side||9.84ft / 3m|
|DC Box Unit side||19.69ft / 6m|
|Other||1.64ft / 0.5m|
