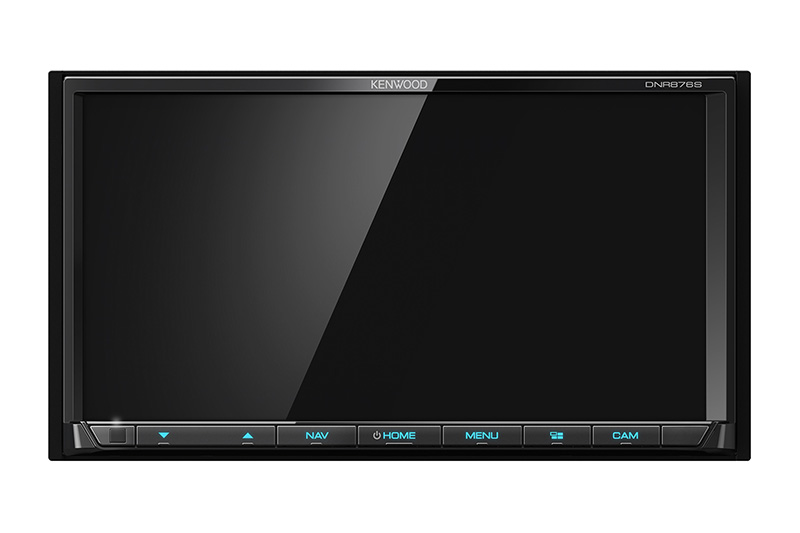

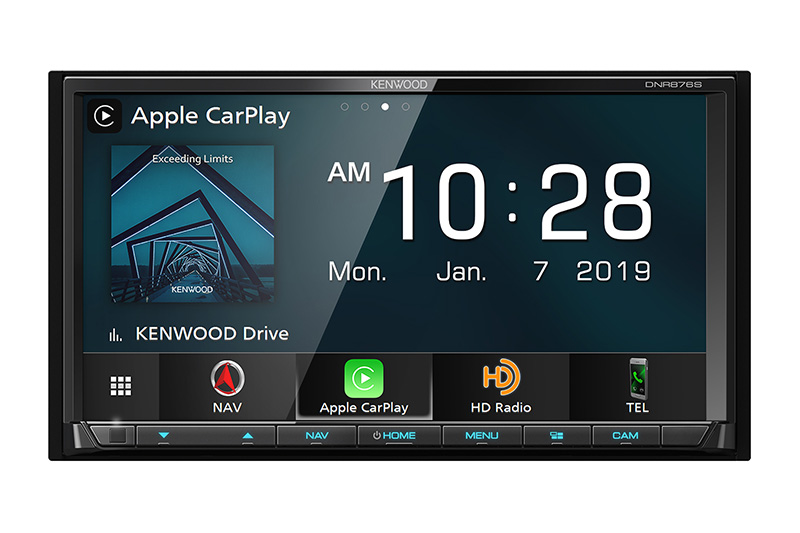

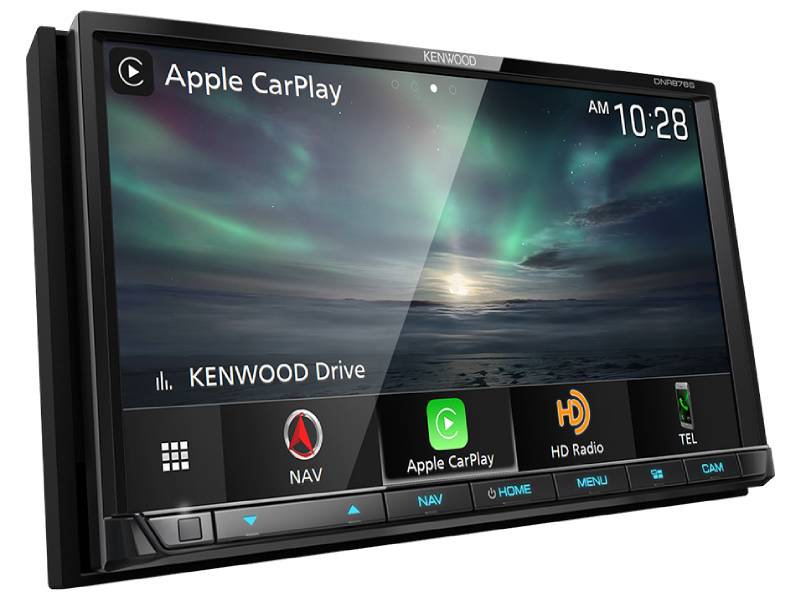

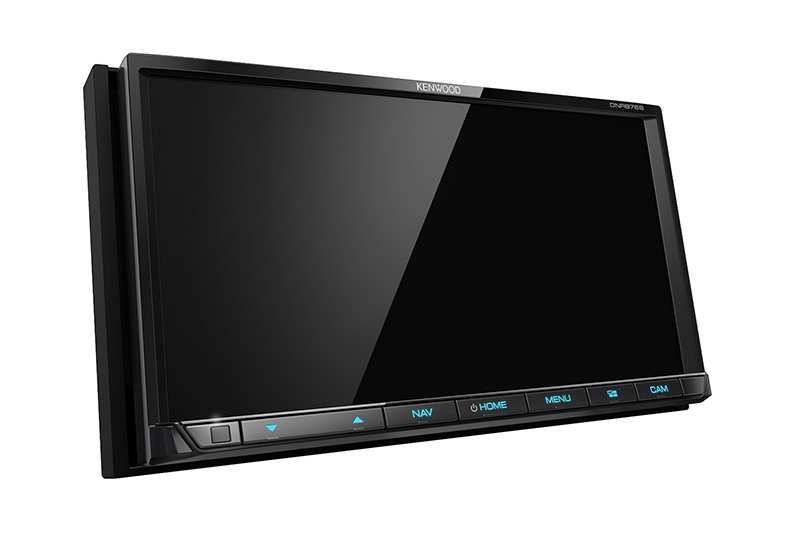

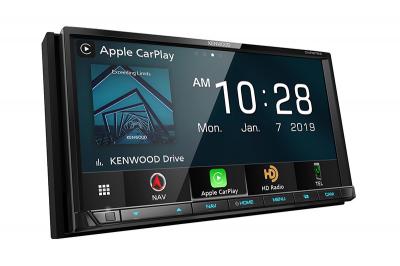

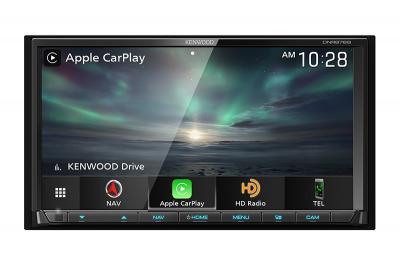

Kenwood Navigation Digital Multimedia Receiver with Bluetooth & HD Radio - DNR876S
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $999.00 CAD
Sale Ends : June 05, 2021

Or as low as $175.31/month over 9 months. Apply Now


Availability
Call for availability

Literature
  • 6.95" WVGA Monitor

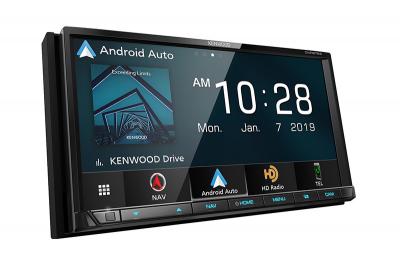

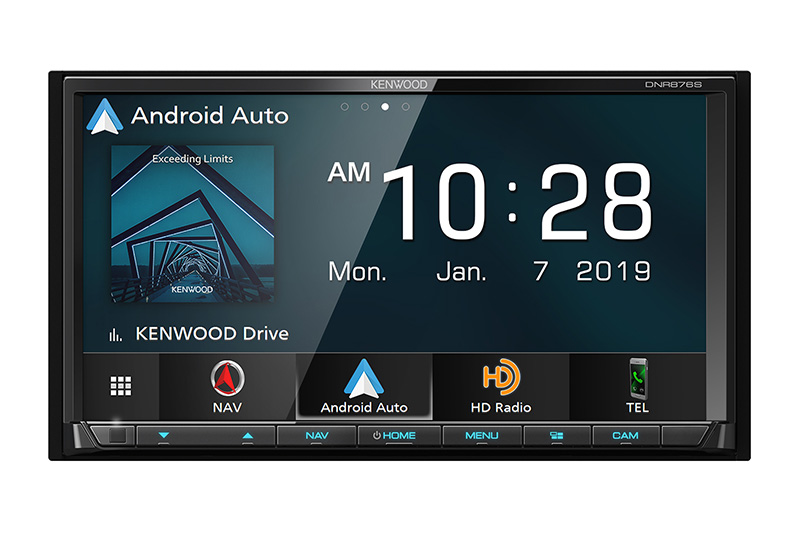

  • Android Auto™ & Android Auto™ Wireless Ready

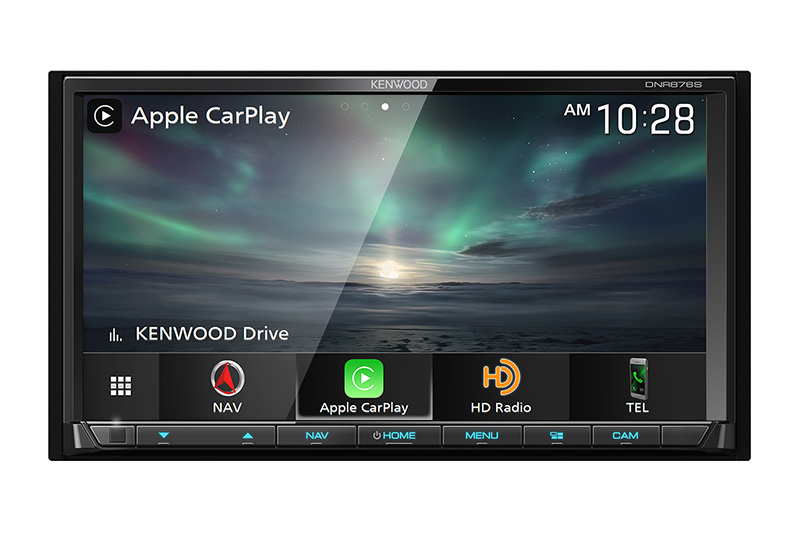

  • Wired and Wireless Apple CarPlay® Ready
  • High-Resolution Audio Ready
  • Customizable Multi Widget Screen
  • Built-in Bluetooth, HD Radio & WiFi
  • Wireless Mirroring for Android
  • 3 Preouts 4V

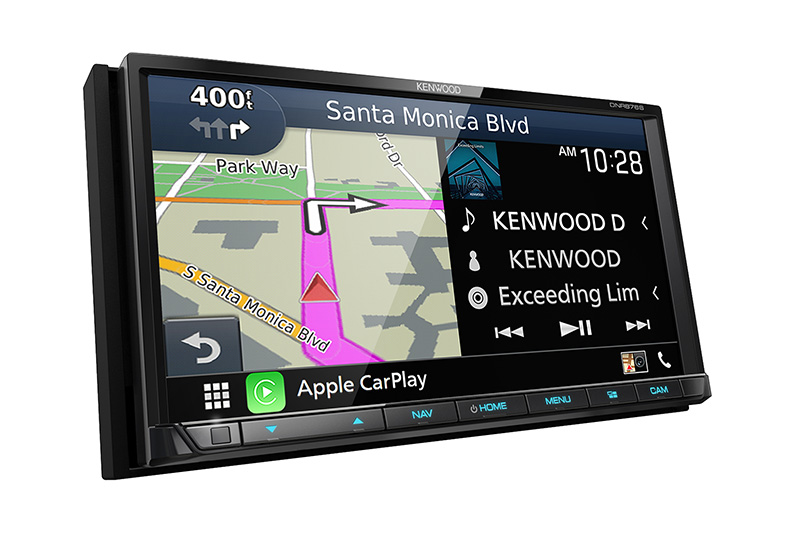

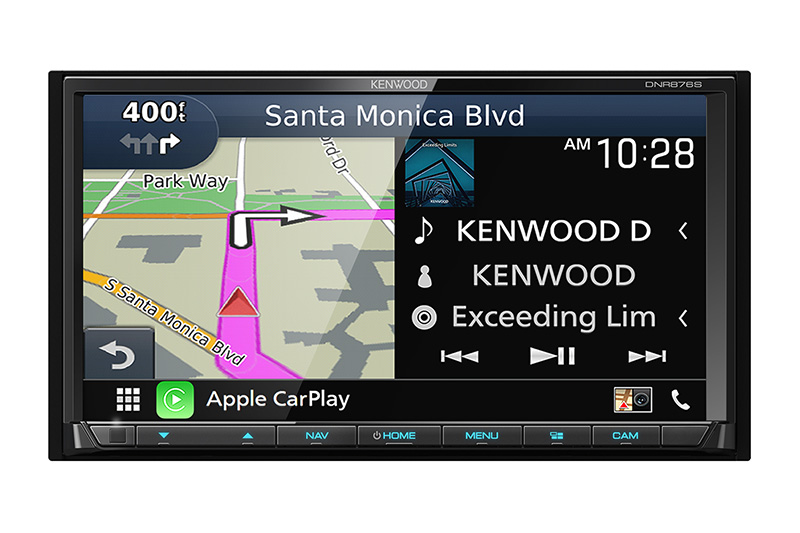

Advanced Navigation

Equipped with the industry leading Garmin navigation software, offering a variety of display options to make your driving easier.

Smartphone Connectivity

Enjoy convenient control of popular apps like Spotify and Pandora, built-in Bluetooth for hands-free calls and streaming music, as well as the ability to use your smartphone like a wireless remote control.

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Safe Driving

Keeping you safe on the road ahead is our top priority.

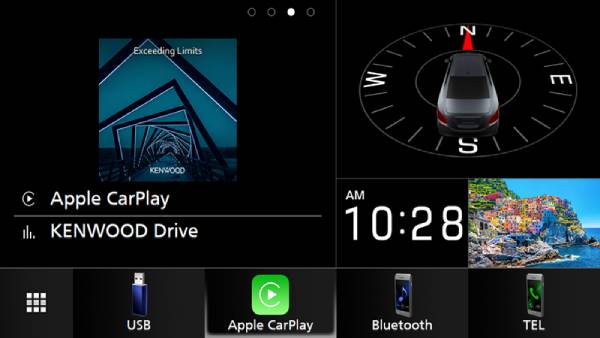

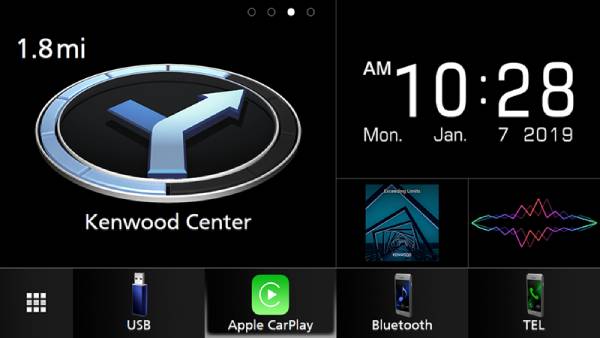

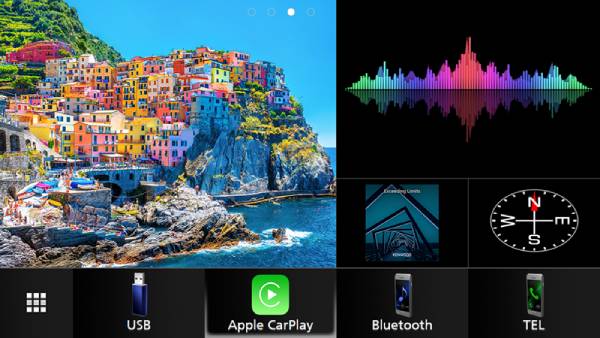

Customizable Multi Widget Screen

You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, weather, turn-by-turn, Garmin navigation and more.

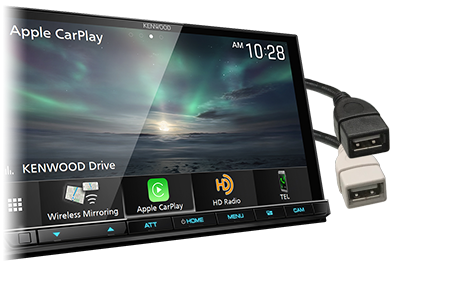

Equipped with Dual USB Ports

Play your music from one USB port and use the other to charge your device, or charge both at the same time.

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately)

Built-in HD Radio Tuner

HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.

USB I/F Section
Frequency response 44.1k Sampling 20 - 20,000 Hz
Frequency response 48k Sampling20 - 22,000 Hz
Frequency response 96k Sampling 20 - 44,000 Hz
Frequency response 192k Sampling20 - 88,000 Hz
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Audio Decoder MP3 / WMA / AAC / WAV / FLAC / Vorbis
D/A Converter 24/32Bit
Maximum Power Supply Current DC5V=1.5A
File System FAT 16/32, exFAT, NTFS
USB Standard USB2.0 High Speed
Monitor Section
Back lighting LED
Pixel arrangement RGB striped arrangement
Effective pixels99.99%
Number of pixels 1,152,000 800H x 480V x RGB
Drive system TFT active matrix system
Picture size 6.95 inches(diagonal) wide
W x H 156.6 mm x 81.6 mm , 6-3/16 x 3-3/16 inch
Display system TN LCD panel
SD Section
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Audio Decoder MP3 / WMA / AAC / WAV / FLAC / Vorbis
Data Transfer RateMaximum 25MB/sec
Capacity Maximum 2T Byte
Compatible File System FAT 16/32, exFAT, NTFS
SD Standard SD / SDHC / SDXC
USB I/F Section
Dynamic range 89dB
Signal to Noise ratio 98.5dB
Total harmonic distortion 1kHz 0.0001%
Wi-Fi
Output Power 5GHz/MIMO11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB / 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB
Output Power 5GHz/SISO11a:9dBm±2dB / 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB / 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
Output Power 2.4GHz/SISO 11b:14dBm±2dB / 11g:13dBm±2dB / 11n(20MHz):12dBm±2dB
Transfer rates (MAX) 11a: 54 Mbps / 11b: 11 Mbps / 11g: 54 Mbps / 11n: 300 Mbps / 11ac: 867 Mbps
Channels Auto(1-11ch) Auto(149,153,157,161ch)
Frequency Range Dual Band ( 2.4GHz / 5GHz )
IEEE Standard 802.11 a/b/g/n/ac
Wireless Mirroring
Touch ControlUIBC
Copyright protection HDCP2.2
ModeSink
Bluetooth Section
Technology Bluetooth Ver5.0
Frequency 2.402 – 2.480 GHz
RF Output Power (E.I.R.P.)+4dBm (MAX), Power Class 2
Maximum Communication rangeLine of sight approx.10m(32.8ft)
Audio CodecSBC / AAC
Multi Profile SupportMulti Profile
ProfileHFP (V1.7) (Hands Free Profile) SPP (Serial Port Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (V1.6) (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile)
DSP Section
Graphics equalizer BAND13Band
Graphics equalizer frequency (Hz) (BAND1-13) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Graphics equalizer Gain9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over HIGH PASS FILTER frequencyThrough/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
2Way X'Over SLOPE -6/-12/-18/-24[dB/Oct.]
2Way X'Over LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
2Way X'Over SLOPE -6/-12/-18/-24[dB/Oct.]
Position Front / Rear /Subwoofer Delay 0 - 20.01ft (0.03or0.04ft Step)
Position Gain -8 to 0dB
Position Subwoofer Level-50 to +10dB
Digital FM
Frequency Range (Frequency step) 87.9MHz - 107.9MHz (200kHz)
Frequency Response (±3.0 dB)20Hz - 20kHz
S/N 80dB (STEREO)
Digital AM
Frequency Range (Frequency step)530kHz - 1700kHz (10kHz)
Frequency Response (±3.0 dB) 40Hz - 15kHz
S/N 80dB (STEREO)
FM
Frequency Range (Frequency step) 87.9MHz - 107.9MHz (200kHz)
Usable sensitivity 9.3dBf
S/N30dB 0.8μV/75Ω
Quieting sensitivity 10.2dBf
DIN S/N 46dB 1.13μV / 75Ohms
Frequency response (±3.0dB) 30Hz - 15kHz
S/N (dB)65dB (MONO)
Selectivity Over 80dB (±400kHz)
Stereo separation 45dB (1kHz)
AM
Frequency Range (Frequency step)530kHz - 1700kHz (10kHz)
Usable sensitivity 28dBμ
Video
Color system of external video input NTSC/PAL
External video input level (Mini jacks) 1 Vp-p / 75 Ohms
External audio max input level (Mini jacks) 2 V / 25 kOhms
Video Input level (RCA jacks) 1 Vp-p / 75 Ohms
Video Output level (RCA jacks) 1 Vp-p / 75 Ohms
Audio Output level (Mini jacks) 0.9 V / 10 kOhms
Audio
Maximum Power Output (Front&Rear)50Wx4
Typical Power Output (Front&Rear)Full Bandwidth Power (at less than 1%THD) 22Wx4
Output frequency band20 - 88,000Hz
Preout level (V) 4V / 10kOhms
Preout impedance (Ω)=< 300 Ohms
Speaker Impedance (Ω) 4-8 Ohms
Navigation Section
Receiver High-sensitivity GNSS receiver
Receiving frequency GPS:1575.42MHz GLONASS:1598.0625~1605.375MHz (C/A code )
Acquisition Times Cold: 26 seconds(typ) All satellites at -130dBm Without aiding
Update Rate 1/second, continuous
AccuracyPosition: < 2.0meters,CEP, at -130dBm
Accuracy Velocity: 0.05meter/sec
Positioning Method GPS/GLONASS
Antenna External GNSS Antenna
General
Operating voltage 12V DC Car Battery
Maximum Current consumption 15A
Operational temperature range -10°C to +60°C
Weight Main unit 1.9 kg 4.2 lb
Installation Dimensions WxHxD178mm x 100mm x 160mm 7 x 3-15/16 x 6-5/16 inch
(with Sleeve) 182mm x 112mm x 163mm 7-3/16 x 4-7/16 x 6-7/16 inch
