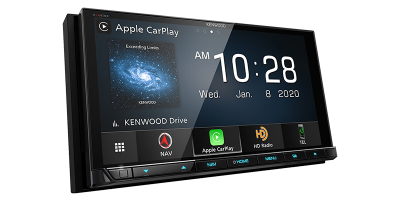

Kenwood Navigation DVD Receiver with Bluetooth And HD Radio - DNX997XR
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Price$1,599.00
Savings$101.00
Our Price $1,498.00 CAD
Sale Ends : December 31, 2020

Or as low as $262.87/month over 9 months. Apply Now


Availability
Call for availability

Literature
  • 6.8" High Definition Monitor with Capacitive Touch Panel

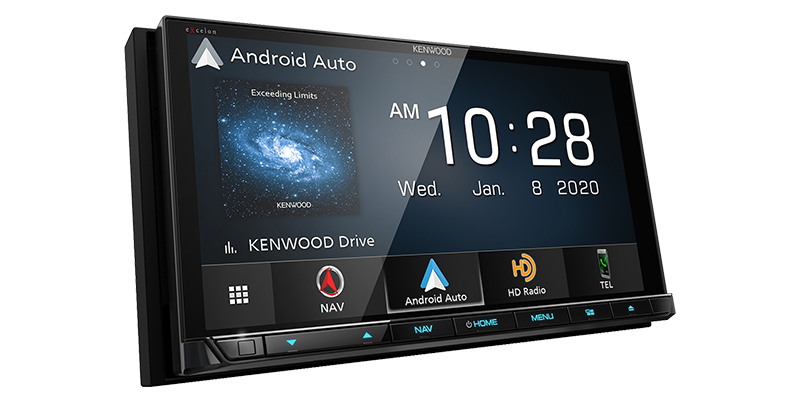

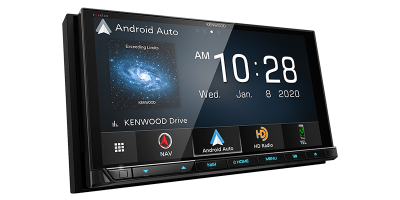

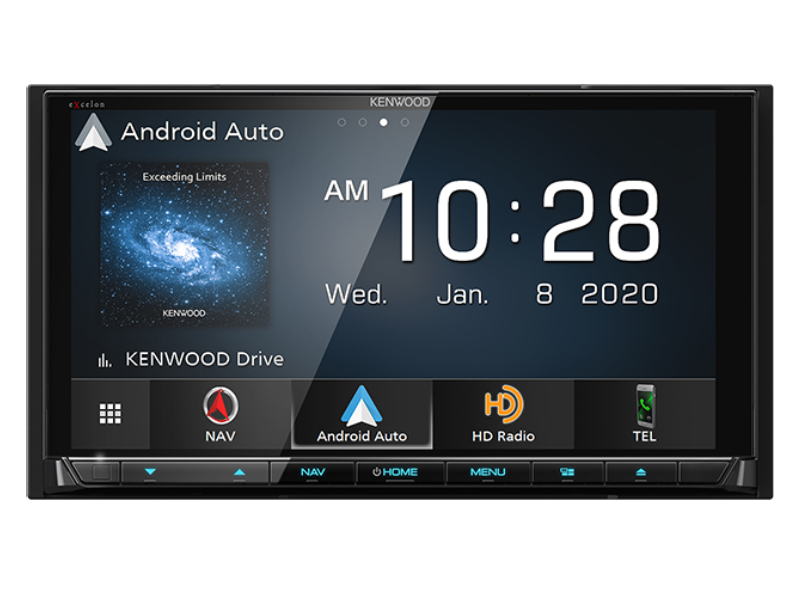

  • Android Auto™ & Android Auto™ Wireless

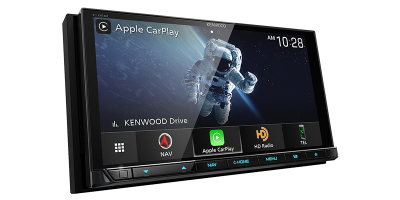

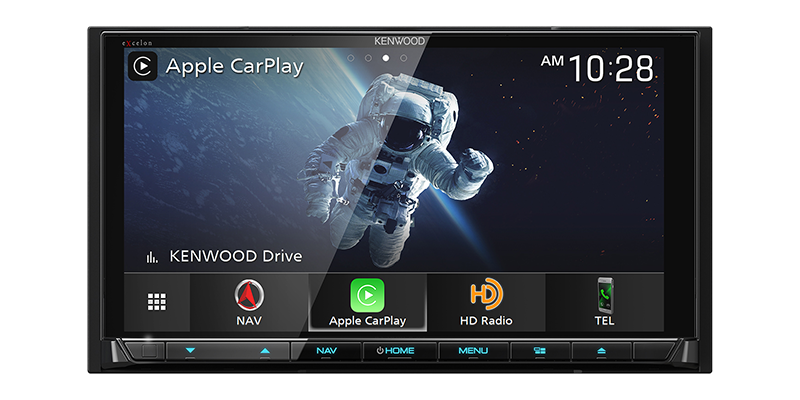

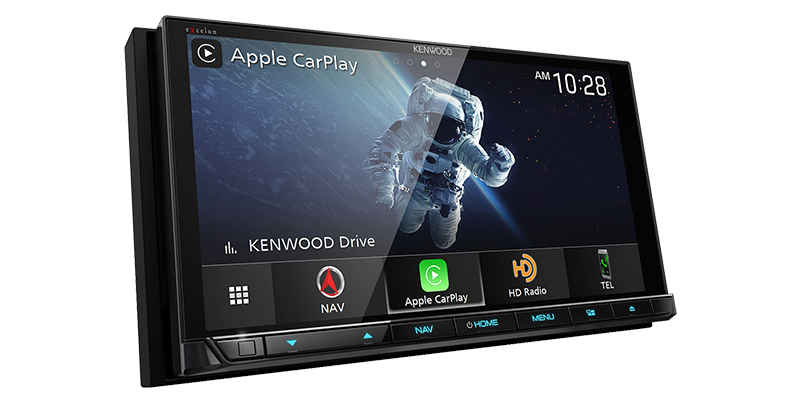

  • Wired and Wireless Apple CarPlay™
  • High-Resolution Audio Wireless
  • Wireless Mirroring for Android
  • USB Mirroring for iPhone and Android

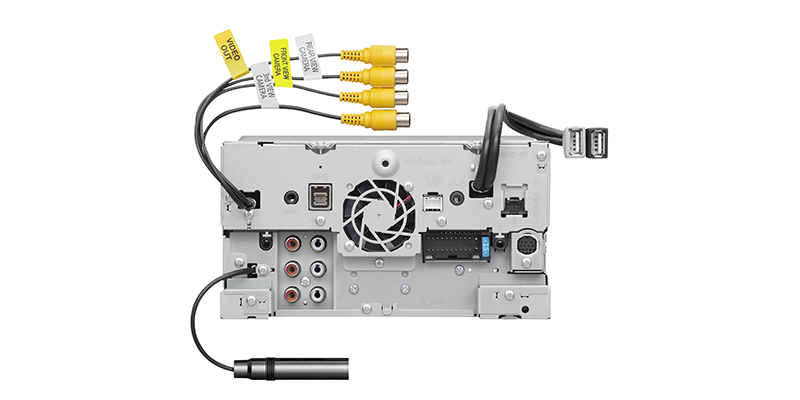

  • 4 Camera Inputs / HD Rear Camera Ready
  • Built-in Bluetooth, HD Radio & WiFi
  • 3 Preouts 5V

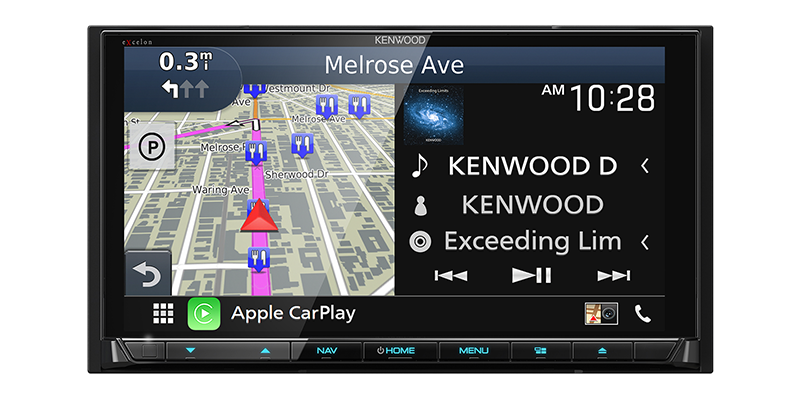

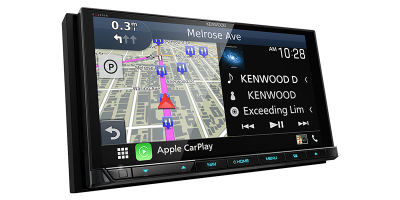

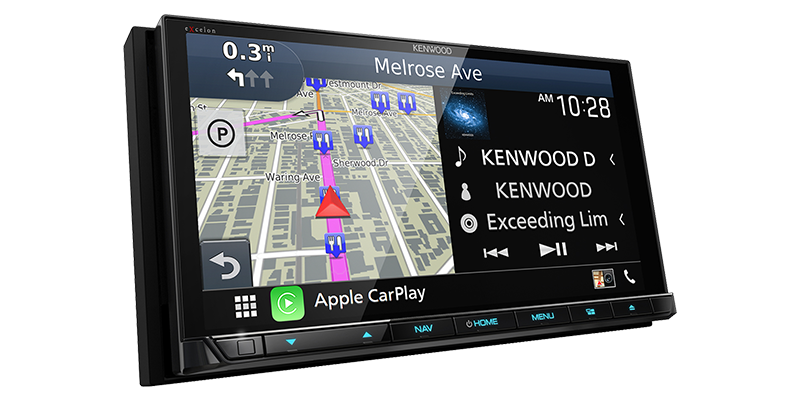

  • Garmin Navigation with 3D Terrain View

Advanced Navigation

Equipped with the industry leading Garmin navigation software, offering a variety of display options to make your driving easier.

Smartphone Connectivity

Enjoy convenient control of popular apps like Spotify and Pandora, built-in Bluetooth for hands-free calls and streaming music, as well as the ability to use your smartphone like a wireless remote control.

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Safe Driving

Keeping you safe on the road ahead is our top priority.

Additional Features

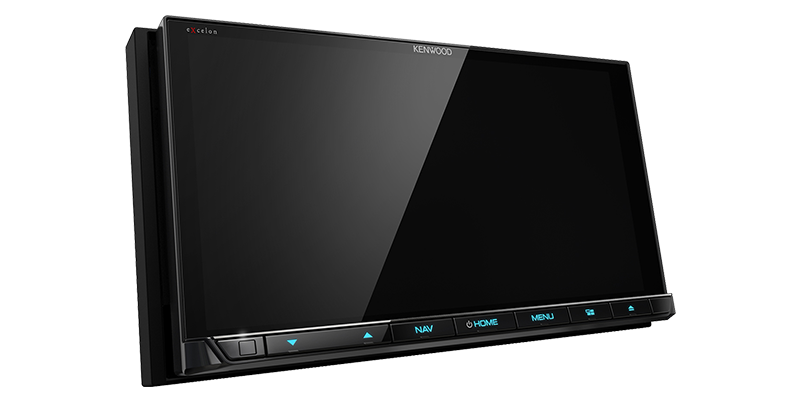

High Definition Display

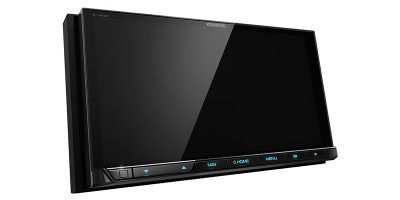

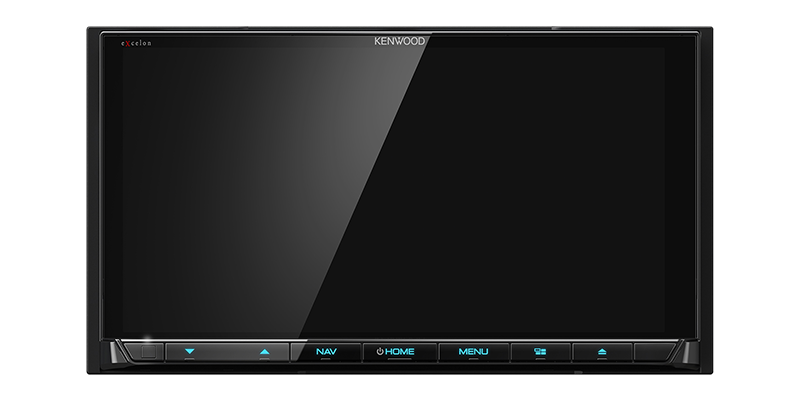

HD display delivers vivid colors with high-contrast and sharpness. Featuring an all-new electrostatic capacitive touch panel and HD LCD panel, with a high luminance white LED backlight.

Convenient and Easy-to-Use Capacitive Touch Panel

Provides a high contrast ratio, crystal clear display, and vivid text. Easy to use widgets provide access to information screens with a swipe.

Customizable Multi Widget Screen

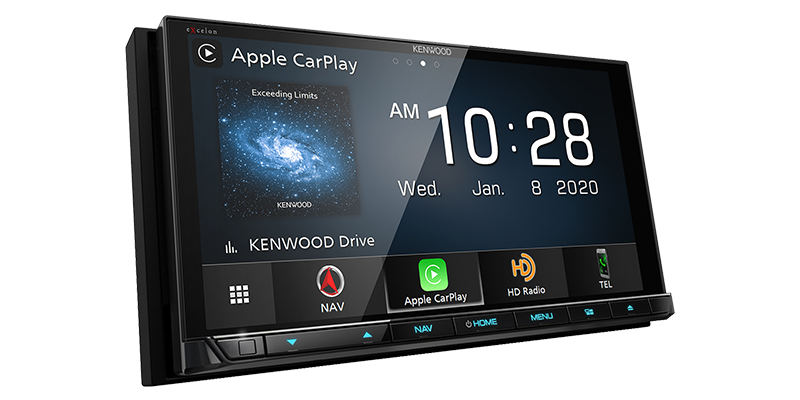

You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, weather, turn-by-turn, Garmin navigation and more.

Equipped with Dual USB Ports

Play your music from one USB port and use the other to charge your device, or charge both at the same time.

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.

(Optional SiriusXM tuner required, sold separately)

Built-in HD Radio Tuner

HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.

Remote Control (Optional)

This receiver unit can be operated using the optional remote control KNA-RCDV331.

Monitor Section
Picture size 6.75 inches(diagonal) wide
W x H 152.1 mm x 79.5 mm, 5-63/64 x 3-1/8 inch
Display system AAS LCD panel
Drive system TFT active matrix system
Number of pixels 2,764,800
Number of pixels1280H x 720V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
DVD Section
D/A Converter 24 / 32Bit
Audio Decoder Linear PCM
Audio Decoder Dolby Audio
Audio DecoderMP3 / WMA / AAC / WAV / FLAC / Vorbis
Video DecoderMPEG1/2,MPEG4 / WMV / H.264 / MKV
Wow & Flutter Below Measurable Limit
Frequency response 96k Sampling20 - 44,000 Hz
48k Sampling 20 - 22,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.010%
Signal to Noise ratio 90.5dB (DVD-Video 96k)
Dynamic range 89dB (DVD-Video 96k)
DISC Format DVD-Video / VIDEO-CD / CD-DA
Quantifying bit number 16 / 20 / 24bit
USB I/F Section
USB Standard USB2.0 High Speed
File System FAT 16/32, exFAT, NTFS
Maximum Power Supply Current DC5V=1.5A
D/A Converter 24/32Bit
Audio DecoderMP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
SD Section
SD Standard SD / SDHC / SDXC
Compatible File System FAT 16/32, exFAT, NTFS
Capacity Maximum 2T Byte
Data Transfer Rate Maximum 25MB/sec
Audio Decoder MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wireless Mirroring Section
Mode Sink
Copyright protection HDCP2.2
Touch Control UIBC
Wi-Fi
IEEE Standard 802.11 a/b/g/n/ac
Frequency Range Dual Band ( 2.4GHz / 5GHz )
ChannelsAuto(1-11ch), Auto(149,153,157,161ch)
Transfer rates (MAX)11a: 54 Mbps / 11b: 11 Mbps /, 11g: 54 Mbps / 11n: 300 Mbps /, 11ac: 867 Mbps
Output Power 2.4GHz/SISO11b:14dBm±2dB / 11g:13dBm±2dB /, 11n(20MHz):12dBm±2dB
Output Power 5GHz/SISO11a:9dBm±2dB /, 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB /, 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
Output Power 5GHz/MIMO11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB /, 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB
Bluetooth Section
Technology Bluetooth Ver5.0
Frequency 2.402 – 2.480 GHz
RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC / AAC / LDAC
Multi Profile Support Multi Profile
ProfileHFP (V1.7) (Hands Free Profile)
ProfileSPP (Serial Port Profile)
ProfileA2DP (Advanced Audio Distribution Profile)
ProfileAVRCP (V1.6) (Audio/Video Remote Control Profile)
Profile-
ProfilePBAP (Phonebook Access Profile)
DSP Section
Graphics equalizer - BAND 13Band
Graphics equalizer - frequency (Hz) (BAND1-13) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Graphics equalizer - Gain-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over - HIGH PASS FILTER frequency Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
2Way X'Over - SLOPE -6/-12/-18/-24[dB/Oct.]
2Way X'Over - LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
2Way X'Over - SLOPE-6/-12/-18/-24[dB/Oct.]
3Way X'Over - HIGH PASS FILTER frequency 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
3Way X'Over - SLOPE -12/-18/-24[dB/Oct.]
3Way X'Over - Band PASS FILTER frequencyThrough/50/60/70/80/90/100/120/150/180/220/250/300[Hz], 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
3Way X'Over - SLOPE -12/-18/-24[dB/Oct.]
3Way X'Over - LOW PASS FILTERfrequency 30/40/50/60/70/80/90/100/120/150/Through[Hz]
3Way X'Over - SLOPE -12/-18/-24[dB/Oct.]
Position Front / Rear /Subwoofer Delay 0 - 20.01ft (0.03or0.04ft Step)
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
Digital FM
Frequency Range 87.9MHz - 107.9MHz
(Frequency step) (200kHz)
Frequency Response20Hz - 20kHz
(±3.0 dB)20Hz - 20kHz
S/N 80dB (STEREO)
Digital AM
Frequency Range 530kHz - 1700kHz
(Frequency step) (10kHz)
Frequency Response 40Hz - 15kHz
(±3.0 dB)40Hz - 15kHz
S/N 80dB (STEREO)
FM
Frequency Range 87.9MHz - 107.9MHz
(Frequency step) (200kHz)
Usable sensitivity 9.3dBf
S/N30dB 0.8μV/75Ω
Quieting sensitivity 10.2dBf
DIN S/N 46dB1.13μV / 75Ohms
Frequency response30Hz - 15kHz
(±3.0 dB)30Hz - 15kHz
S/N (dB) 65dB (MONO)
Selectivity Over 80dB (±400kHz)
Stereo separation 45dB (1kHz)
AM
Frequency Range 530kHz - 1700kHz
(Frequency step) (10kHz)
Usable sensitivity 28dBμ
Video
Color system of external video input NTSC/PAL
External video input level (RCA jacks) -
External video input level (Mini jacks) 1 Vp-p / 75 Ohms
External audio max input level (RCA jacks)-
External audio max input level (Mini jacks) 2 V / 25 kOhms
Video Input level (RCA jacks) 1 Vp-p / 75 Ohms
Video Output level (RCA jacks) 1 Vp-p / 75 Ohms
Audio Output level (RCA jacks) -
Audio Output level (Mini jacks) 0.9 V / 10 kOhms
Analog RGB input -
Audio
Maximum Power Output (Front&Rear) 50Wx4
Typical Power Output (Front&Rear) Full Bandwidth Power
Typical Power Output (Front&Rear)(at less than 1%THD)
Typical Power Output (Front&Rear) 22Wx4
Output frequency band20 - 88,000Hz
Preout level (V) 5V / 10kOhms
Preout impedance (Ω) =< 300 Ohms
Speaker Impedance (Ω) 4-8 Ohms
Navigation Section
Receiver High-sensitivity GNSS receiver
Receiving frequency GPS:1575.42MHz GLONASS:1598.0625~1605.375MHz (C/A code )
Acquisition TimesCold: 26 seconds(typ), All satellites at -130dBm Without aiding
Update Rate 1/second, continuous
Accuracy Position: < 2.0meters,CEP, at -130dBm
Accuracy Velocity: 0.05meter/sec
Positioning Method GPS/GLONASS
Antenna External GNSS Antenna
Installation Dimensions WxHxD178mm x 100mm x 160mm, 7 x 3-15/16 x 6-5/16 inch
(with Sleeve)182mm x 112mm x 163mm, 7-3/16 x 4-7/16 x 6-7/16 inch
Weight Main unit2.5 kg, 5.5 lb, (Excluding trim plate and sleeve)
