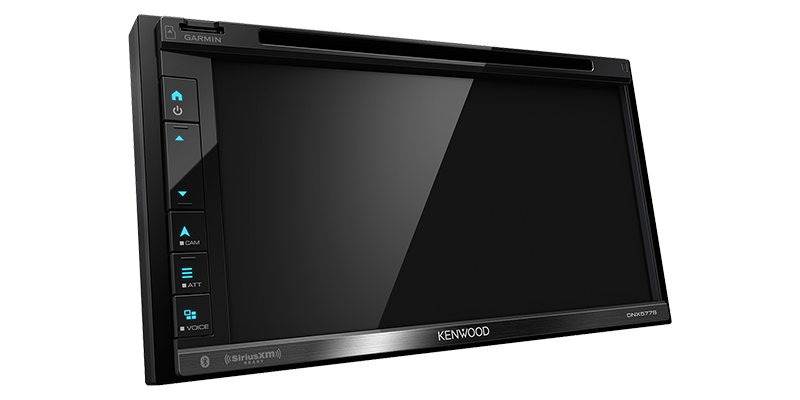

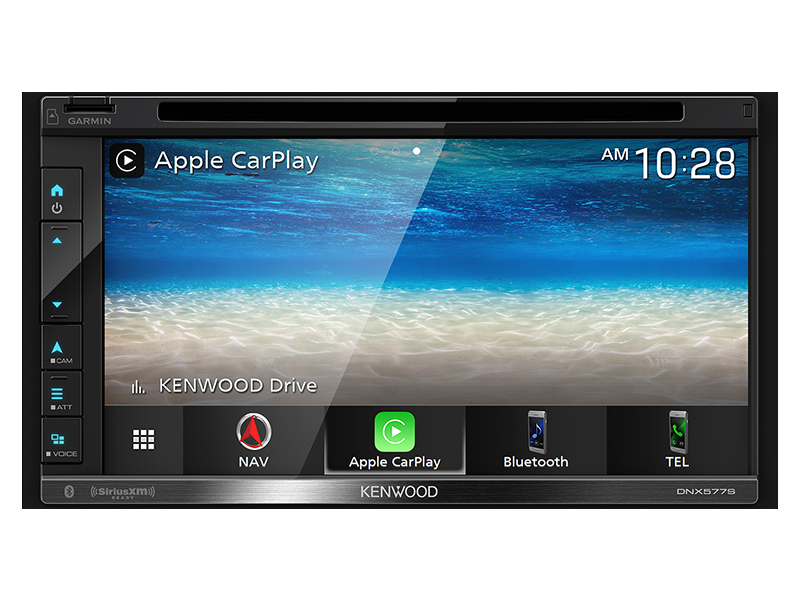

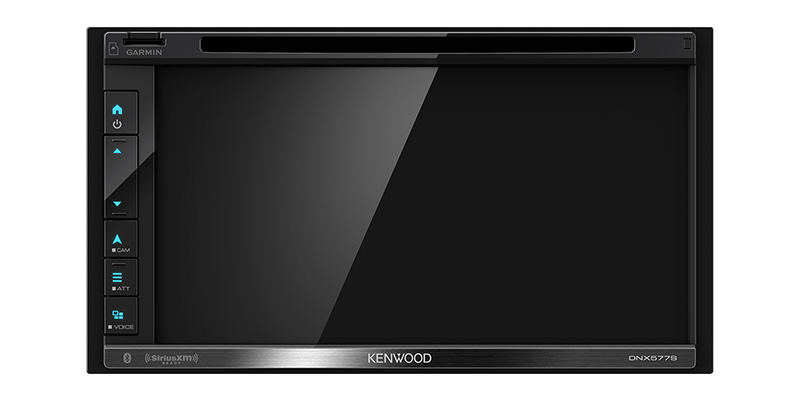

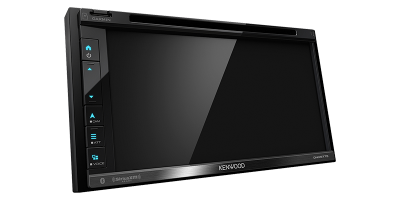

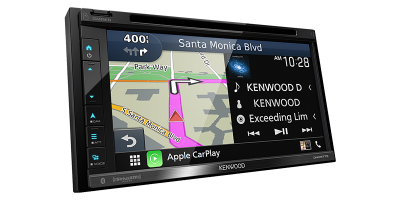

Kenwood Navigation DVD Receiver With Bluetooth And High Resolution Audio - DNX577S

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $1,049.00 CAD

Or as low as $184.08/month over 6 months. Apply Now


Availability
Out of stock online. Call for availability

Literature
  • 6.8" WVGA Monitor

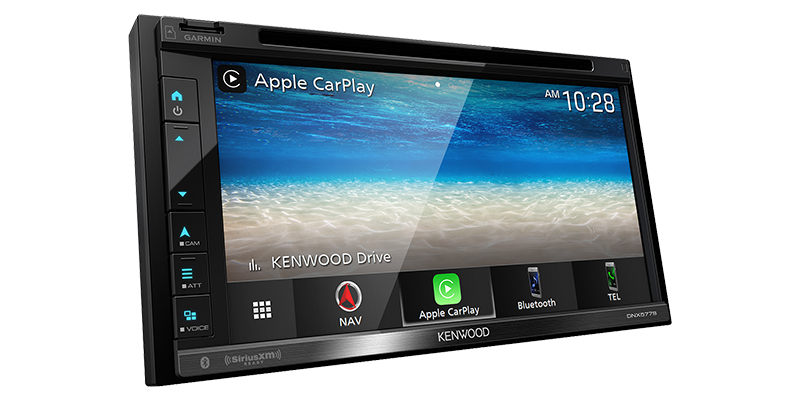

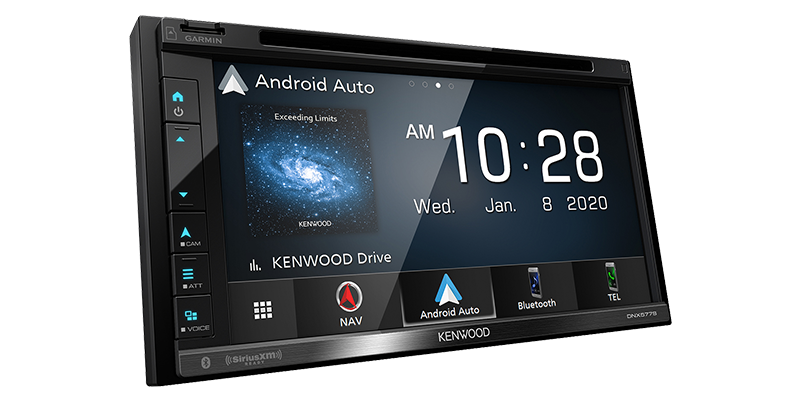

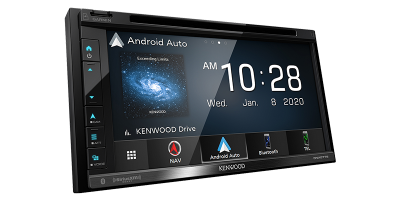

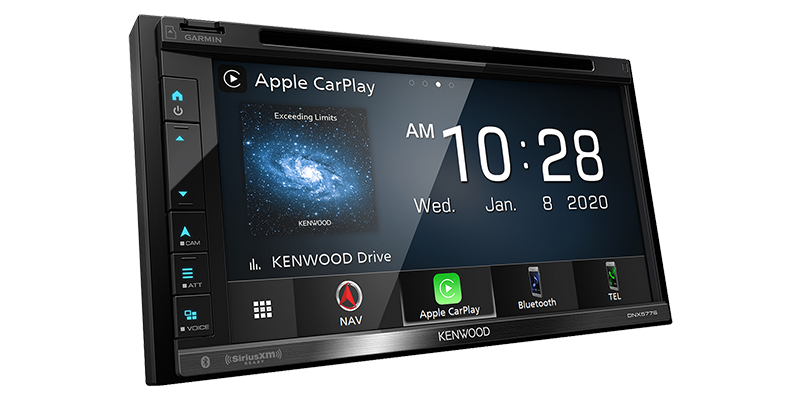

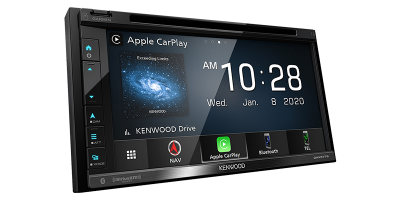

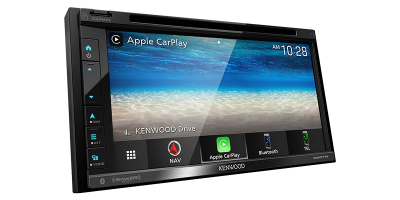

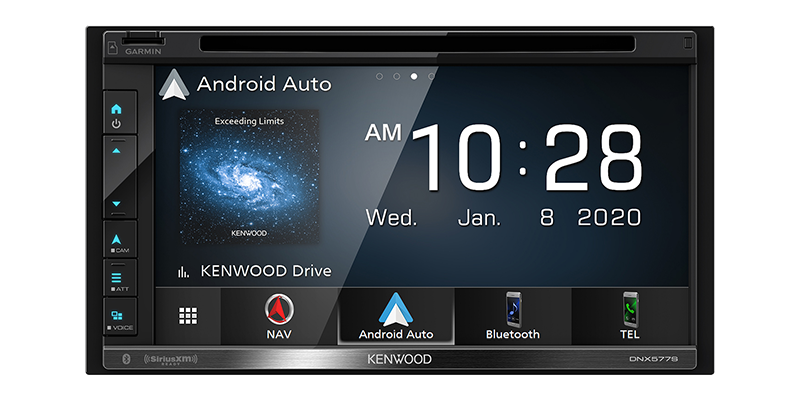

  • Apple CarPlay™ & Android Auto™
  • High-Resolution Audio
  • Customizable Multi Widget Screen
  • Dash Camera Link
  • USB Mirroring for iPhone and Android
  • 4 Camera Inputs
  • Built-in Bluetooth
  • 3 Preouts 4V
  • Garmin Navigation

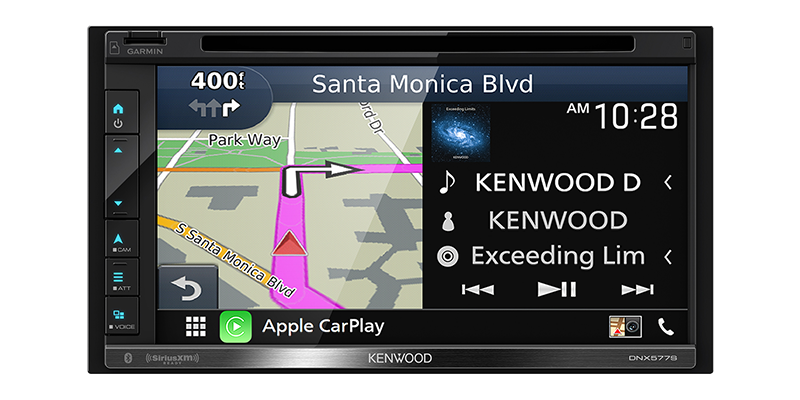

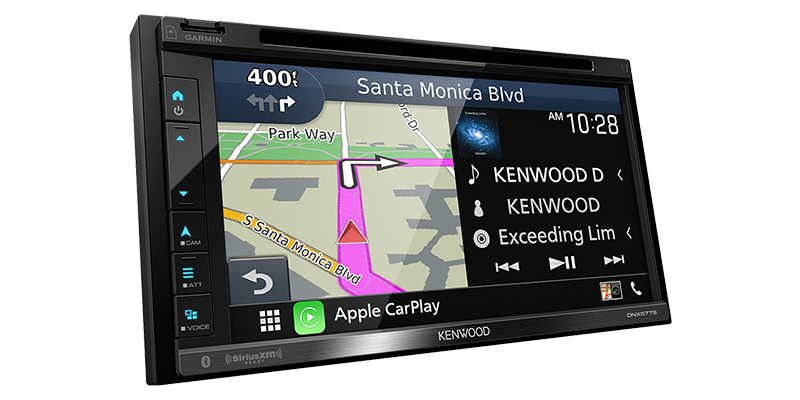

Advanced Navigation

Equipped with the industry leading Garmin navigation software,offering a variety of display options to make your driving easier.

Smartphone Connectivity

Enjoy convenient control of popular apps like Spotify and Pandora,built-in Bluetooth for hands-free calls and streaming music,as well as the ability to use your smartphone like a wireless remote control.

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files.Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Safe Driving

Keeping you safe on the road ahead is our top priority.

Additional Features

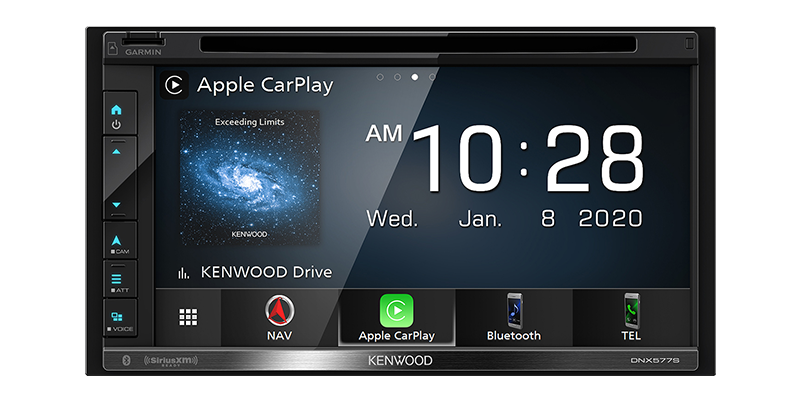

Customizable Multi Widget Screen

You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, weather, turn-by-turn, Garmin navigation and more.

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.

Remote Control (Optional)

This receiver unit can be operated using the optional remote control KNA-RCDV331.

Monitor Section
Picture size6.75 inches(diagonal) wide
W x H151.8 mm x 79.68 mm, 5-31/32 x 3-1/8 inch
Display systemTN LCD panel
Drive systemTFT active matrix system
Number of pixels1,152,000
Number of pixels800H x 480V x RGB
Effective pixels99.99%
Pixel arrangementRGB striped arrangement
Back lightingLED
DVD Section
D/A Converter24 / 32Bit
Audio DecoderLinear PCM
Audio DecoderDolby Audio
Audio DecoderMP3 / WMA / AAC / WAV / FLAC / Vorbis
Video DecoderMPEG1/2,MPEG4 / WMV / H.264 / MKV
Wow & FlutterBelow Measurable Limit
Frequency response 96k Sampling20 - 44,000 Hz
48k Sampling20 - 22,000 Hz
44.1k Sampling20 - 20,000 Hz
Total harmonic distortion 1kHz0.010%
Signal to Noise ratio90.5dB (DVD-Video 96k)
Dynamic range89dB (DVD-Video 96k)
DISC FormatDVD-Video / VIDEO-CD / CD-DA
Quantifying bit number16 / 20 / 24bit
USB I/F Section
USB StandardUSB2.0 High Speed
File SystemFAT 16/32, exFAT, NTFS
Maximum Power Supply CurrentDC5V=1.5A
D/A Converter24/32Bit
Audio DecoderMP3 / WMA / AAC / WAV / FLAC / Vorbis
Video DecoderMPEG1/2,MPEG4 / WMV / H.264 / MKV
SD Section
SD StandardSD / SDHC / SDXC
Compatible File SystemFAT 16/32, exFAT, NTFS
CapacityMaximum 2T Byte
Data Transfer RateMaximum 25MB/sec
Audio DecoderMP3 / WMA / AAC / WAV / FLAC / Vorbis
Video DecoderMPEG1/2,MPEG4 / WMV / H.264 / MKV
Bluetooth Section
TechnologyBluetooth Ver5.0
Frequency2.402 2.480 GHz
RF Output Power (E.I.R.P.)4dBm (MAX), Power Class 2
Maximum Communication rangeLine of sight approx.10m(32.8ft)
Audio CodecSBC / AAC
Multi Profile SupportMulti Profile
ProfileHFP (V1.7) (Hands Free Profile)
ProfileSPP (Serial Port Profile)
ProfileA2DP (Advanced Audio Distribution Profile)
ProfileAVRCP (V1.6) (Audio/Video Remote Control Profile)
Profile-
ProfilePBAP (Phonebook Access Profile)
DSP SectionGraphics equalizer
BAND13Band
frequency (Hz) (BAND1-13)62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
Gain2Way X'Over
HIGH PASS FILTER frequencyThrough/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
SLOPE-6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE-6/-12/-18/-24[dB/Oct.]
SLOPEPosition
Front / Rear /Subwoofer Delay0 - 20.01ft (0.03or0.04ft Step)
Gain-8 to 0dB
Subwoofer Level-50 to 10dB
FM
Frequency Range87.9MHz - 107.9MHz
(Frequency step)(200kHz)
Usable sensitivity9.3dBf
S/N30dB0.8V/75
Quieting sensitivity10.2dBf
DIN S/N 46dB1.13V / 75Ohms
Frequency response30Hz - 15kHz
(±3.0dB)30Hz - 15kHz
S/N (dB)65dB (MONO)
SelectivityOver 80dB (±400kHz)
Stereo separation45dB (1kHz)
AM
Frequency Range530kHz - 1700kHz
(Frequency step)(10kHz)
Usable sensitivity28dB
Video
Color system of external video inputNTSC/PAL
External video input level (RCA jacks)-
External video input level (Mini jacks)1 Vp-p / 75 Ohms
External audio max input level (RCA jacks)-
External audio max input level (Mini jacks)2 V / 25 kOhms
Video Input level (RCA jacks)1 Vp-p / 75 Ohms
Video Output level (RCA jacks)1 Vp-p / 75 Ohms
Audio Output level (RCA jacks)-
Audio Output level (Mini jacks)0.9 V / 10 kOhms
Analog RGB input-
Audio
Maximum Power Output (Front&Rear)50Wx4
Typical Power Output (Front&Rear)Full Bandwidth Power
Typical Power Output (Front&Rear)(at less than 1%THD)
Typical Power Output (Front&Rear)22Wx4
Output frequency band20 - 88,000Hz
Preout level (V)4V / 10kOhms
Preout impedance ()=< 300 Ohms
Speaker Impedance ()4-8 Ohms
Navigation Section
ReceiverHigh-sensitivity GPS receiver
Receiving frequency1575.42MHz (C/A code )
Acquisition TimesCold: 29 seconds(typ)
Acquisition TimesAll satellites at -130dBm Without aiding
Update Rate1/second, continuous
AccuracyPosition: < 2.5meters,CEP, at -130dBm
AccuracyVelocity: 0.1meter/sec
Positioning MethodGPS
AntennaExternal GPS Antenna
Installation Dimensions WxHxD178mm x 100mm x 155mm
Installation Dimensions WxHxD7 x 3-15/16 x 6-1/8 inch
(with Sleeve)182mm x 112mm x 153mm
(with Sleeve)7-3/16 x 4-7/16 x 6 inch
Weight Main unit2.1 kg
Weight Main unit4.6 lb
Weight Main unit(Excluding trim plate and sleeve)
