- 10" 4-ohm shallow-mount subwoofer
- Carbon-glass fiber composite cone with butyl rubber surround
- Cast aluminum basket
- Power range: 50-250 watts RMS
- Peak power: 1,000 watts
- Frequency response: 35-800 Hz
- Sensitivity: 90 dB
- Mounting depth: 3-3/8"
- Sealed box volume: 0.6 cu. ft.
- Ported box volume: 0.6 cu. ft.
Flat Subwoofer: The Kenwood eXcelon flat subwoofer design is approximately 40% slimmer in height than a standard subwoofer. This makes them ideal for installation in the tightest of spaces such as behind or under the seat of a pickup truck.

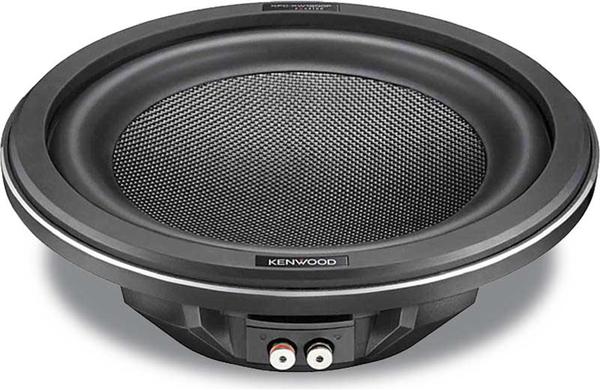

Carbon-Glass Fiber Cone: The eXcelon flat woofer uses a carbon-glass fiber honeycomb cone which allows the woofer to be efficient and durable at the same time.
Rubber Surround: The Kenwood woofer features a smooth linear rubber surround for added durability and increased excursion resulting in exceptional deep bass response.
Super Linear Spider: The flat woofer utilizes a super linear spider for maximum control over the woofer's linear motion to improve overall sound quality.
Heat Transfer System: The Kenwood woofer features an advanced Heat Transfer System designed specifically for its slim-design to provide proper ventilation to keep the woofer cool.
Aluminum-Cast Basket: The woofer is housed in a cast-aluminum basket for increased rigidity and long-lasting reliability.

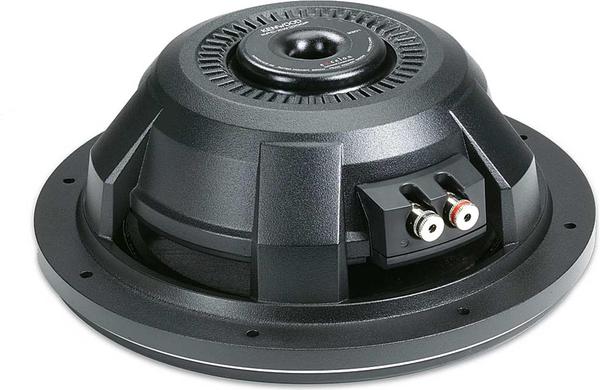

Spring Terminals: The flat woofer utilizes a pair of silver-plated spring terminals on one side of the woofer for connection to your amplifier's speaker wiring. The spring terminals will accept up to 10 AWG speaker wire.
Concealing Ring: The eXcelon woofer comes supplied with a removable, rubber concealing ring used to hide the woofer's mounting screws for a neat and professional looking installation. The concealing ring increases the top mounting height to 1".
Sealed BoxVolume: The sealed box size recommended by Kenwood is 0.6 cu/ft.
Vented Box Volume: The vented box size recommended by Kenwood range is 0.6 cu/ft. One 3" diameter x 11" long port should be used with a 0.6 cu/ft enclosure.
|Cutout Diameter or Length (inches)||9 1/8|
|Bottom Mount Depth (inches)||3 15/16|
|Top Mount Depth (inches)||3 3/8|
|Peak Power Handling (Watts)||1000|
|RMS Power Range (Watts)||50-250|
|Frequency Response||35 - 800 Hz|
|Sensitivity||90 dB at 1 watt|
|Dual Voice Coil||No|
|Port length (inches)||11|
|Port diameter (inches)||3|
|Ideal Ported Box Volume (cubic feet)||0.6|
|Ideal Sealed Box Volume (cubic feet)||0.6|
|Surround Material||Butyl rubber|
|Cone Material||Carbon-glass fiber|
