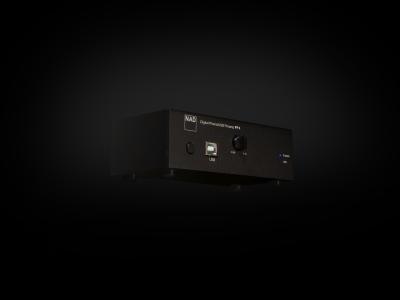

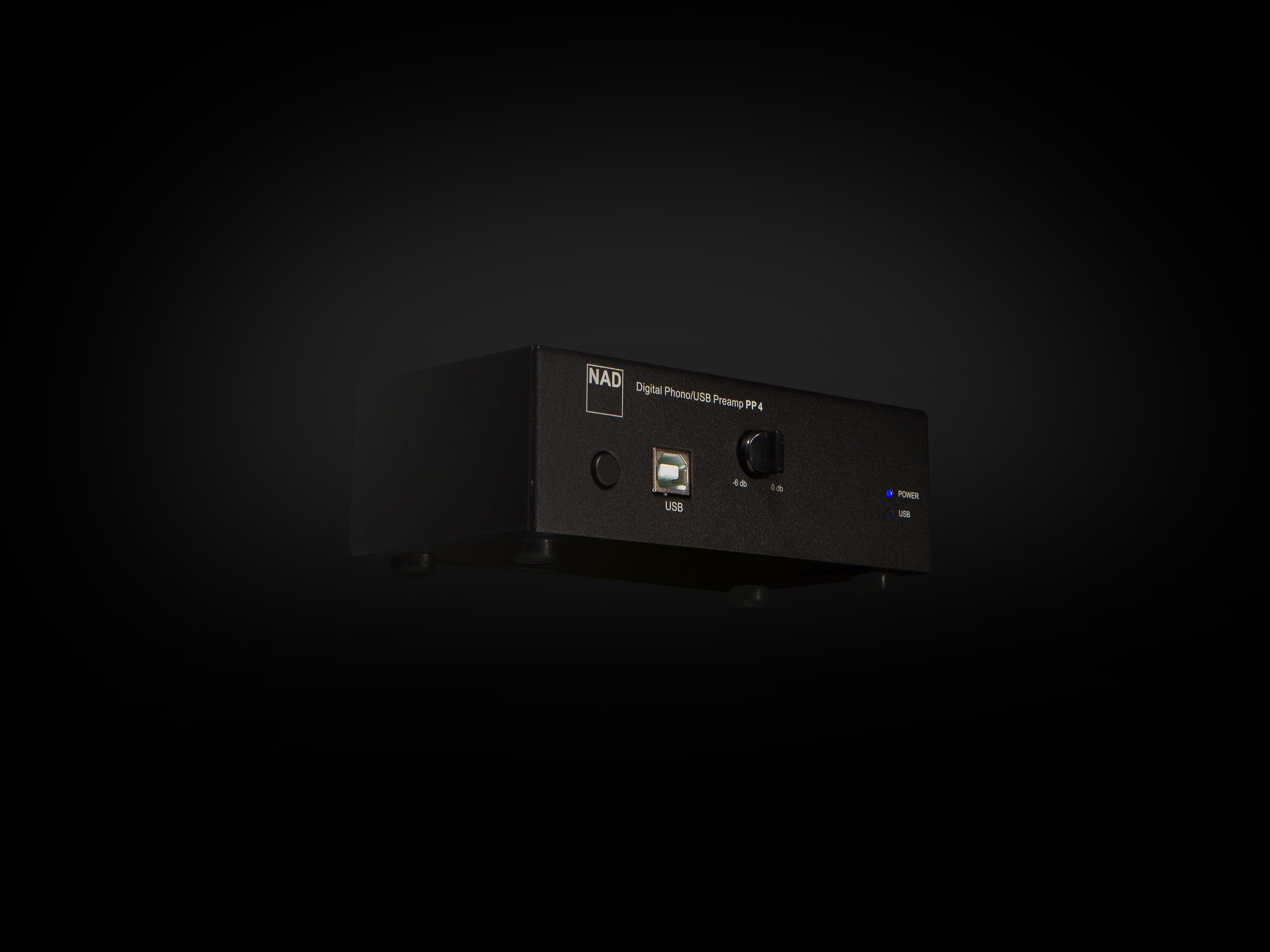

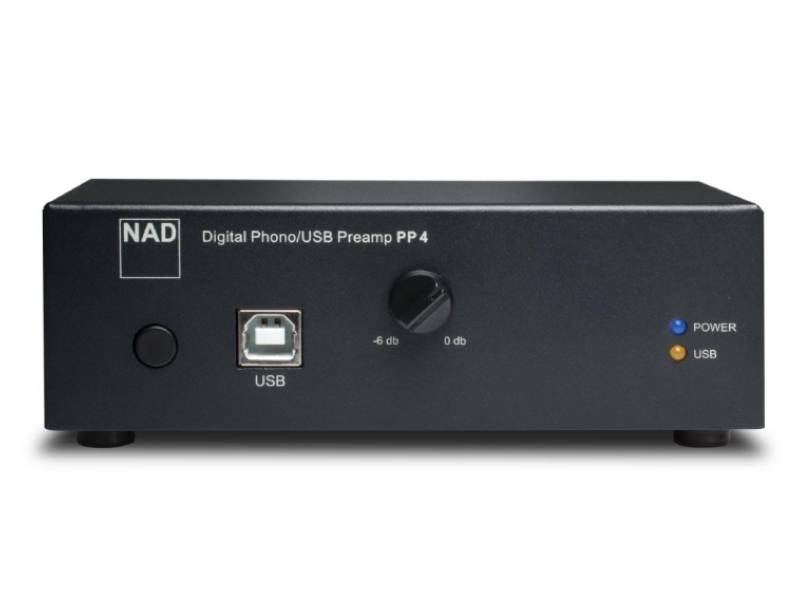

NAD Digital Phono USB Preamplifier - PP4
Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Availability
In Stock

Literature

With the addition of the PP 4 to your home system, the LPs you cherish the most come alive in the form of expansive and rich sound. Offering superb and measured sonic performance, NAD combines two simple solutions – the PP 4 Digital Phono and the USB Preamplifier – into one small device, making it easy to add phono to stereo amplifiers and AV receivers without a phono input. The PP 4 uses a shielded USB cable and recording level control, which reduces noise and improves the analogue-to-digital conversion process. As part of NAD’s commitment to the environment, the PP 4 features a more efficient “green” power supply that reduces power consumption. It also has an Auto Power Down feature that saves energy by shutting off when not in use.

DIGITISE YOUR VINYL COLLECTION

Offering superb measured and sonic performance, NAD’s two simple solutions, the PP 4 Digital Phono/USB Preamplifier makes it easy to add phono to many of today’s stereo amplifiers and AV receivers that have either eliminated the phono input or included a low quality circuit for attaching your turntable. As part of NAD’s commitment to the environment, the PP 4 features a more efficient “green” power supply that reduces power consumption. The PP 4 goes one step further with a USB interface, shielded USB cable and recording level control which reduces noise and improves the analogue-to-digital conversion process. The PP 4’s Auto Power Down feature saves energy by automatically powering the PP 4 to OFF when not in use.

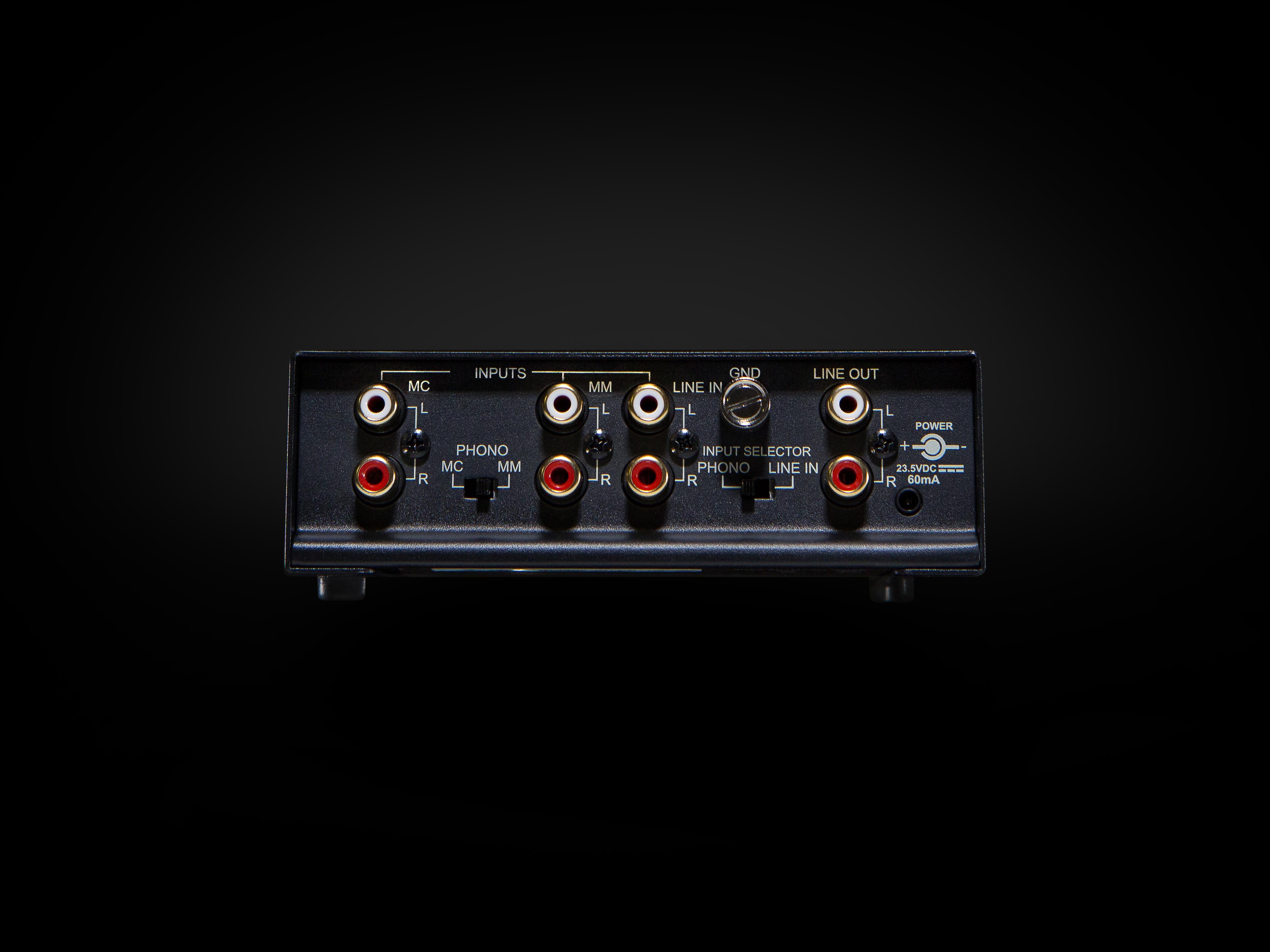

Our PP 4 Digital Phono/USB Preamplifier enables you to digitise your treasured vinyl collections to a PC or Mac. It features inputs for both MM (moving magnet) and MC (moving coil) types for a wide variety of phono cartridges, and there is a line input to allow for the transfer of cassette tapes. The PP 4 also includes VinylStudio Lite Software for ripping LPs and burning audio CDs. The PP 4 Phono-to-USB Preamp offers a complete hardware and software solution with exceptional flexibility to record from LP or tape.

PP 4 VinylStudio Lite

The PP 4 (or the older PP 3) comes with Mac and PC compatible version of AlpineSoft’s VinylStudio Lite ripping software is included with your new PP-4. With VinylStudio Lite you can:

  • Rip LPs into WAV files
  • Split Tracks
  • Burn CDs
  • Record Disks
  • Look up Song Titles
  • Handle File Management
MC
Input Impedance (R and C)100 Ohm + 180pF
Gain at 1kHz58dB
Input sensitivity (ref. 200mV output)0.38mV
Signal to noise (A weighted, with cartridge connected)78dB
Input overload (20Hz/1kHz/20kHz)0.65/6.5/60mV
Rated Distortion (THD 20Hz – 20kHz)<0.03%
RIAA response accuracy±0.3dB
Infrasonic filter-14dB (5Hz), -3dB (10Hz)
Digital output (USB)16 bit linear PCM
Sampling frequency48kHz
Dynamic range86dB
MM
Input Impedance (R and C)47 kilohm + 200pF
Gain at 1kHz35dB
Input sensitivity (ref. 200mV output)5mV
Signal to noise (A weighted, with cartridge connected)76dB
Input overload (20Hz/1kHz/20kHz)10/100/900mV
Rated Distortion (THD 20Hz – 20kHz)<0.03%
RIAA response accuracy±0.3dB
Infrasonic filter-14dB (5Hz), -3dB (10Hz)
Digital output (USB)16 bit linear PCM
Sampling Frequency48kHz
Dynamic range89dB
Record Level0dB to -6dB
Gross Dimensions excl. Power supply (W x H x D)*135 x 49 x 72mm 5 5/16 x 1 15/16 x 2 7/8″**
LINE IN
Input Impedance47 kilohm + 180pF
Rated Distortion (THD 20Hz – 20kHz)<0.008%
Signal to noise, A weighted-115dB
Maximum Input Level5.3V
LINE OUT
Output Impedance100 Ohm
Maximum Output Level5.3V
