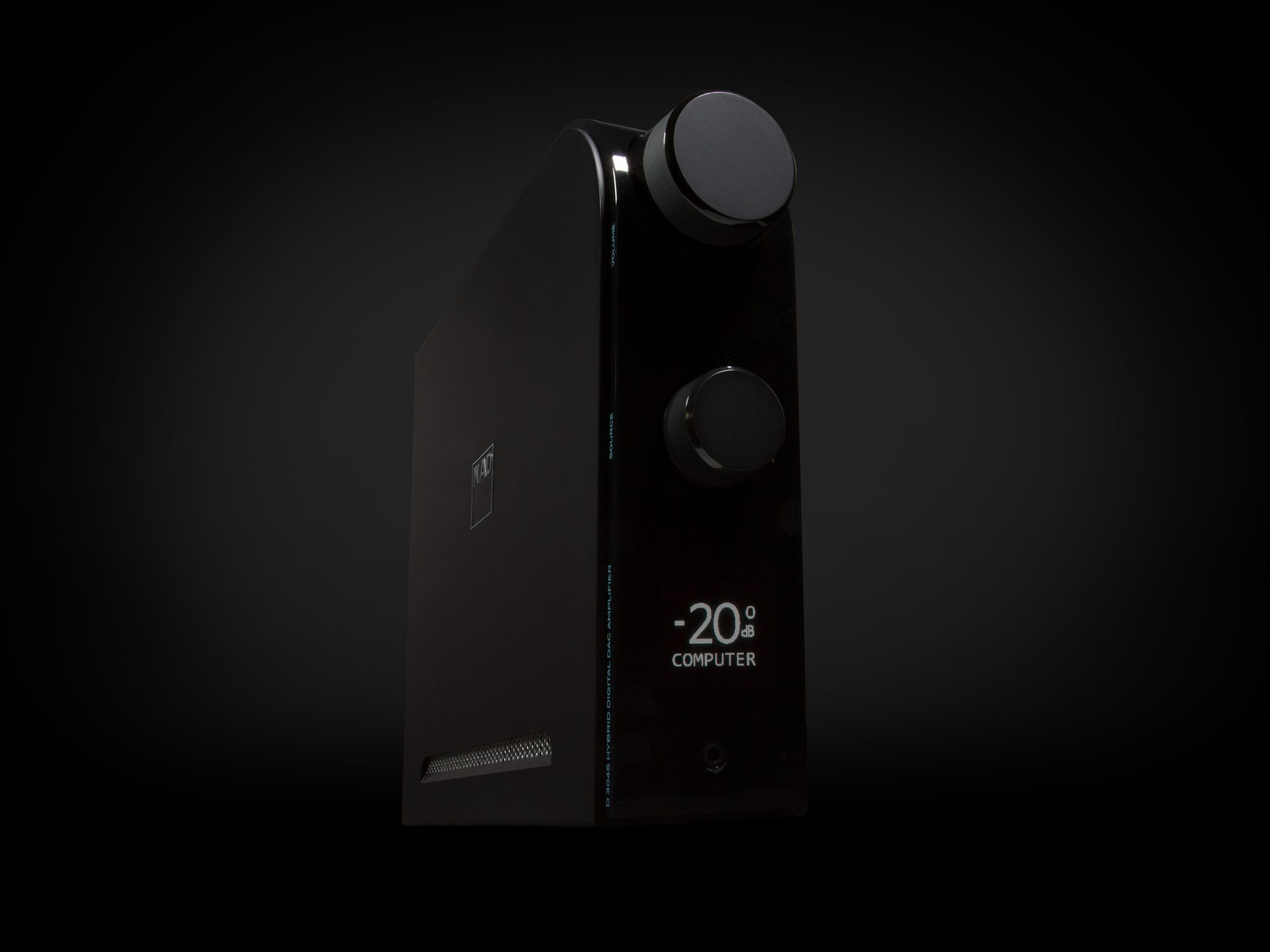

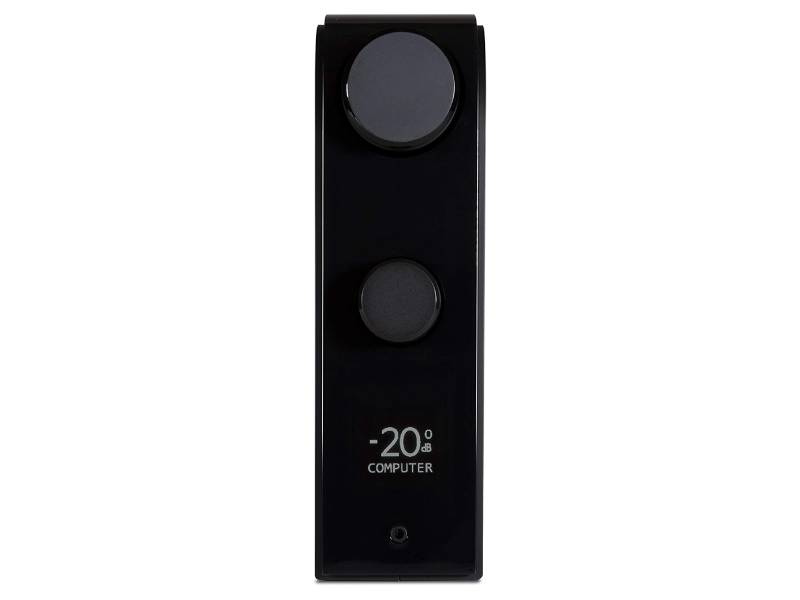

NAD Hybrid Digital DAC Amplifier - D 3045
The NAD D 3045 is everything a modern amplifier should be; compact, energy efficient, powerful, silent, High Resolution capable, and packed with cutting edge features like DSD and MQA playback. NAD’s expertise in both digital and analog engineering is on full display in this flexible and affordable amplifier.
D 3045 HYBRID DIGITAL AMPLIFIER
HIGHER FIDELITY
High Res is to audio, what High Definition is to video. It is more lifelike and natural, and an altogether more enjoyable listening experience. With features like Master Quality Authenticated (MQA) the D 3045 can faithfully and accurately reproduce the full spectrum of sound encapsulated on the Studio Master. Until now, music lovers have only been allowed to hear an edited version of the full fidelity because our delivery systems, be it tape, vinyl, or CD, did not have the capacity to hold all the information contained in the Studio Master recording. With High Res downloads and streaming we can now enjoy exactly the same experience the artist heard in the studio when the recording was first made.
AMAZING CAPABILITY
We recognize that just because there is a new better format available doesn’t mean your present music collection will be discarded – far from it. So we have included all the inputs and circuits required to listen to all your current music, while also possessing the capability to fully exploit today’s best High Res sources. Especially notable is the Asynchronous USB input for attaching a computer which allows High Res streaming using one of the several High Res programs like Roon, JRiver, and Amarra. Asynchronous operation uses the D 3045’s precision clock (instead of the computers clock) to reduce jitter to a minimum and make the USB format work ideally for audio. For everyday convenience we have included Bluetooth wireless streaming featuring aptX HD, the latest 24-bit High Res version of Bluetooth that is being supported by more and more phones and tablets. Additionally, if you have Bluetooth headphones, you can also stream your non-Bluetooth sources wirelessly to your headphones, or you can plug in your wired headphones to enjoy the exceptional performance of our low impedance, high current, Headphone Amplifier.
FEATURES YOU WON’T FIND ANYWHERE ELSE
Love vinyl? The D 3045 features NAD’s super accurate, wide dynamic range, Moving Magnet Phono preamp to extract every last morsel of sound from your LPs. If you still play CDs, we have both analog and digital inputs. The digital inputs allow use of the advanced High Res DAC built into the D 3045. You can even send the sound from your TV to the NAD and seamlessly control the system using your TV’s remote by taking advantage of the HDMI ARC input. Complete your system by adding a subwoofer with the convenient Sub Out jack.
PERFORMANCE AND PRICE
The NAD D 3045 includes advanced capabilities usually only found in far more expensive components. High Res USB DACs? They start at about 3X the price of the D 3045. High Current headphone amplifiers start at the price of the D 3045 and go up from there. Power Amps featuring 60wpc and with the low distortion and high current capability of the D 3045 are rare at this price. Yet all these products are wrapped into one compact, energy efficient, and convenient package engineered by one of audio’s most iconic brands. 45 years of audio excellence is on full display with this innovative and versatile component. Just add your favourite music source and a great set of speakers to enjoy many years of sonic bliss.

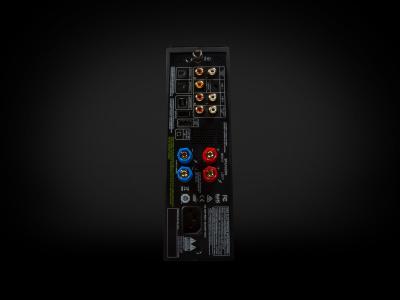

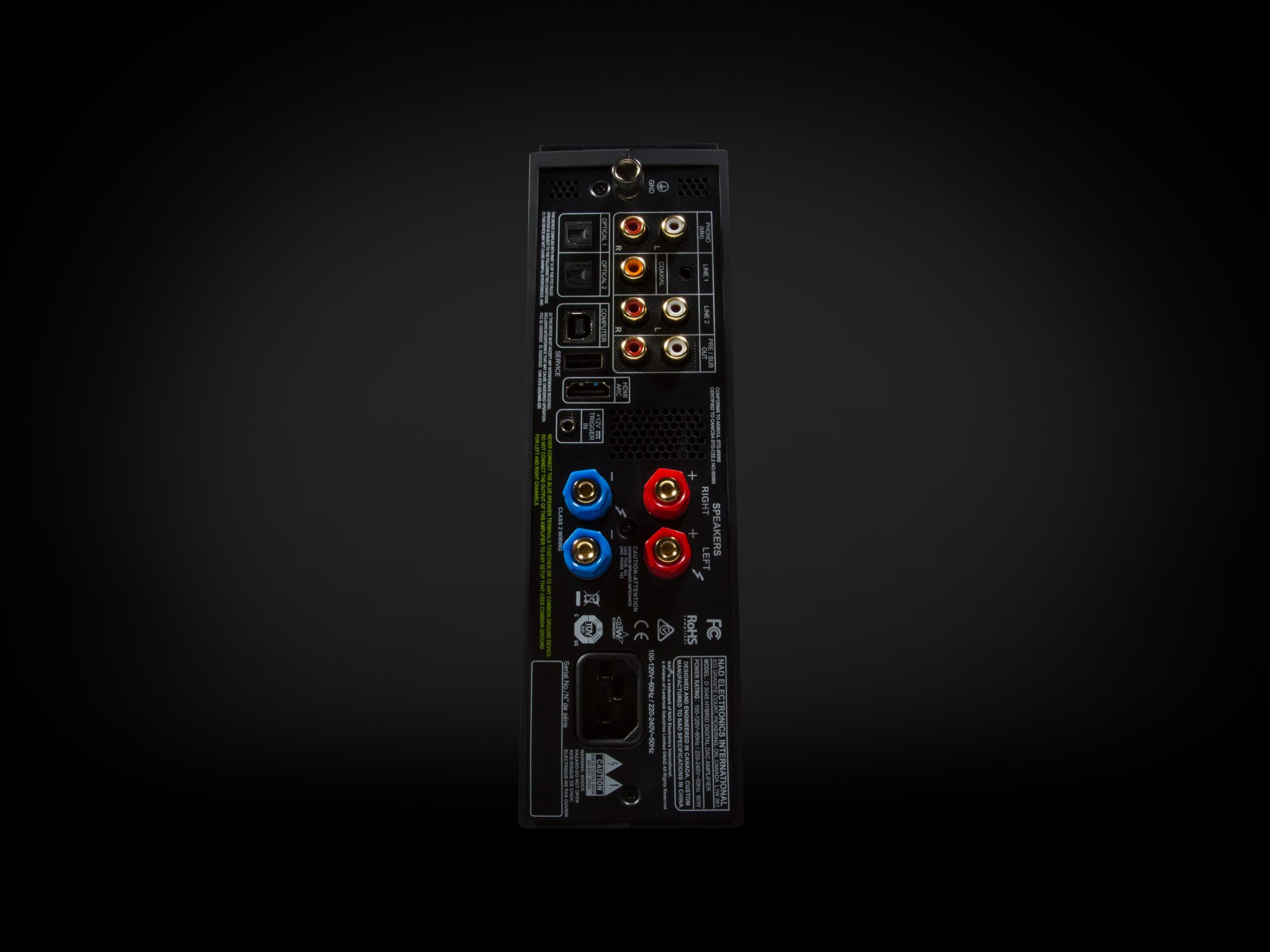

FEATURES & DETAILS
- 2 x 60W Hybrid Digital Amplifier
- Two-Way Bluetooth powered by Qualcomm aptX HD audio
- Asynchronous USB 24/192 Input supporting MQA and DSD
- HDMI Audio Return Channel
- Coax and Optical Input
- MM Phono and Line Input
- Preamp Out
- Sub Out
- Headphone Amp
- IR Remote
PREAMPLIFIER SECTION LINE INPUT/PRE OUT | |
---|---|
THD (20Hz – 20kHz) | <0.003% at 2V out |
Signal-to-Noise Ratio | >100dB (IHF, A-weighted, ref. 500mV out, unity gain) |
Channel separation | >85dB (1kHz) >80dB (10kHz) |
Input impedance (R and C) | 47kohms + 220pF |
Maximum input signal | >5.5Vrms (ref. 0.1% THD) |
Output impedance | 400 Ohms |
Input sensitivity | 82mV (ref. 500mV out, Volume maximum) |
Frequency response | ±0.2dB (20Hz – 20kHz) |
Maximum voltage output – IHF load | >4V (ref. 0.1% THD) |
PHONO INPUT / PRE OUT | |
THD (20Hz – 20kHz) | <0.015% at 2V out |
Signal-to-Noise Ratio | >82dB (200 Ohm source, A-weighted, ref. 500mV out), >76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out) |
Input sensitivity | 1.35mV (ref. 500mV out, Volume maximum) |
Maximum input signal at 1kHz | >90mVrms (ref. 0.1% THD) |
Frequency response | ±0.3dB (20Hz – 20kHz) |
LINE INPUT / HEADPHONE OUT | |
Frequency response | ±0.3dB (20Hz – 20kHz) |
Output impedance 2 Ohms | Maximum headphone output – 32 Ohm load <8V (ref. 0.1% THD) |
THD (20Hz – 20kHz) | <0.003% at 120mW |
Signal-to-Noise Ratio | >90dB (32 Ohm load; A-weighted, ref. 500mV out, unity gain) |
GENERAL SPECIFICATIONS LINE INPUT/SPEAKER OUT | |
Continuous output power into 4 and 8 Ohms | 60W (ref. 20Hz-20kHz at 0.03% THD, both channels driven) |
THD (20Hz – 20kHz) | <0.005% (at 1W, 4 and 8 ohms) |
Signal-to-Noise Ratio | >98dB (A-weighted, 500mV input, ref. 2.828V out in 4 Ohms) |
Clipping power | >80W (at 1kHz 4 Ohms 0.1% THD) |
IHF dynamic power | 8 Ohms : 80W, 4 Ohms : 150W, 2 Ohms : 200W |
Peak output current | >18A (in 1 Ohm, 1ms) |
Damping factor | >300 (ref. 8 Ohms, 20Hz to 6.5kHz) |
Frequency response | ±0.3dB (20Hz – 20kHz) |
Channel separation | >75dB (1kHz), >70dB (10kHz) |
Input sensitivity | 260mV (for 30W in 4 Ohms) |
Supports bit rate/sample rate | up to 24 bit/192kHz (digital source), up to 24 bit/384kHz (computer source) |
Standby power | <0.5W |
Dimension and Weight | |
Gross dimensions (W x H x D)* | 70 x 235 x 265 mm 2 13/16 x 9 5/16 x 10 7/16 inches** |
Net weight | 3.6kg (7.9lb) |
Shipping weight | 2.6kg (5.7lb) |
