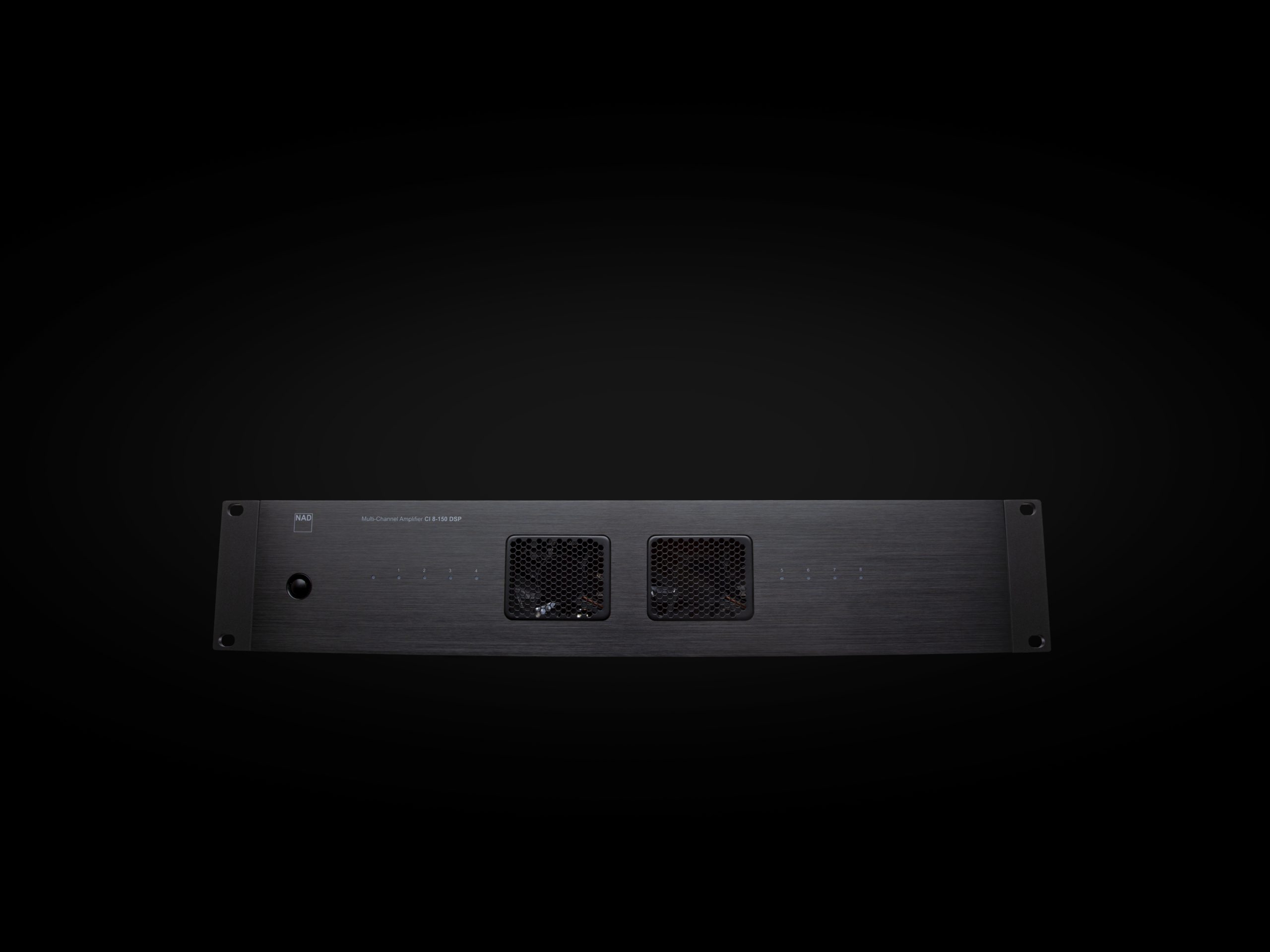

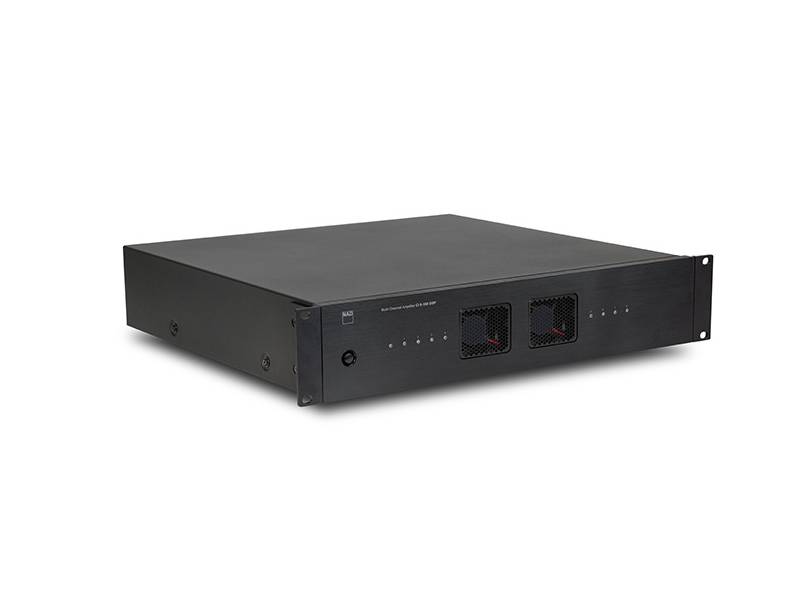

NAD Multi-Channel Amplifier - CI 8-150 DSP
Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Availability
Call for availability

Literature

Our eight-channel powerhouse promises NAD’s legendary performance with reliability and stability with lots of installer-friendly Features. The all all-new CI 8-150 is an advanced amplifier targeted squarely at audiophile-grade distributed audio systems. Delivering a conservative 8 x 150 watts per channel @ 8 ohm, it is also bridgeable to 4 x 365 watts per channel @ 8 ohms and 430 wWatts into 4Ohms, with all channels driven. To put it simply, the CI 8-150 will drive most anything you need in your multi-room audio system. And will do so with remarkable sound quality.

SMART CI SOLUTION WITH AUDIOPHILE PERFORMANCE FOR DISTRIBUTED AUDIO

The Ncore amplifier platform delivers stable and efficient power with high current capability, all in a slim 1U rack space. To make this level of performance possible, the CI 8-150 DSP uses a customized version of the proven Ncore output stage. This allows for massive power with extremely low distortion and noise in the audible range. Every detail of this design has been carefully executed to wring out every last drop of performance. Designed to deal with the demands of the CI world, it was made to handle long cable runs and difficult speaker loads.

For additional flexibility for the system designer, the CI 8-150 offers multiple inputs including an additional two coax inputs and two optical inputs.

NAD is keenly aware that reliability is paramount for a professional installer so all models will be based on tried and true amplification platforms delivering stable and reliable performance. The CI 8-150 amplifier is robust and stable at 4 ohm impedance. A variety of power methods are available as well as an Eco mode setting for minimal power consumption.

Key Features of the NAD CI 8-150 DSP Amplifier

  • 8 Channels x 150 Watts @ 8 Ohms
  • Bridgeable to 4 Channels X 365 Watts @ 8 Ohms, all channels driven
  • Ncore amplifier technology for audiophile sound quality
  • 1U Rack Height- saves valuable rack space
  • Platform accessed through IP control
  • Custom web app manages DSP calibration, IP control and more
  • Effectively handles long cable runs and difficult speaker loads
  • Dual global Inputs/Outputs
  • 0.5W Standby Mode, 3W Network Standby
  • 12V Trigger In; IR In/Out
  • Auto Sense Turn-on
  • Universal AC Power Supply
General
Continuous output power into 8 ohms150 W (ref. 20 Hz-20 kHz at rated THD – all channels driven) , 180 W (ref. 20 Hz-20 kHz at rated THD – two channels driven)
Continuous output power into 4 ohms180 W (ref. 20 Hz-20 kHz at rated THD – all channels driven) , 300W (ref. 20 Hz-20 kHz at rated THD – two channels driven)
Continuous output power into 8 ohms at Bridged mode280 W (ref. 20 Hz-20 kHz 0.02% THD – all channels driven) , 500 W (ref. 20 Hz-20 kHz 0.02% THD – two channels driven)
THD (20 Hz – 20 kHz)0.02% (1 W to 120 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio90 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power (All channels driven)160W(1kHz8ohms 0.1%THD) , 200W(1kHz4ohms 0.1%THD)
Clipping power into 8 ohms at Bridged mode300 W (1 kHz 0.1 % THD – all channels driven) , 550 W (1 kHz 0.1 % THD – two channels driven)
IHF Dynamic Power (all channels driven) – 8 Ohms180W
IHF Dynamic Power (all channels driven) – 4 Ohms280W
IHF Dynamic Power (two channels driven) – 8 Ohms200W
IHF Dynamic Power (two channels driven) – 4 Ohms360W
IHF Dynamic Power (Bridged mode, All channels driven) – 8 Ohms520W
IHF Dynamic Power (Bridged mode, All channels driven) – 4 Ohms670W
IHF Dynamic Power (Bridged mode, Two channels driven) – 8 Ohms600W
IHF Dynamic Power (Bridged mode, Two channels driven) – 4 Ohms800W
Peak output current26A(1ohm,1ms)
Damping Factor150 (ref. 8 ohms, 20 Hz to 6.5 kHz)
Frequency Response±0.5dB(20Hz-20kHz)
Channel Seperation75 dB (1 kHz) , 65 dB (10 kHz)
Maximum undistorted input level3300 mV
Input sensitivity (for 150 W in 8 ohms, maximum volume)1450 mV
Analog Input audio sense threshold (one channel with signal)3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz)
Trigger IN level3-30Vdc
Standby power0.5 W
Dimension and Weight
Gross dimensions (W x H x D)*483x90x435mm , 19 1/16 x 3 9/16 x 17 3/16 inches
Shipping Weight17.6 kg (38.8 lbs)
