- In-wall applications.
- 3/4" PTD™ dome tweeter.
- 6.5" mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
- Bezel-Free Micro-Perf Grille.
Your “Go-To” Custom Install Speaker.
The CI Home™ series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.
High-Quality Components Make An Audible Difference
- Superior PTD™ Pure-Titanium Tweeter Domes are Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
- Pocketed screw holes help to hold the drill steady, making installation a snap.

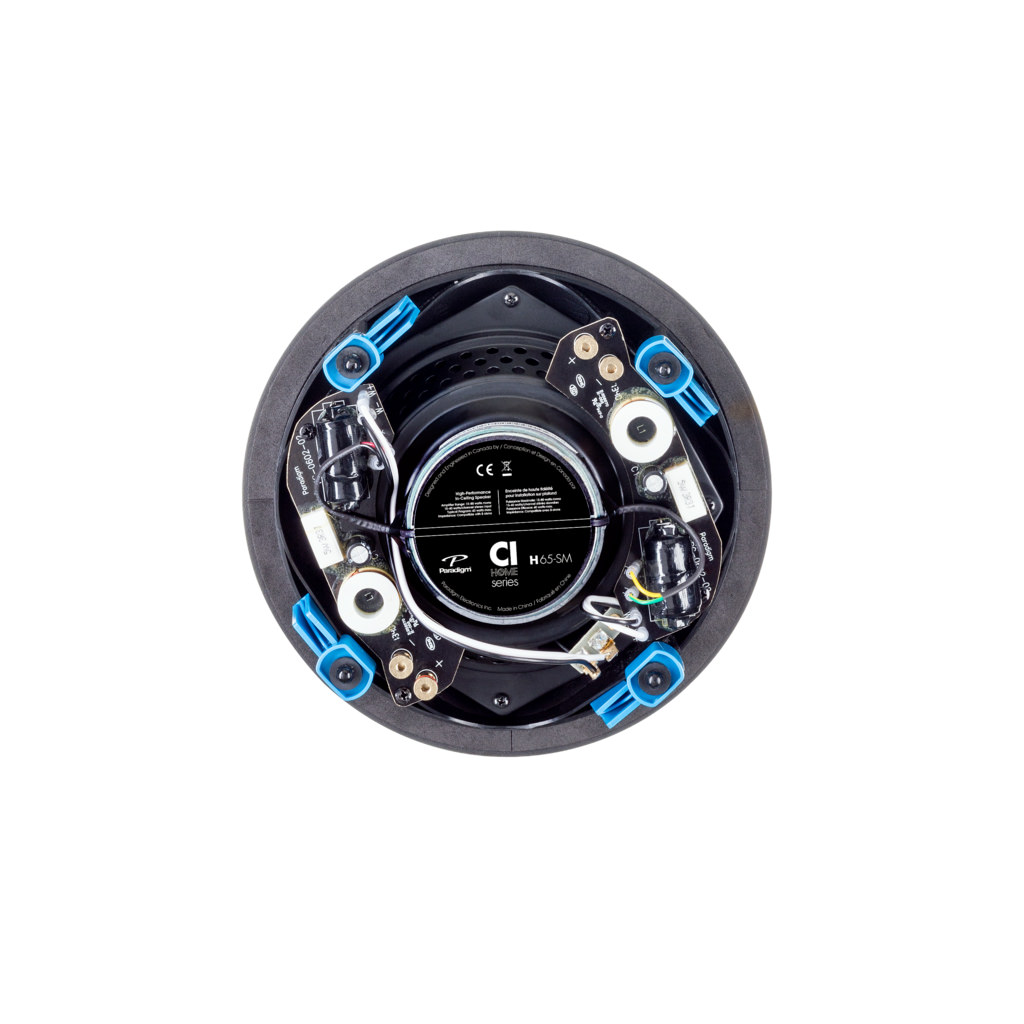

- Easy-access Binding Posts feature a larger wire access hole and connect via banana plug, pin or bare wire.
- Rigid ABS clamps cut down on installation time and simplifying installation.
- Superior Mineral-Filled Polypropylene Bass/Midrange Cones with oversized computer-optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass. Even movie dialog is incredibly clean and clear.

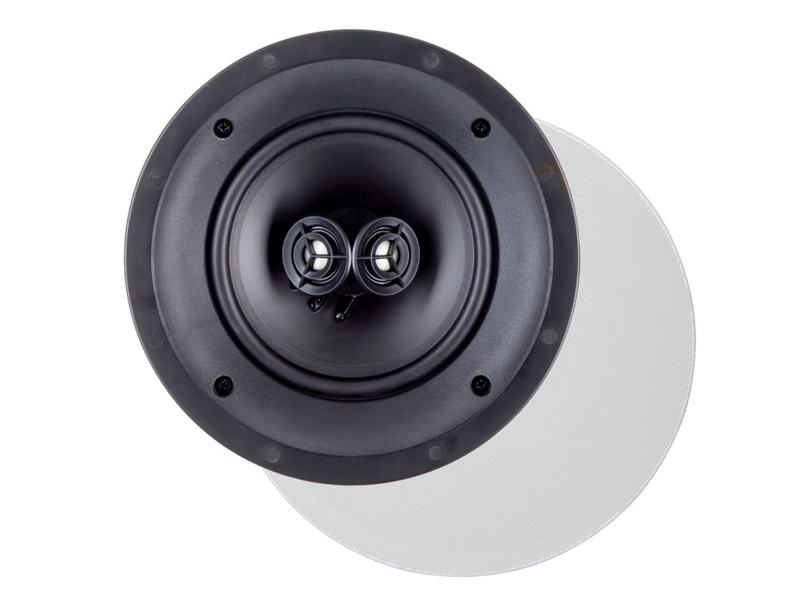

- NEW Bezel-Free Micro-Perf Grilles.
- Magnetically attached grilles: neodymium magnets hold grilles firmly in place.
- No masking required—this makes the grilles faster and easier to paint, if painting is desired.

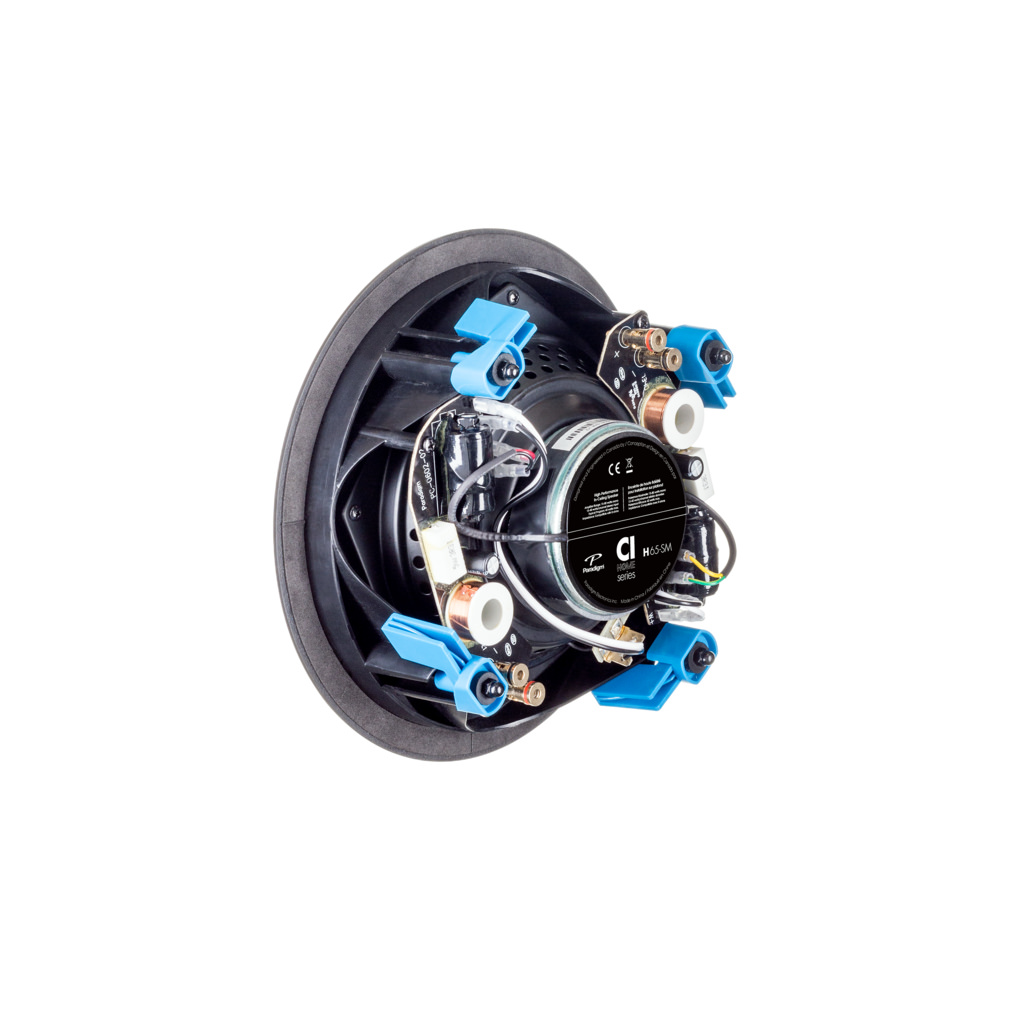

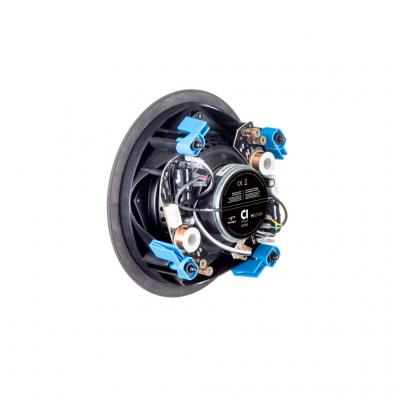

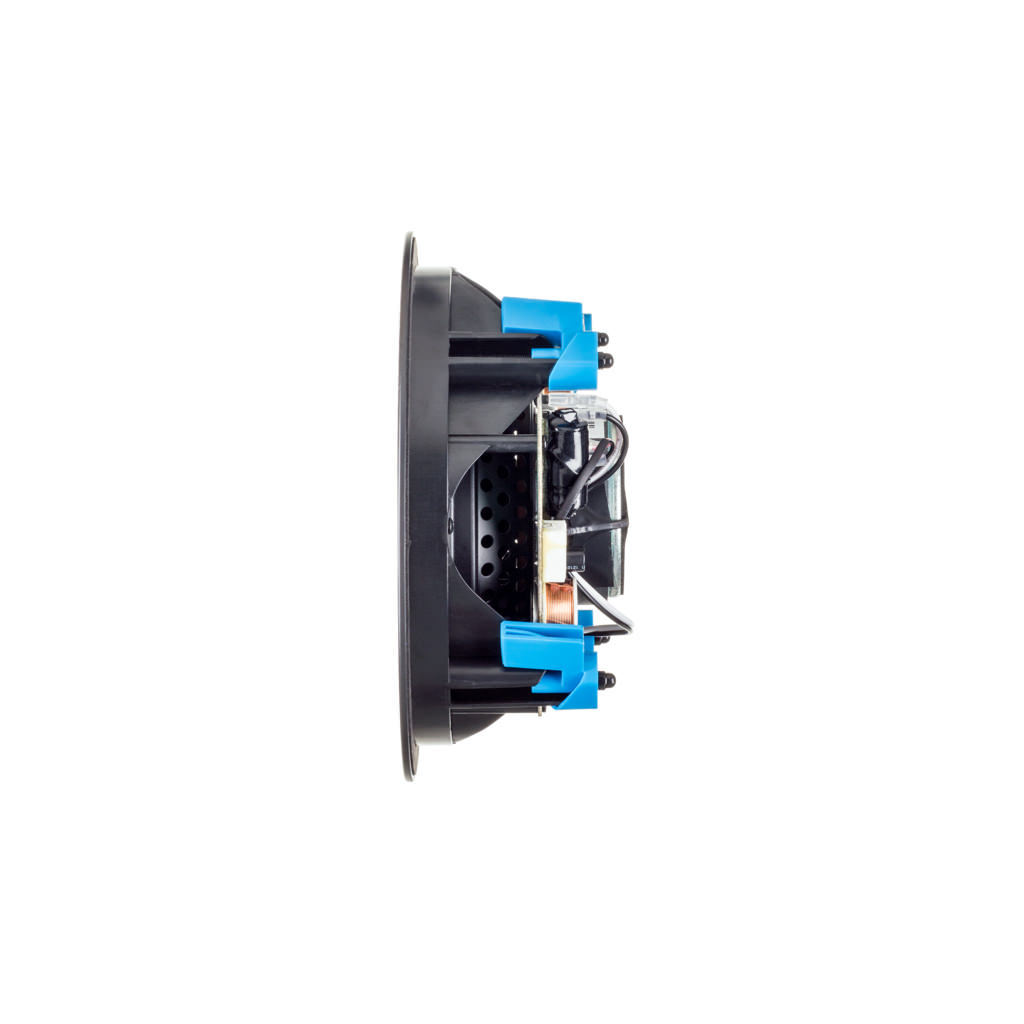

A Behind-the-Ceiling Look at Our ABS Clamps
Without any unnecessary pressure or force, each turn of the screwdriver turns the clamp. We show the starting point, we show the screwdriver working to turn the clamp, and finally, we show the speaker locked into place inside the wall or ceiling. It doesn't get simpler or easier!
A Solid Installation
Our High-Strength ABS Chassis and Clamp System addresses the flexibility problem that plagues all walls and ceilings. ABS stiffness combats unwanted resonances and vibrations and equally important, the new clamp design makes the installer's job easier and faster!
At Every Level
Pure-Titanium Tweeter Dome (PTD™)
Mineral-Filled Polypropylene Cone
- Dual-Directional Soundfield™ Model
- 30°-Angled Guided Soundfield™ Model
- Bezel-Free Micro-Perf Grille
- Rigid ABS Clamps
|Weight||4 lbs. (1.8 kg)|
|Overall Dimensions||8.75" (22.2cm) Diameter 3.625" (9.2cm) Depth|
|Finishes||White, paintable grille|
|Maximum Input Power||100 W Mono / 50 W Stereo|
|Suitable Amplifier Power Range||15-80W Mono / 15-40 W/Channel Stereo|
|Impedance||Compatible with 8 ohms|
|Sensitivity Room / Anechoic||89 dB / 85 dB|
|Low Frequency Extension||52 Hz|
|Mid/Bass Frequency Driver||6.5" (16.5cm) mineral-filled polypropylene cone, dual voice-coil|
|High Frequency Driver||Two 3/4" (1.9cm) PTD™ domes|
|Frequency Response 30° Off-Axis||±2 dB from 70 Hz - 15 kHz|
|Frequency Response On-Axis||±2 dB from 70 Hz - 20 kHz|
|Crossover||Two 2nd-order electro-acoustic at 3.0 kHz|
|Design||3-driver, 2 x 2-way in-ceiling, switchable stereo/mono, ABS chassis & mounting clamps|
|Cut-Out Dimensions||7.75" (19.7cm) Diameter|
|Minimum Mounting DepthDepth required is the distancebetween 1/2" drywall, or similar material.||3" (7.6cm)|
